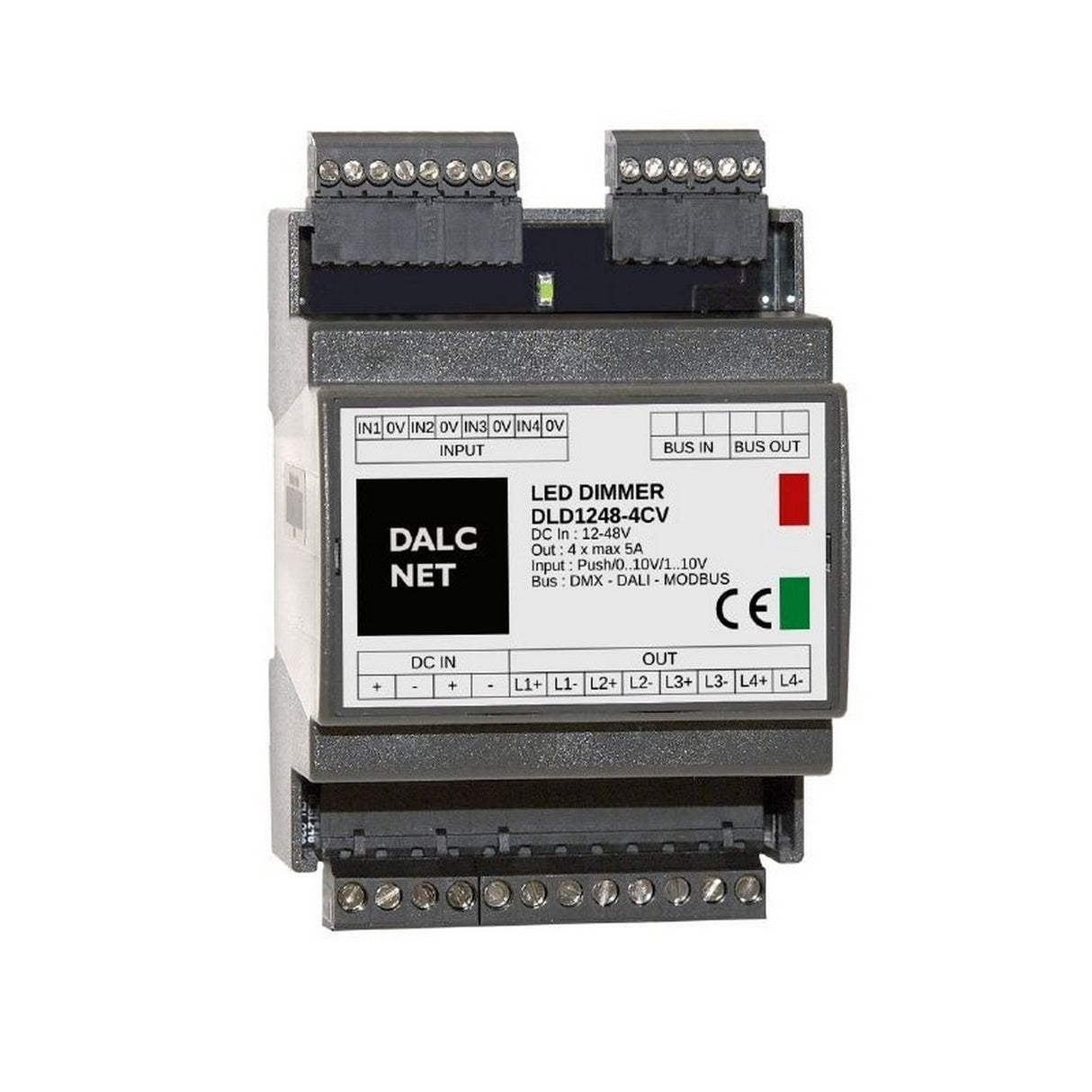

DIN-rail 4-Channel Constant Voltage LED Dimmer with DALI ~ Model DLD1248-4CV-DALI

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

4-Channel Constant Voltage LED Dimmer with DALI is a professional-grade dimming solution crafted by Dalcnet. This LED dimmer is DIN-rail mounted for installation in standard electrical distribution boxes.

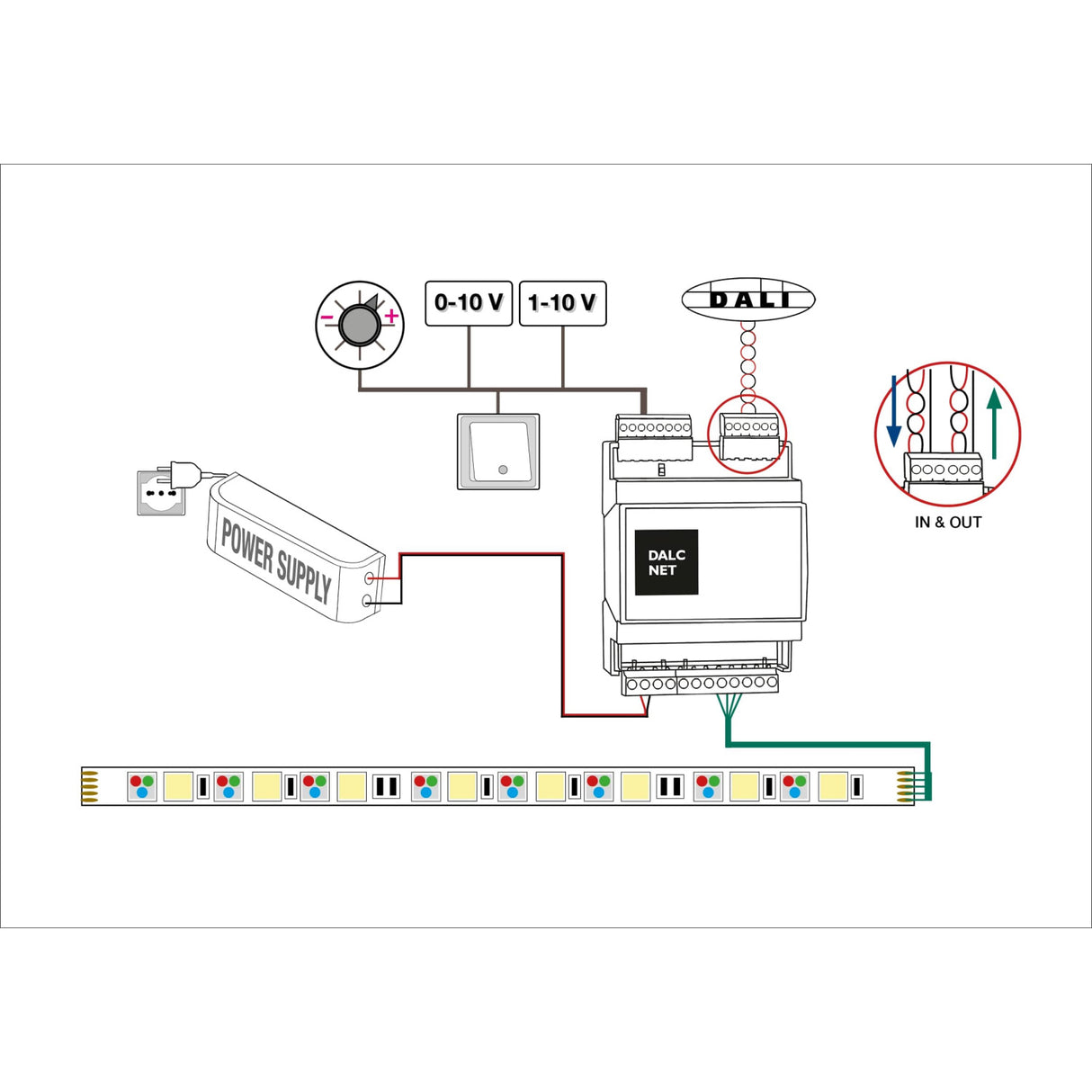

Equipped with both BUS command DALI and local control options, including N.O. push, 0-10V, 1-10V, and potentiometer, this dimmer offers unparalleled flexibility. Whether you prefer advanced DALI communication or manual control methods, adjusting your lighting settings is effortless.

With four output channels at your disposal, the DLD1248-4CV-DALI LED Dimmer empowers you to control multiple lighting zones or fixtures simultaneously. Choose from optimized linear, quadratic, or exponential output curves, ensuring smooth and precise dimming tailored to your specific preferences.

The dimmer also features a master-slave function, enabling you to synchronize multiple dimmers for coordinated lighting effects. Additionally, the D-PWM modulation with selectable frequencies of 300, 600, or 1200 Hz guarantees flicker-free operation even in demanding applications.

General specifications

• Model: DLD1248-4CV-DALI
• Input Range: 12-48V DC
• Max Output Power: 4x 5A
• Channels Output: 4-Channel
• Bus Command: DALI
• Local Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V and Potentiometer 10KOhm
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
• Adjusting output curve: Linear / Quadratic / Exponential
• Working Temperature Range: -40/+60°C
• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")
• Warranty: 5 years

Downloads

• DLD1248-4CV-DALI cut sheet
