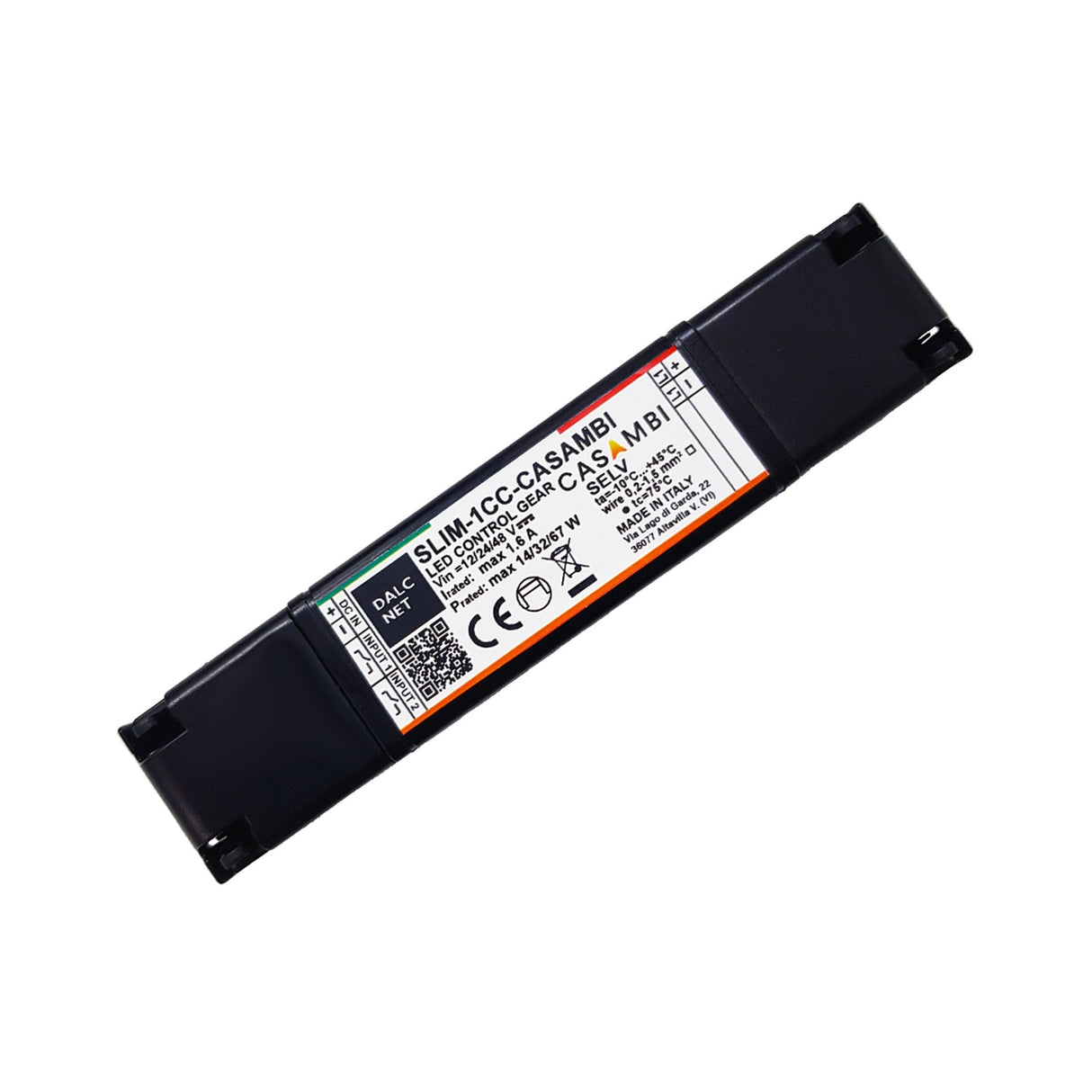

Slimline 1-Channel Constant Current LED Dimmer with Casambi ~ Model SLIM-1CC-CASAMBI

Description

The SLIM-1CC-CASAMBI is a high-performance lighting control solution designed for efficient and convenient dimming of constant current LED lighting systems. This compact dimmer is engineered to operate with input voltages ranging from 12 to 48 VDC, delivering an output current of up to 1.6A, making it suitable for a wide range of LED lighting applications.

The SLIM-1CC-CASAMBI features an intuitive and user-friendly control interface through the Casambi app, allowing you to effortlessly adjust the brightness levels of your LED lights from your smartphone or tablet. The app provides a seamless and intuitive experience, enabling you to create personalized lighting scenes, set schedules, and control multiple lighting zones with ease.

In addition to the app-based control, the dimmer also offers the flexibility of manual operation through two normally open (N.O.) push buttons. This feature allows you to conveniently adjust the lighting levels on-site, providing a versatile control experience tailored to your preferences.

General specifications

• Voltage range: 12-48V DC
• Maximum total current: 1.6A
• Output Channel: 1 channel
• Bus Command: Casambi
• Local Command: 2x Push Button (N.O.)
• LED Driver Type: Constant Current
• Working Temperature Range: -10/+45°C

Downloads

• SLIM-1CC-CASAMBI cut sheet

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
