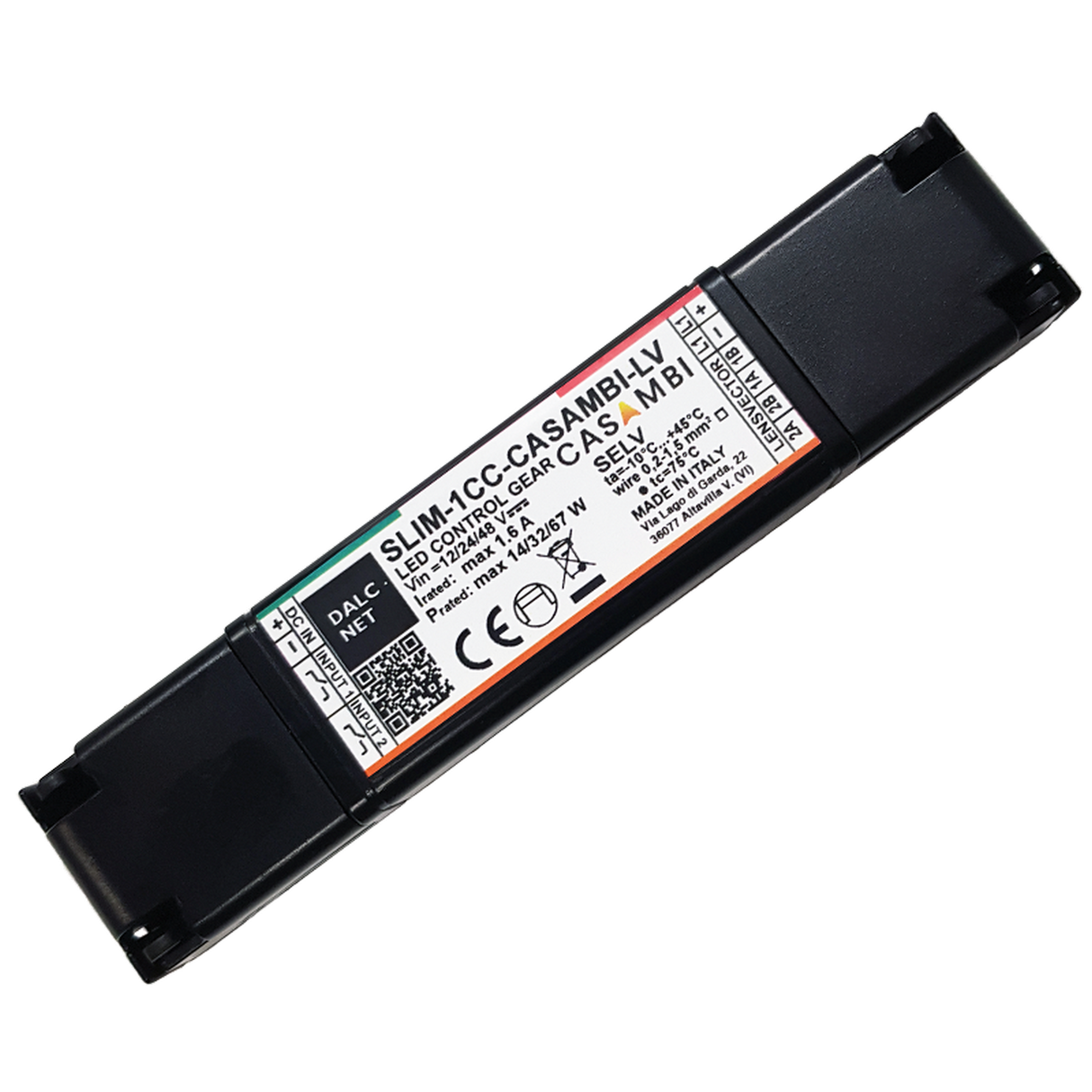

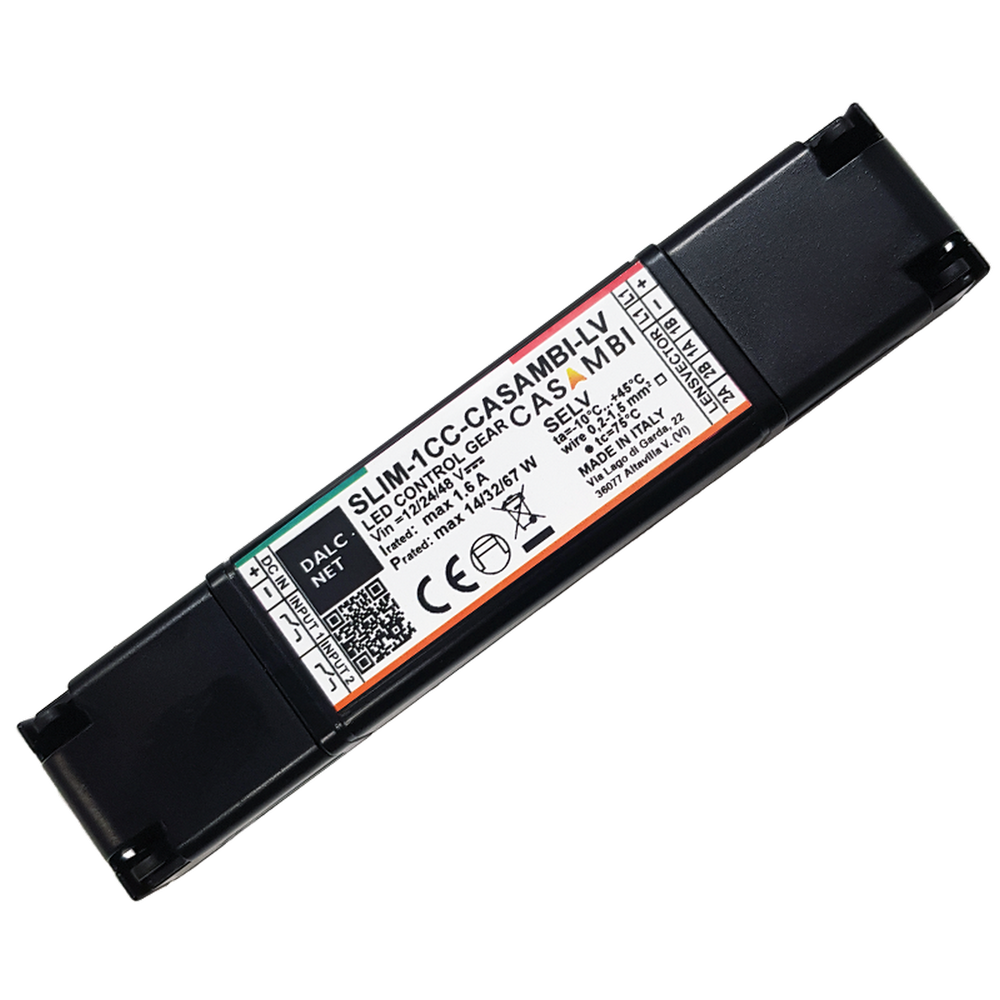

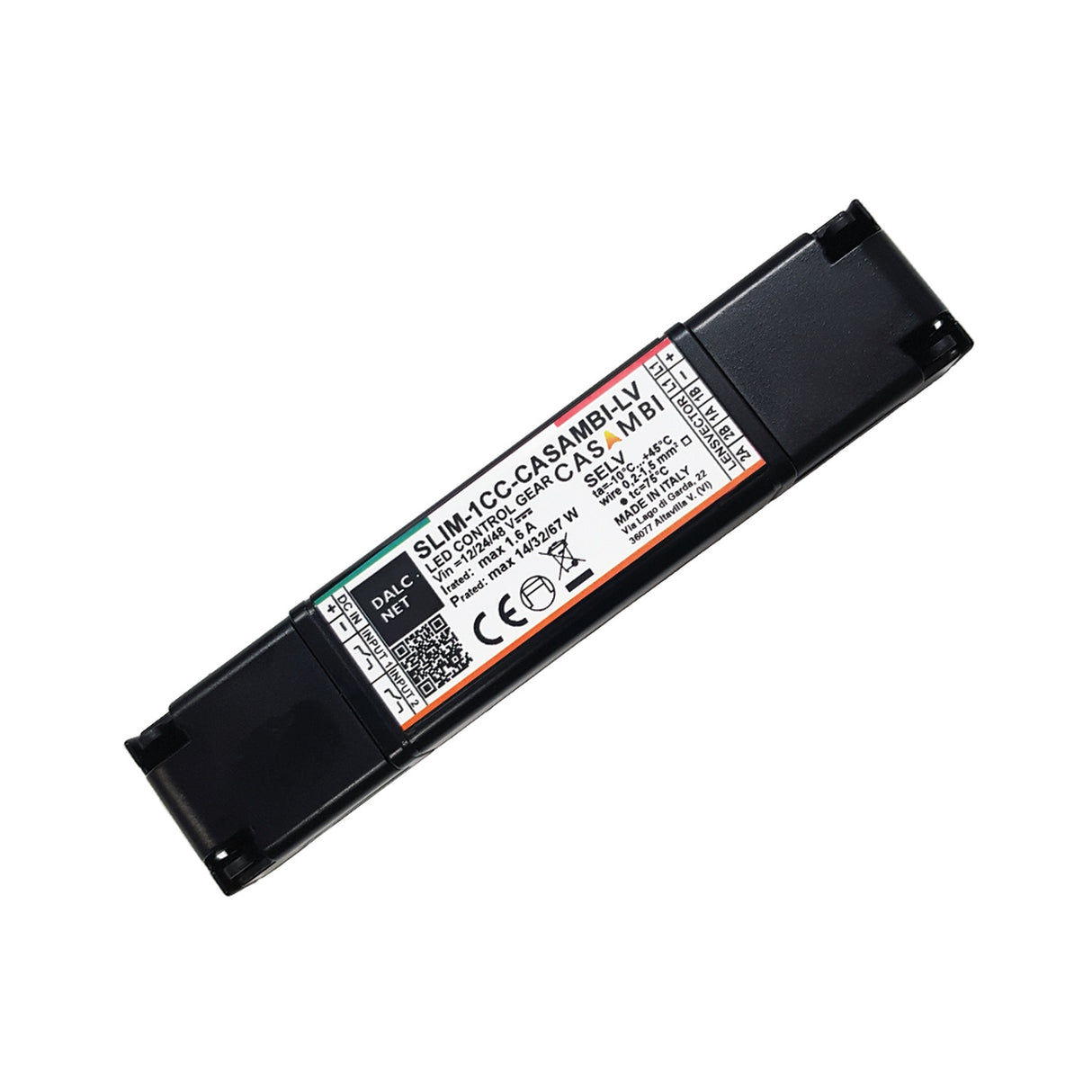

Slimline 1-Channel Constant Current LED Dimmer with LensVector ~ Model SLIM-1CC-CASAMBI-LV

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The SLIM-1CC-CASAMBI-LV is a professional LED dimmer designed for precise control of constant current LED lighting systems. It operates on a wide 12-48V DC input voltage range and can deliver up to 1.6A of output current. The dimmer is seamlessly controlled via the intuitive Casambi app on your smartphone or tablet, allowing easy adjustment of light levels from anywhere.

In addition to app control, the SLIM-1CC-CASAMBI-LV also features two no-load push button inputs for manual dimming control at the fixture location. This dimmer includes LensVector output for controlling LensVector liquid crystal lenses, allowing the beam coming from the LED module to be dynamically shaped.

Combined with advanced LensVector technology, the unit enables smooth, flicker-free dimming from 100% down to an ultra-low 0.1% light output level while providing dynamic beam control. The compact form factor allows for versatile installation in residential or commercial environments where space is limited.

With its robust constant current output, Casambi app compatibility, manual control options, and superior dimming performance, the SLIM-1CC-CASAMBI-LV is an ideal solution for upgrading low-voltage LED lighting systems with modern, app-enabled dimming capabilities.

General specifications

• Voltage range: 12-48V DC
• Maximum total current: 1.6A
• Output Channel: 1 channel
• Bus Command: Casambi
• Local Command: 2x Push Button (N.O.)
• LED Driver Type: Constant Current
• Working Temperature Range: -10/+45°C

Downloads

• SLIM-1CC-CASAMBI-LV cut sheet - to be added
