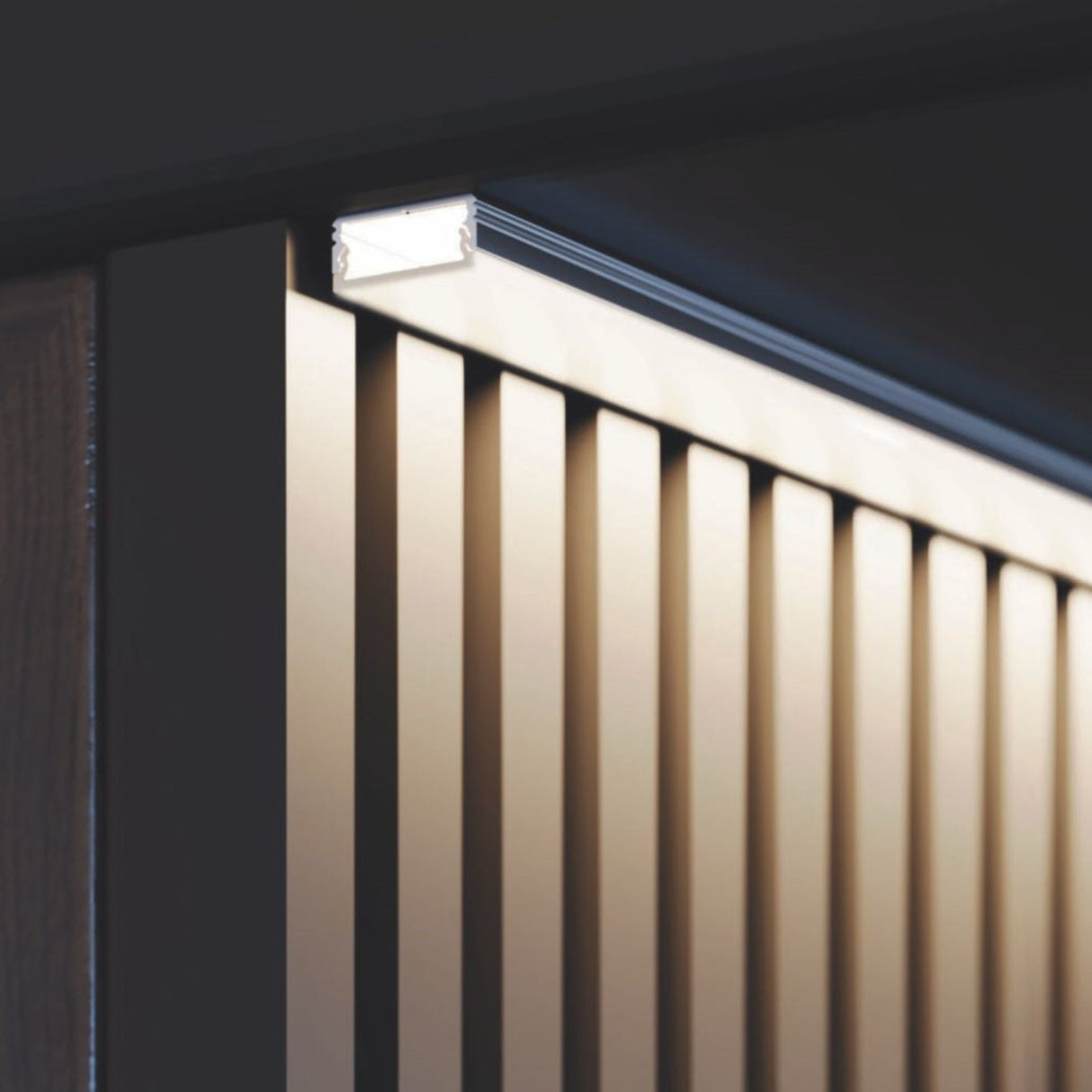

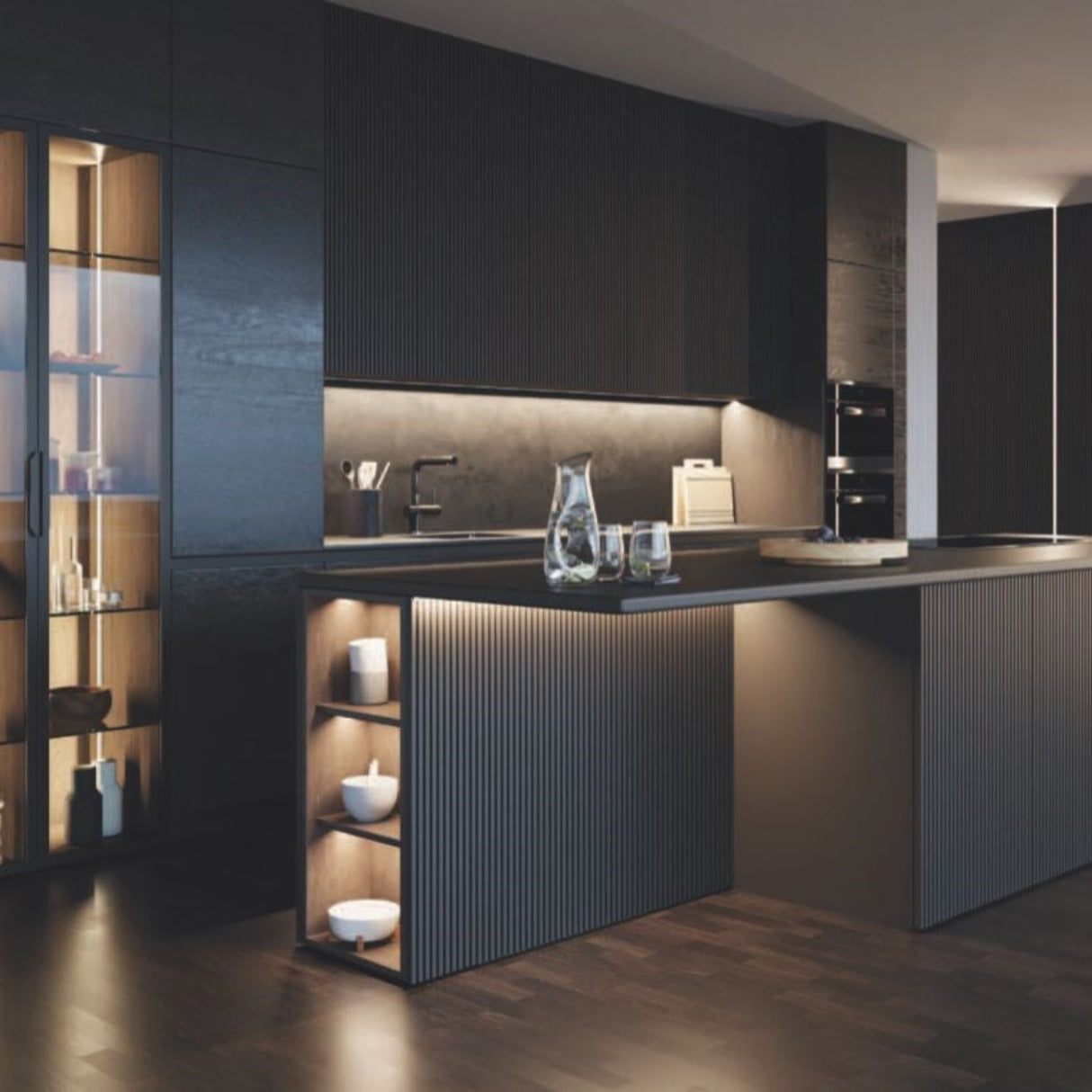

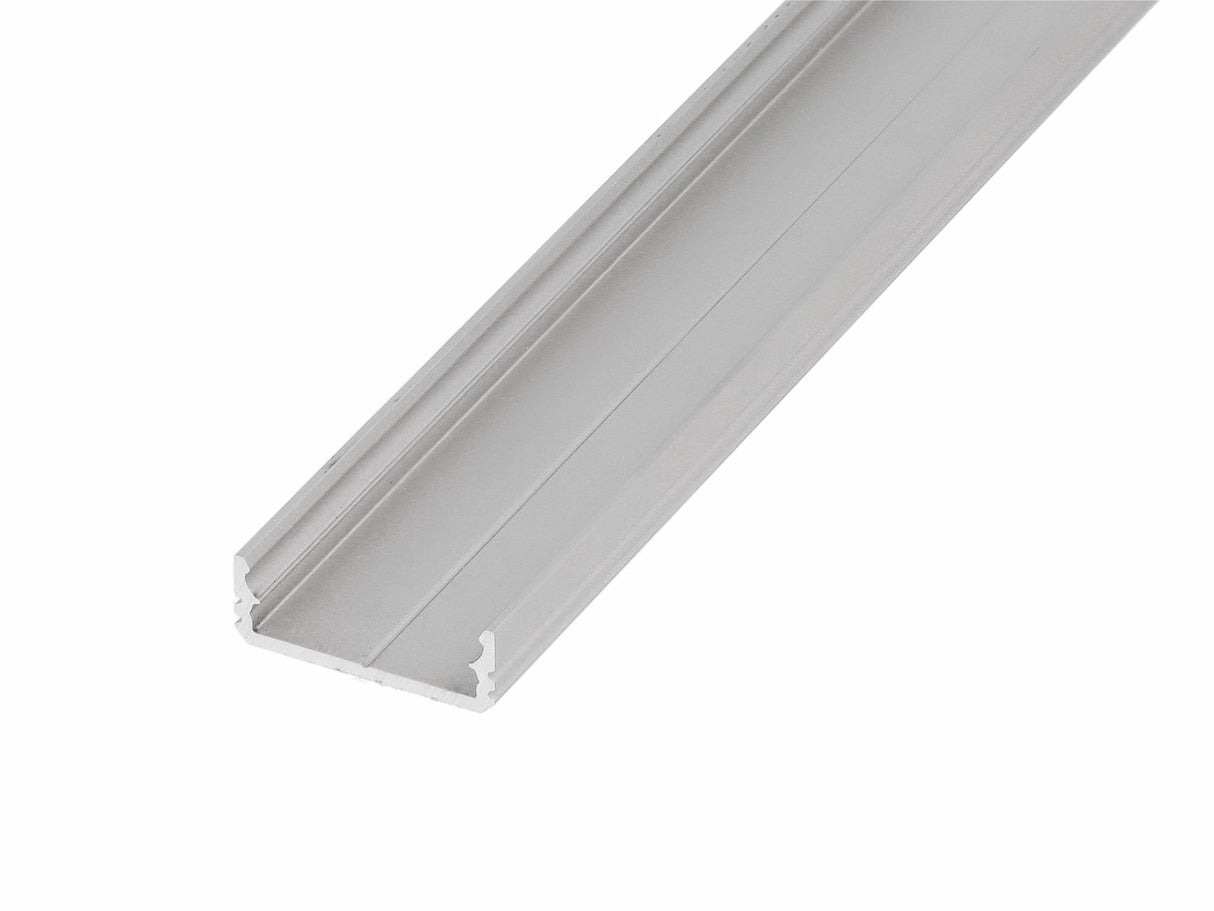

The Buddy14-01 LED channel is a surface mount high quality anodized aluminum profile (only 6.1mm high) which is dedicated for standard LED strips up to 14mm in the width. This surface-mounted LED profile is perfect to use as furniture and interior lighting, as well as for accent and decorative lighting in all buildings and architectural arrangements.

Thanks to its small size, its installation is quick and effortless. It has a socket on the diffuser, which allows you to completely cover the aluminum edges of the profile. This profile can be mounted with the help of dedicated elastic caps with two possibilities of installation - with a distance to or without the mounting surface.

The Buddy14-01 LED profile is also an excellent heat sink, discharging heat from the LED source and extending the life of the LED strips. It also protects the LED strip from mechanical damage and makes the installation much more durable.

• Material: Aluminum

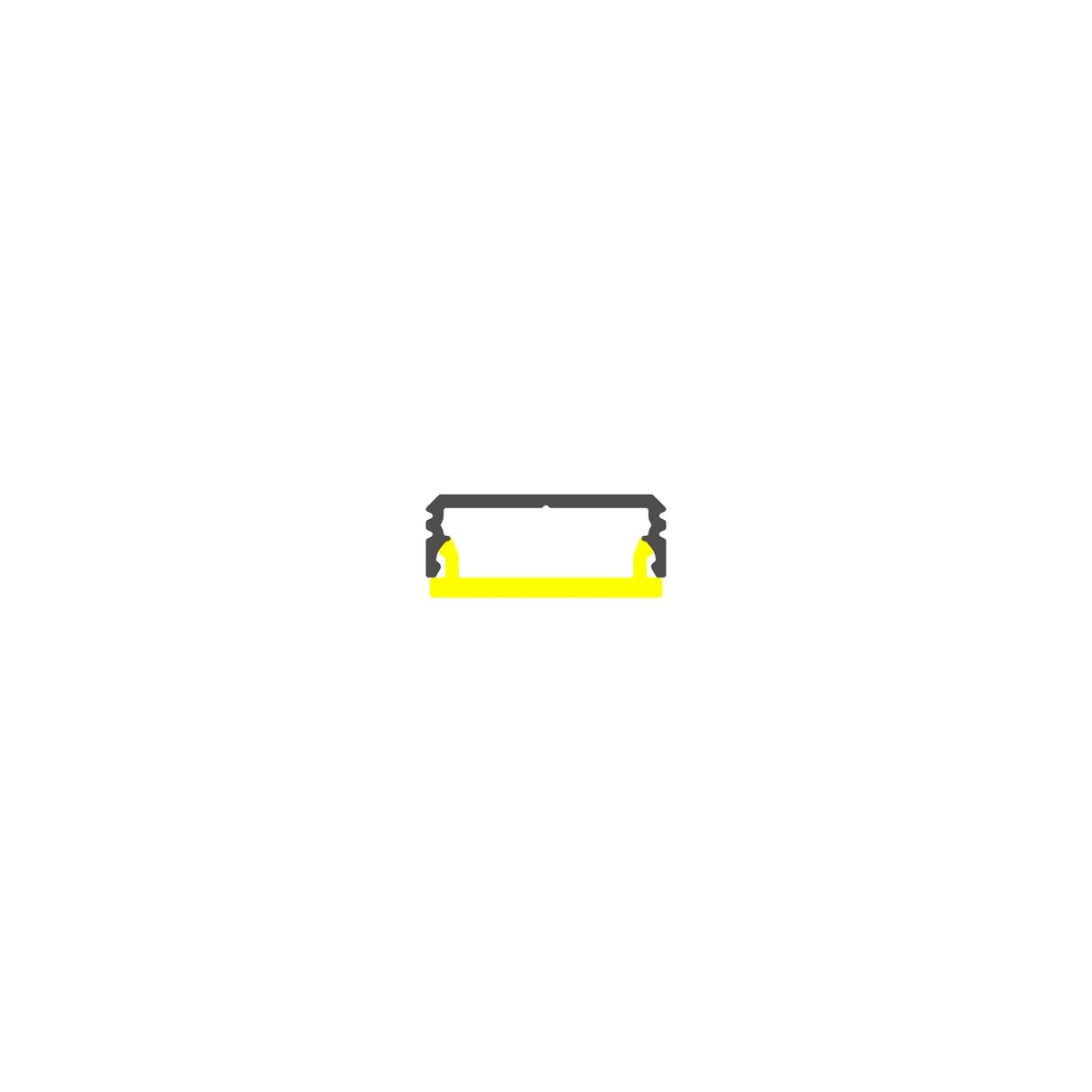

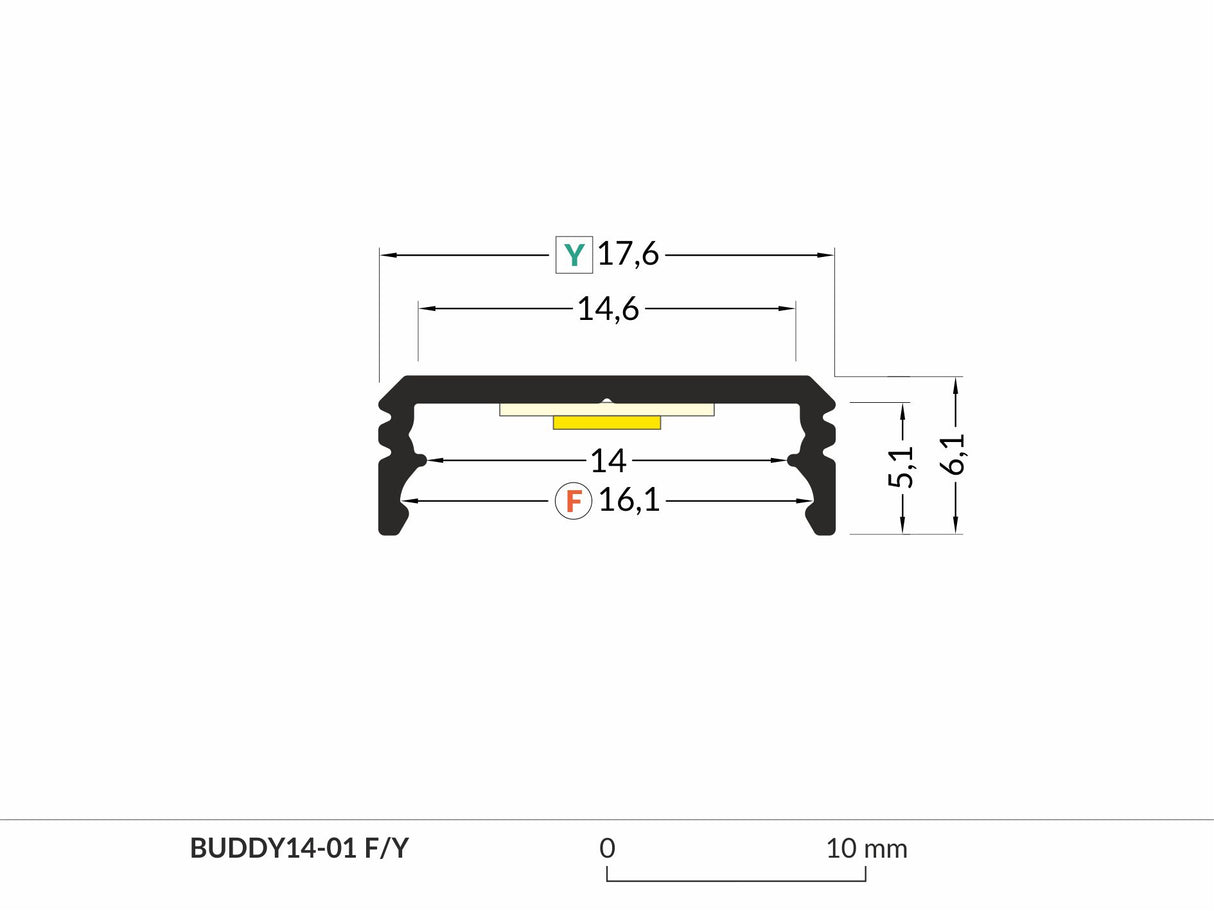

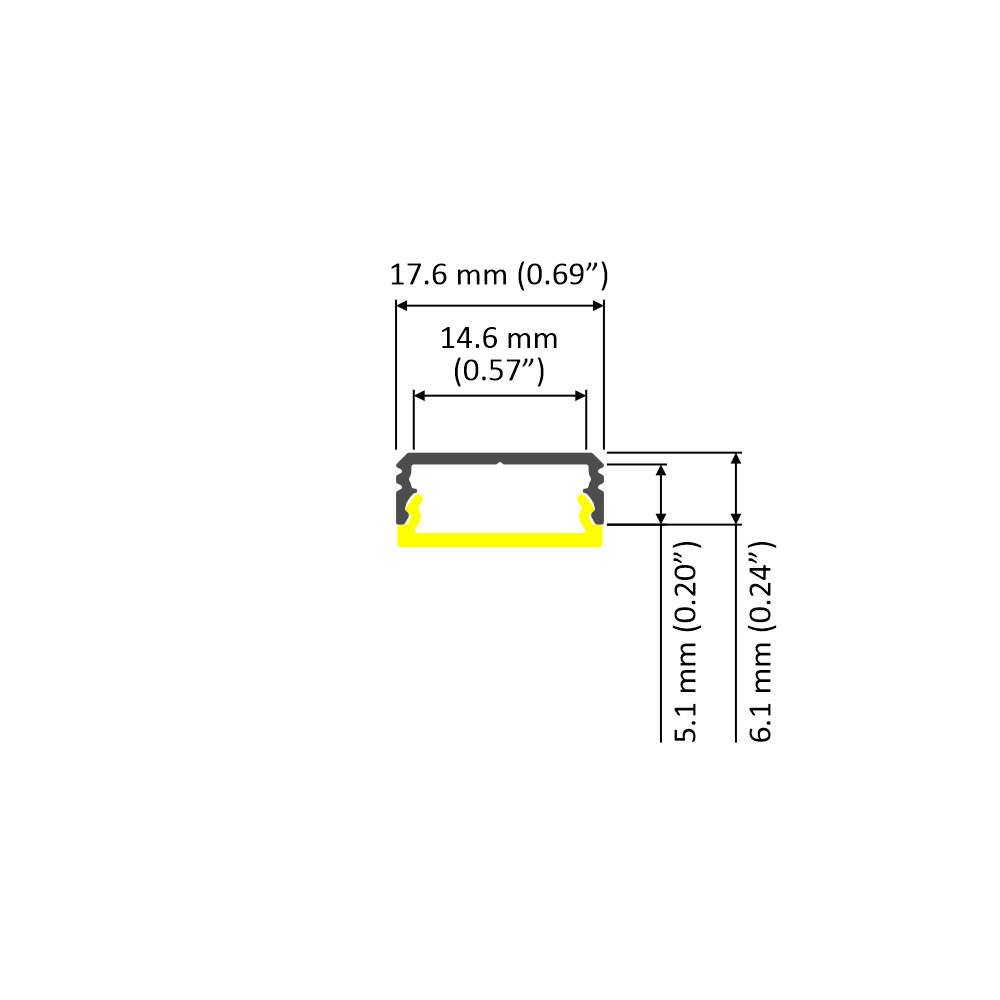

• Overall dimensions: 17.6mm x 6.1mm (0.69" x 0.24")
• Maximum LED strip width: 14mm (0.55")

• Buddy14-01 cut sheet

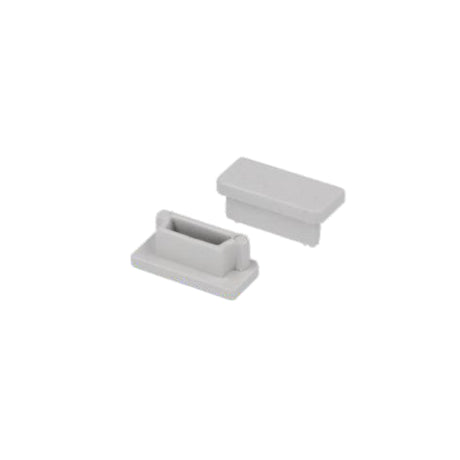

• LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Therefore, select the available components below.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.
