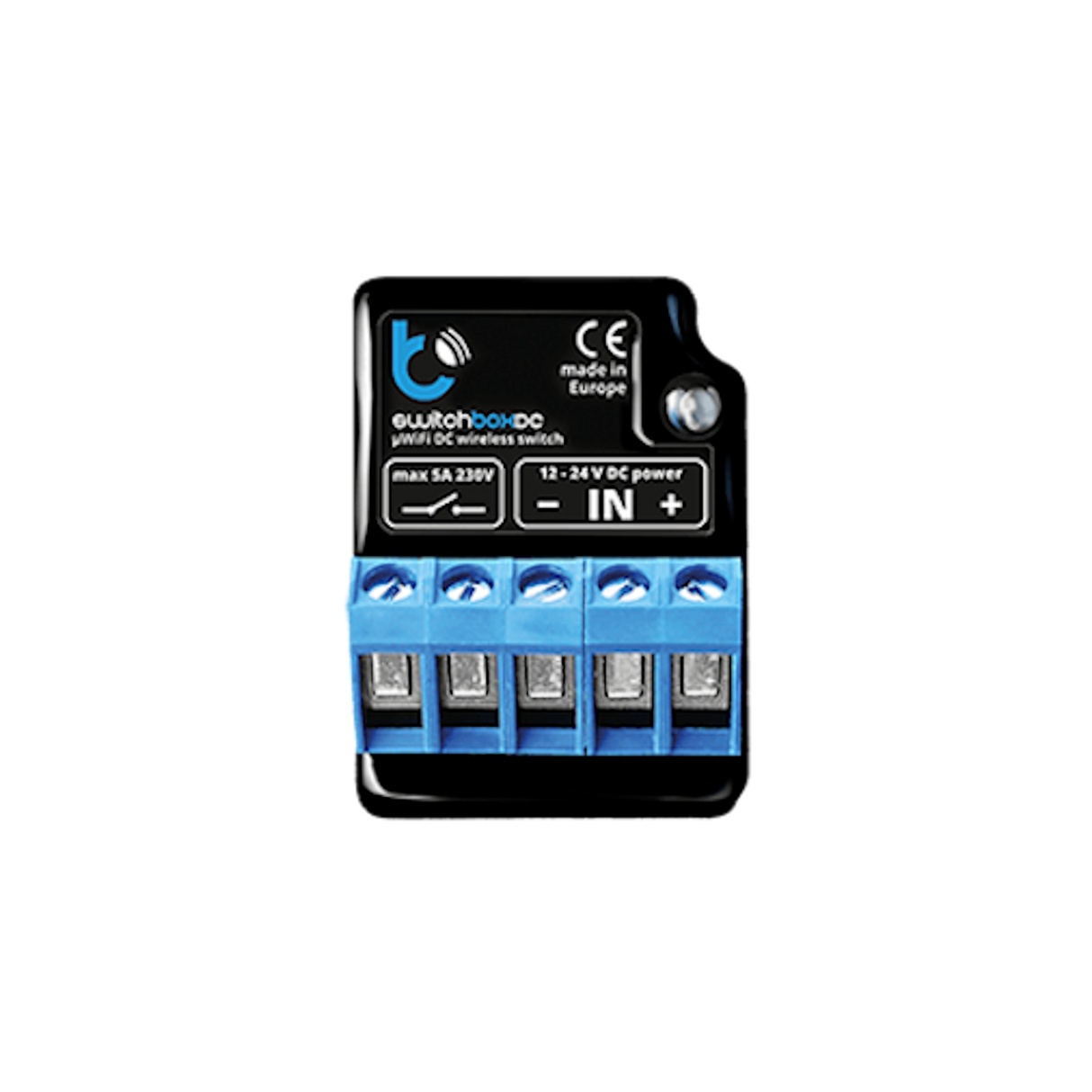

Wireless On/Off Power Switch Controller ~ switchBoxDC by Blebox

Controller only ~ all accessories are sold separately

Description

The switchBoxDC is a smart wireless power switch controller designed for easy control of various household devices remotely, making it more convenient and energy-efficient. This smart controller is ideal for managing lighting, electrical appliances, office equipment, and alarm systems. The switchBoxDC can be used inside electrical outlets to control devices and is suitable for use in areas with low voltage, such as near showers, pools, or gardens.

This smart switch controller device features an easy-to-use app, the wBox app, which allows for complete remote control from your mobile phone. It also offers the option to connect a push-button for local control, or you can eliminate the need for additional wiring by using the inBox.

The switchBoxDC is compatible with multiple systems, including smart home setups, alarm systems, and irrigation systems. It supports switching electrical loads with voltages ranging from 0 to 230V AC and 0 to 30V DC, thanks to its potential-free relay.

General Specifications

• Overall dimensions: 27 x 37 x 23 mm (1.06” x 1.46” x 0.91”)
• Rated voltage: 12-24V DC
• Energy consumption: <1W
• Number of outputs: 1
• Output type: Relay, isolated
• Maximum output load: 5A @ 230V AC, 5A @ 30V DC
• Maximum output power: 1150 VA @ 230V AC (1150W for resistive load; e.g., heater), 150W @ 30V DC
• Number of inputs: 1
• Input type: Low voltage, logical, push-button, short circuited to GND
• Supported switches: Monostable (push-button), bistable (traditional, cross switch), not illuminated
• Protection rating: IP20
• Communication standard: μWiFi, compatible with WiFi
• Communication mode: Direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)

Warranty details

Downloads

• switchBoxDC instructions
• Blebox App Quick Start Guide
• Google Home User Guide
• Alexa User Guide App Quick Start Guide
