SKU: LED-SWITCHBOXT-PRO

Wireless Triple WiFi Relay Switch Controller~ switchBoxT Pro by Blebox

$137.94 USD
Shipping calculated at checkout.

Product details

Controller only~ all other accessories are sold separately

Description

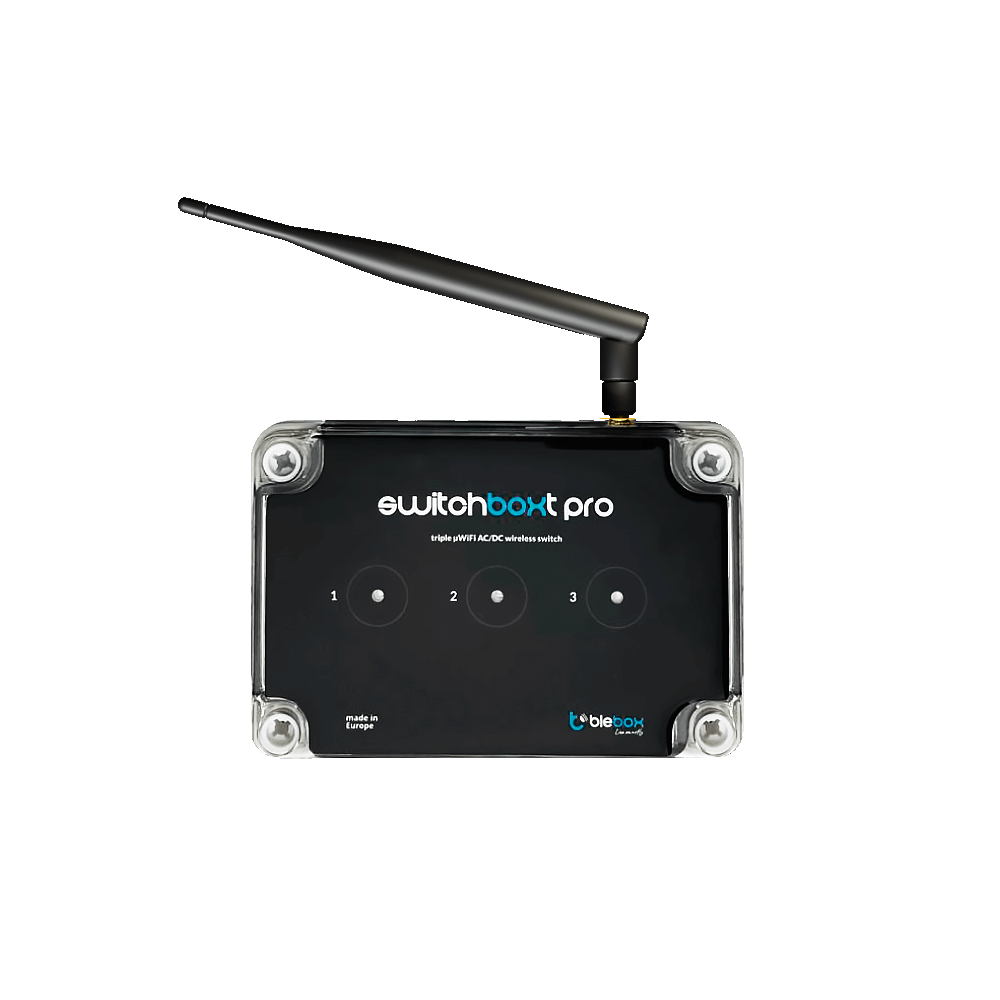

The switchBoxT Pro is an intelligent wireless smart switch controller equipped with three potential-free relays for controlling electrical devices ranging from 0V to 230V AC/DC via a smartphone. The built-in front panel features three touch buttons, allowing users to manually control connected devices or circuits, providing additional flexibility and convenience.

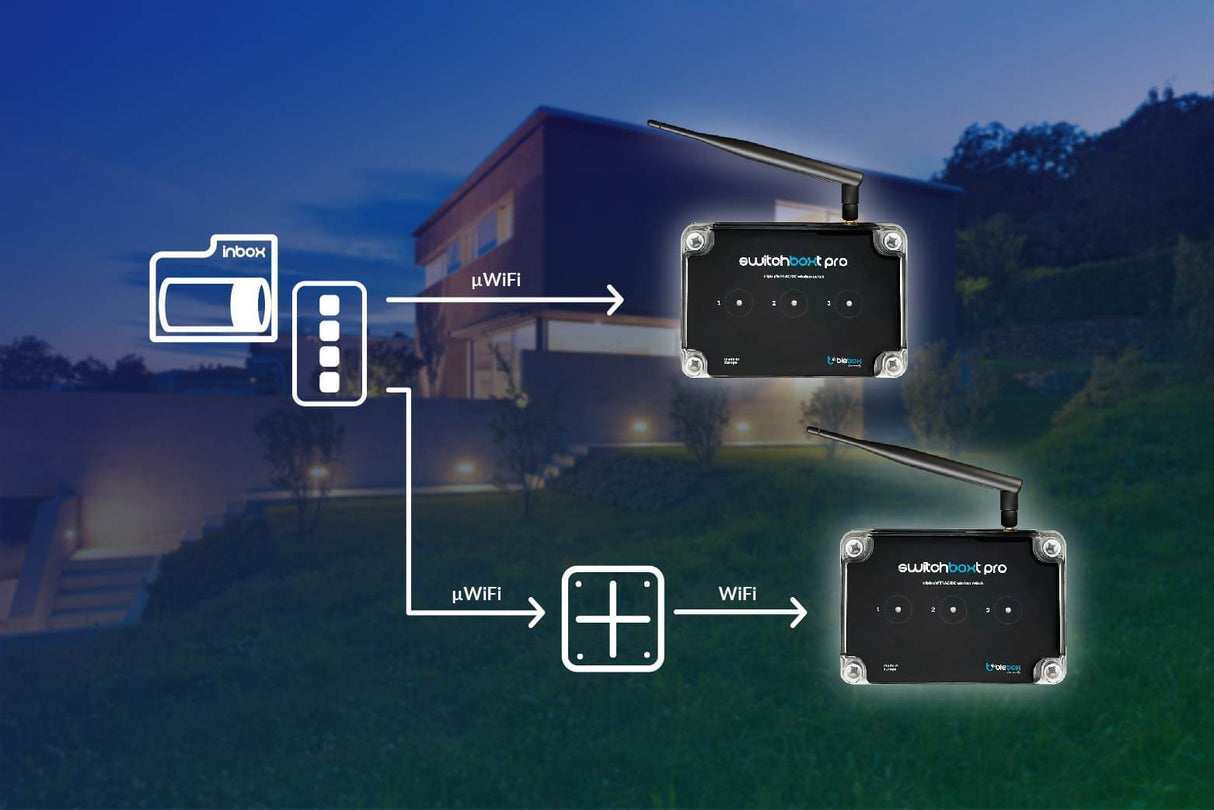

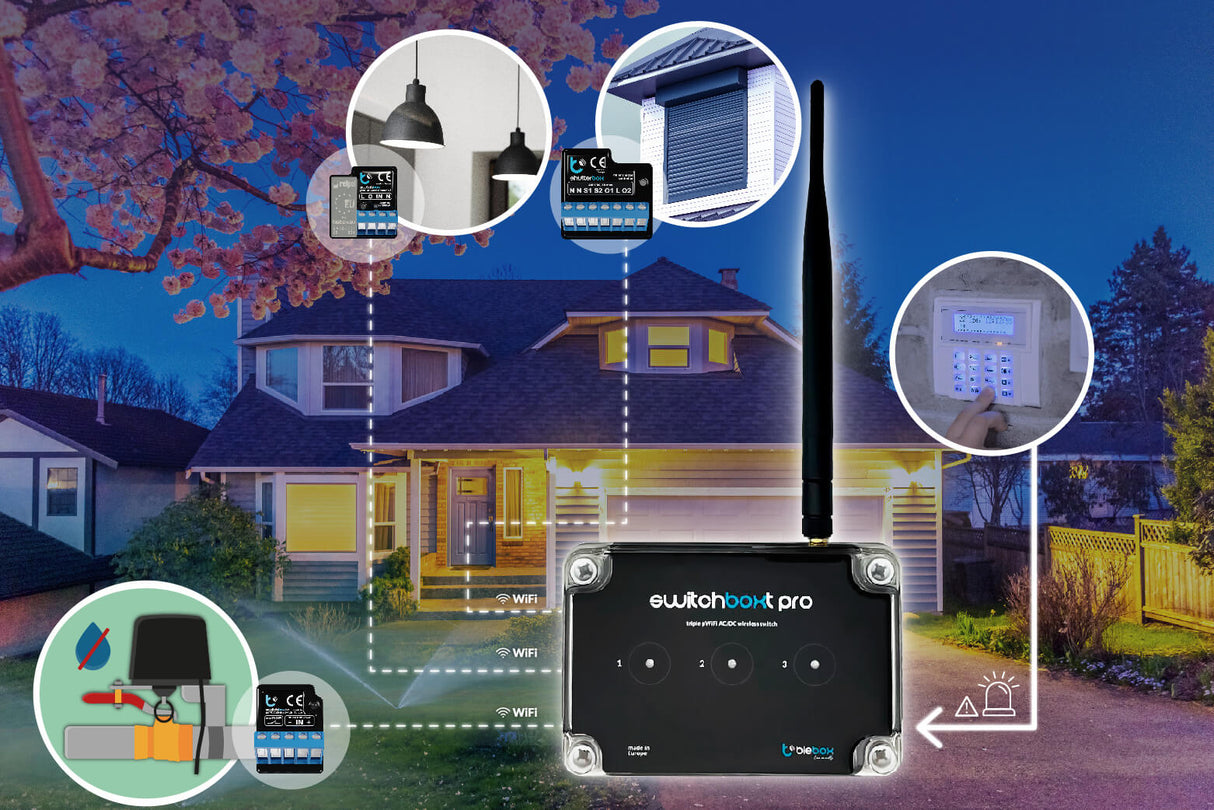

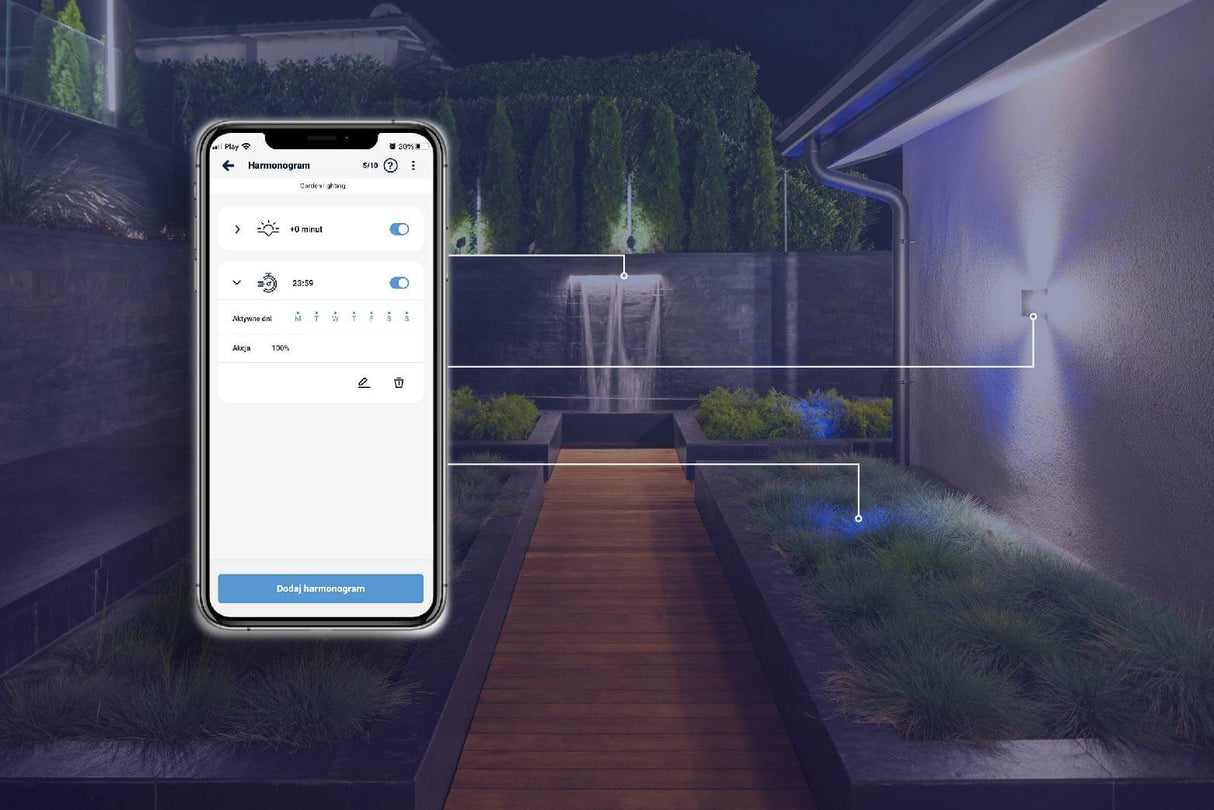

The switchBoxT Pro supports actions and scenes, enabling control of other devices in the switchBox and actionBox family. Its schedule feature, with an astronomical clock, controls devices based on time or sunrise and sunset. This intelligent relay switch controller can pair with wireless buttons and remotes like the uRemote and sRemote, eliminating the need for extensive wiring.

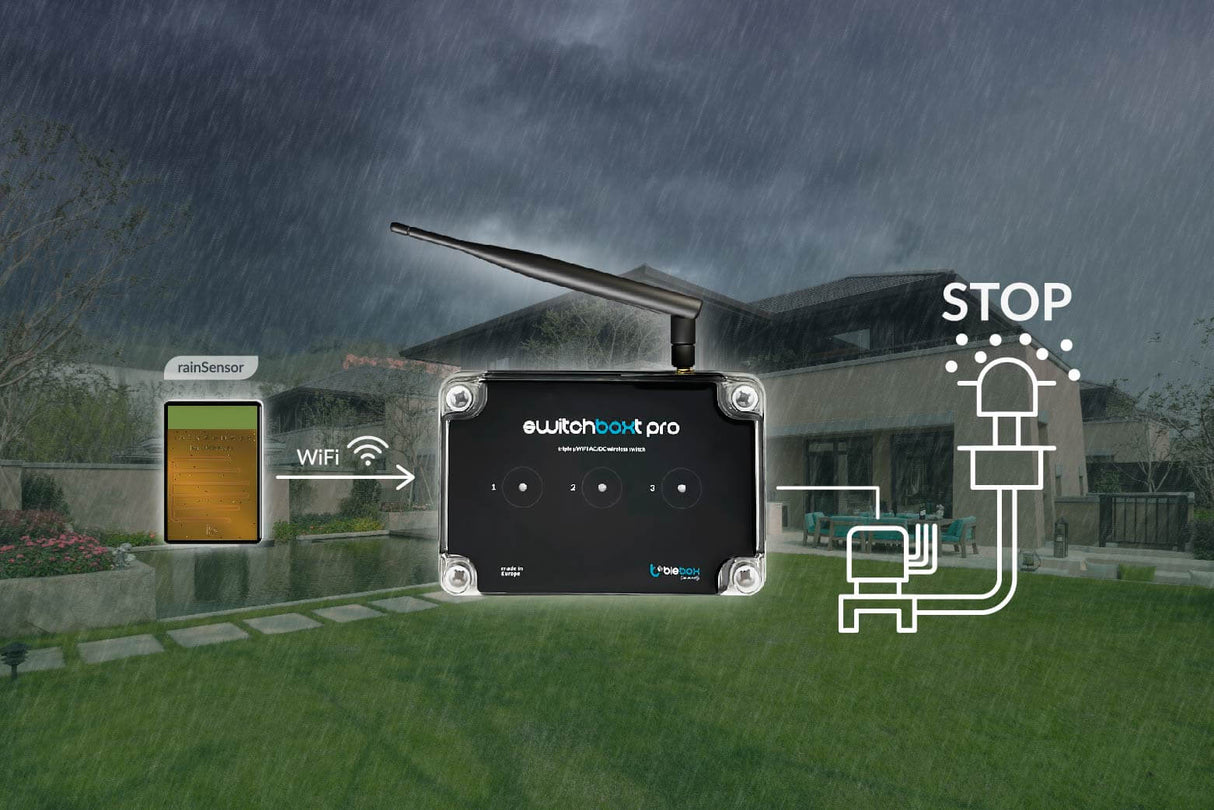

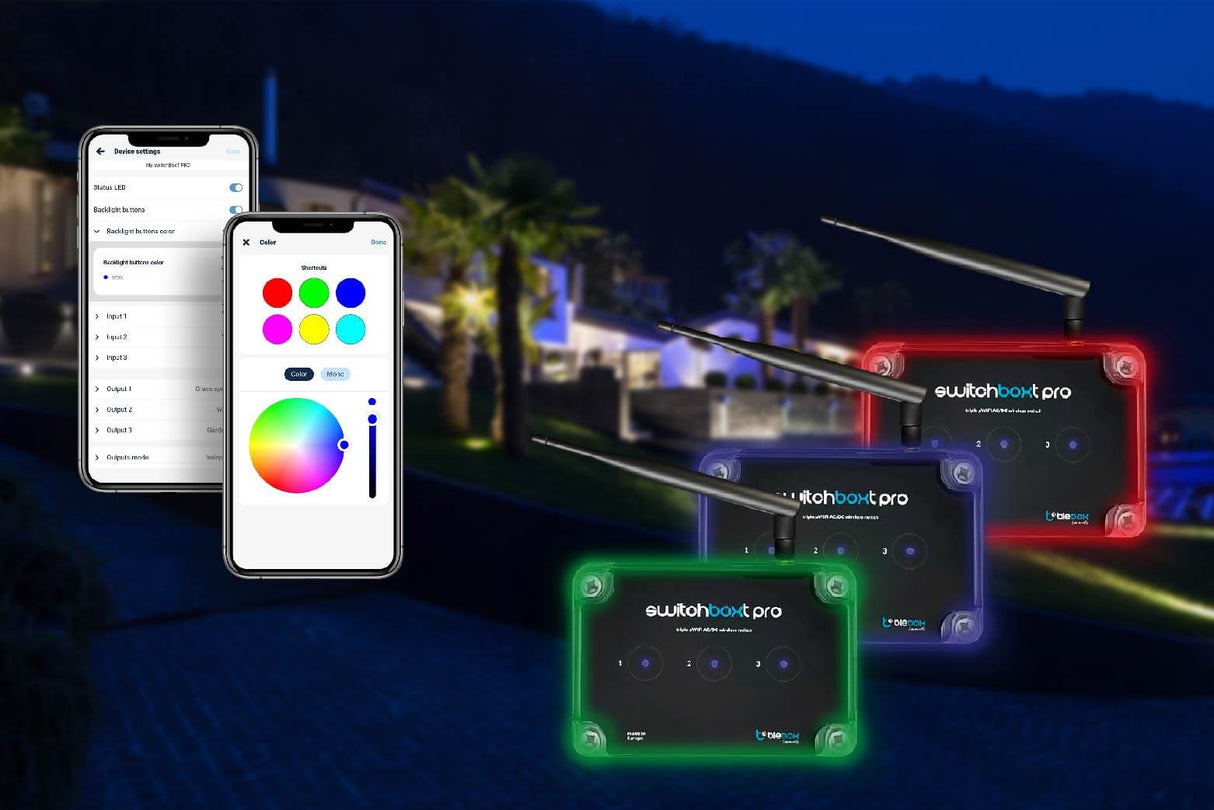

The touch-sensitive, backlit front panel allows manual control of connected devices, with customizable lighting colors via the wBox app. An external antenna enhances WiFi range, and a replaceable directional antenna allows use in remote locations. The switchBoxT Pro integrates with other smart home systems, like rain sensors and motion sensors, to automate tasks such as garden lighting and watering.

General specifications

  • Overall dimensions: 129 x 89 x 57 mm (5.08” x 3.50” x 2.24”)
  • Power supply: 230V AC
  • Energy consumption: < 1W (standby), < 2W (power on)
  • Number of outputs: 3
  • Control output type: Relay, NO
  • Maximum power:
    • AC1 (resistive, power factor: 0.95): 3x (16A @ 5-230V AC) = 3x 3680W = ~11kW AC
    • AC3 (IEC60947-4-1): 3x ~0.5kW @ 240V AC = ~1,5kW (star motor)
    • DC1: 3x (16A @ 5-24V DC) = 3x 384W DC = 1152W DC
  • Number of buttons: 3
  • Type of buttons: Capacitive (touch sensor), illuminated, integrated in the front panel

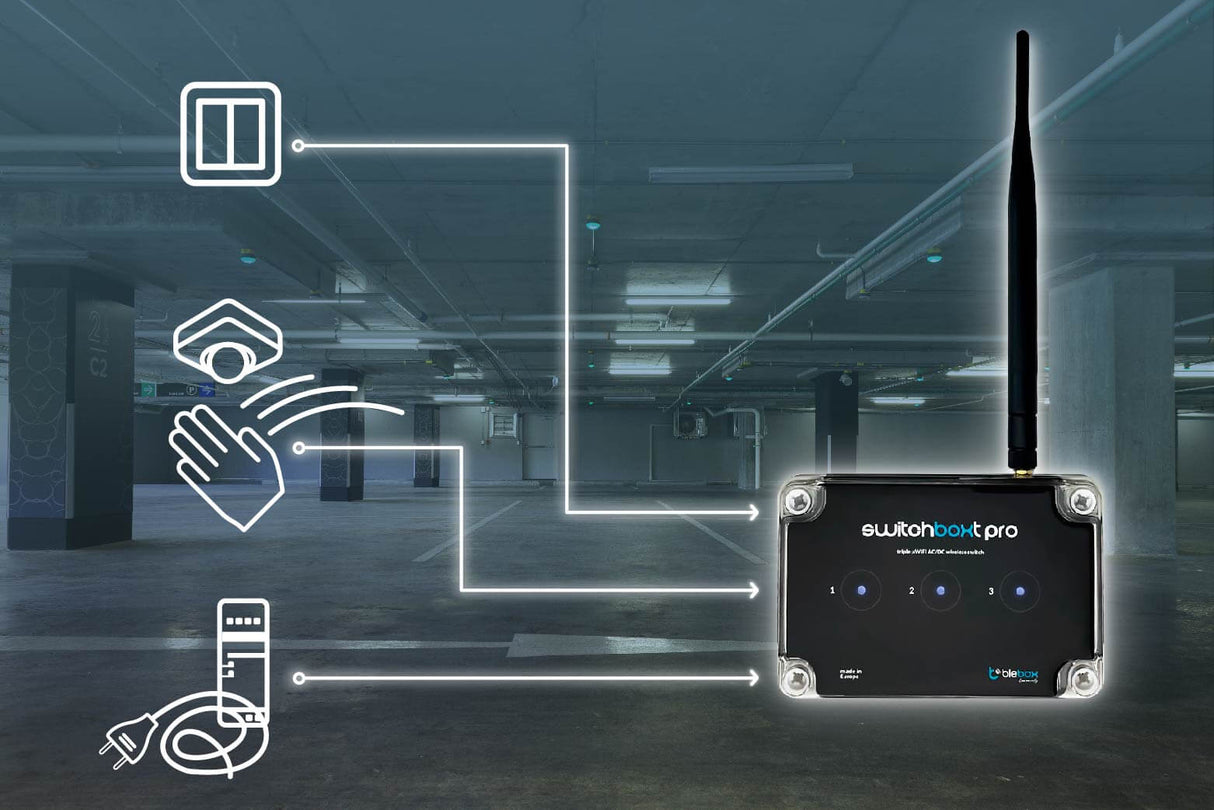

  • Number of inputs: 3
  • Input type: Optoisolated (galvanic separation)
  • Input voltage range: 12V – 230V AC/DC
  • Supported switches: Monostable (push-button), Bistable (traditional, cross switch), Not-illuminated
  • Protection Rating: IP44
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Antenna: Omnidirectional, 5dB gain - included in the kit
  • Communication standard: μWiFi, compatible with WiFi, 802.11g
