2-Channel Smart Wi-Fi Input Status Module ~ inputSensorD by Blebox
Product details
2-Channel Smart Wi-Fi Input Status Module only ~ all other components are sold separately.
Description

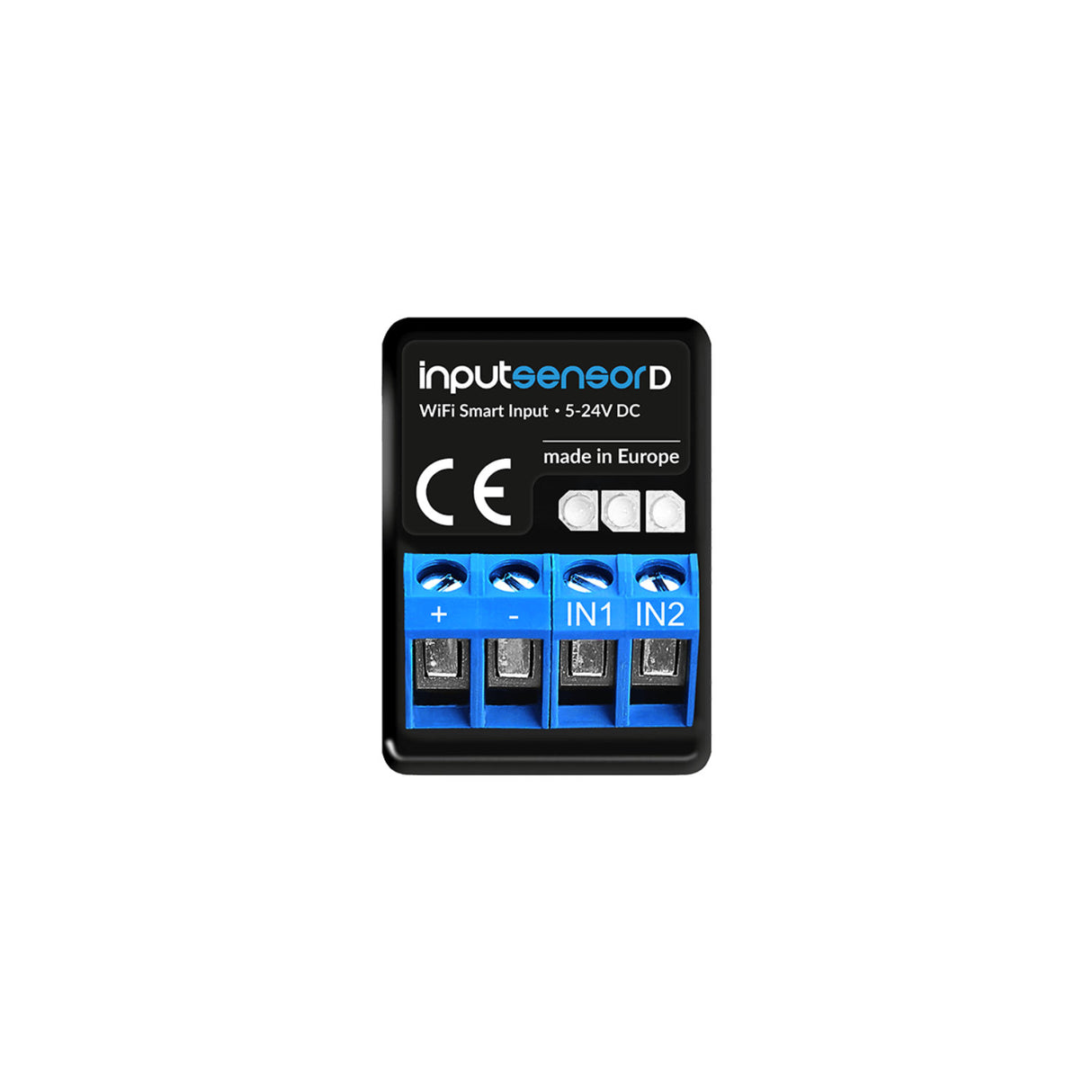

The inputSensorD is a 2-channel on/off input module designed to monitor the status of multiple sensors and devices in home or industrial automation systems. It features two independent on/off inputs and operates on a safe 5–24V DC power supply, allowing easy integration with various safety and monitoring sensors. It can read state signals from smoke, gas, carbon monoxide, motion, presence, flow, and pressure sensors, as well as reed switches and inductive sensors for doors, windows, gates, and enclosures.
The inputSensorQ smart input module enables seamless integration with alarm panels, cameras, projectors, and other electronic systems. It supports both NO (normally open) and NC (normally closed) signals, making it compatible with most standard detectors and control panels.

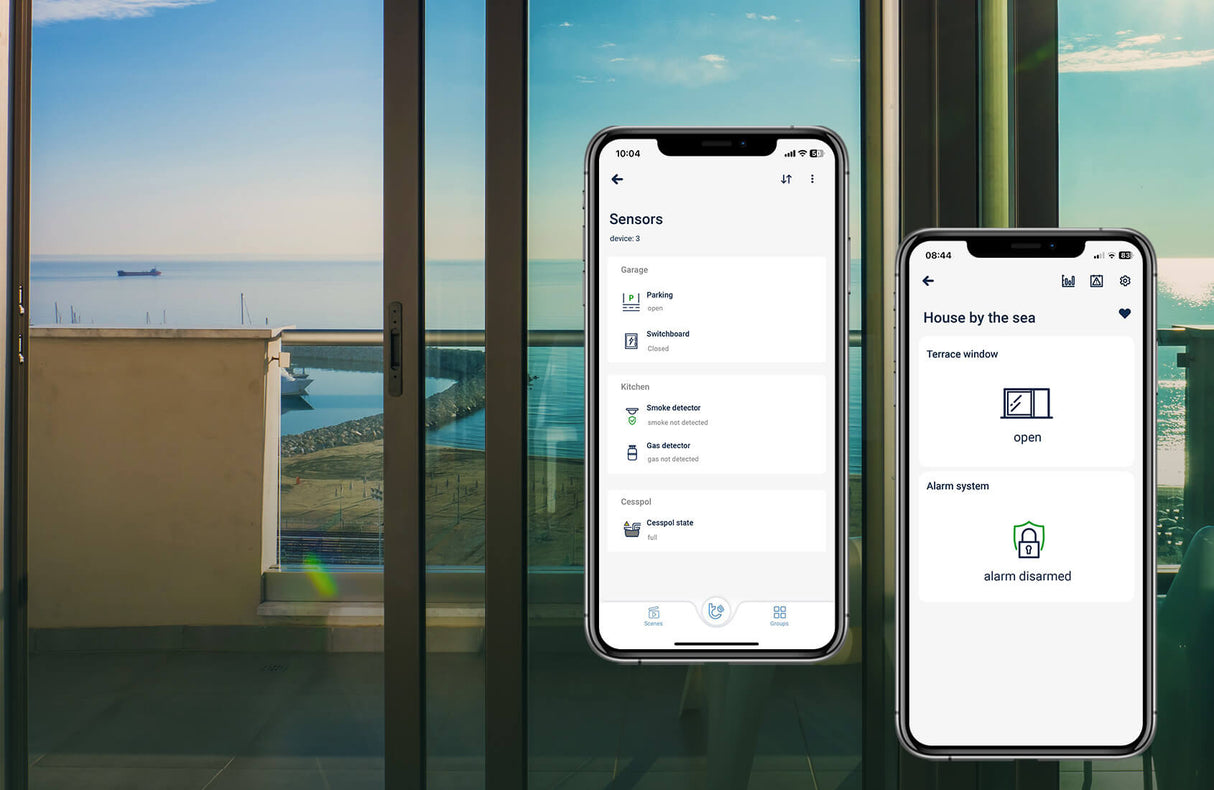

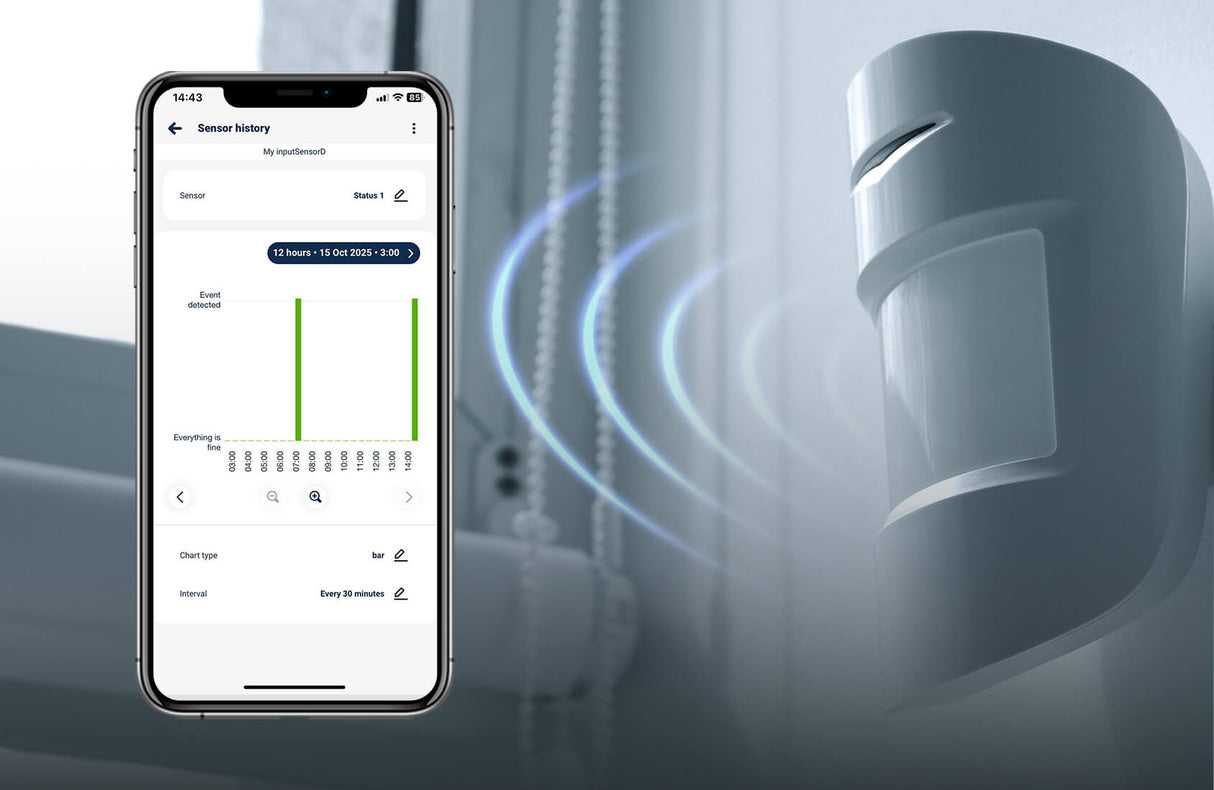

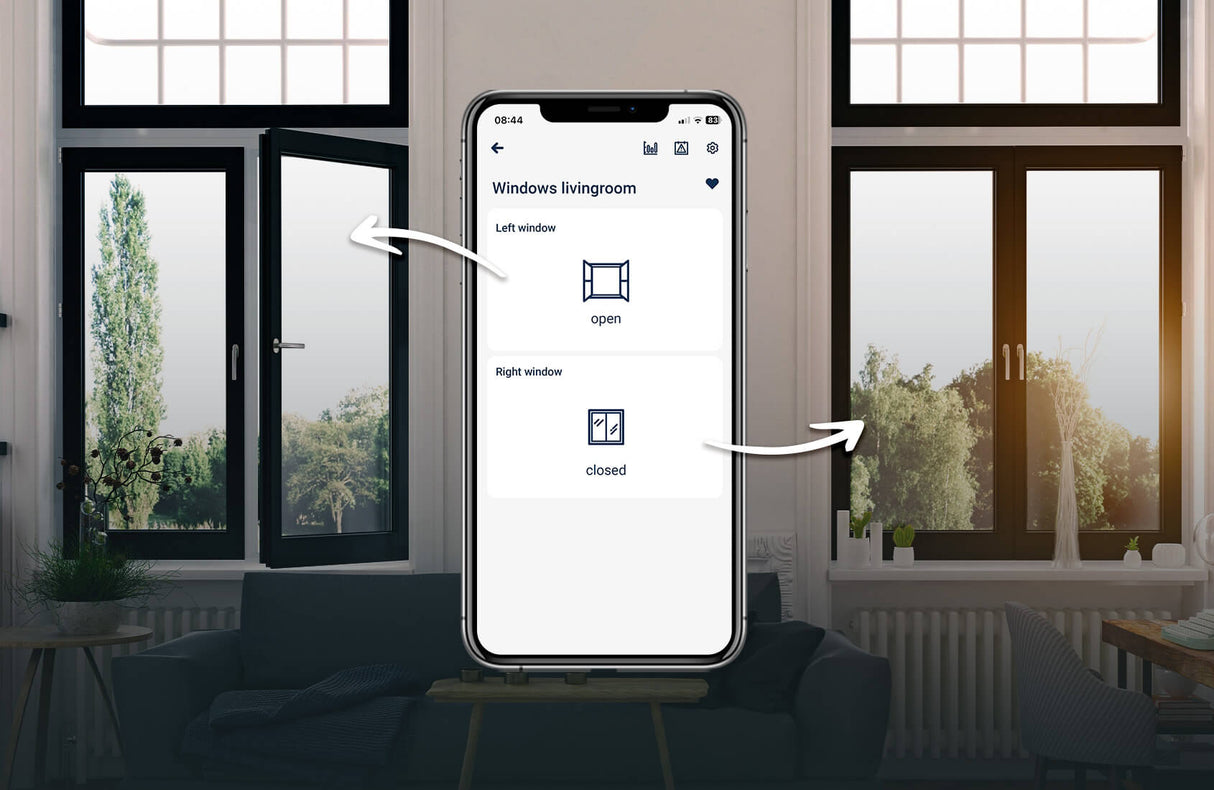

The device works locally via WiFi, directly through its access point, or remotely using the BleBox Cloud, ensuring stable operation even without Internet access. Through the wBox app, users can monitor sensor states in real time, access up to 12 months of historical data, and export information in CSV or XLSX formats for analysis. The app also provides customizable icons and intuitive labeling, making it easy to identify device states such as open/closed, on/off, or alarm active/inactive.

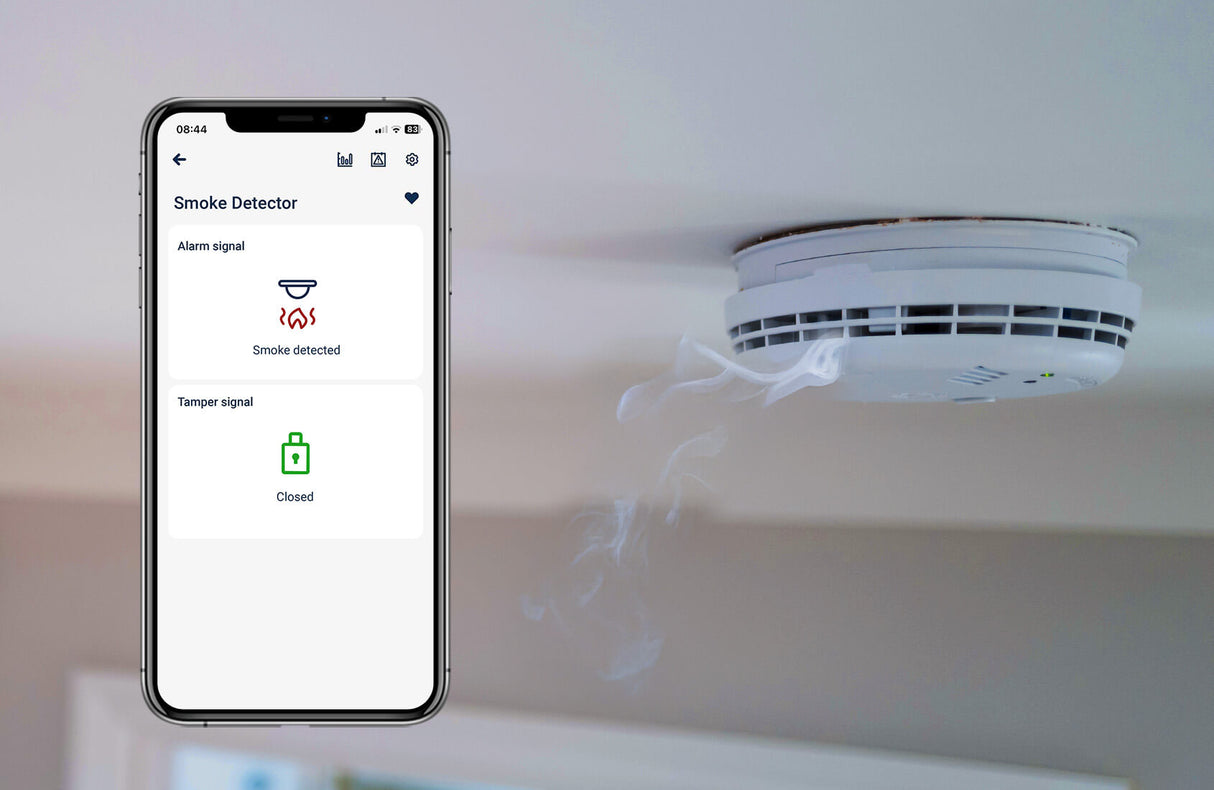

The inputSensorQ supports automation by triggering actions in other BleBox controllers, such as switching devices on or off, controlling blinds, lights, or actuators based on sensor signals. It also allows personalized notifications and alerts to be sent directly to a smartphone whenever a state change occurs.
The module’s low power consumption and safe extra-low voltage design make it suitable for residential and commercial applications.
General specifications

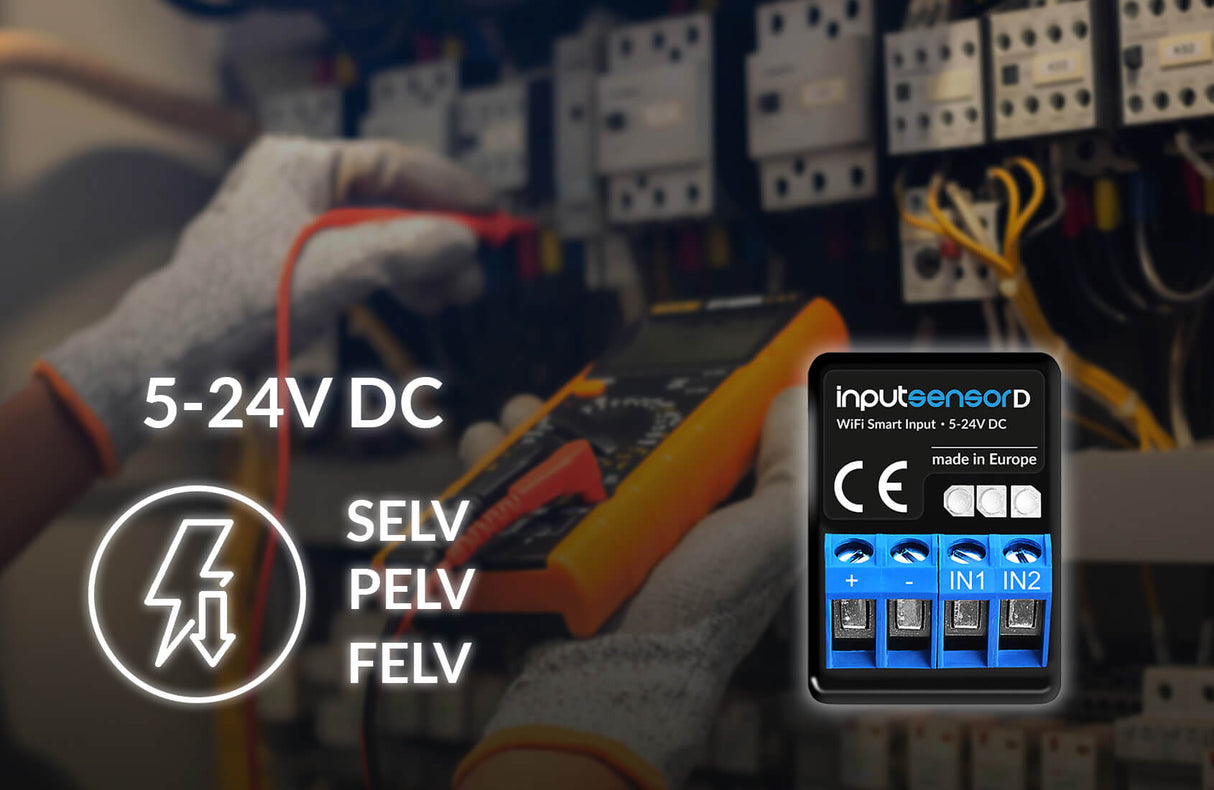

- Supply voltage: 5–24V DC
- Energy consumption: <1W
- Number of inputs: 2
- Inputs type: Low-voltage, shorted to the power supply negative
- Overall dimensions: 33 x 24 x 20 mm (1.30" x 0.95" x 0.79")
- Protection rating: IP20
- Controller operating temperature: From -20°C to +50°C (-4°F to +122°F)
- Communication standard: μWiFi, compatible with WiFi, 802.11g
- Communication mode: Direct connection (as access point), WiFi connection via a standard router, connection with access from any location in the world (requires access to the Internet)
