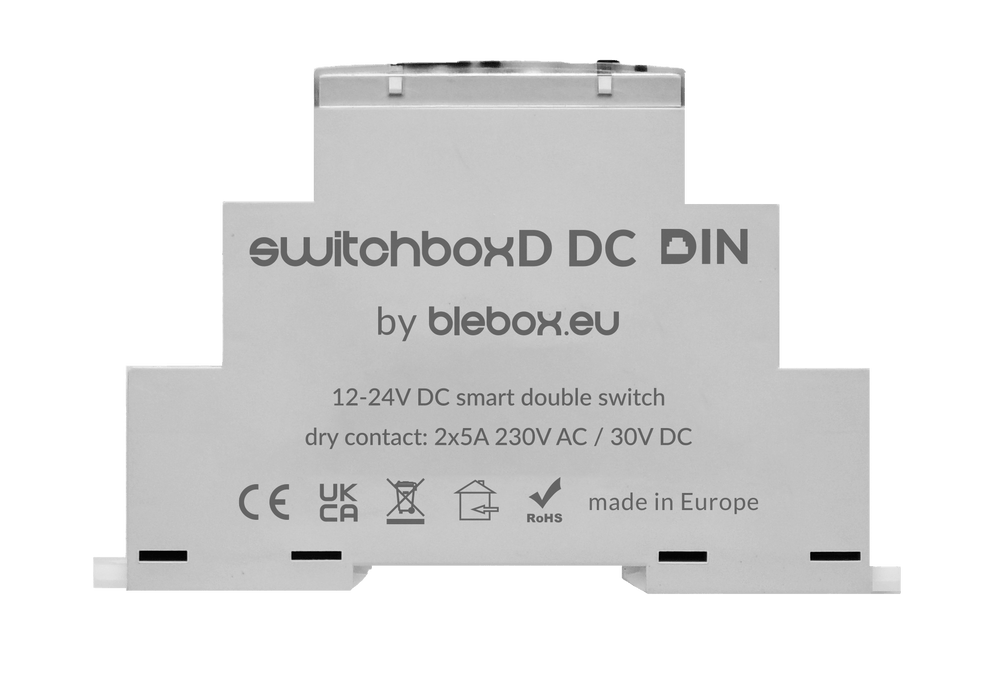

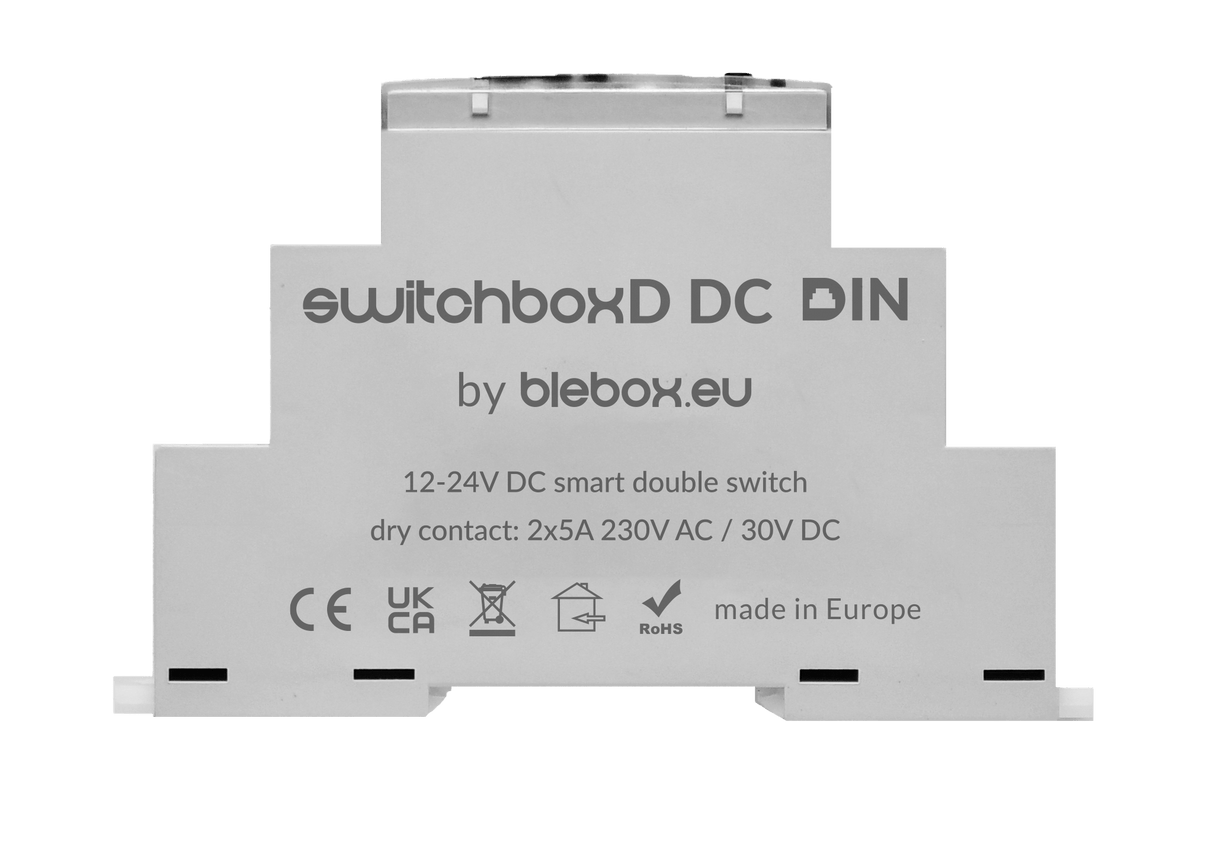

Din-rail 2-Channel WiFi Controller ~ SwitchBoxD DC DIN by BleBox
Product details
Controller only ~ all other components are sold separately
Description

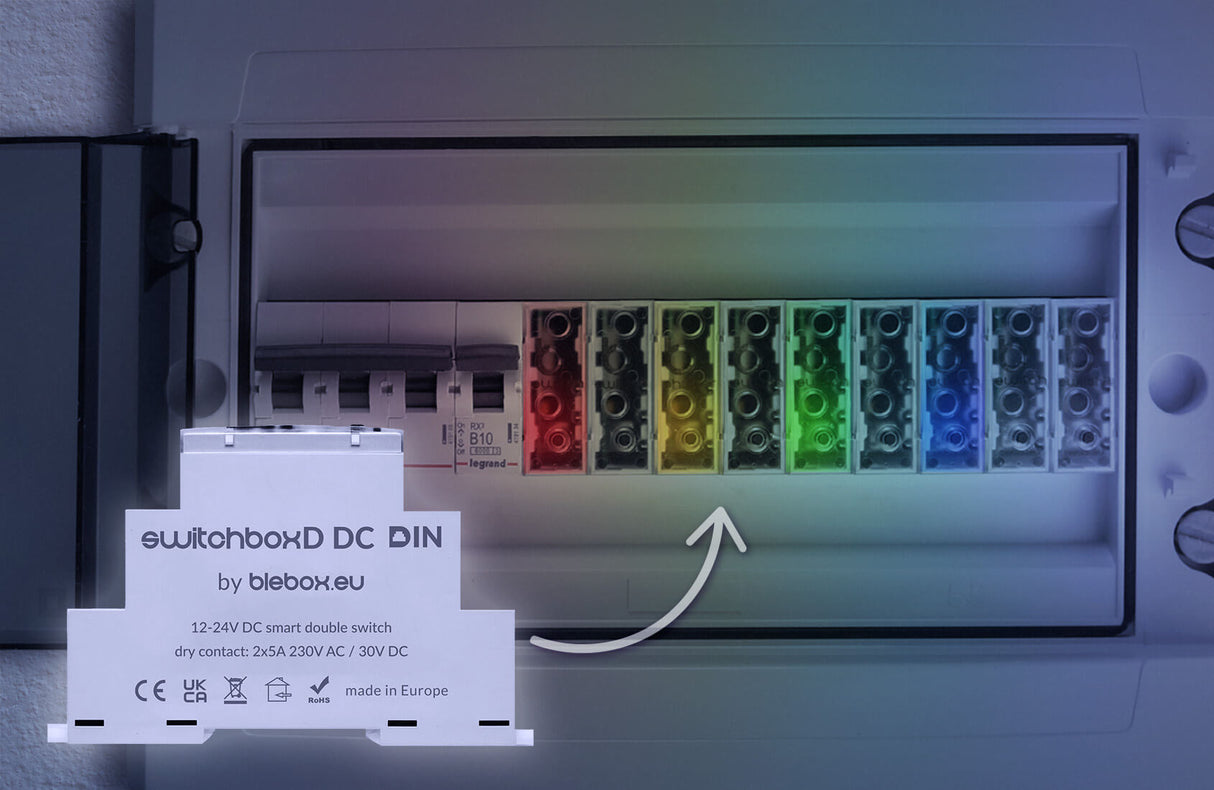

The SwitchBoxD DC DIN is a smart home switch that enables independent control of two different circuits with up to 1.1 kW power each, using a single controller, and can be managed locally with a smartphone or remotely from anywhere in the world. This smart controller is designed for DIN rail mounting in distribution boxes, which is ideal for controlling various household appliances, lighting systems, and machines.

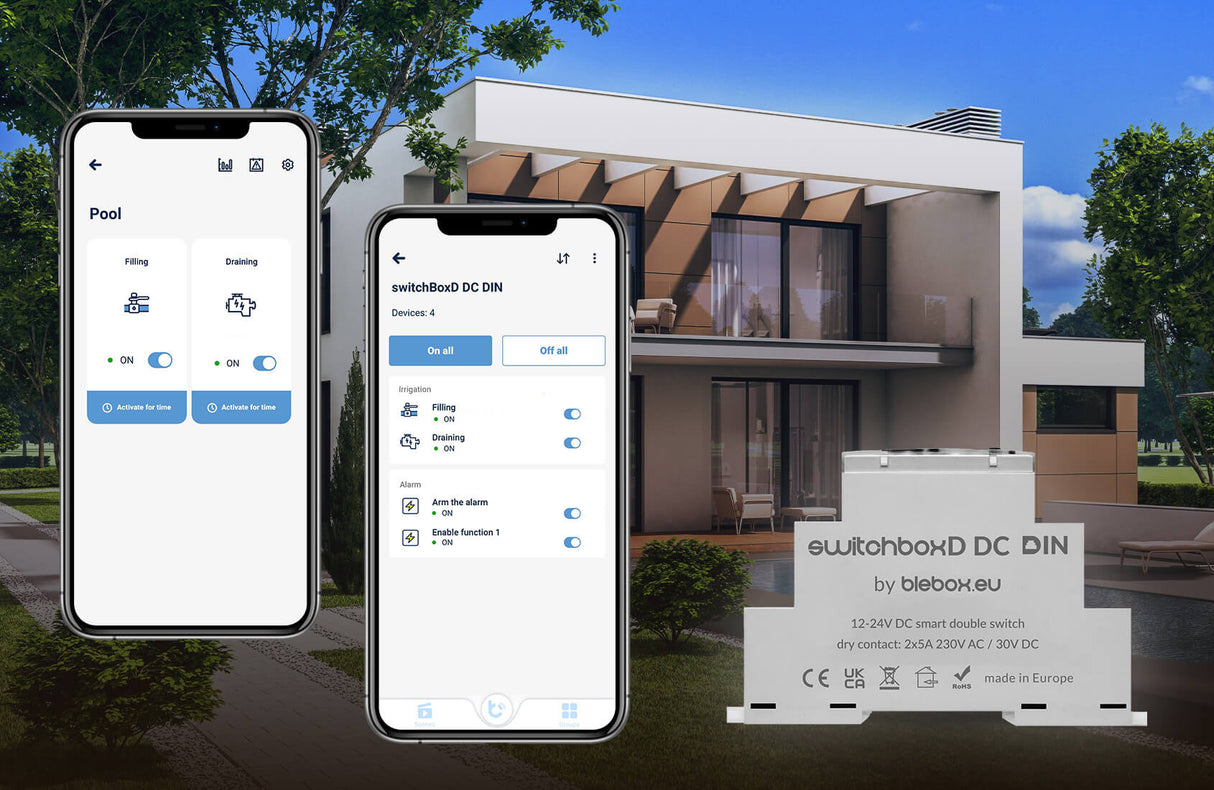

The SwitchBoxD DC DIN controller not only allows for individual circuit management but also supports the creation of scenes and groups, enabling simultaneous control of multiple BleBox devices. Additionally, it features energy consumption of data monitoring, providing valuable insights into device usage. With options for both wired and wireless control integration, including compatibility with WiFi-connected buttons, the SwitchBoxD DC DIN represents a comprehensive solution for modern smart home automation needs.
The SwitchBoxD DC DIN accepts input from various sensors, allowing automated control based on environmental triggers. It supports both wired and wireless buttons, offering flexibility in operation. The device can be paired with BleBox remotes like uRemote, sRemote, and inBox for enhanced control options. Integration capabilities are a strong point, with the SwitchBoxD DC DIN controller's low voltage support making it ideal for incorporation into existing automation or alarm systems. The built-in backlight indicates operational status, adding to its user-friendly design.
This smart controller combines advanced functionality with ease of use, making it a valuable addition to modern home automation systems. Its ability to work with various voltage ranges and integrate with multiple devices and sensors positions it as a versatile solution for both residential and light industrial applications.
General Specifications
- Supply voltage: 12 - 24V DC
- Energy consumption: < 1W
- Control outputs: 2
- Outputs type: Relay, isolated, configurable: independent or push-pull, dry contact (common potential)
- Maximum voltage of outputs: 250V AC | 30V DC
- Maximum load: 5A
-
Maximum power (per output):
- AC1 (resistive, power factor: 0.95): 5A @ 230V AC = 1150W
- AC3 (IEC60947-4-1): ~0.15kW @ 240VAC
- DC1 (resistive): 5A @ 30V DC = 150W
- Number of inputs: 2
- Supported switches: Monostable (push-button), bistable (traditional, cross switch), not-illuminated
- Type of buttons: Tact-switch
-
Button functions:
- on/off function: short press: toggle output 1; long press: toggle output 2
- factory reset procedure
- Controller signaling: Backlight
- Transmission standard: µWiFi, compatible with WiFi, 802.11g
- Housing: ABS, acrylic, flammability class V-0 according to UL 94
- Operating temperature: -20°C to 50°C (-4°F to 122°F)
- Protection Rating: IP20
- Dimensions: 90 x 17.5 x 64mm (3.54” x 0.69” x 2.52”)
Downloads
- switchBoxD DC DIN instructions
- Blebox App Quick Start Guide
- Google Home User Guide
- Alexa User Guide App Quick Start Guide
