0.59" Plaster-in Trimless Drywall LED Channel ~ Model RSL15 US

Profile only ~ diffusers and all other accessories are sold separately

Description

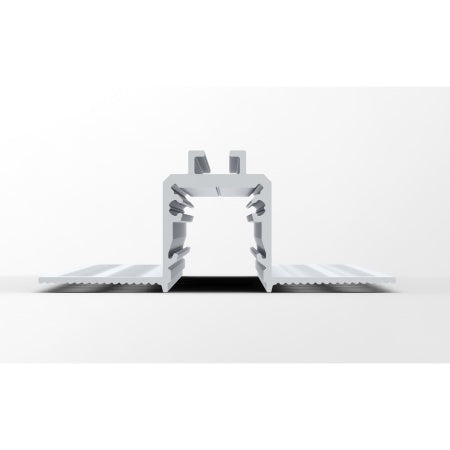

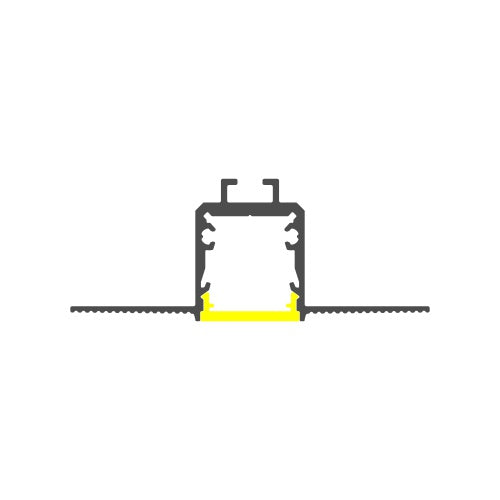

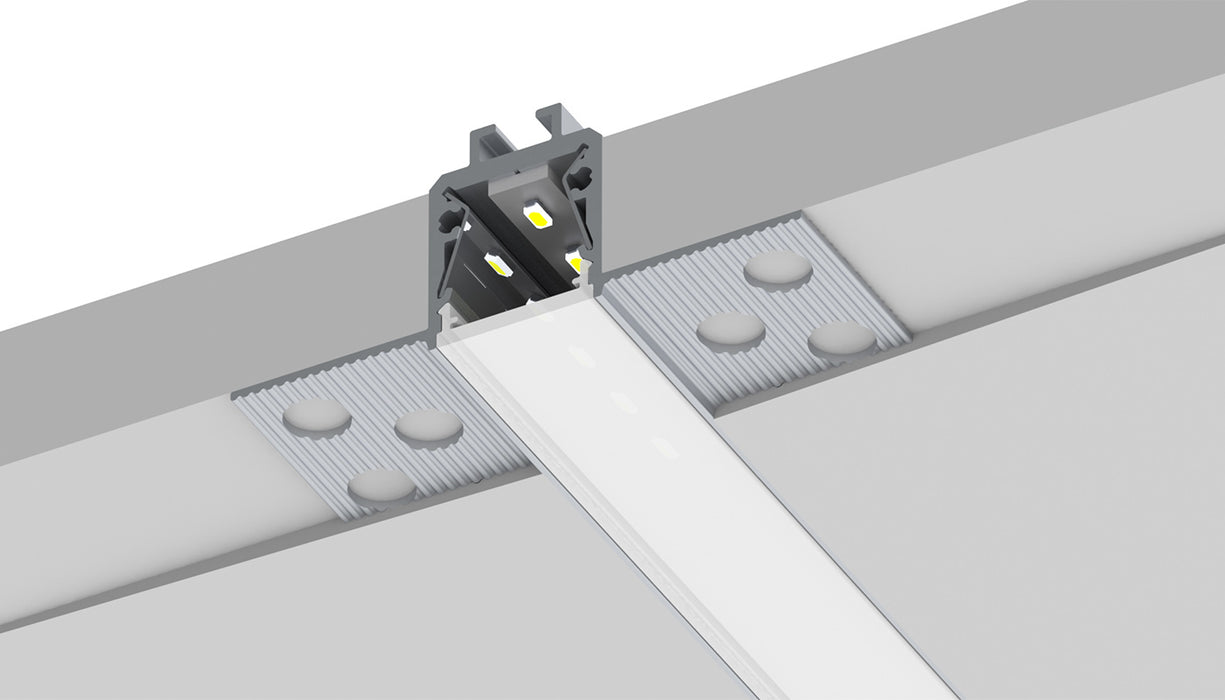

0.59" Plaster-in Drywall LED Channel ~ Model RSL15 US

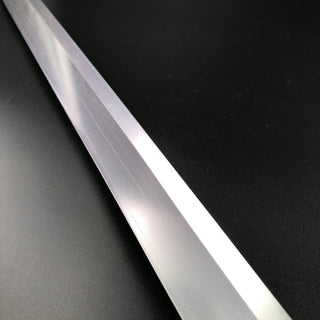

The first profile in plasterboard line originating from our Slim Line family. 0.59" Plaster-in Drywall LED Channel RSL15 US is designed to fit 12mm LED strip, with possibility to be equipped with highly polished aluminum reflectors which increase the light output up to 20%.

The RSL15 US includes two standard covers - clear and opal - that you can use with micro-prismatic slide-in film diffusers. Furthermore, the Plaster-in Trimless Drywall LED Profile is designed to be used with our 15-degree PPMA optic lens. Specifically, the opal diffuser provides a 'LED dot free effect' creating a uniform line of light.

What to consider before starting your plaster-in LED channel project.

General specifications

• Material: Aluminum

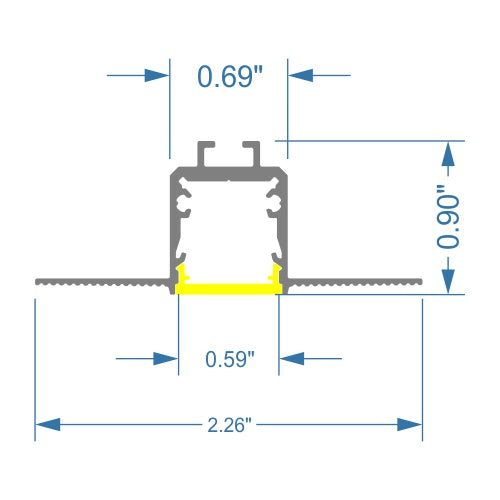

• Overall dimensions: 57.5mm x 22.8mm (2.26" x 0.89")
• Maximum LED strip width: 12mm

Downloads

• RSL15 US cut sheet

Important notes

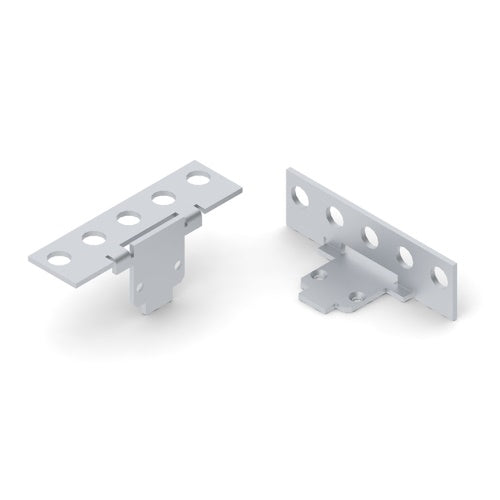

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.

• You can easily cut LED profiles by hand or by machine.

• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
