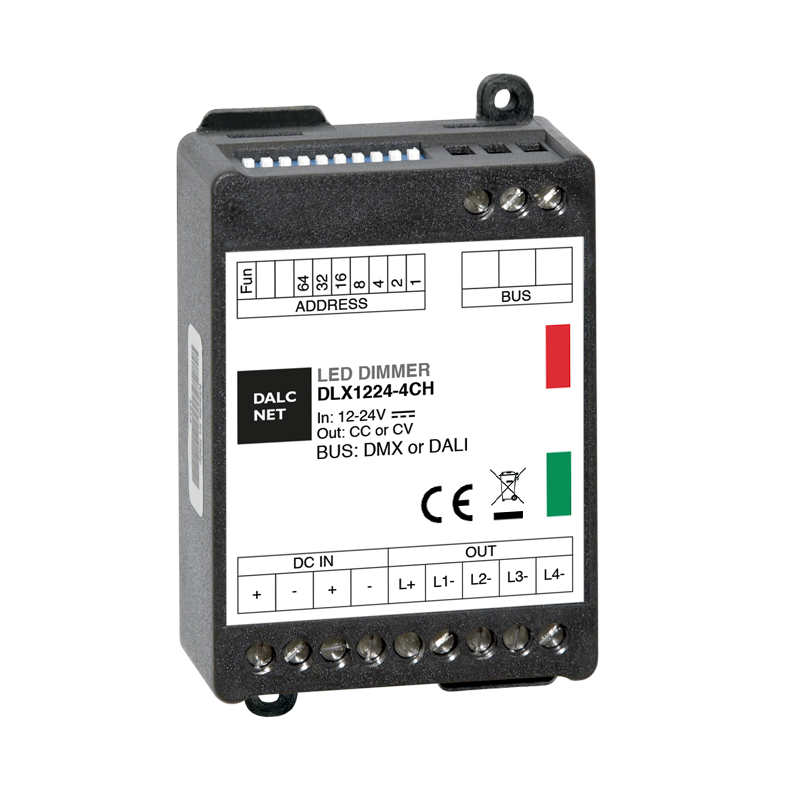

DMX 4-Ch Constant Current LED Controller (500mA) ~ Model DLX1224-4CC500-DMX

Controller only ~ power supply, LEDs and all other components are sold separately

Description

DLX1224-4CC500-DMX LED dimmer is a multi-functional 4-channel dimming solution designed for controlling multiple LED channels via the DMX512 protocol. Operating with a DC input of 12-24V DC, it supports control via DMX512+RDM, while also offering stand-alone functionality via DIP switch settings.

This LED controller manages RGB or RGBW color outputs with a constant current output of up to 500mA. It ensures precise brightness adjustment, with the ability to dim LEDs to complete off. It also features soft start/stop functionality for smooth, pleasant transitions when switching the lights on or off.

Engineered to operate within an extended temperature range, the controller is fully tested for functionality and backed by a 5-year warranty.

General specifications

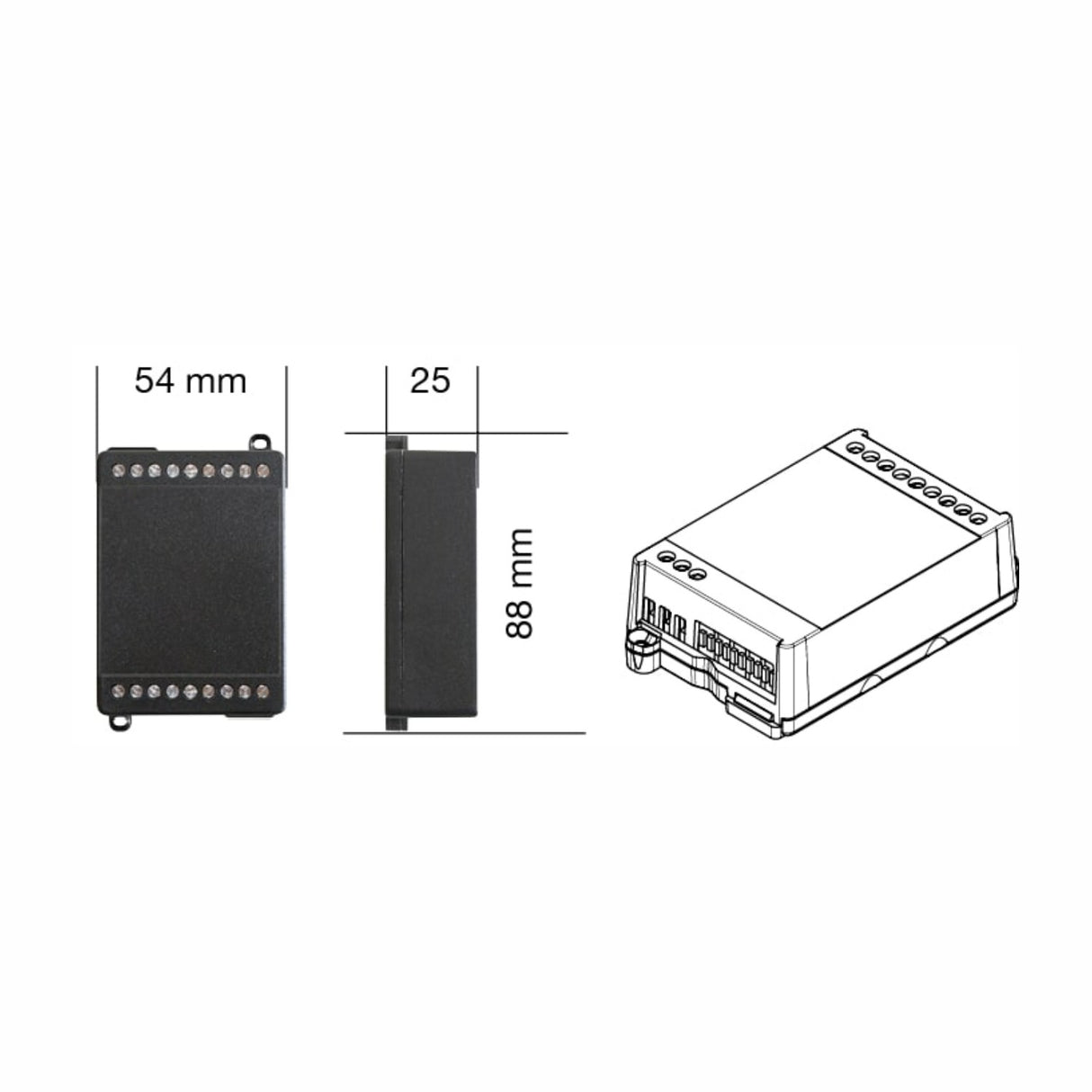

• Dimensions: 88 x 54 x 26mm (3.46” x 2.13” x 1.02)
• Model: DLX1224-4CC500-DMX
• Voltage Range: 12-24V DC
• Max Output Power: 4 x 500mA
• Output Channels: 4
• Bus: DMX
• Working Temperature Range: -10/+40°C

Downloads

• DLX1224-4CC500-DMX cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
