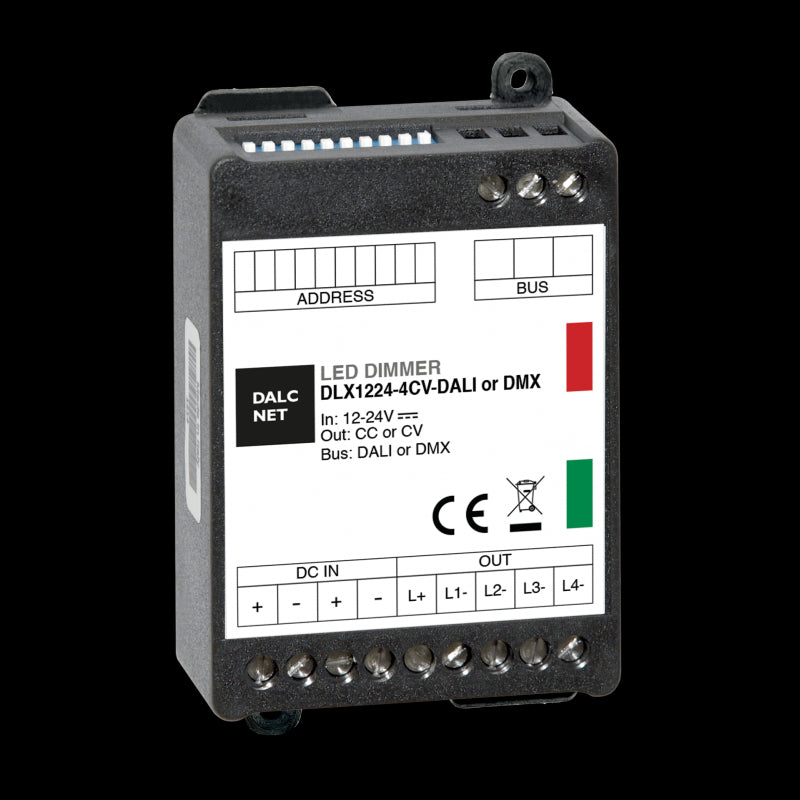

RGBW 4-Channel LED Dimmer with DMX Control ~ Model DLX1224-4CV-DMX

Controller only ~ profiles, LEDs, channels, power supplies and all accessories are sold separately

Description

DLX1224-4CV-DMX LED Dimmer is a cutting-edge dimming solution from Dalcnet's EASY series. This exceptional dimmer is designed to enhance your LED lighting experience with its impressive features.

The DLX1224-4CV-DMX LED strip dimmer is compatible with RGB or RGBW color LED strips and operates seamlessly with an input range of DC 12-24V DC. Whether you're illuminating a space or creating dynamic lighting effects, this dimmer is perfect for achieving the desired ambiance.

Equipped with both DMX bus protocol input and local control, this dimmer offers versatility in operation. With the convenient DIP switch settings, you can easily switch between the two modes to suit your specific needs.

Enjoy precise brightness adjustment with the ability to dim the lights down to complete darkness. The dimmer features soft start and soft stop functions, ensuring smooth transitions and eliminating any abrupt changes in lighting intensity.

The DLX1224-4CV-DMX LED Dimmer utilizes an optimized output curve, providing consistent and accurate dimming performance for your LED strips. It is designed to withstand extended temperature ranges, guaranteeing reliable operation even in challenging environments.

Upgrade your LED lighting setup with the DLX1224-4CV-DMX LED Dimmer and experience unparalleled control, flexibility, and performance. Whether for architectural lighting, stage productions, or decorative displays, this dimmer empowers you to create captivating lighting effects effortlessly.

General specifications

• Model: DLX1224-4CV-DMX
• Input Range: 12-24V DC
• Max Output Power: 4x 5A
• Channels Output: 4-Channel
• Bus: DMX
• LED driver type: Constant voltage
• Working Temperature Range: -10/+40°C
• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")

Videos

Downloads

• DLX1224-4CV-DMX cut sheet
