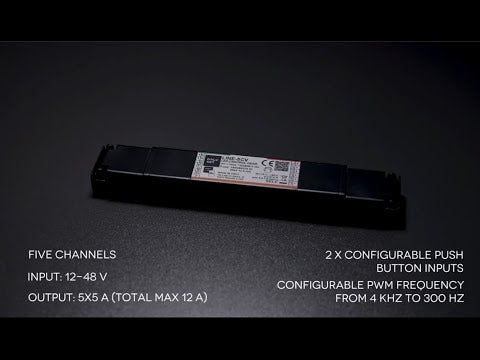

Slimline 5-Channel RGB+TW LED Dimmer with DMX ~ Model LINE-5CV-DMX
controller only ~ power supply, LEDs and all other accessories are sold separately
Description

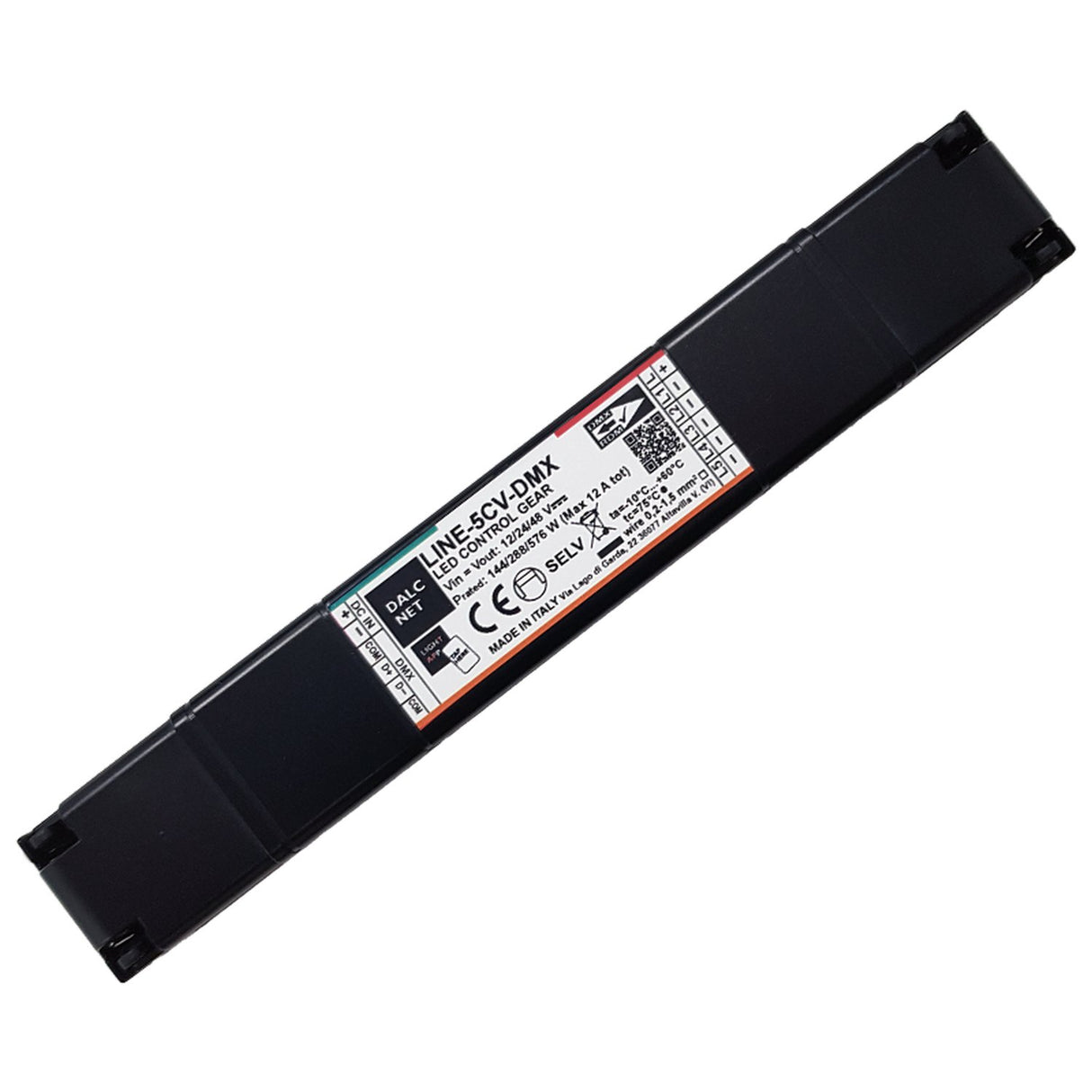

The slim LINE-5CV-DMX LED Dimmer is a compact and versatile 5-channel LED dimmer that combines standard DMX control with advanced features for controlling constant-voltage LED strips.

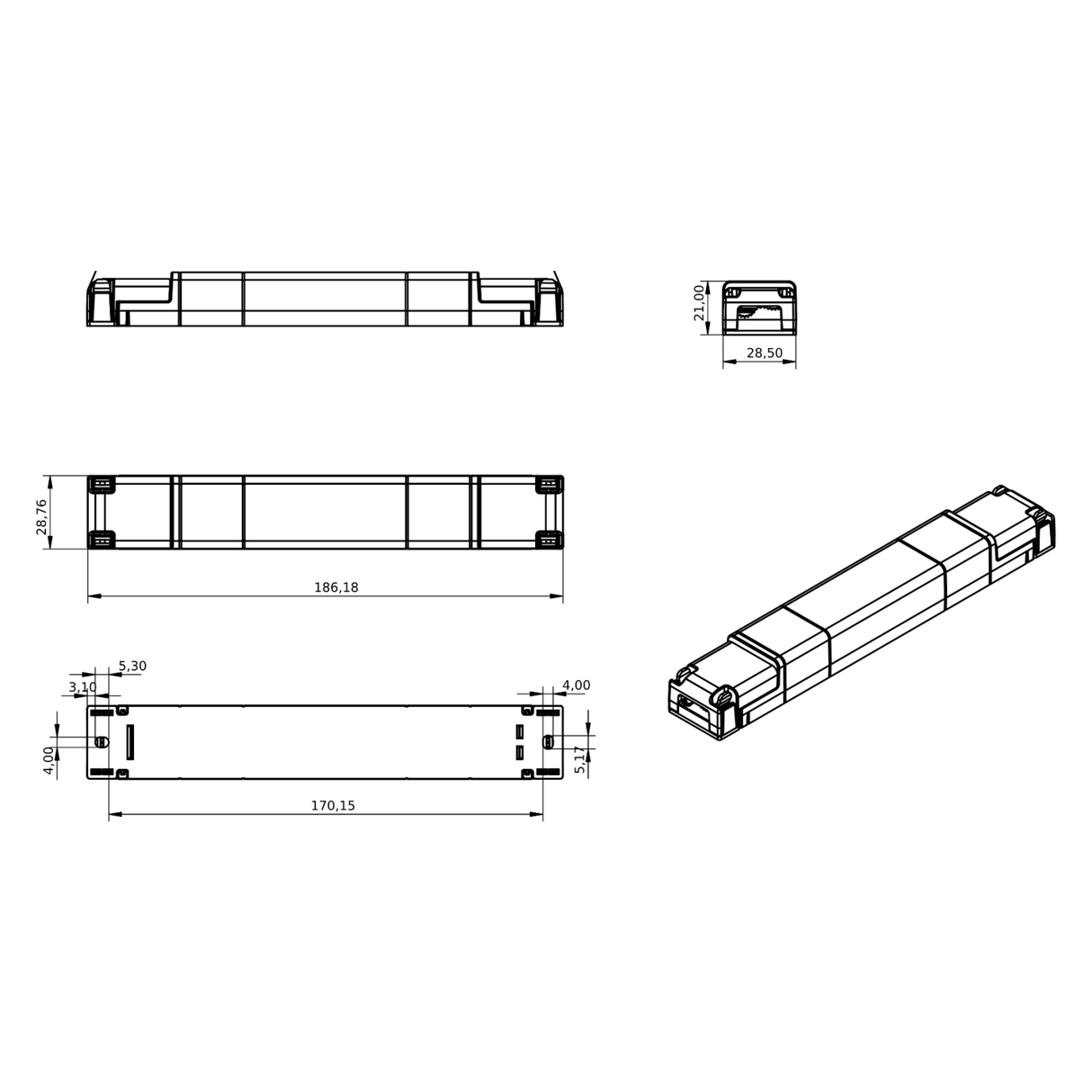

The space-saving design which measures only 186x29x22mm (7.32" x 1.15" x 0.87") allows you to mount this 5-channel LED controller into small spaces or embed it into the luminaire or lighting channel itself. This RGB+TW dimmer is controlled with the industry-standard DMX512 protocol and includes RDM functionality. You can configure this slimline DMX dimmer using the DMX512+RDM or using the Dalcnet LightApp to setup the lighting modes and other parameters.
The dimmer supports a maximum load of 5A per channel up to a total of 12A and utilizes a flicker-free PWM dimming at up to 4kHz. It also incorporates protective functions for additional safety and operates within a wide temperature range of -10° to +60°C.
The 5 available output channels on this slimline DMX dimmer can be configured to suit your specific application. This means that you can specify the same controller for an entire project and use the same model to control almost all different types of LED lights in your installation.
The most basic lighting mode is the 5-channel LED dimmer which allows you to independently control the brightness of up to five separate LED strip lights. Alternatively, you can use the LINE-5CV-DMX as a dual tunable white dimmer allowing you remotely control two separate tunable white (TW) lighting zones with one controller.
If your DMX project involves RGB color-changing lights, then this 5-channel RGB LED controller is the answer: With five output channels, you can use this dimmer to control RGB, RGB+W, RGB+W+W or RGB+TW LED strip configurations.
The compact DMX controller for RGB+TW lights is designed with an optically isolated DMX bus input for trouble-free operation when added to your existing DMX installation.
General specifications
- Input Range: 12-48V DC
- Maximum total current: 12A
- Maximum current per channel: 5A
- Output channels: 5-channel (5xW, TW+TW, RGB, RGB+W, RGB+W+W, RGB+TW)
- Bus: DMX512-A with RDM
- Working Temperature Range: -10/+60°C
- Dimensions: 186 x 29 x 22mm (7.32" x 1.15" x 0.87")
Downloads
- LINE-5CV-DMX cut sheet
Important Notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States
- Bulk pricing is available on request
