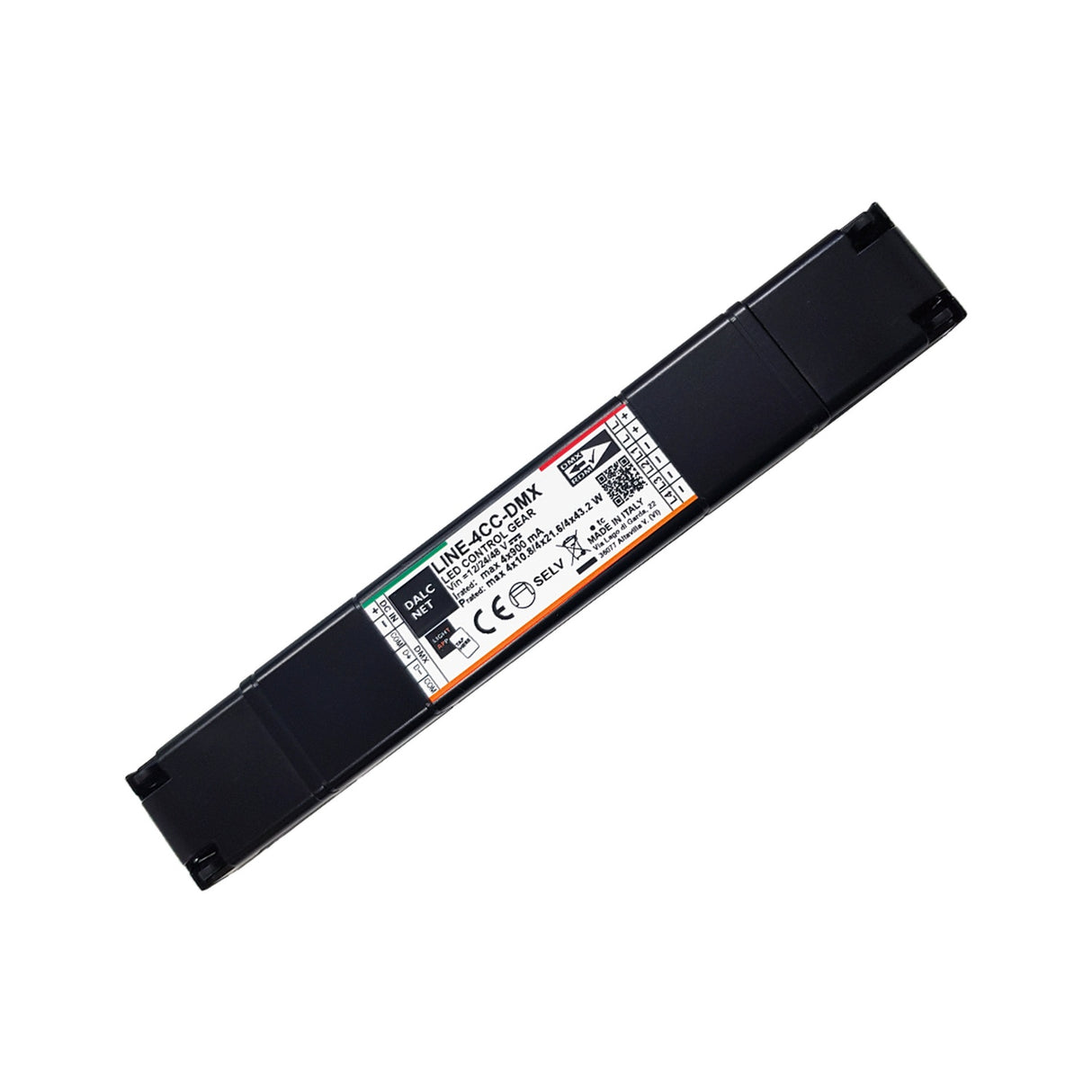

Slimline 4-Channel Constant Current LED Dimmer with DMX ~ Model LINE-4CC-DMX

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The LINE-4CC-DMX is a slimline 4-channel constant current LED dimmer with DMX control, designed for professional lighting systems that require stable and precise dimming. It operates with a 12–24–48 Vdc SELV power input and delivers up to 900 mA constant current output per channel. This DMX LED dimmer is suitable for dimmable spotlights and constant current LED modules, supporting white, single color, tunable white, RGB, and RGB+W lighting applications.

TheLINE-4CC-DMX features adjustable PWM modulation from 300 to 3400 Hz for smooth, flicker-free dimming and supports R-L-C loads. Control and configuration are available via DMX512-A with RDM, allowing setup of PWM frequency, dimming curve, power-on levels, and DMX personality. Operating hours and ignition cycles can also be monitored for system management.

Configuration is completed using the Dalcnet LightApp mobile application with an NFC-enabled smartphone, enabling quick adjustment of modulation frequency and brightness parameters. Built-in protections include over-power protection, reverse polarity protection, input fuse protection, and opto-isolated DMX input. The LINE-4CC-DMX is tested 100% for functionality and designed to operate within an extended temperature range for reliable performance.

General specifications

• Model: LINE-4CC-DMX
• Voltage Range: 12–48V DC
• Output channels: 4
• Working temperature range: -10/+60°C (14 ~ 140°F)
• Max output power: 900mA
• Protection rating: IP20
• Dimensions: 186 x 29 x 21mm (7.32” × 1.14” × 0.83”)

Downloads

• LINE-4CC-DMX cut sheet
