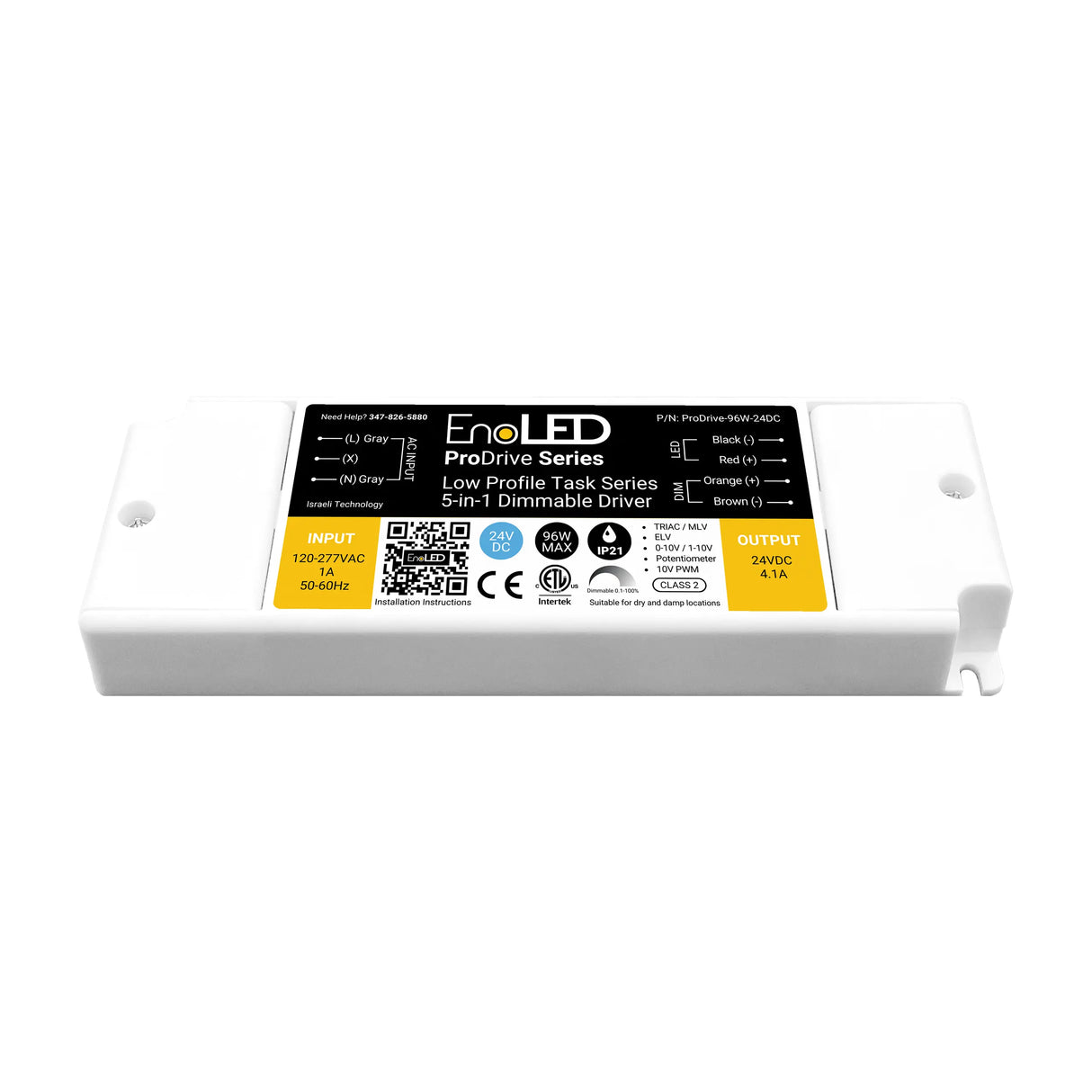

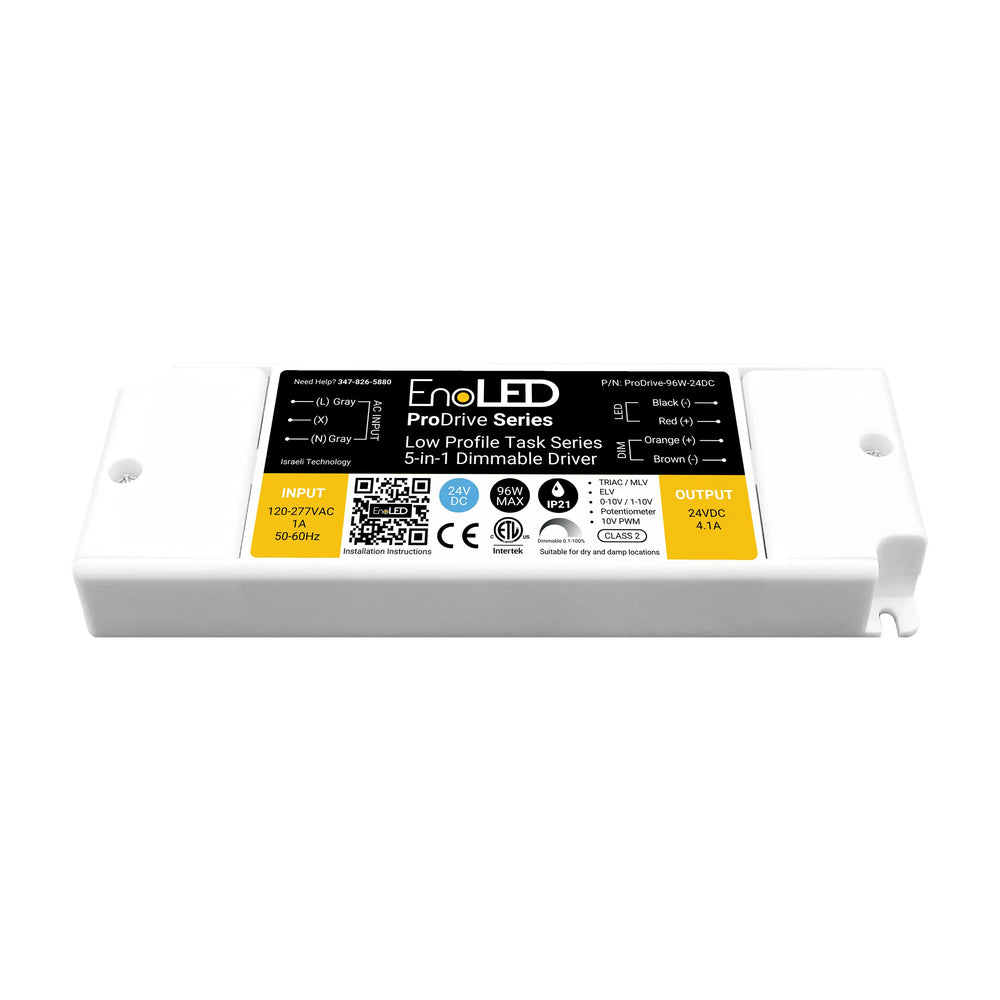

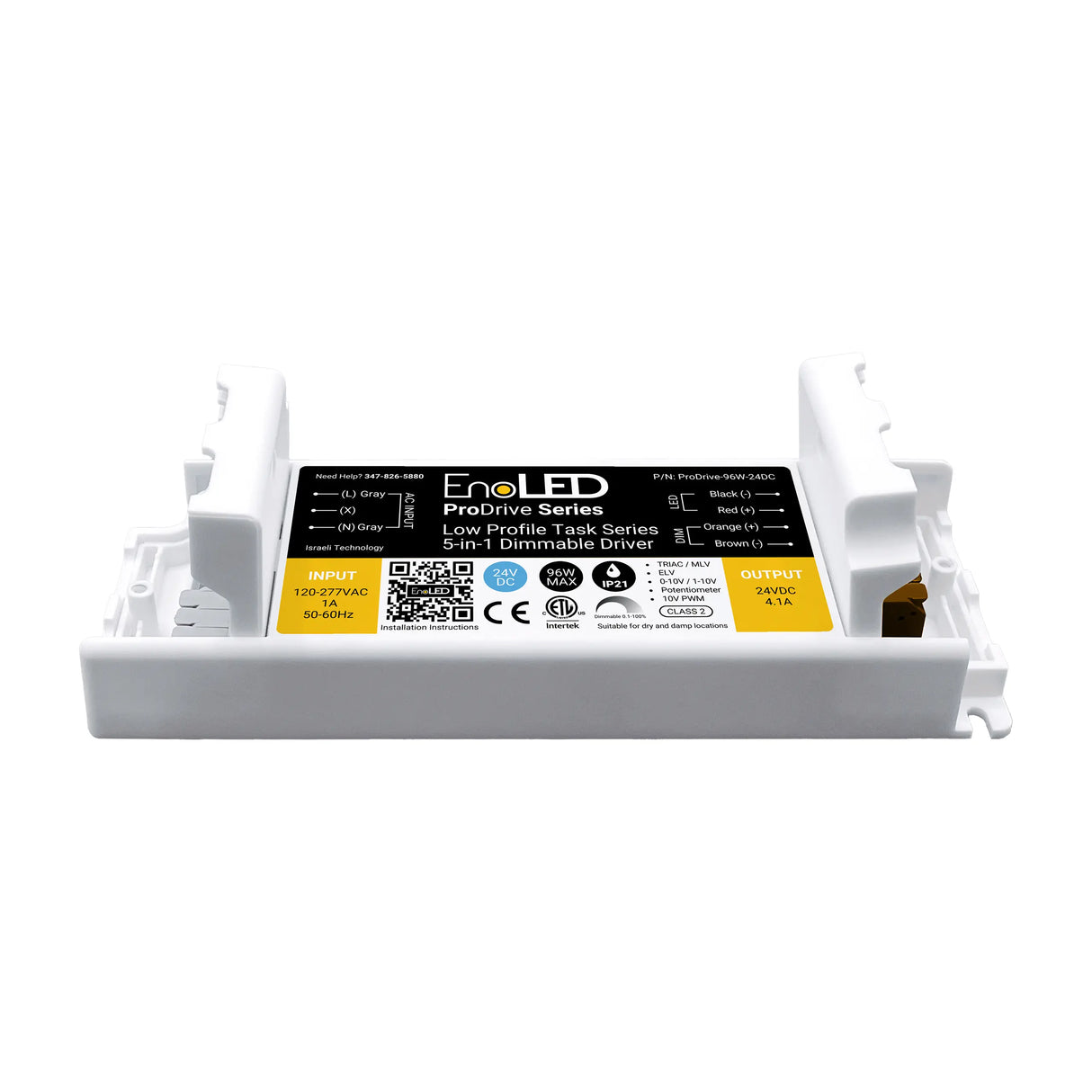

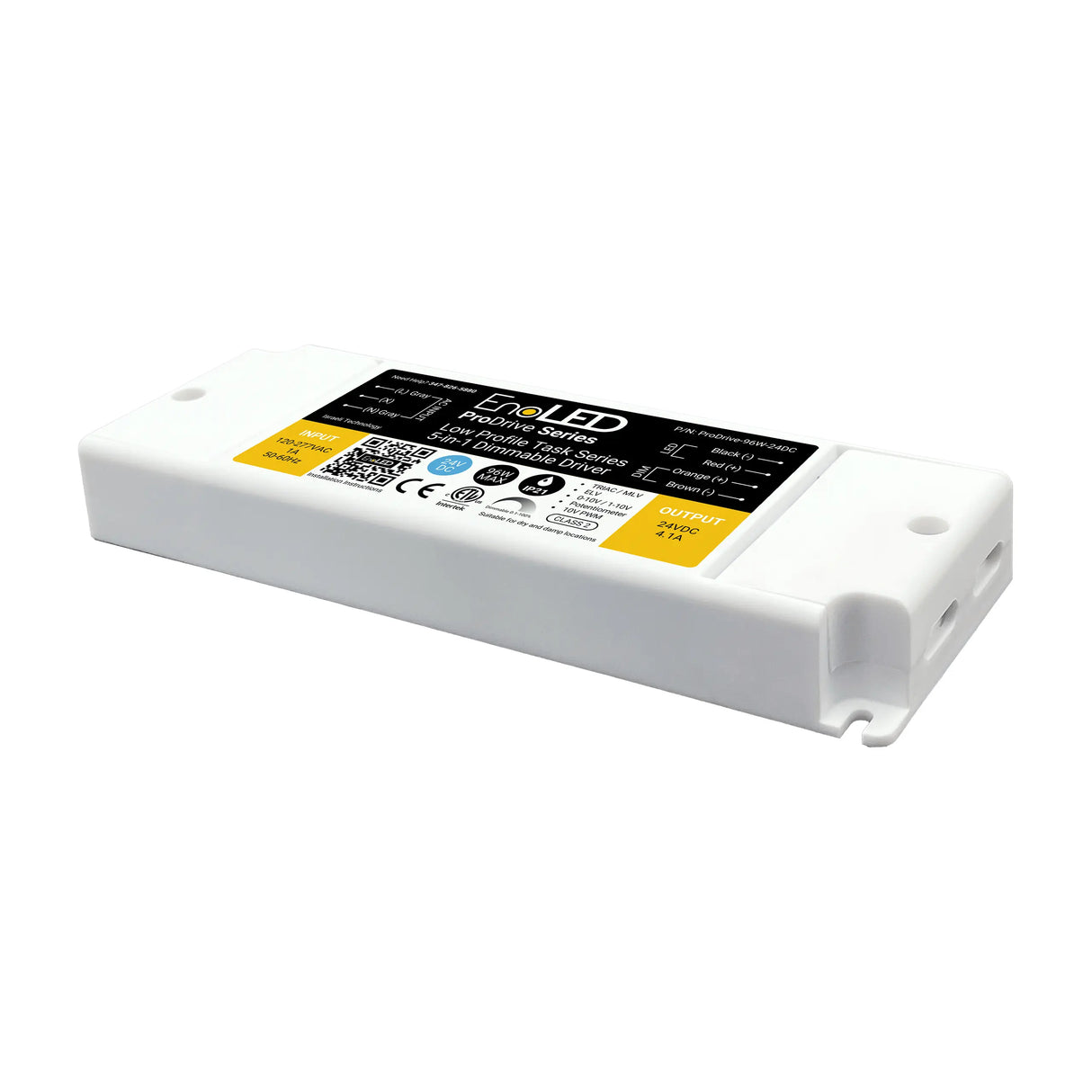

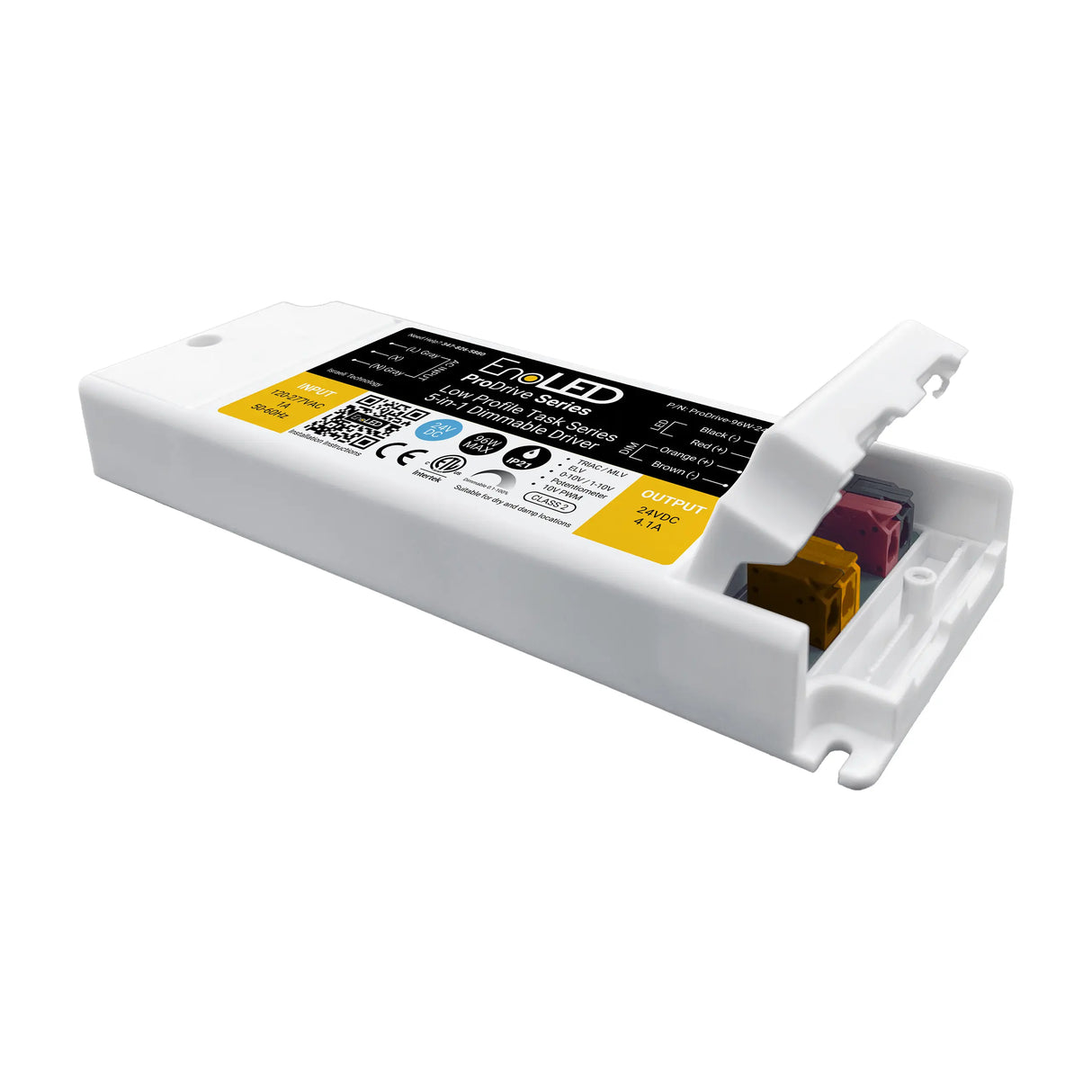

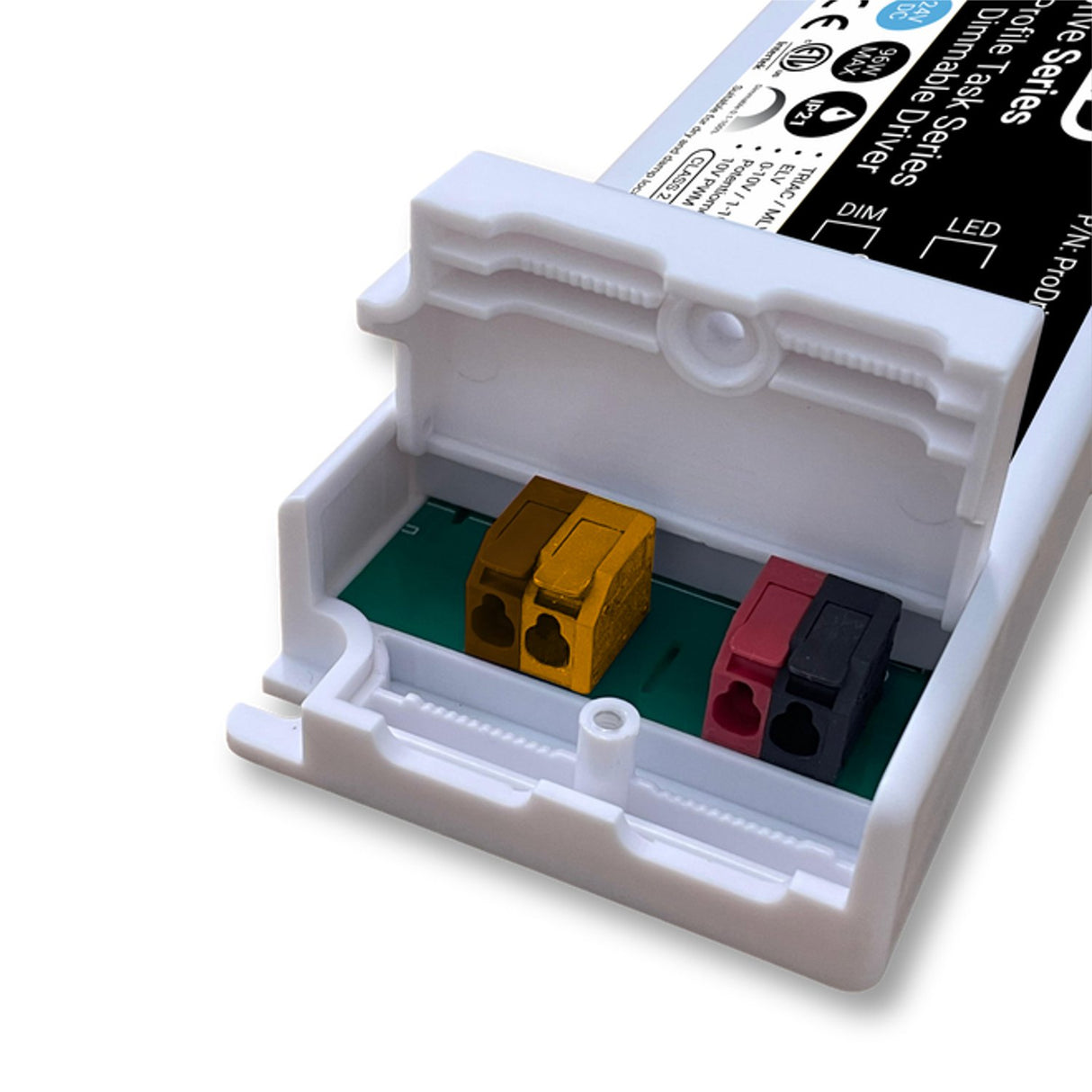

5-in-1 Dimmable LED Driver (24V) ~ EnoLED ProDrive Series
Product details
LED power supply only ~ LED strip and all other components are sold separately
Description
The ProDrive Series is a line of premium 5-in-1 low-profile dimmable LED drivers designed for lighting applications where space is at a premium. With a universal input range of 120–277V AC and a slim form, it installs easily in cabinetry, millwork, task lighting, and other tight-space installations.
It supports multiple dimming with TRIAC, MLV, ELV, 0-10V, 1-10V, potentiometer, and PWM, offering maximum flexibility for different control systems. These LED drivers dim smoothly down to 0.1% for flicker-free performance and are compliant with Title 24 Part 6 flicker requirements.
Engineered for efficiency and reliability, the ProDrive Series delivers up to 92% efficiency, is Class 2 certified and ETL-listed (UL-listed equivalent), and comes with a 6-year warranty, making it a trusted choice for professional lighting projects.
General specifications
- Output voltage: 24V DC
- Max output power: 40W, 60W, 96W
- Input voltage: 120V – 277V AC (universal / full-range)
- Min dimming level: 0.1%
- Dimming protocols: TRIAC, MLV, ELV, 0-10V, 1-10V, Potentiometer, 10V PWM
- Dimming curve: Linear
- Dimming type: PWM (20 KHz)
- Operating ambient temperature: -40°C – 40°C (-40°F – 104°F)
- Environmental protection: IP21
- Dimensions:
- 40W: 160 x 58 x 20 mm (6.29" x 2.28" x 0.78")
- 60W: 185 x 63.5 x 22 mm (7.28" x 2.50" x 0.86")
- 96W: 185 x 63.5 x 22 mm (7.28" x 2.50" x 0.86")
- Expected lifespan: >50,000 hours
- Certification: ETL listed (UL listed equivalent), Class 2
- Warranty: 6 years
Downloads
FAQs
Q: Is this LED driver low profile to fit under cabinets?
A: Yes, this is a low profile dimmable power supply.
Q: Will this driver work with 0-10V dimming?
A: Yes, this driver includes 0-10V dimming technology.
