SKU: LED-ZHAGA-CASDMX

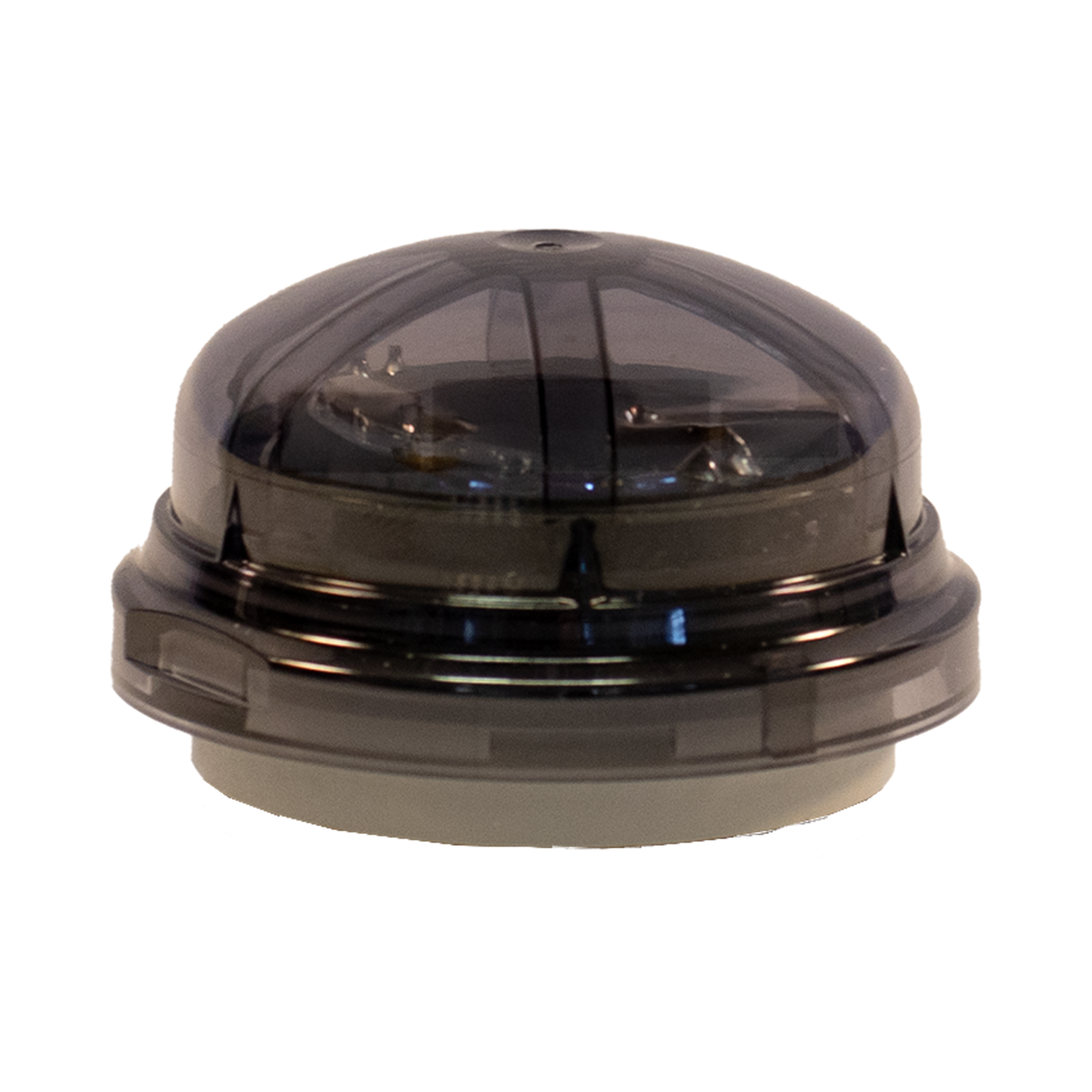

Casambi Enabled 12-Channel Outdoor DMX Master Controller ~ Model Zhaga casDMX

$128.65 USD
Shipping calculated at checkout.
Contents

Product details

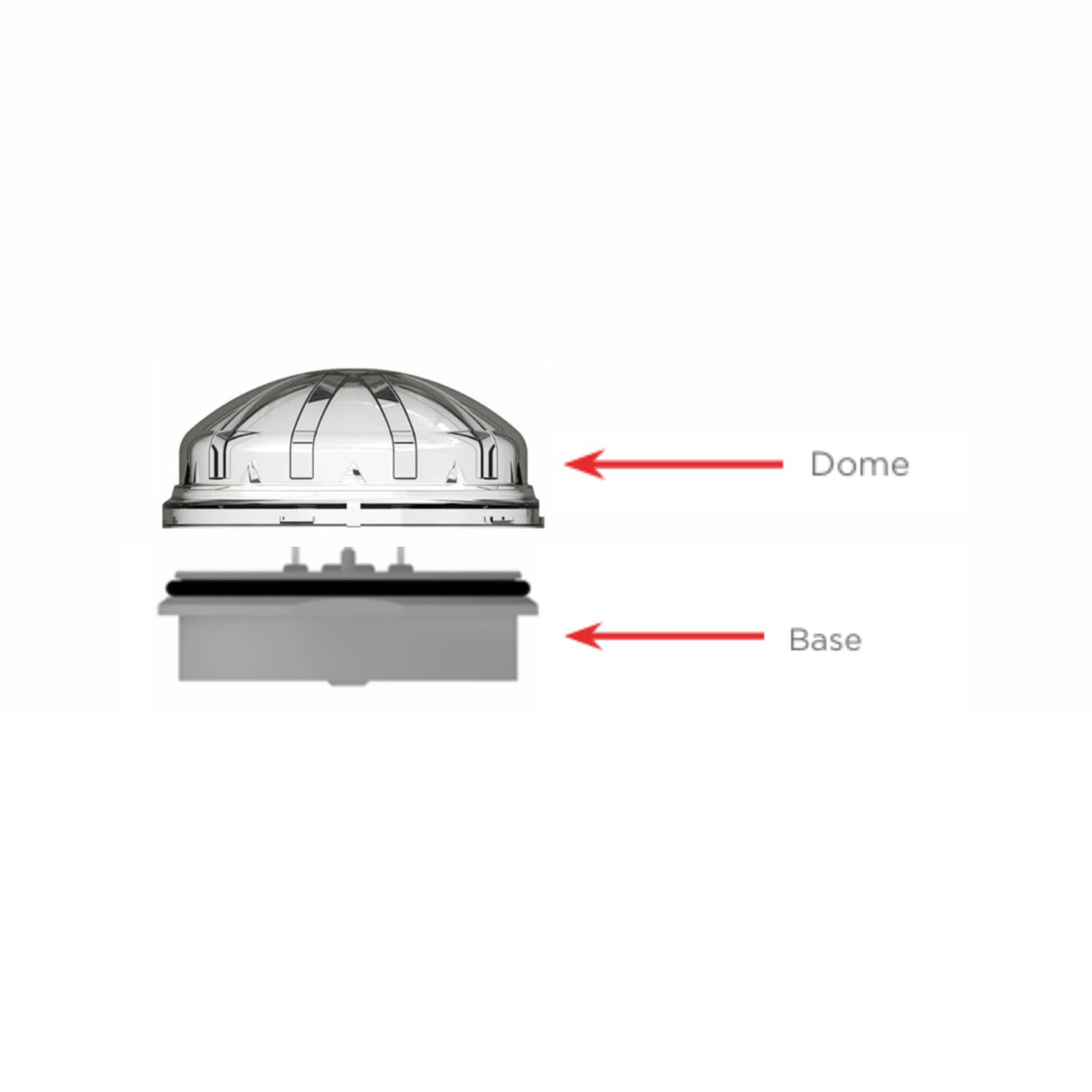

Zhaga CasDMX base and dome only ~ power supply, LEDs and all other accessories are sold separately

Description

The Zhaga casDMX is a Bluetooth-controlled, Casambi-enabled 12-channel DMX-512 master dimmer, providing full color control for DMX-enabled lighting fixtures. It connects to a 12-24 V DC Class 2 power supply and generates a non-isolated DMX-512 universe. Designed for RGBW and tunable white (TW) applications, it supports multiple Casambi profiles, allowing users to choose between four, eight, or twelve slider channels for enhanced control.

This controller offers a non-isolated DMX512 output, which is suitable for direct connection to a DMX-enabled lighting fixture or lighting group. However, it is not designed to be integrated into an existing DMX network. This dimmer can be operated using the Casambi app, which is available for free on both the Apple App Store and Google Play Store.

The Zhaga casDMX is ideal for controlling luminaires with Casambi color widgets and sliders in Evolution mode, offering seamless integration with Casambi-enabled products. Up to 250 units can be connected in a Casambi mesh network, providing a flexible and scalable solution for lighting control.

General specifications

  • Dimensions: 48mm (1.89”) diameter, 30mm (1.18") height
  • Channels: 12ch
  • Input voltage: 8-24V DC, Class 2
  • No-load input current: 30 mA
  • DMX-512 output: 3-wire non-isolated DMX-512
  • Radio transceiver
    • Casambi CBM003B Radio Module
    • Operating frequencies: 2.401-2.483 Ghz
    • Maximum output power: typ. +8 dBm
    • -103 dBm RX sensitivity in long-range mode
  • Ambient temperature: -25 ~ +45°C (-13 ~ +113°F)
  • Storage temperature: -25 ~ +75°C (-13 ~ +167°F )
  • Recommended interface connector: TE Zhaga Z10 Connector (40mm)
    • e.g. TE Lumawise Endurance S Z10 connector, p/n 2343403-1, 2363638-2 or 1-2363638-2
