Casambi Enabled DMX Master with Mains Power ~ Model CBU-MASTER-DMX-IP

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The CBU-MASTER-DMX-IP from Dalcnet is a mains-powered signal converter that bridges the gap between the Casambi app and a DMX512 bus, allowing you to effortlessly control DMX fixtures with a wireless Bluetooth signal.

With the Casambi to DMX master converter, you can experience the convenience of controlling your DMX lighting devices directly from the intuitive Casambi app, eliminating the need for complex wiring and manual control panels.

This wireless gateway for DMX fixtures can be used with a wide range of DMX-compatible devices, including lighting fixtures, stage lighting, and architectural lighting, enabling you to create captivating lighting scenes and dynamic visual effects both indoors and outdoors.

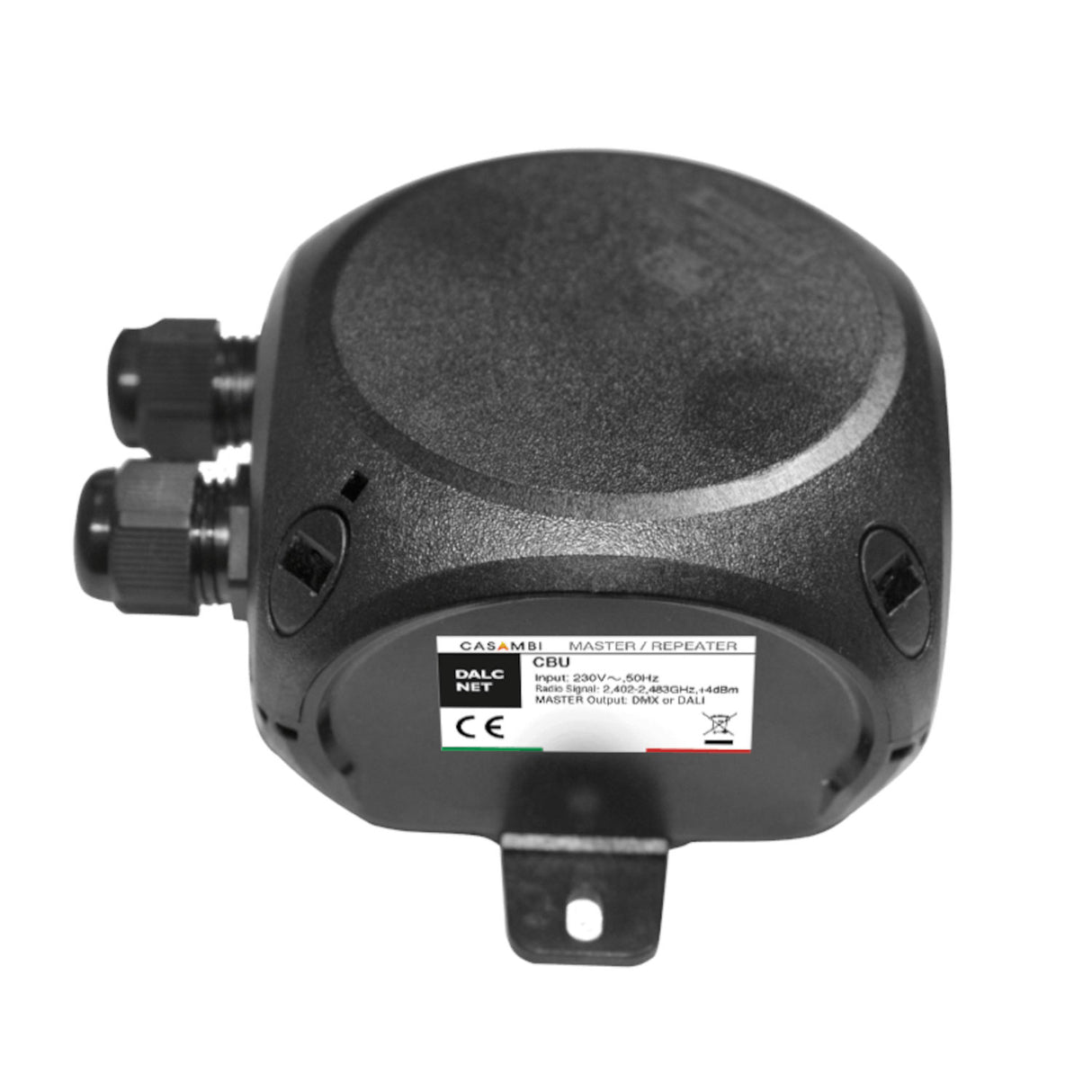

The CBU-MASTER-DMX-IP boasts a robust design with IP66 protection and a wide-range mains AC supply input, allowing for simple installation without needing a DC power supply. Its wide range of configurations and seamless integration with the user-friendly Casambi smartphone app make it easy to set up and wirelessly control your DMX fixtures with precision and flexibility.

General specifications

• Model: CBU-MASTER-DMX-IP
• Supply Voltage: 230V AC nominal (100-240V AC 50/60Hz)
• Input Bus: Casambi

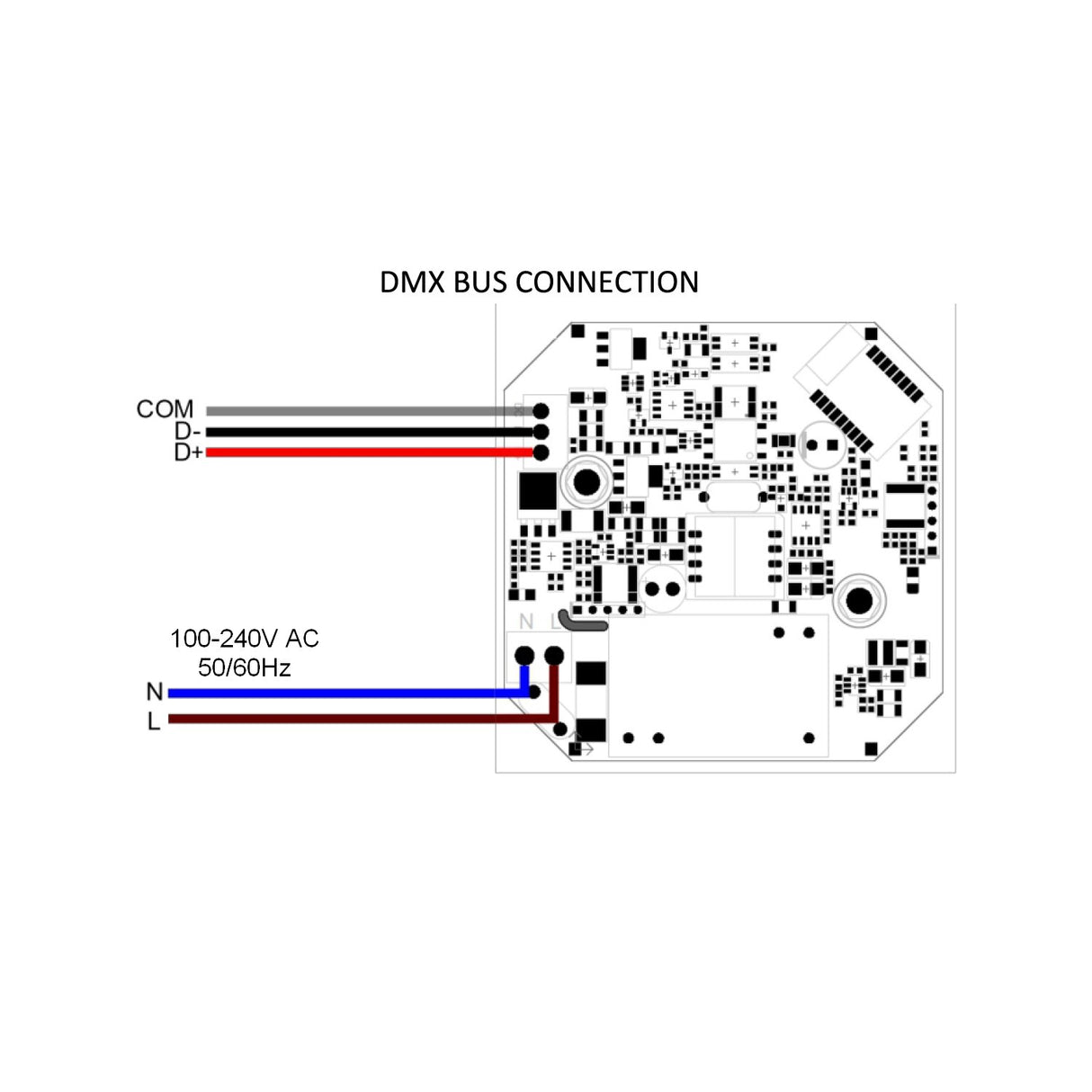

• Output Bus: DMX512
• Working Temperature Range: -25/+60°C
• Environmental Protection: IP66 waterproof
• Dimensions: 90 x 90 x 65mm (3.54" x 3.54" x 2.55")
• Unit Weight: 88g
• Warranty: 5 years

Downloads

• CBU-MASTER-DMX-IP cut sheet
