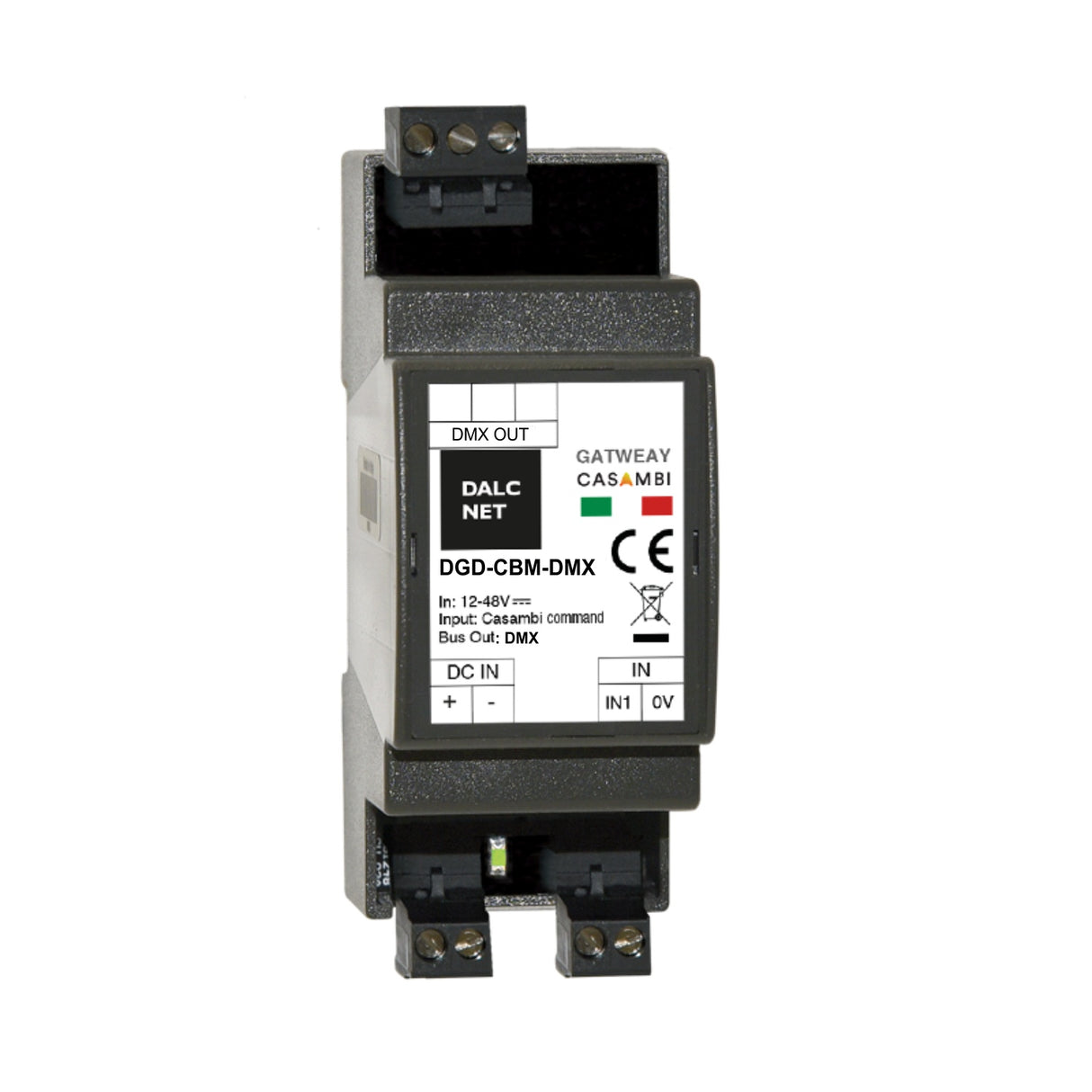

Network Gateway with Casambi to DMX Converter ~ Model DGD-CBM-DMX

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The Dalcnet DGD-CBM-DMX gateway for Casambi networks is an innovative DIN-rail mounted device which effortlessly converts Casambi Bluetooth signals into a wired DMX signal, allowing you to unlock a whole new level of lighting possibilities. DGD-CBM-DMX receives command signals from the Casambi smartphone app and transforms them into a predetermined sequence of DMX channels, based on the preconfigured profile.

Using this signal converter, you can easily connect and control your wired DMX lighting fixtures through the Casambi app. The network converter also offers a convenient push-button input that can be assigned according to your preferences, conveniently giving you additional local control functionality for your lighting network.

Designed for versatility, this interface supports connection voltages ranging from 12V to 48V DC to ensure it is compatible with most DC power sources. Each gateway module can be configured to control a set of DMX addresses. The number of DMX addresses that can be controlled depends on the profile that is configured, as follows:

• Dimmer: 4 addresses (4x single-channel fixtures)
• Tunable-white: 2 addresses (1x tunable white fixture)
• RGB: 3 addresses (1x RGB fixture)
• RGBW: 4 addresses (1x RGBW fixture)
• MRGB+S: 5 addresses (1x Master RGB + Strobe fixture)
• MRGBW+S: 6 addresses (1x Master RGBW + Strobe fixture)
• Moving MRGBWS: 8 addresses (1x Moving Master RGBW + Strobe fixture)

Whether you need Casambi-to-DMX network conversion for residential or commercial applications, the Dalcnet signal converter is a reliable and efficient solution for integrating DMX devices into your Casambi lighting system.

General specifications

• Model: DGD-CBM-DMX
• Supply Voltage: 12-48V DC
• Channels Output: 1-channel (RGBW)
• Local Input: 1x Push button (N.O.)
• Input Bus: Casambi
• Output Bus: DMX512
• Working Temperature Range: -40/+60°C
• Dimensions: 92 x 36 x 62mm (3.62 x 1.41" x 2.44")
• Warranty: 5 years

Downloads

• DGD-CBM-DMX cut sheet
