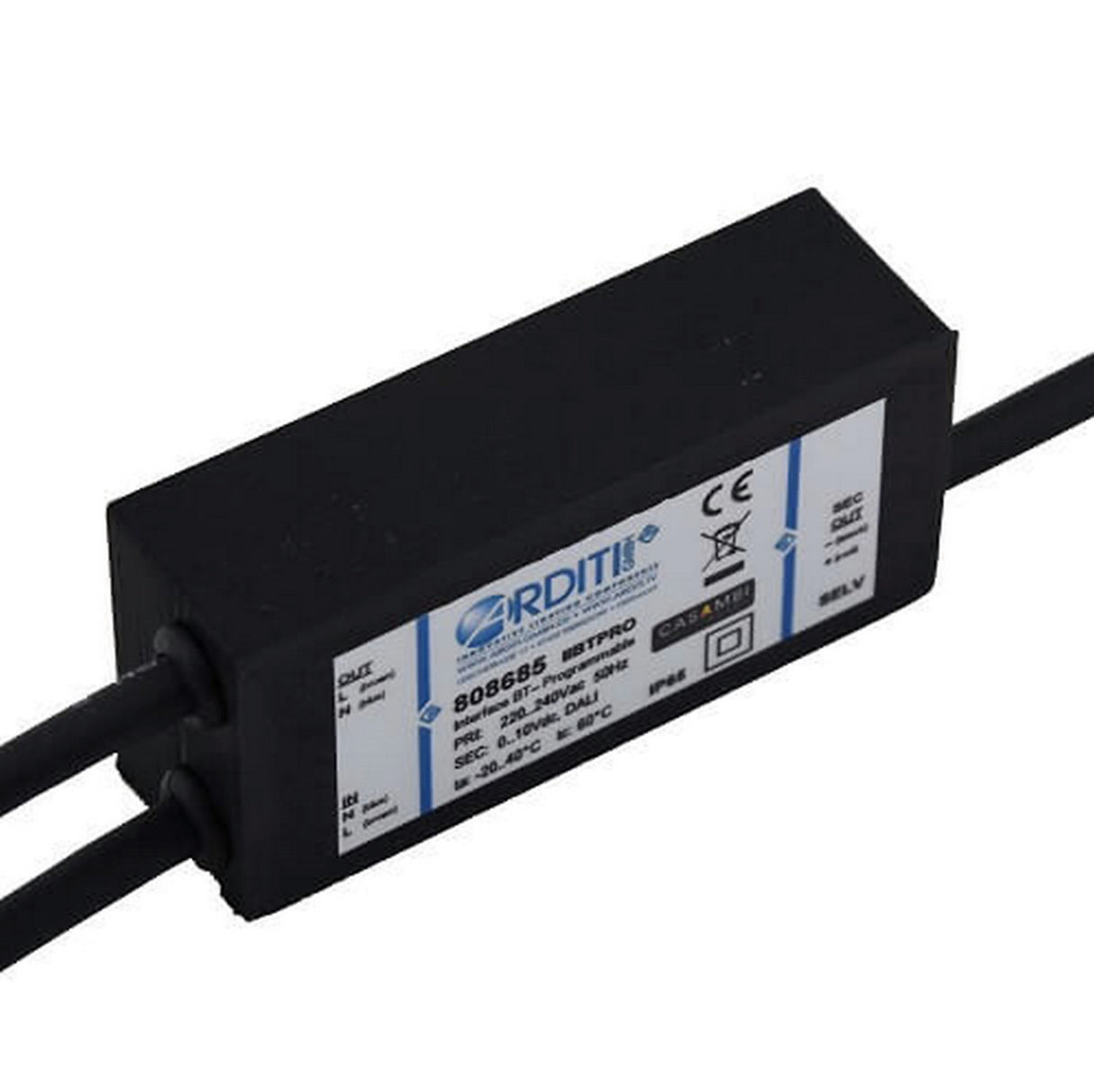

Casambi Controller for Dimmable LED Power Supplies ~ Model CBU-ASD IP65

Casambi Controller for Dimmable LED Power Supplies only ~ all other components sold separately

Description

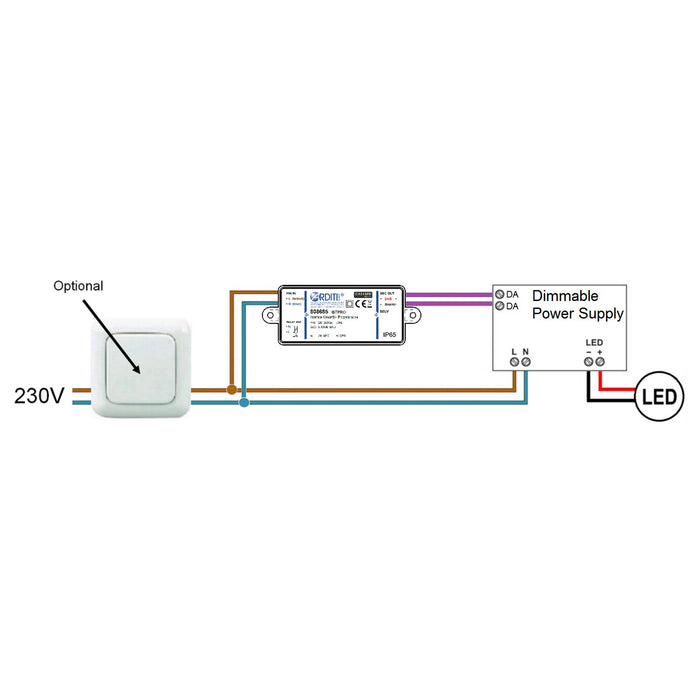

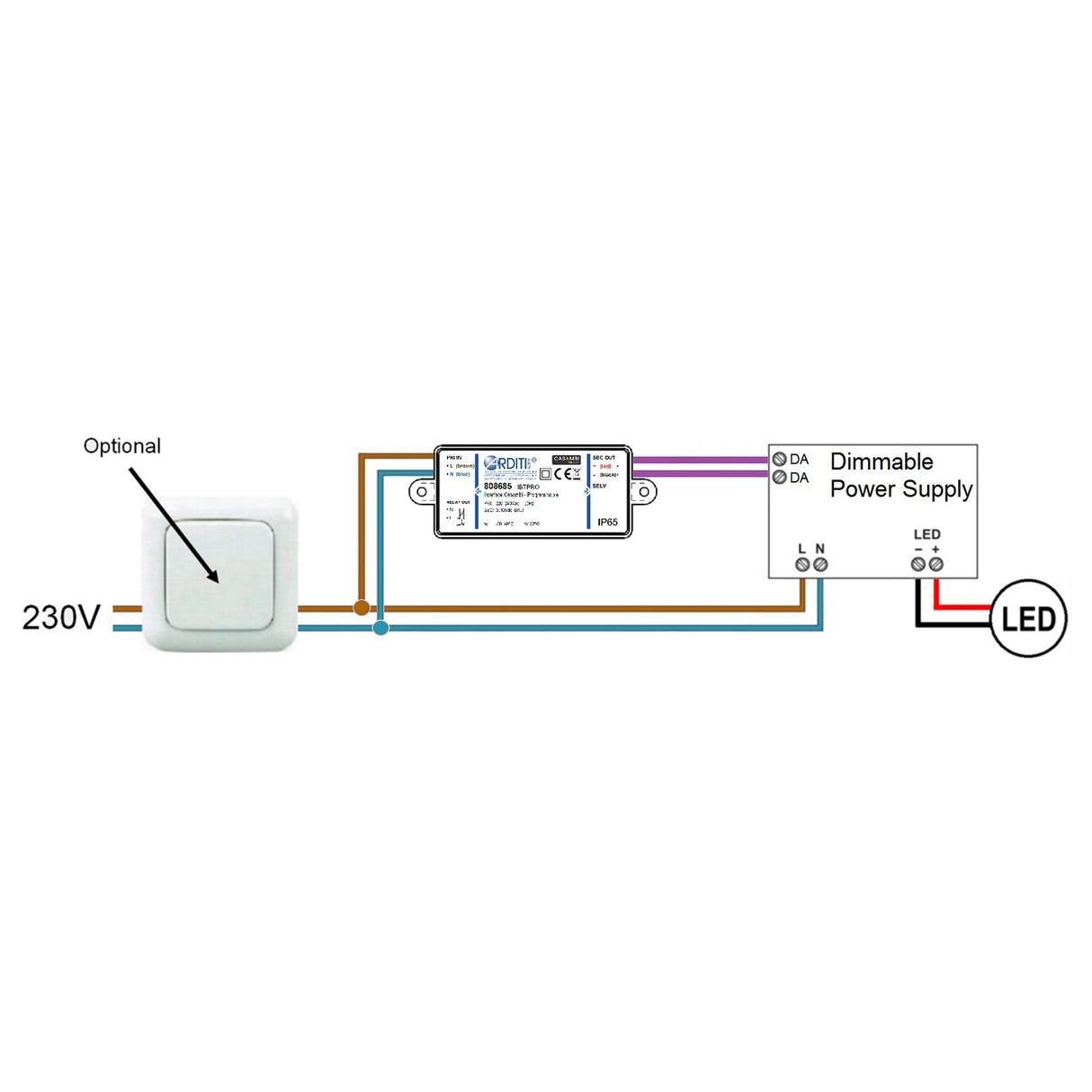

This Casambi Controller for Dimmable LED Power Supplies is designed to transmit control signals to a dimmable LED driver via standard 0-10V inputs or DALI protocol. This means that you can retain your existing dimming LED power supplies and upgrade to Bluetooth wireless smart phone control from your Android or Apple phone or tablet.

General specifications

• Model: Arditi IIBTPRO
• Also known as: Casambi CBU-ASD IP65
• Input voltage: 220-240V AC
• Control input: Casambi Bluetooth, Casambi Xpress wall switch
• Control output: 0-10V or DALI SELV (optional I(U)BTU or I(U)..BTDA interfaces are possible by programming)
• Channels: Up to four channels via DALI control (TW/CCT, RGB, RGB+W, 1..4 Ch, 0-10V)
• Electrical connection: Fixed rubber leads - 15cm (6")
• Wireless antenna: Integrated antenna - do not cover marked area
• Internet gateway is not required, but is possible
• Environmental protection: IP65 waterproof
• Maximum operating temperature: 140°F (60°C)
• Dimensions: 100 x 37 x 24mm (3.9 x 1.5 x 1.0")

Instructions

• Casambi tutorial videos

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
