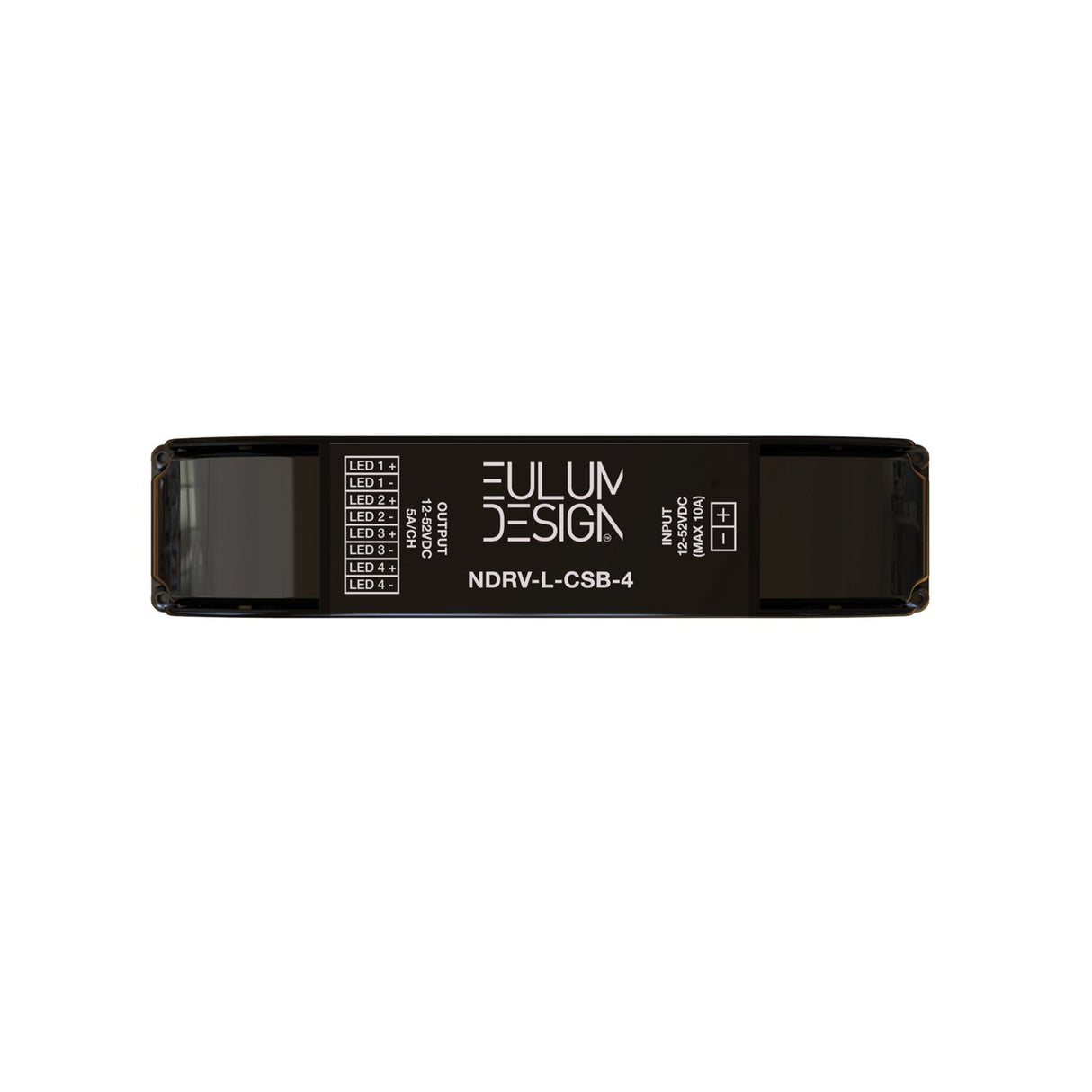

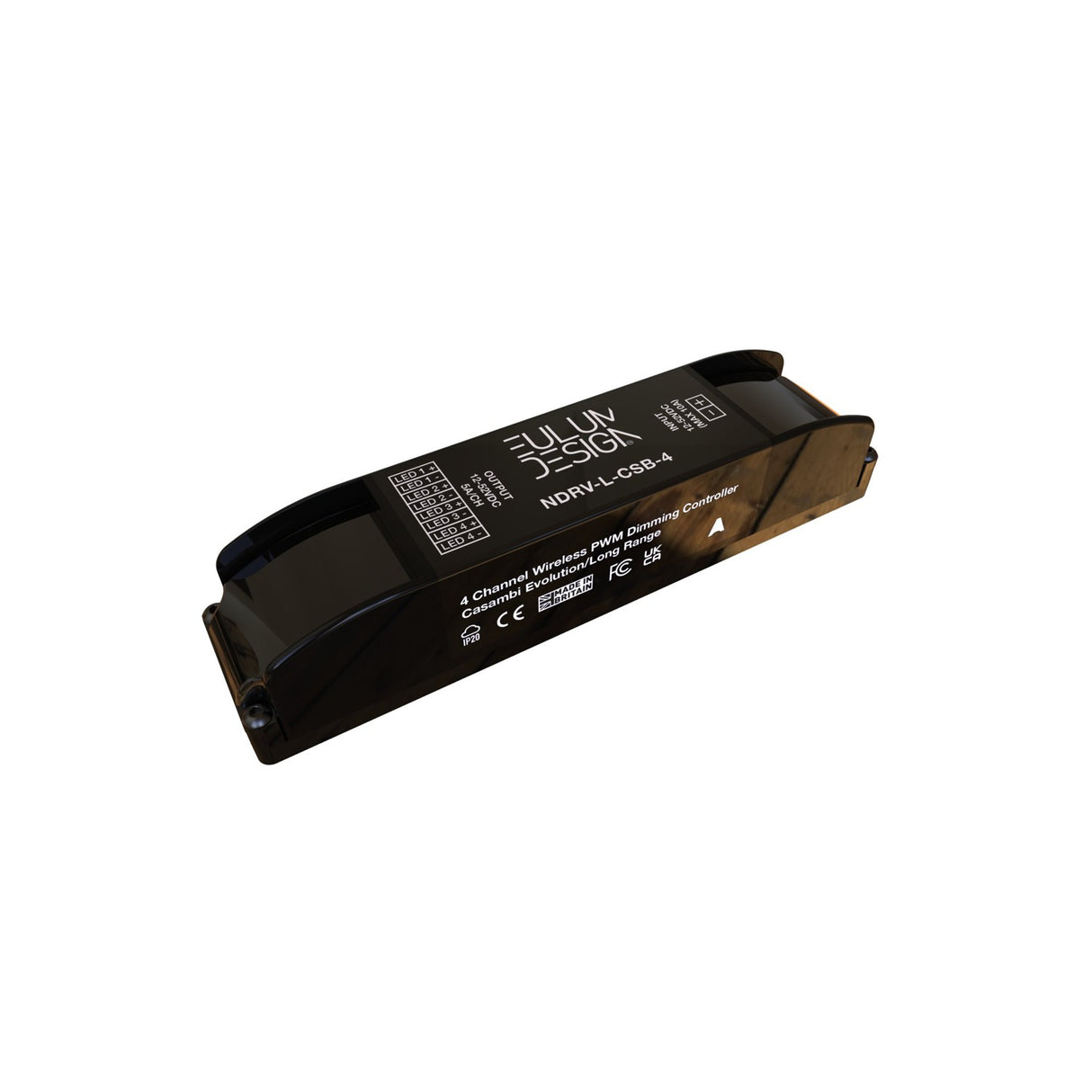

Casambi 4-Channel Long-Range Wireless PWM Dimming Controller ~ Eulum NDRV-CSB-4-SSF
Product details
Casambi 4-Channel Wireless PWM Dimming Controller ~ all other accessories are sold separately
Description
The NDRV-CSB-4-SSF is a 4-channel PWM dimming controller designed for Casambi long-range wireless lighting control.
It supports RGBW, tunable white, and single-color LED applications using standard constant voltage power supplies. With a wide input voltage range of 12 – 52V and a maximum total output of 10A, this controller is optimized for high-load installations and offers a cost-effective solution for advanced LED dimming.
Each of the four outputs is individually controllable, enabling precise control of color and brightness levels. The NDRV-CSB-4-SSF LED dimmer delivers high-resolution performance, ensuring smooth transitions and reliable lighting control. With no minimum load requirement, you can dim even small installations down to 0.1%.
The built-in long-range Casambi wireless module allows seamless integration with Casambi networks, and it supports optional remote antenna configuration for improved connectivity.
General specifications
- Model: Eulum NDRV-CSB-4-SSF

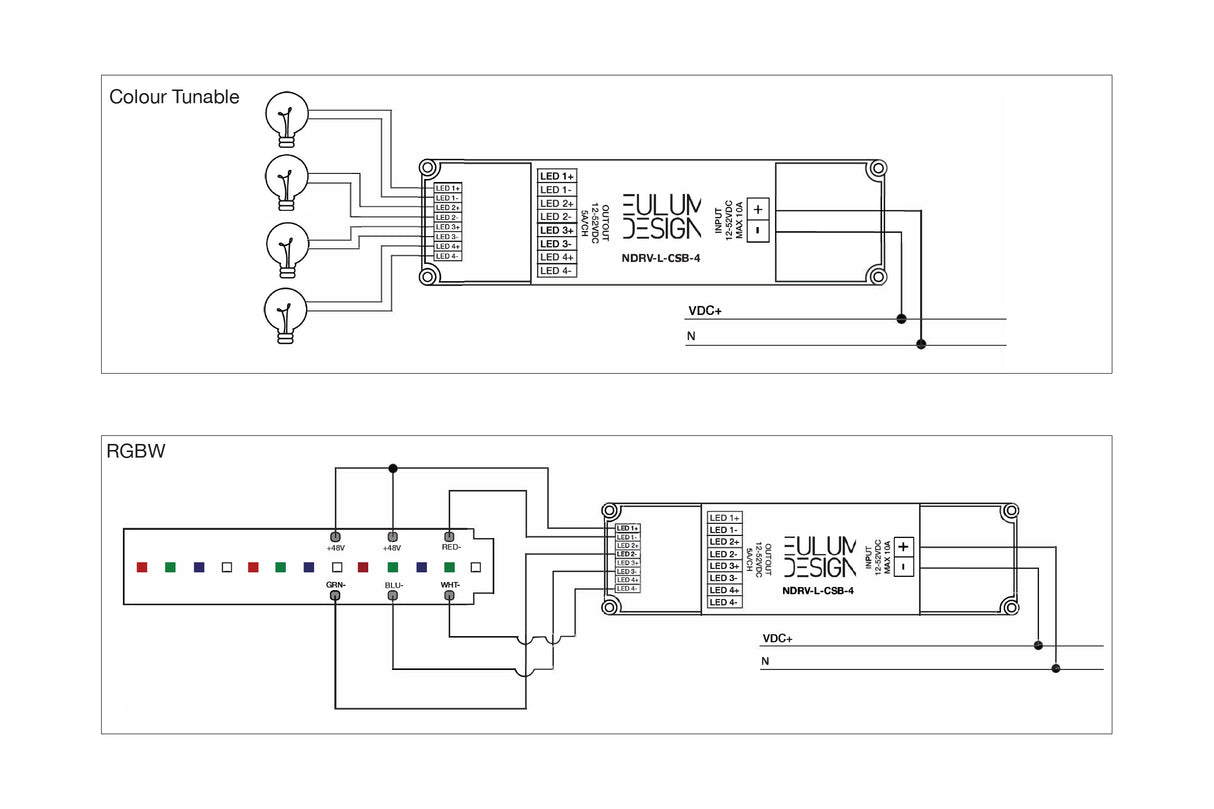

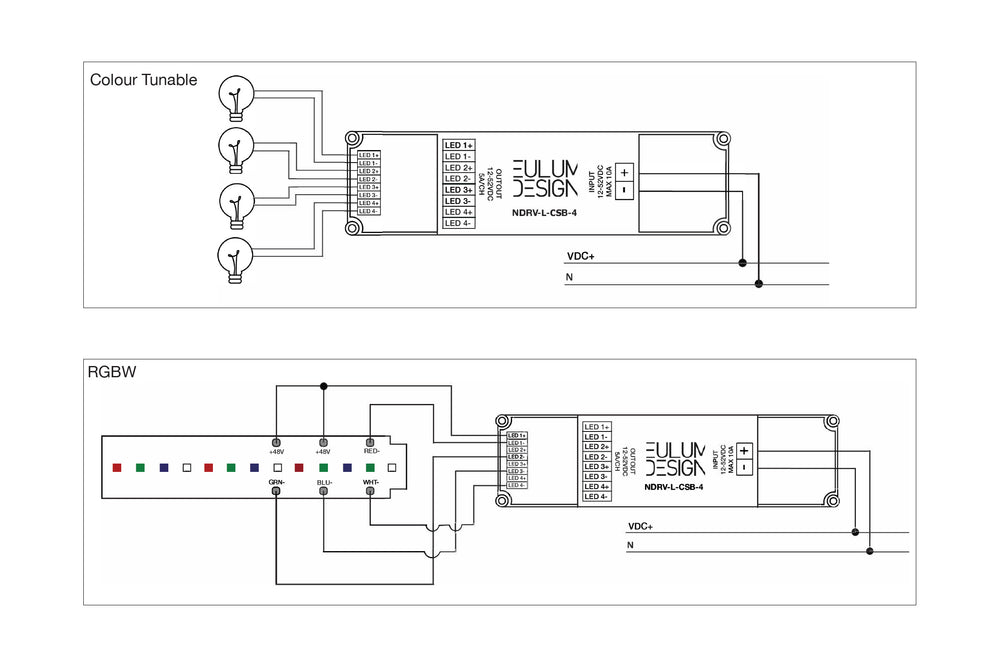

- LED applications: Single-color dimming, Tunable white (TW/CCT), RGB, RGB+W
- Input voltage: 12–52V DC
- Max input current: 10A
- No-load standby power: <100mW @ 24V
- Channels: 4
- Max output current: 5A per channel, 10A total
- Min load requirement: 0W
- Dimming output: 0-100%, 0.1% minimum dimming level
- Wireless protocol: Casambi
- Environmental protection: IP20
- Ambient temperature: 0°C to +50°C (32°F to 122°F)
- Storage temperature: -40°C to +80°C (-40°F to 176°F)

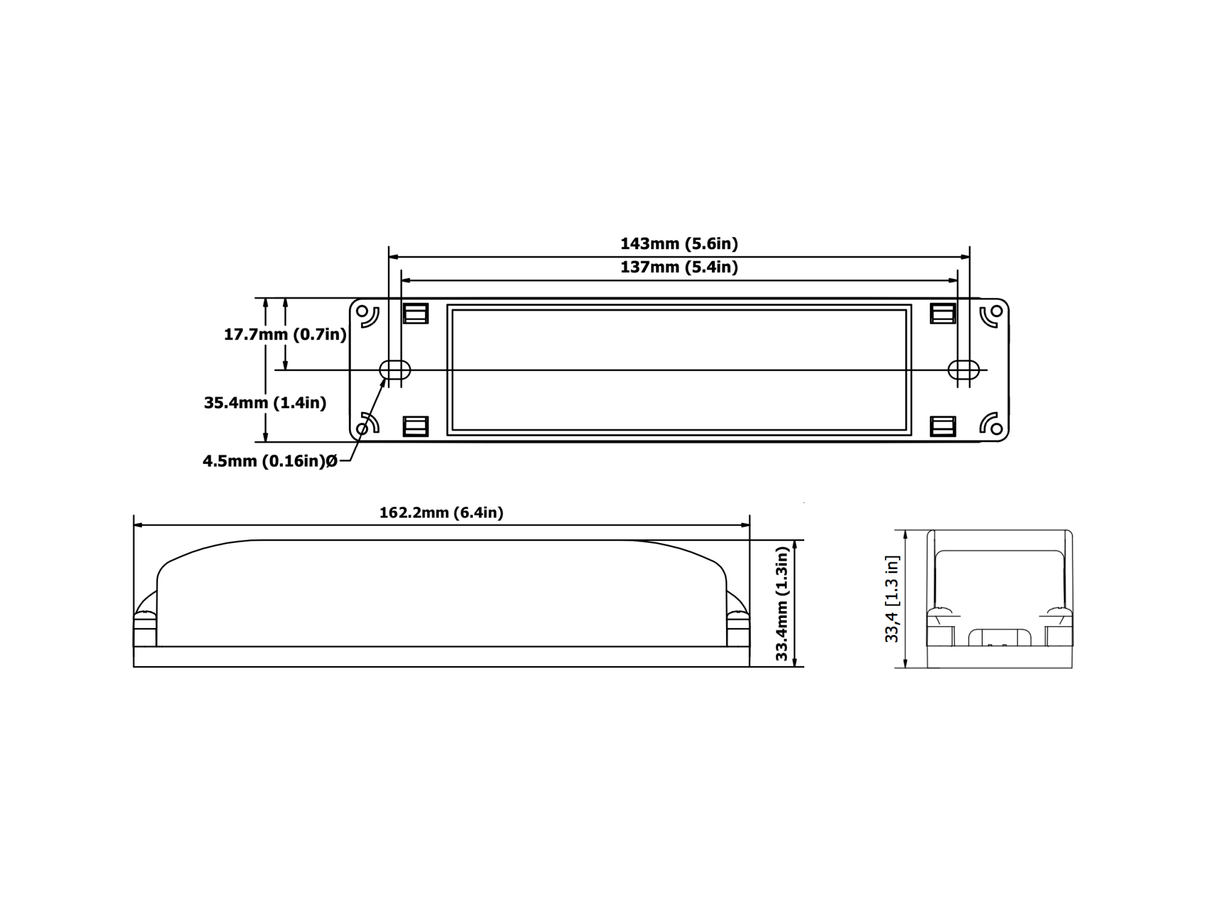

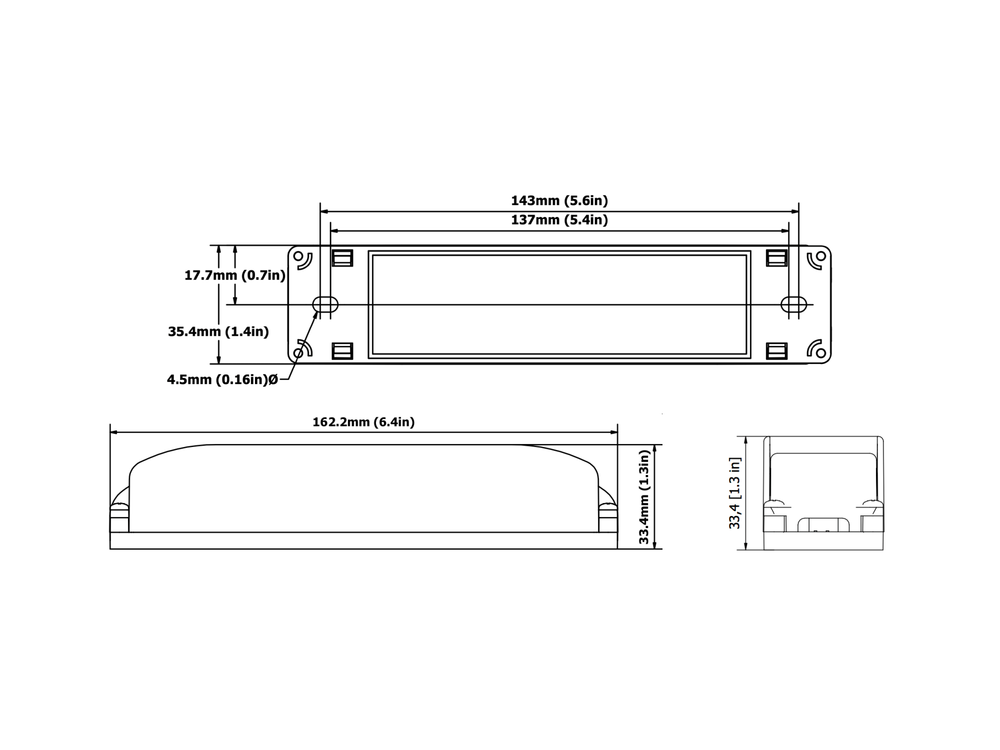

- Dimensions: 162.2 x 35 x 33.3mm (6.39" x 1.38" x 1.31")
- Mounting: Screw down
