Casambi 4 Channel Bluetooth PWM Controller

Product Description
Description
CBU-PWM4-4 is a Bluetooth controllable, Casambi enabled four channel PWM dimmer for
constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected
between a 12-24 VDC Class 2 power supply and a constant voltage LED load.
CBU-PWM4-4 can control up to four channels making it an ideal partner for RGBW and tunable
white (TW) applications. The maximum combined output current is 4 A which can be freely
divided between 1 -4 channels. CBU-PWM4-4 is protected against overvoltage, overcurrent, and short circuit situations.

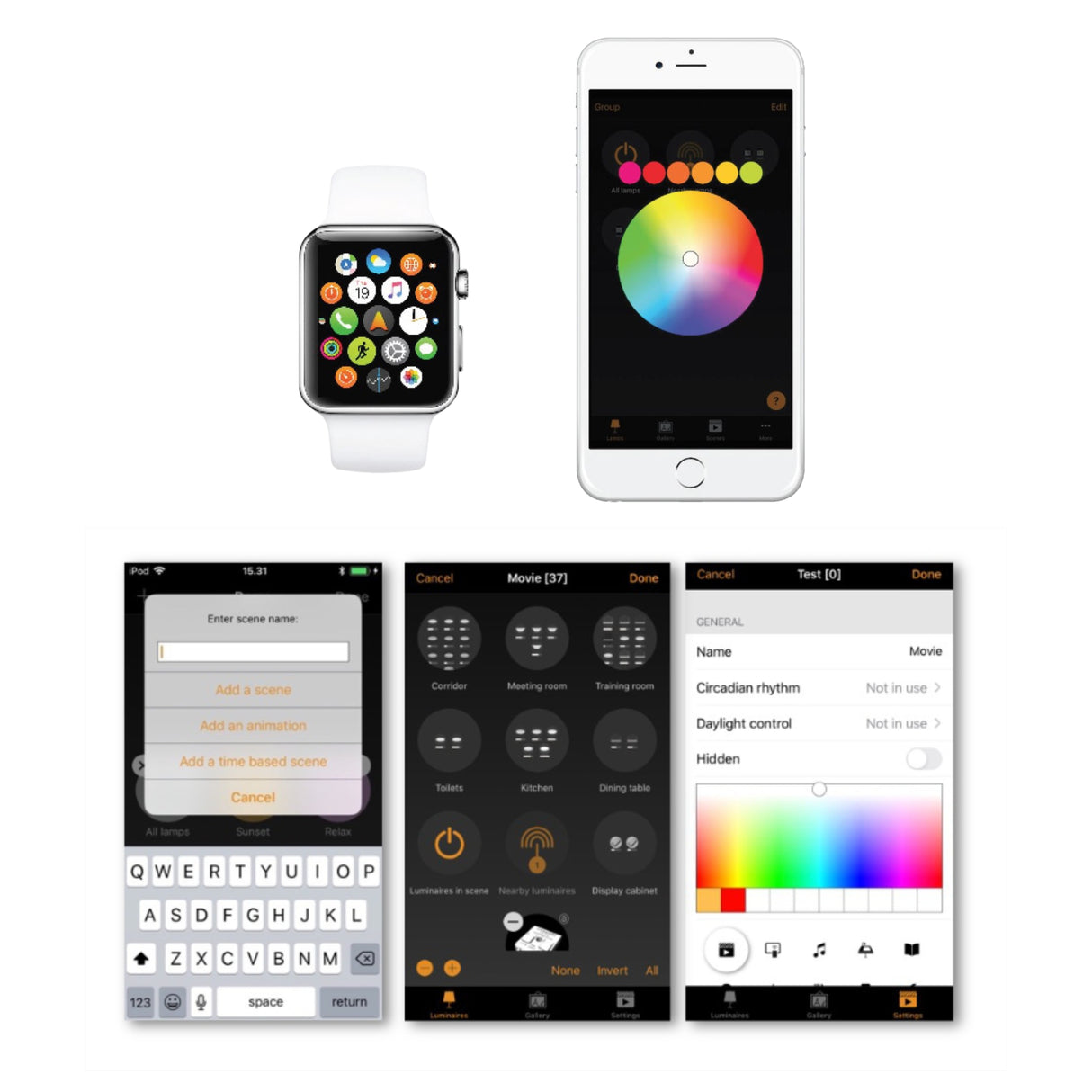

CBU-PWM4-4 can be controlled with Casambi app which can be downloaded free of charge
from Apple App Store and Google Play Store.
Different Casambi enabled products can be used from a simple one luminaire direct control to
a complete and full-featured light control system where up to 127 units form automatically an
intelligent mesh network.
Technical Info
  • Input Voltage range: 12-24 VDC, Class 2
  • Max. input current: 4 A
  • No-load standby power: < 0,3 W
  • Output voltage: same as input voltage
  • Max. output power: 96 W @ 24 VDC
  • 48 W @ 12 VDC
  • Max. output current: 4 A (can be freely divided between the channels)
  • Min. load requirement: 0 W
  • Dimming method: Pulse Width Modulation (PWM)
  • Radio transceiver Operating frequencies: 2.4-2.483 GHz
  • Maximum output power: +4 dBm
  • Operating conditions
  • Ambient temperature, ta: -13...+113°F (-25...+45°C)
  • Max. case temperature, TC: +167°F (+75°C)
  • Storage temperature: -13...+167°F (-25...+75°C)
  • Max. relative humidity: 0...80%, non-cond.
  • Connectors
  • Wire range, solid & stranded: 0.5 - 1.5 mm2
  • 14 - 22 AWG
  • Wire strip length: .25” (6 - 7 mm)
  • Tightening force: 0.4 Nm / 2.6 Lb-in
  • Mechanical data
  • Dimensions: 2.2 x 1.2 x 0.7 inch
  • 72.6 x 30.0 x 18.0 mm
  • Weight: 0.8 oz (23 g)
  • FCC ID: 2ALA3-CBUPWM4
  • IC: 22496-CBUPWM4
  • UL: UL Listed
  • UL Plenum Rated (UL 2043)
  • RGB led controller bluetooth

Full spec sheet :- Download here
