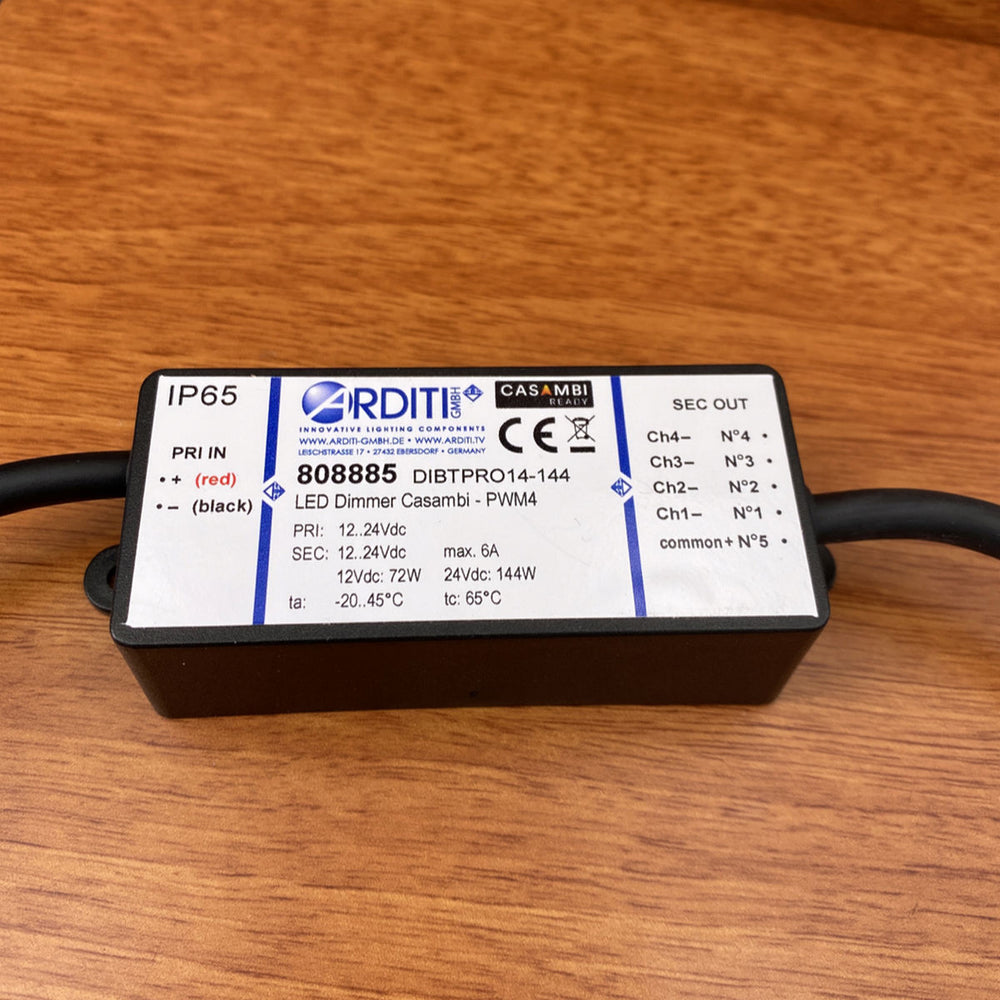

Casambi Waterproof 4-Channel Bluetooth Mesh LED Controller ~ Model CBU-PWM4 IP65

Controller only ~ power supply, LEDs and all other components are sold separately

Description

Easy, wireless multi-zone LED control from your smartphone... What more could you ask for?

This Casambi-enabled waterproof LED controller can drive up to four LED channels in user-programmable configurations, making it ideal for just about any outdoor wireless LED control system, whether simple dimming, tunable white, RGB or RGB+W. The wireless Bluetooth mesh system also allows up to 250 controllers to be installed in one network, which means you can easily create a multi-zone wireless LED lighting control system to exactly suit your requirements.

It is a IP65 high-power 144W controller fully compatible with the Casambi CBU-PWM4 IP65.

This waterproof wireless LED dimmer/controller is intended to be used with dimmable constant-voltage LED strips or modules. Installation is straight forward: Simply connect a constant-voltage LED driver (12-24V DC Class 2) to the supply side of the controller, and then connect your LED channels on the output side of the controller, up to a maximum of 144W total.

Once the wirelessly controlled outdoor controller has been wired, you can download the Casambi smartphone app free of charge for Android or your iPhone.

This 4-channel IP65 LED controller is also suitable for outdoor and wet area applications. We also offer an IP20 equivalent for indoor applications - please see our wireless 4-channel LED controller.

General specifications

• Model: Arditi DIBTPRO14-144
• Also known as: Casambi CBU-PWM4 IP65
• LED applications: Single-color dimming, Tunable white (TW/CCT), RGB, RGB+W
• Compatible systems: Dali, Phillips Hue Compatible, and many other systems
• Also controllable via wall switch RWBT and Xpress RW…EBT
• Input Voltage range: 12-24V DC, Class 2
• Max. input current: 6A
• No-load standby power: < 0.3 W
• Output voltage: same as the input voltage
• Max. output power: 144W at 24V DC / 72W at 12V DC
• Max. output current: 6A total
• Min. load requirement: 0W
• Electrical protection: Over-voltage, Over-current, Short circuit
• Dimming method: Pulse Width Modulation (PWM) 400Hz
• Radio transceiver operating frequencies: 2.4-2.483 GHz 4dBm
• Operating temperature, -4-113°F (-20-45°C)
• Dimensions: 100 x 37 x 24mm (3.95 x 1.45 x 0.95")

Video instructions

All Casambi tutorial videos

Downloads

• Casambi 4-ch Bluetooth Mesh Controller IP65 cut sheet
• EU Declaration of Conformity
• Casambi Short User Guide
• Wiring diagram with Amplifier
• Wiring Diagram with Amplifier 2
• Wiring Diagram for multiple runs

Important notes

• Do not insert switches into the secondary circuit
• Please add a comment in the order notes if you require your controller pre-configured for a specific application.
• LED strip, covers, mounting brackets, end caps, shelf/sign panels, and other accessories are sold separately.
• We can also assemble a plug-and-play light fitting with this controller according to your specifications.
• We ship items in stock the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
