Standard Hard-wired Power Kit (24V)
Product details
Description
If you need a non-dimmable driver for use with an LED controller – or you just need on/off power – this is (probably!) the kit for you.

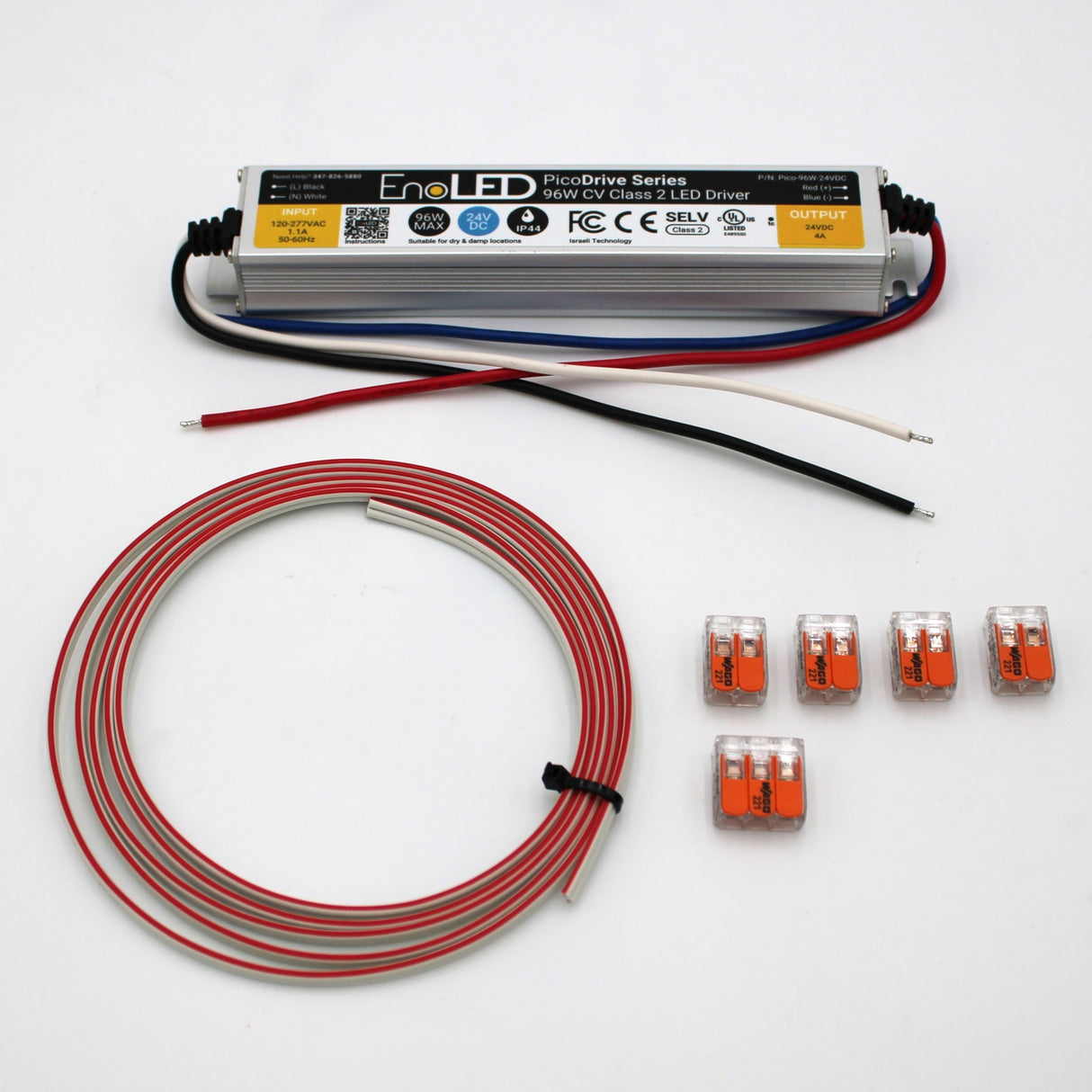

It includes a non-dimmable driver and the commonly needed wiring accessories.
The driver is our recommended 24V non-dimmable LED driver, the EnoLED PicoDrive series. It's a solid choice: it's compact, UL Listed, and affordable.
The PicoDrive is non-dimmable, ideal for simple on/off control via a plain wall switch, or for use with a dedicated LED controller. If you don't already have a controller, we have kits like this that include a Casambi or Blebox controller; or you can contact us and we'll supply everything you need. If you just want dimming via a standard wall switch, we have a similar kit with an AC-dimmable driver.
Besides the driver, the kit includes commonly needed wiring accessories. There is 6ft of quality 2-core wire for connecting the driver to your strip or controller. Then there are 4 x 2-way Wago wire connectors: 2 for connecting the driver to your AC supply, and 2 for connecting the driver's output to the included wire or your strip's lead wire. There is also a 3-way Wago connector in case you need to splice a controller into the DC line between the driver and your strip.
Note: If you need more than 96W, we can provide this kit with a larger driver. Just contact us with your needs and we'll make it happen!
General specifications
- Contents:
- Control capabilities:
- LED controller (not included): Full control (capabilities vary by controller)
- Standard wall switch (not included): On/off only
- Supply voltage: 120V AC
- Output voltage: 24V DC
- Max power output: 96W (more powerful drivers available on request)
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
