Casambi Hard-wired Power and Control Kit (24V)
Product details
Description
If you want an all-in-one kit for power and Casambi control of your LEDs, this is (probably!) the kit for you.

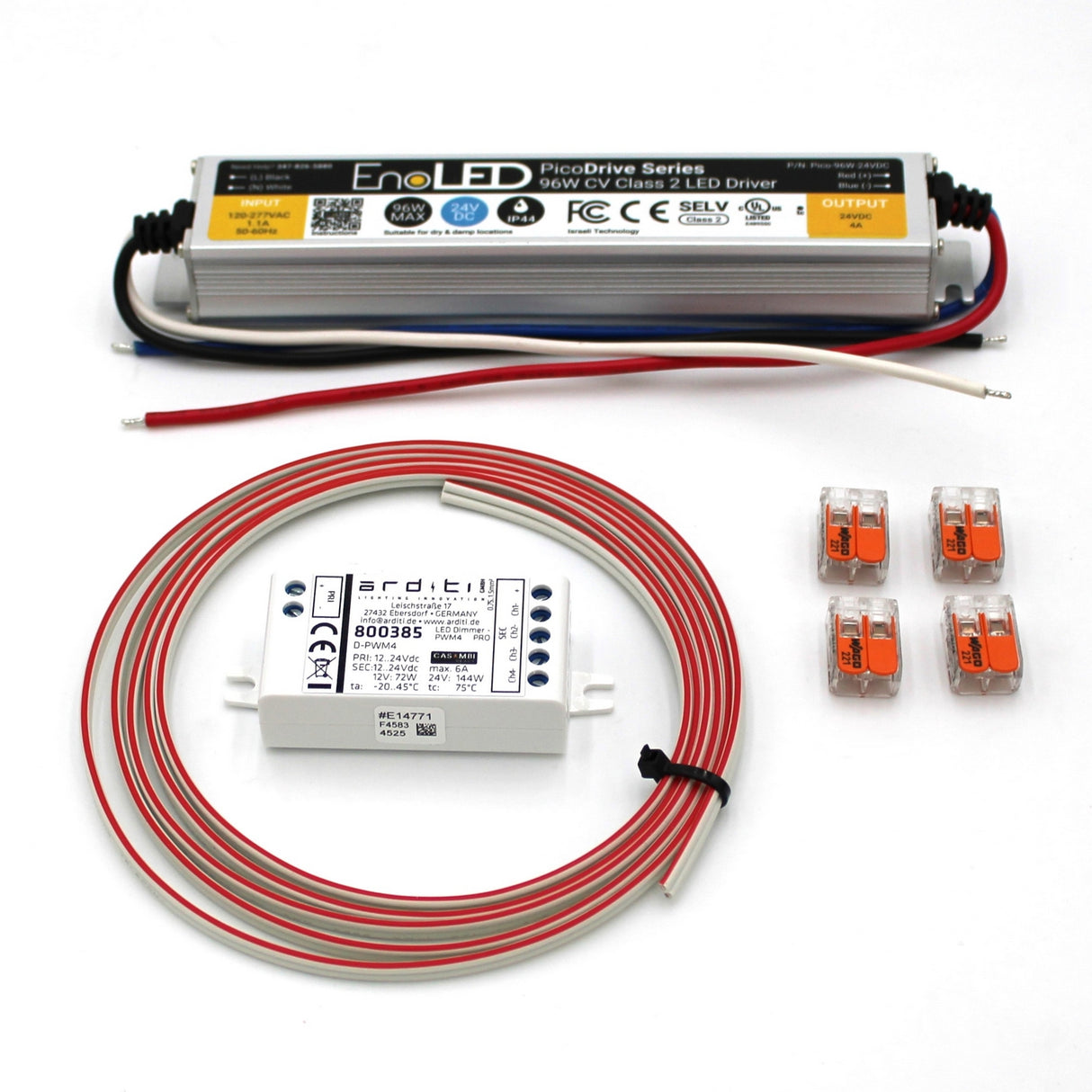

It includes a Casambi LED controller, a suitable driver, and the commonly needed wiring accessories.
The controller is a good all-round Casambi controller, the Arditi CBU-PWM4, which we recommend for almost all Casambi-controlled projects.
The driver is our recommended 24V non-dimmable LED driver, the EnoLED PicoDrive series. It's a solid choice: it's compact, UL Listed, and affordable.

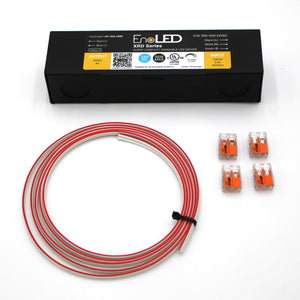

If you already have a controller, we have a kit like this without the controller; or you can contact us and we'll supply everything you need. If you just want dimming via a standard wall switch, we have a kit with an AC-dimmable driver.
Besides the driver and controller, the kit includes commonly needed wiring accessories. There is 6ft of quality 2-core wire for connecting the driver to the controller. Then there are 4 x 2-way Wago wire connectors: 2 for connecting the driver to your AC supply, and 2 for connecting the driver's output to the included wire.
Note: If you need more than 96W, we can provide this kit with a larger driver. Just contact us with your needs and we'll make it happen!
General specifications
- Contents:
- 1 x CBU-PWM4 (non-UL Listed; contact us if you want a UL Listed version)
- 1 x EnoLED PicoDrive driver, 24V
- 6ft x 2-core wire
- 4 x 2-way Wago lever-nut wire connectors
- Control capabilities:
- Casambi LED controller (included): Full control via Casambi app and ecosystem
- Supply voltage: 120V AC
- Output voltage: 24V DC
- Max power output: 96W (more powerful drivers available on request)
