Blebox Hard-wired Power and Control Kit (24V)
Product details
Description
If you want an all-in-one kit for power and Blebox control of your LEDs, this is (probably!) the kit for you.

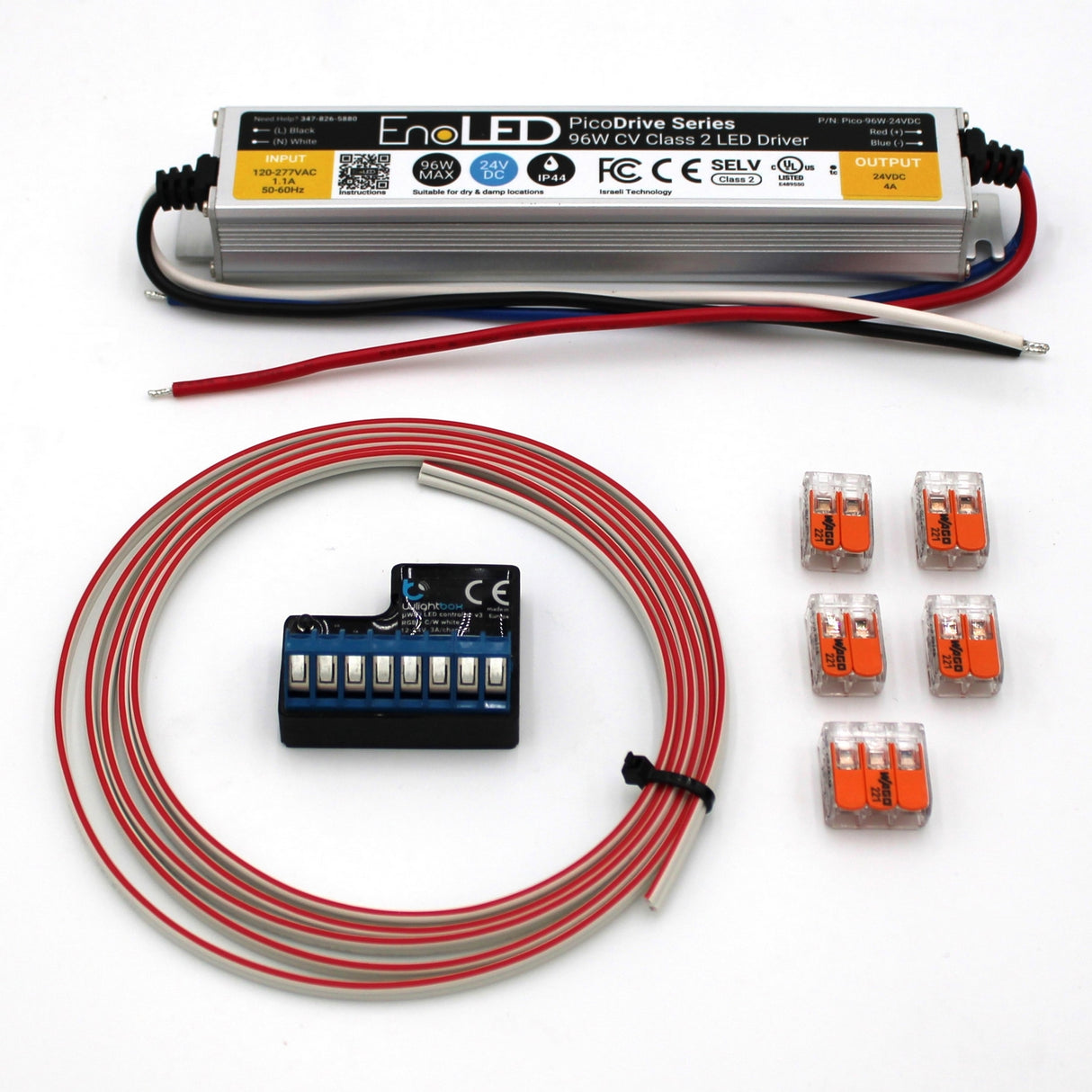

It includes a Blebox Wi-Fi LED controller, a suitable driver, and the commonly needed wiring accessories.
The controller is a good all-round Blebox controller, the Blebox wLightBox, which we recommend as the controller for most Blebox-controlled projects.
The driver is our recommended 24V non-dimmable LED driver, the EnoLED PicoDrive series. It's a solid choice: it's compact, UL Listed, and affordable.
If you already have a controller, we have a kit like this without the controller; or you can contact us and we'll supply everything you need. If you just want dimming via a standard wall switch, we have a kit with an AC-dimmable driver.
Besides the driver and controller, the kit includes commonly needed wiring accessories. There is 6ft of quality 2-core wire for connecting the driver to the controller. Then there are 4 x 2-way Wago wire connectors: 2 for connecting the driver to your AC supply, and 2 for connecting the driver's output to the included wire. There is also a 3-way Wago connector for splicing the controller into the positive DC line between the driver and the strip (this is because of how the Blebox controller is wired).
Note: If you need more than 96W, we can provide this kit with a larger driver. Just contact us with your needs and we'll make it happen!
General specifications
- Contents:
- Control capabilities:
- Blebox LED controller (included): Full control via Blebox app and ecosystem
- Supply voltage: 120V AC
- Output voltage: 24V DC
- Max power output: 96W (more powerful drivers available on request)
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
