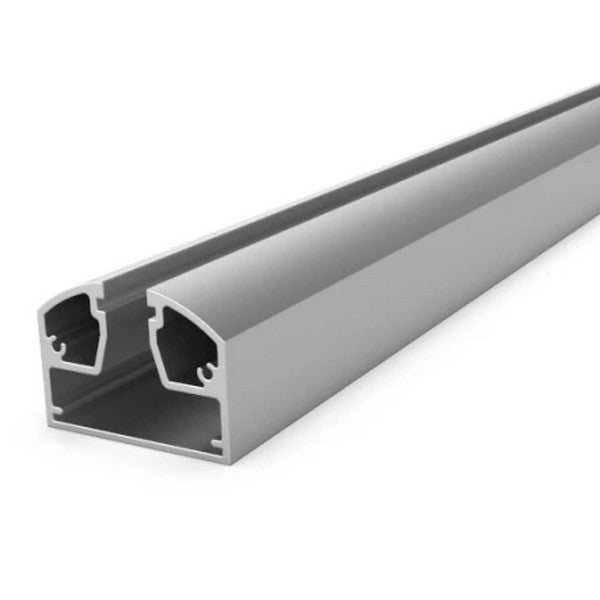

Edge-Lit LED Extrusion for 1/2" Acrylic Signs ~ Model New York Quarter-Round

SKU LEDEXT1996
Original price - Original price
Original price
-
Current price
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

Description

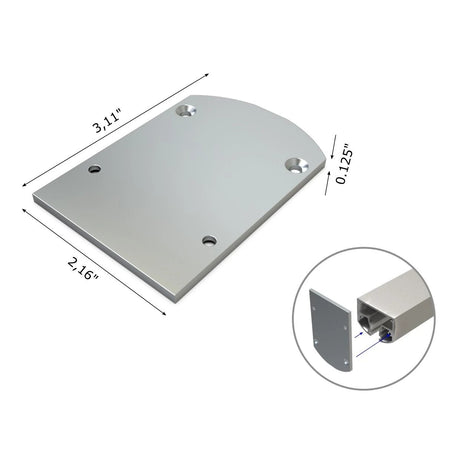

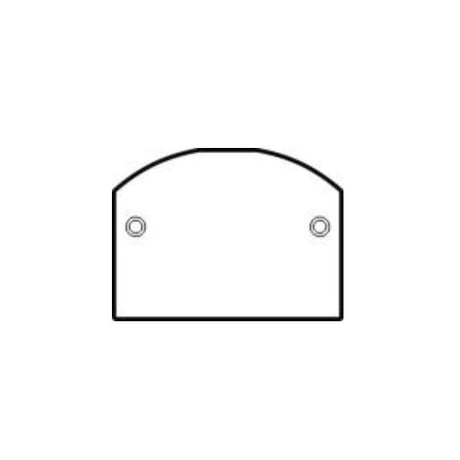

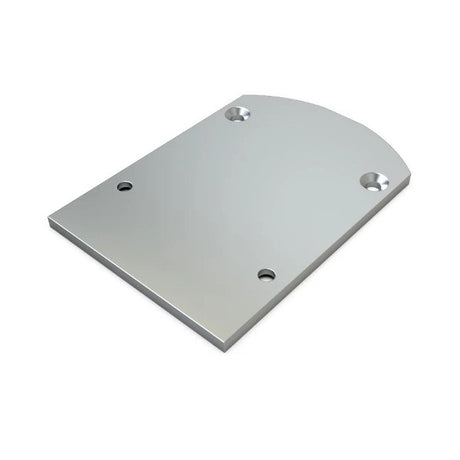

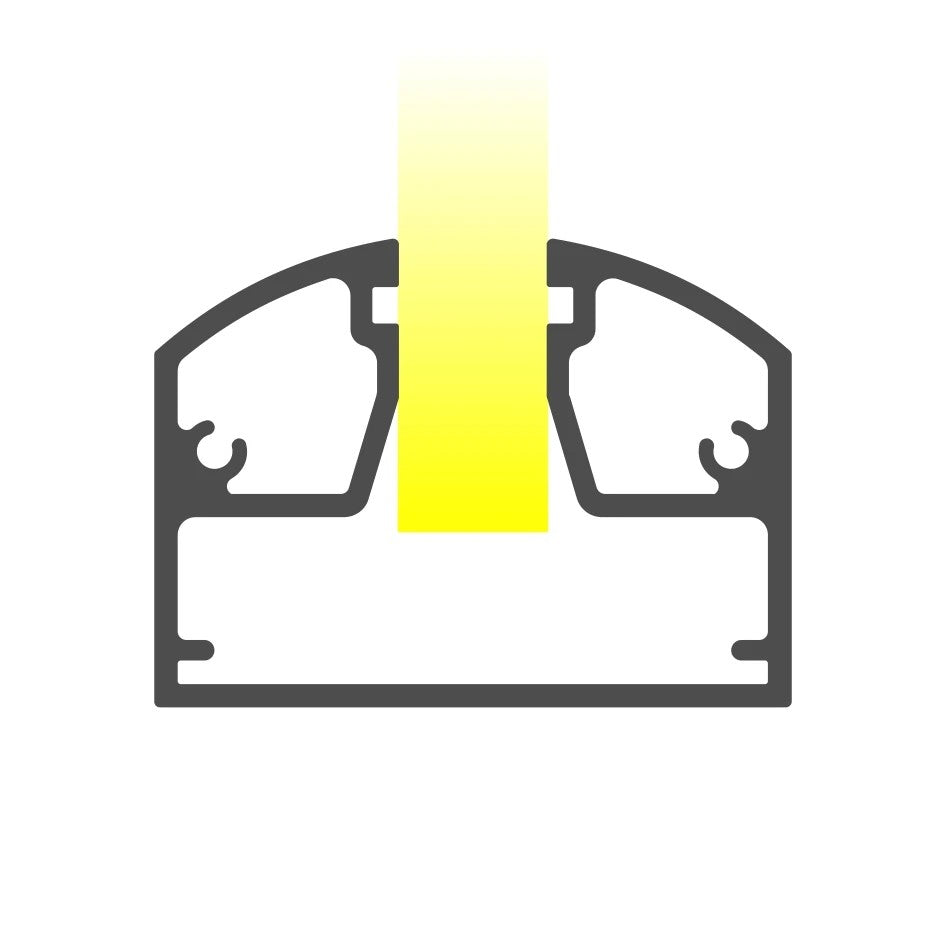

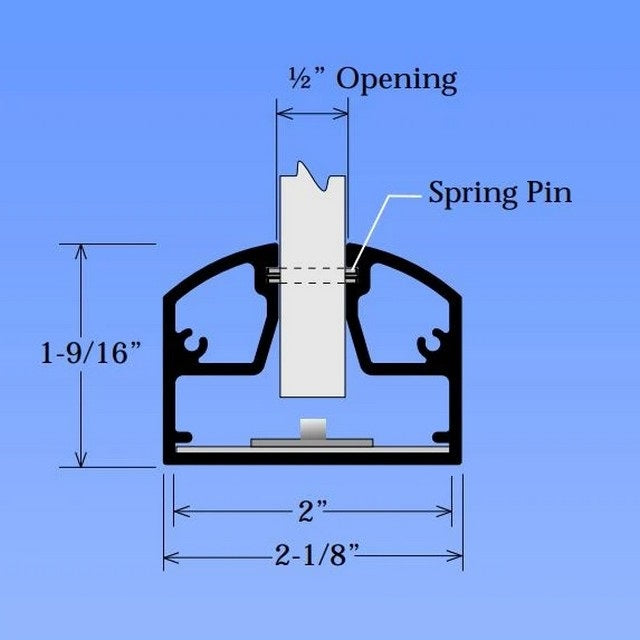

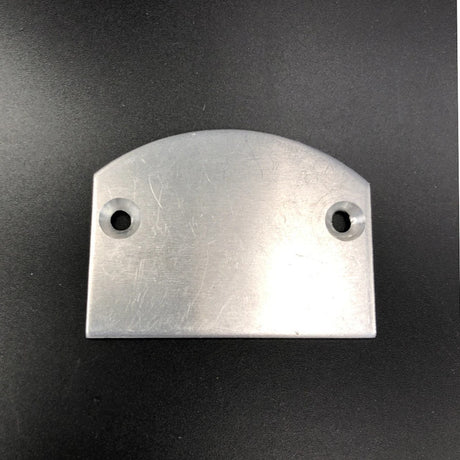

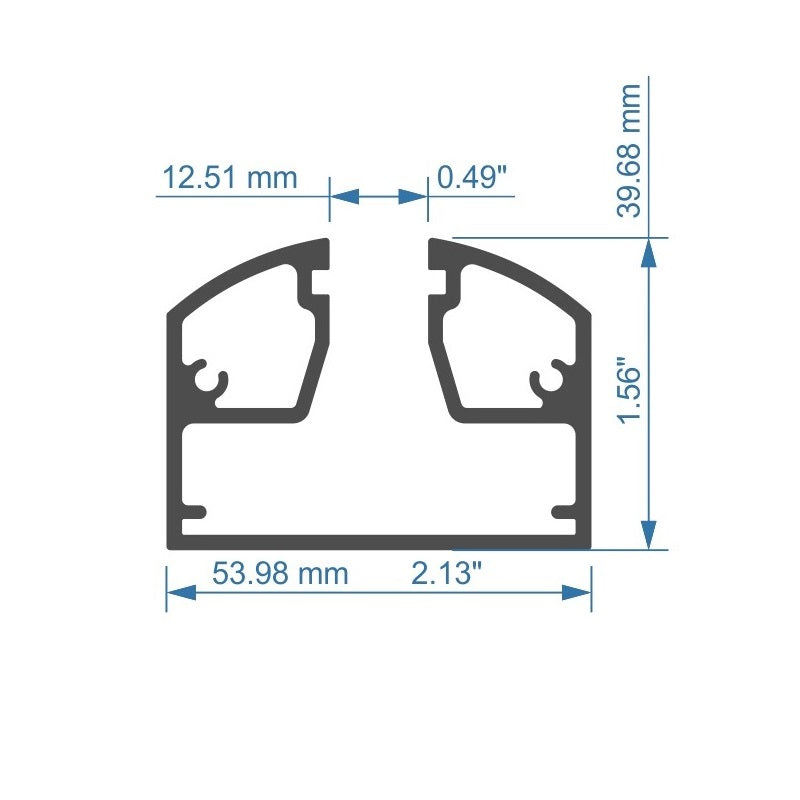

This edge-lit channel has an opening width of .500" (+/- .038") which is designed to accept 1/2" acrylic material. The profile also has provisions for spring pins which will hold the sign-face material in place above the LEDs, preventing the weight of the sign-face material from damaging the LEDs. This product is finished off with optional end caps or end cap mounting brackets and screws.

The New York profile is also available in a Half-Round model.

General specifications

  • Material: Aluminum
  • Spring pin spacing - Every 12" on center
  • The profile is available in 12' 4" lengths but we will cut to size

Downloads

  • New York Quarter-Round cut sheet

Typical Applications

  • LED edge-lit desktop applications

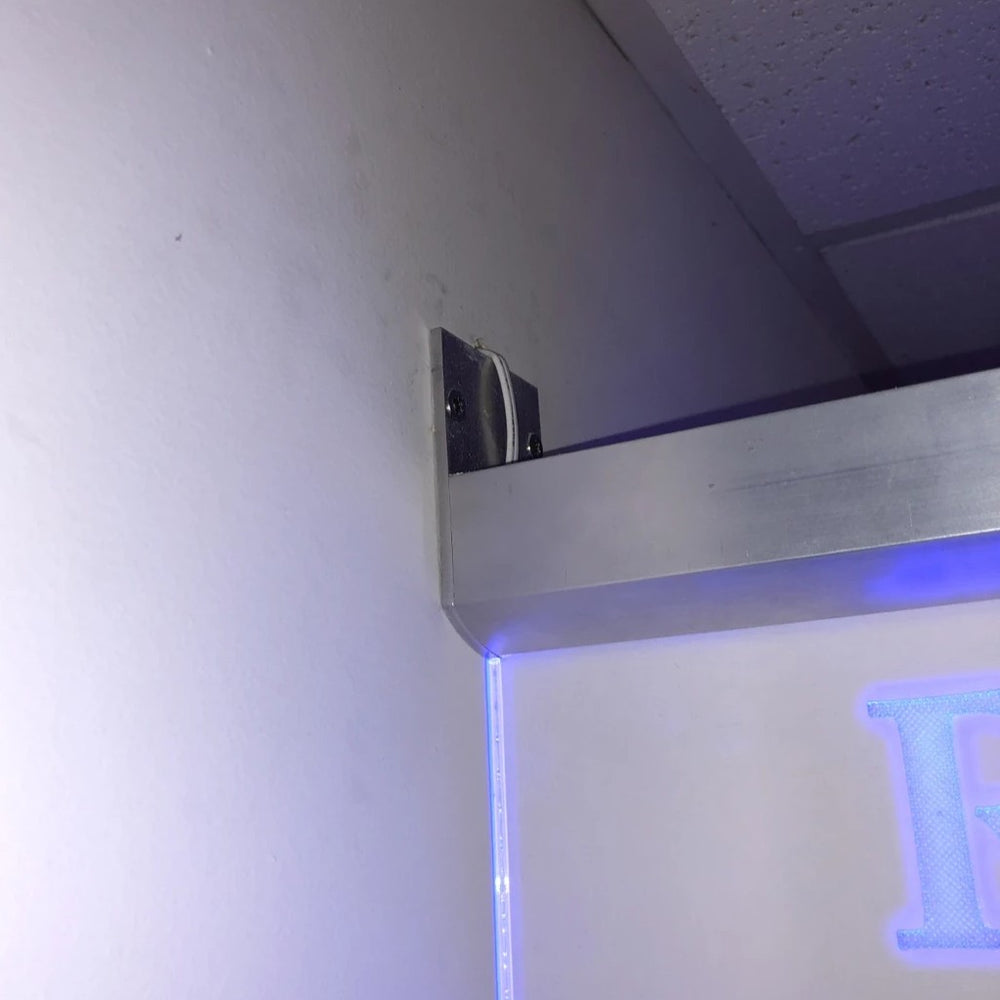

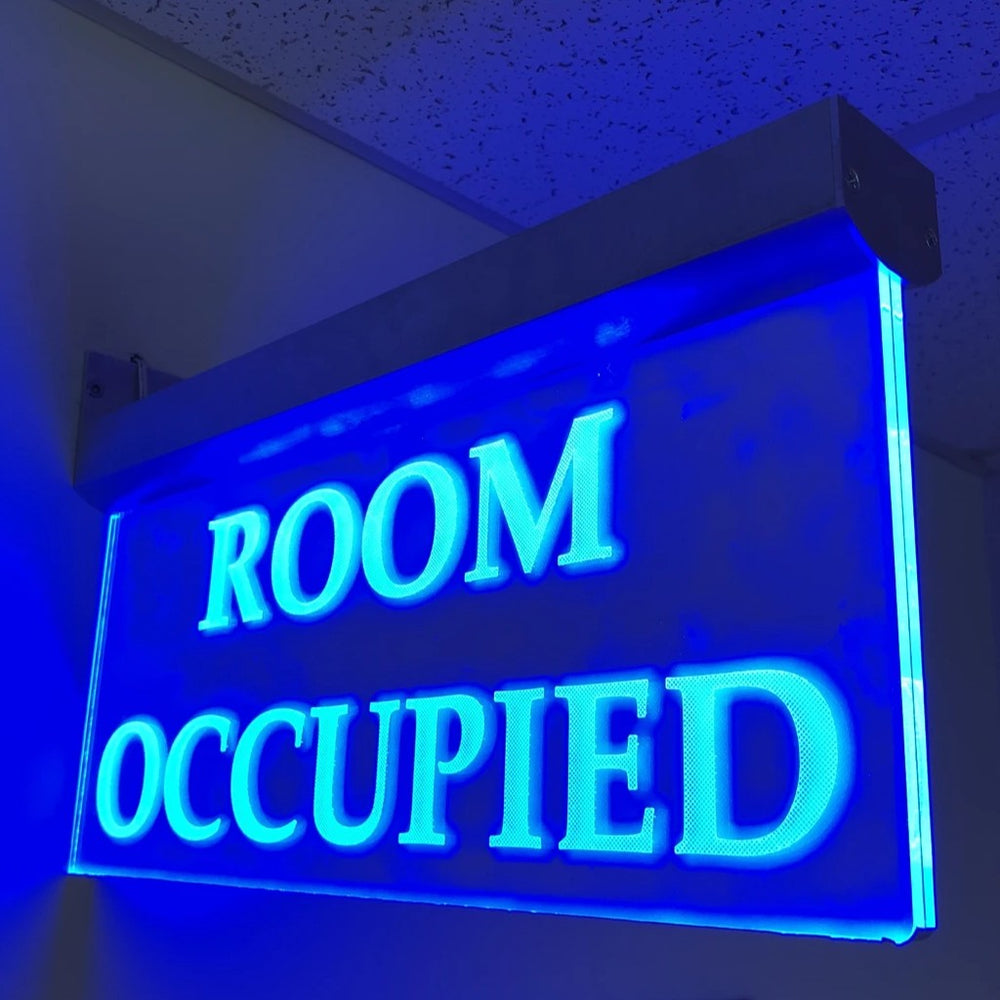

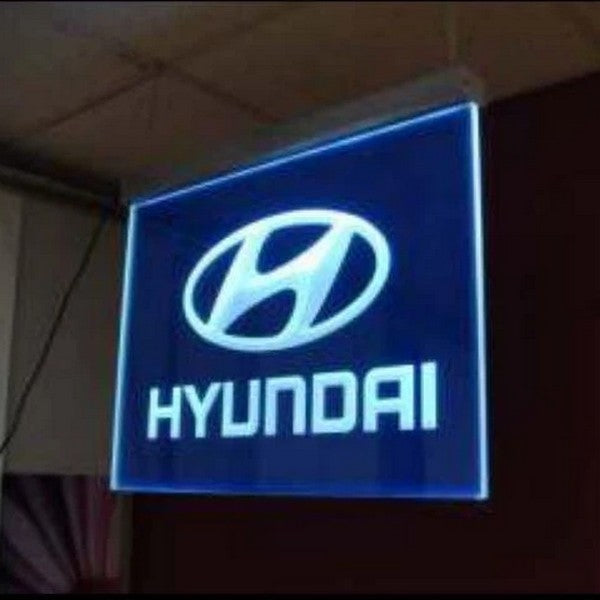

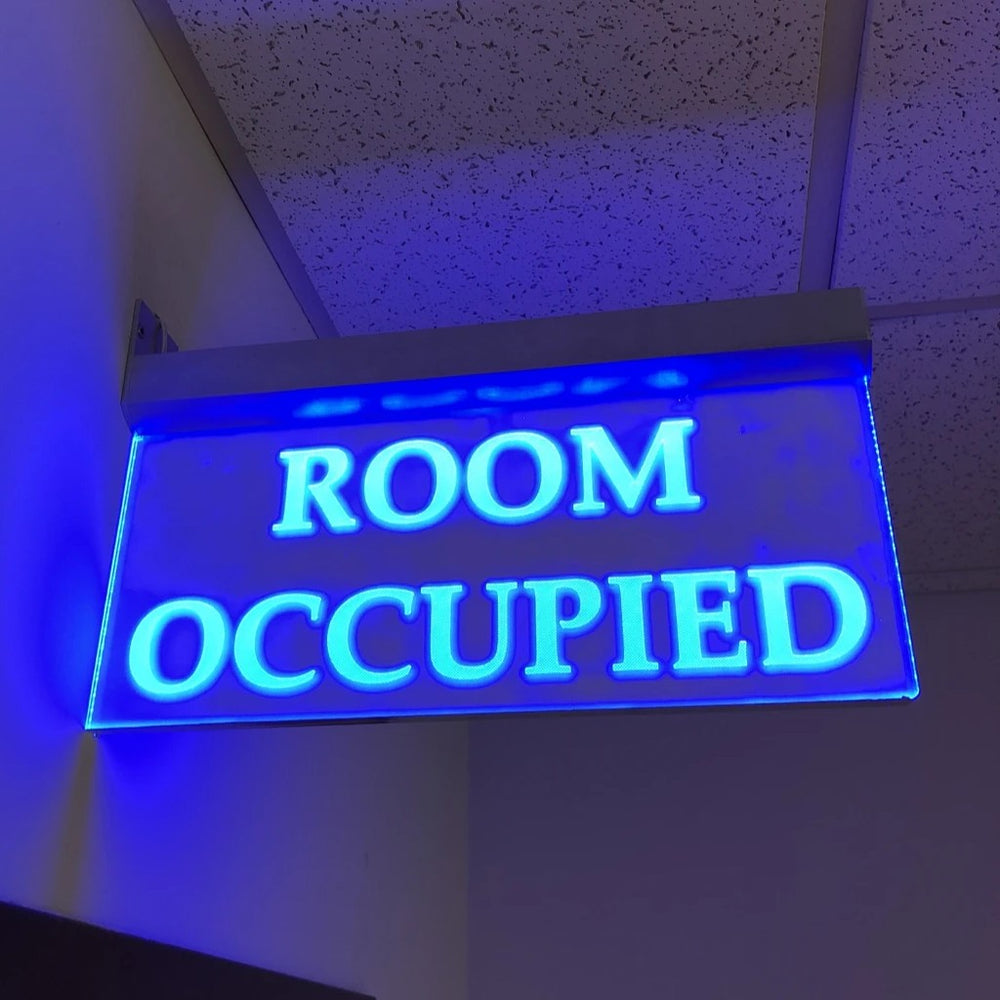

  • LED edge-lit acrylic sign hanging from ceilings
  • LED edge-lit projecting sign-mounted to walls
  • LED edge-lit exit sign
  • LED edge lighting plexiglass
  • LED edge-lit acrylic sign

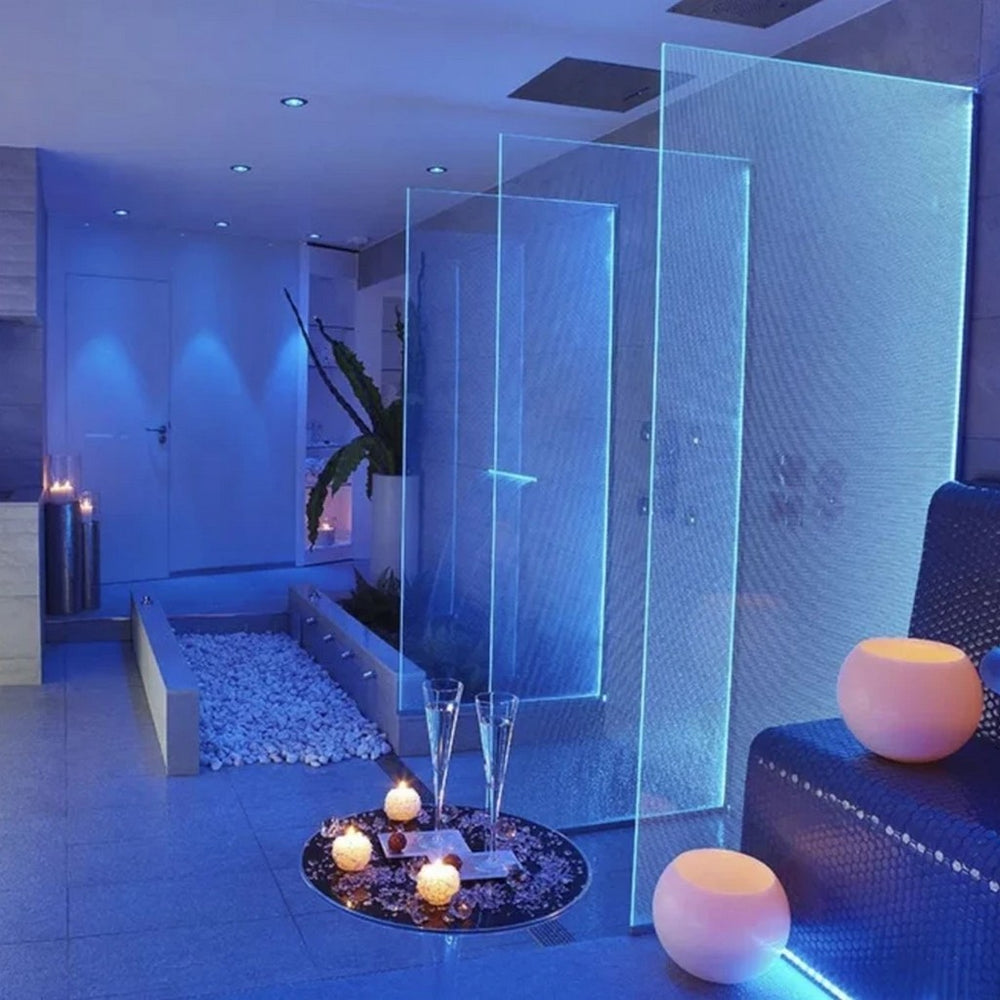

  • LED glass edge lighting
  • acrylic led sign base

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request

Common search terms

Edge lit LED extrusion, LED edge lighting channel, LED edge lit acrylic sign channel, Edge lit sign, Lit acrylic sign channel, LED glass lighting, Edge lit glass channel, Edge lit glass shelves

New York Quarter-Round System
