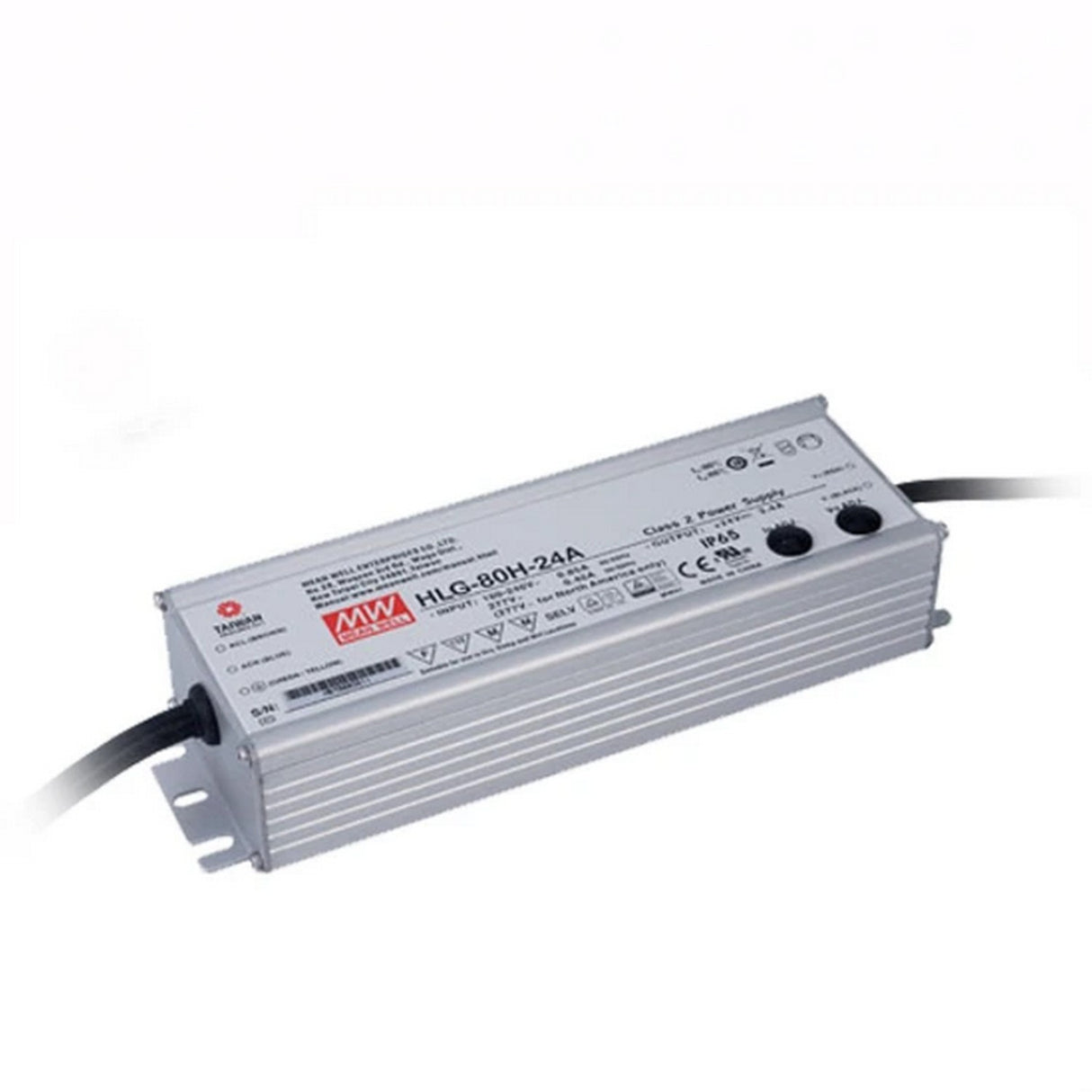

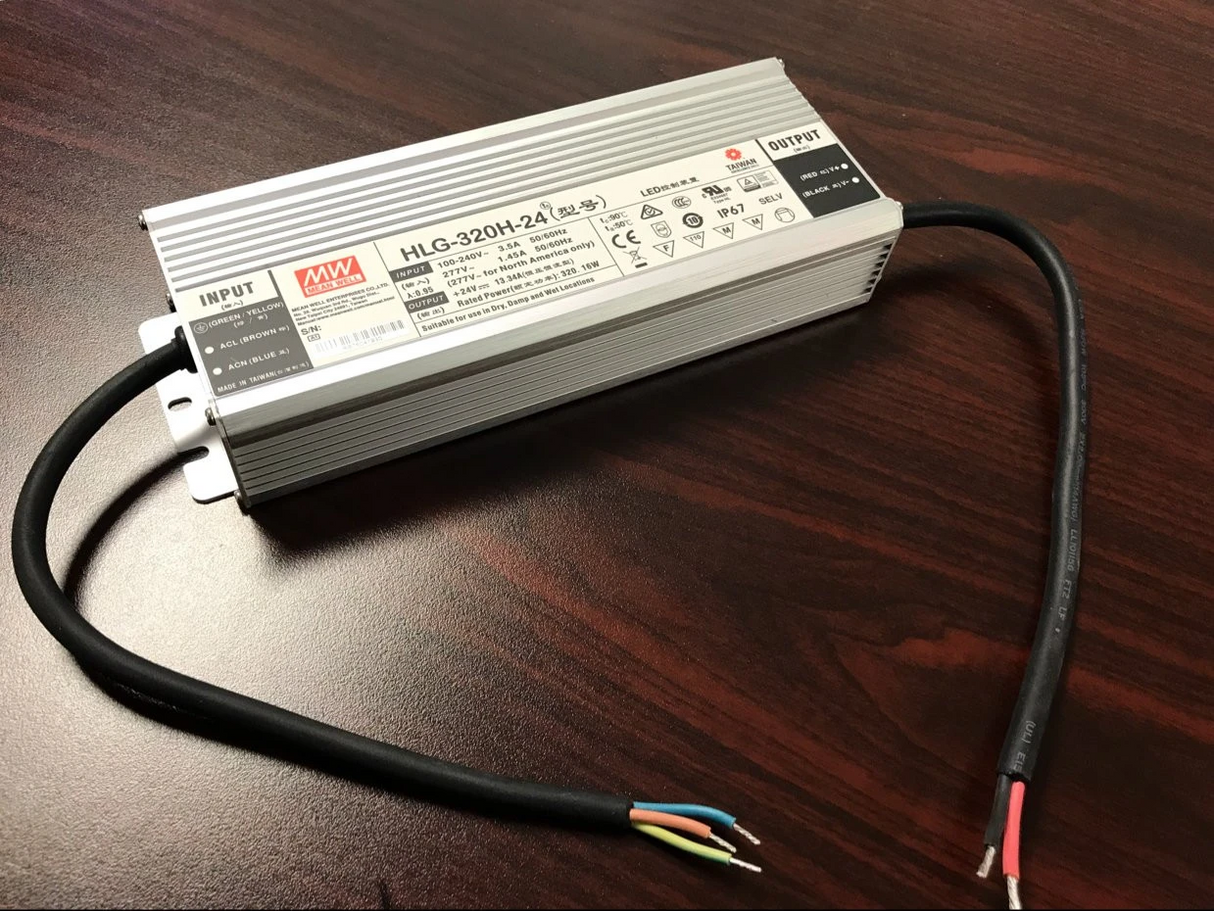

Indoor / Outdoor LED Driver (24V) ~ Meanwell HLG Series

Description

Meanwell HLG Series Indoor / Outdoor LED Driver ~ 7 year warranty

The Meanwell HLG series AC/DC LED driver featuring the dual mode constant voltage and constant current output. The Meanwell HLG series operates from 90-305V AC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Some models are equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for an LED lighting system.

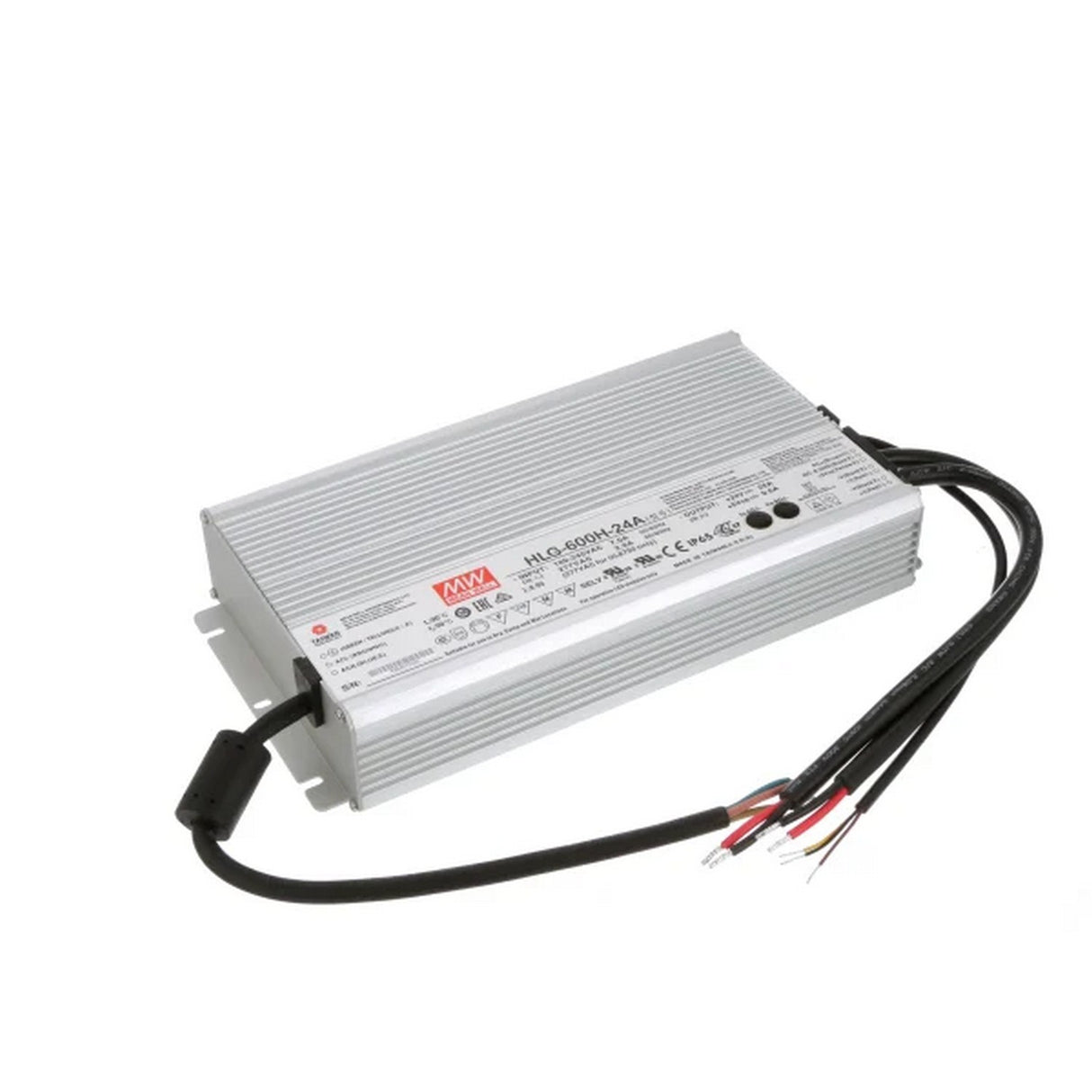

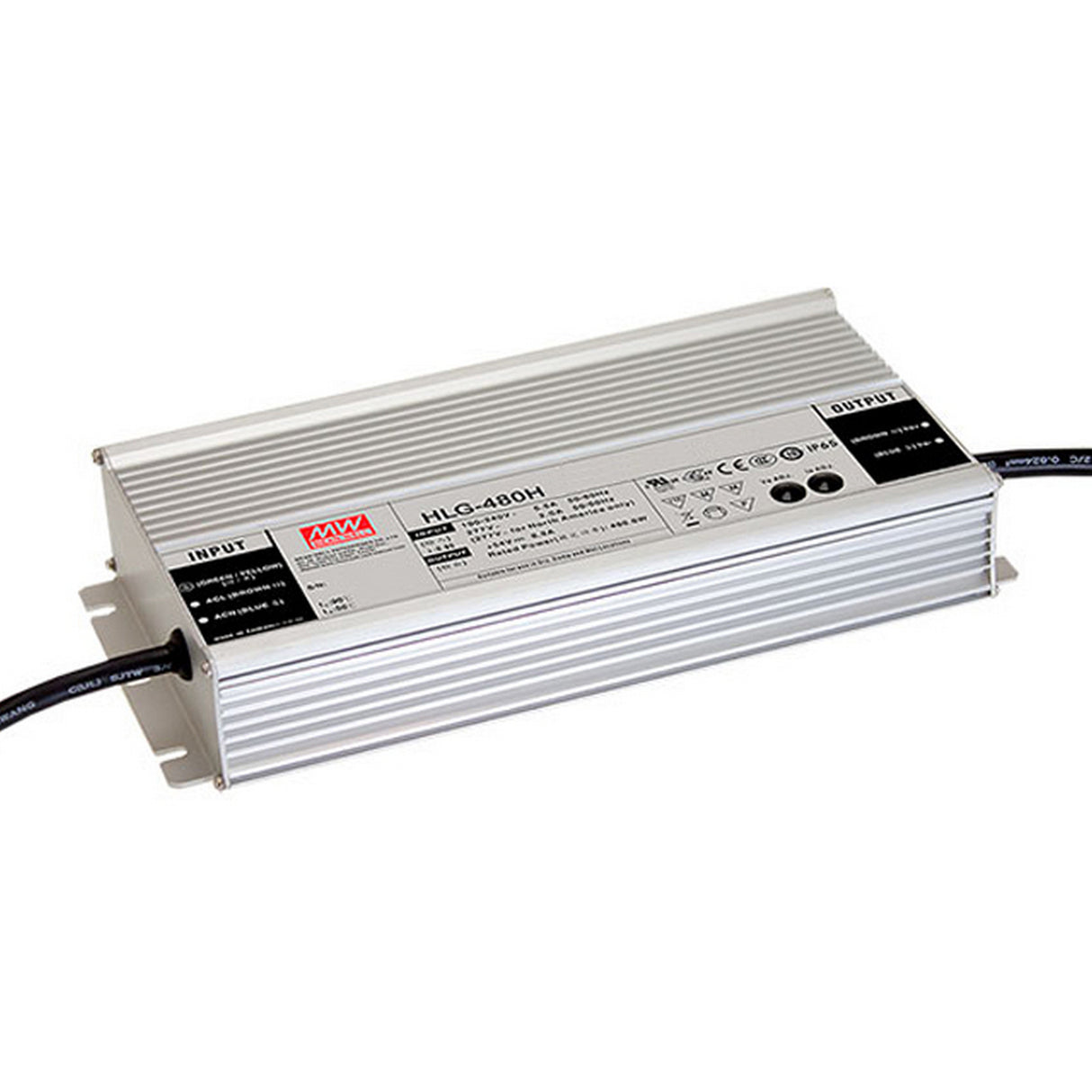

Please note that the 480W model (HLG-480H) and 600W model (HLG-600H) have two sets of output wires, because of their high current outputs. To utilize their full output capacity, you must use both sets of wires. If you use only a single set, the power you can draw will be limited to half the rated output. To connect the driver to a single set of wires, you may connect the two sets of output wires together – both positive output wires (+/Red) together and both negative output wires (-/Black) together. If wiring the driver like this, ensure that a sufficiently large wire size for the current draw is used. We recommend using our 3-way Wago connectors for connections up to 20A and 12 AWG.

General specifications

• Wattage: 40W~600W
• 90~305V AC input, built-in active PFC function
• 96% high efficiency (HLG-600H)
• Metal case, IP67/IP65 design for indoor or outdoor installations
• Function options:
  • output adjustable via potentiometer
  • 3 in 1 dimming (1~10V DC or 10V PWM signal or resistance)
  • timer dimming
• Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
• Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement
• IP68/-55 startup/10G vibration options available (Please contact MEAN WELL for details)
• 7 years warranty

Downloads

Spec sheets for each model:

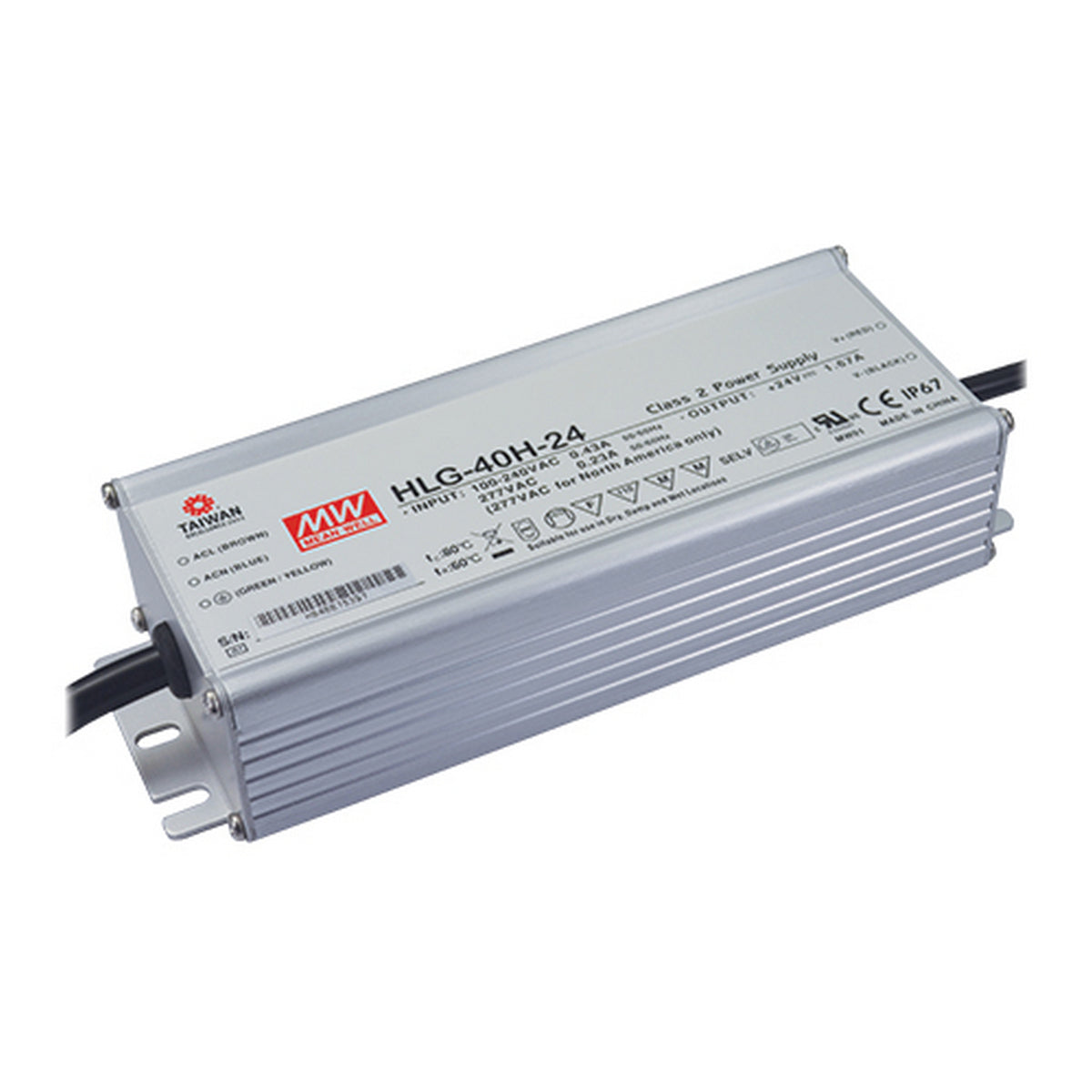

• HLG-40H spec sheet

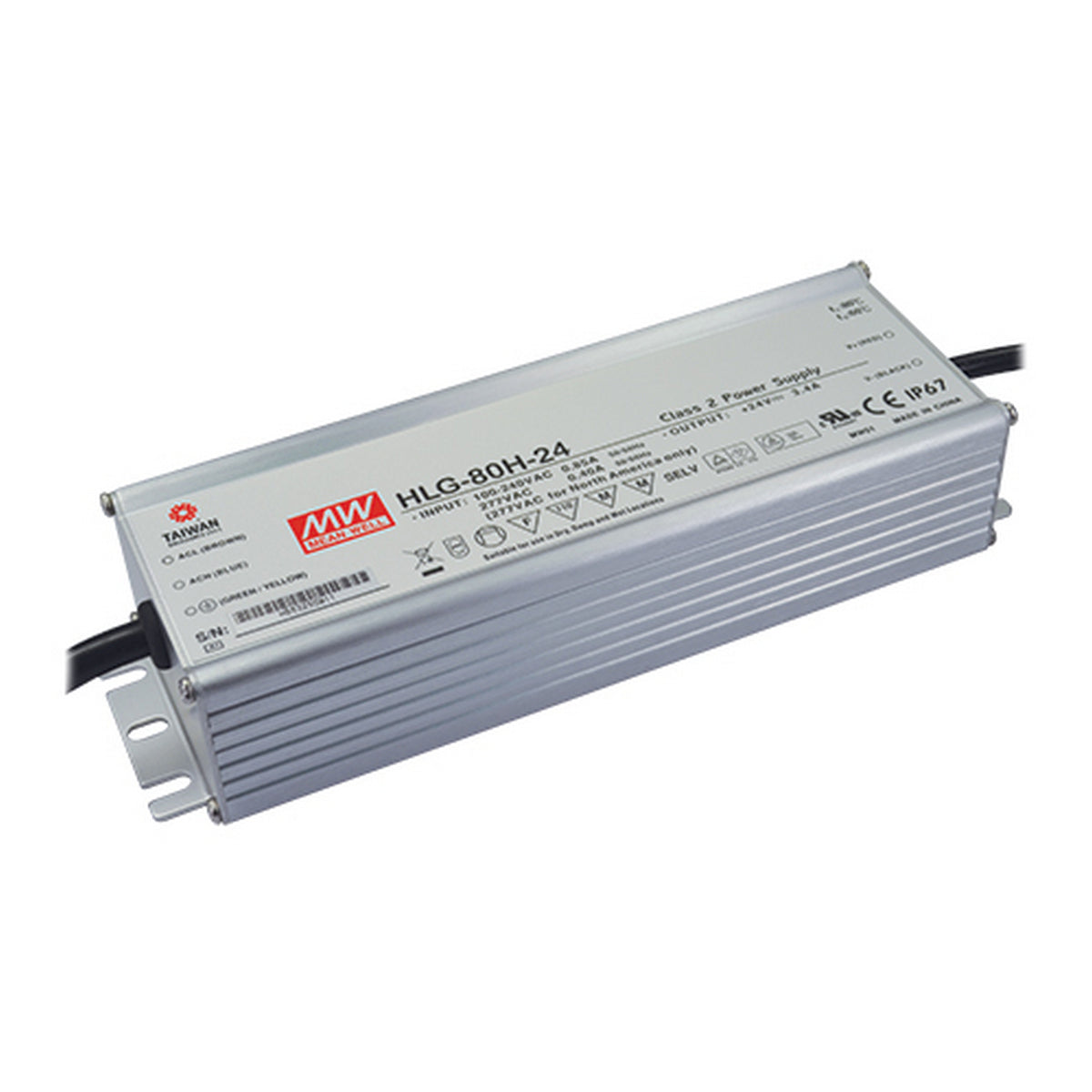

• HLG-80H spec sheet

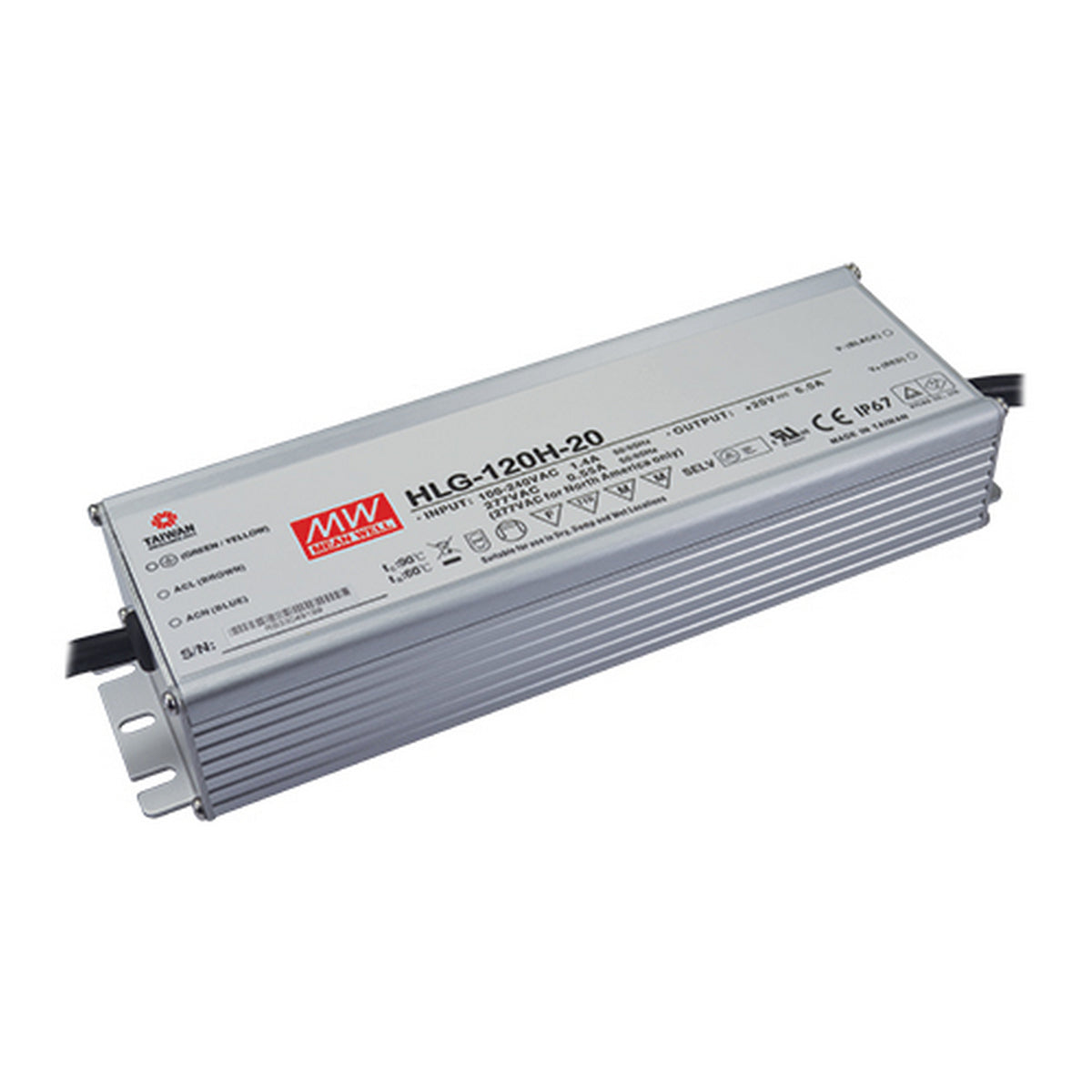

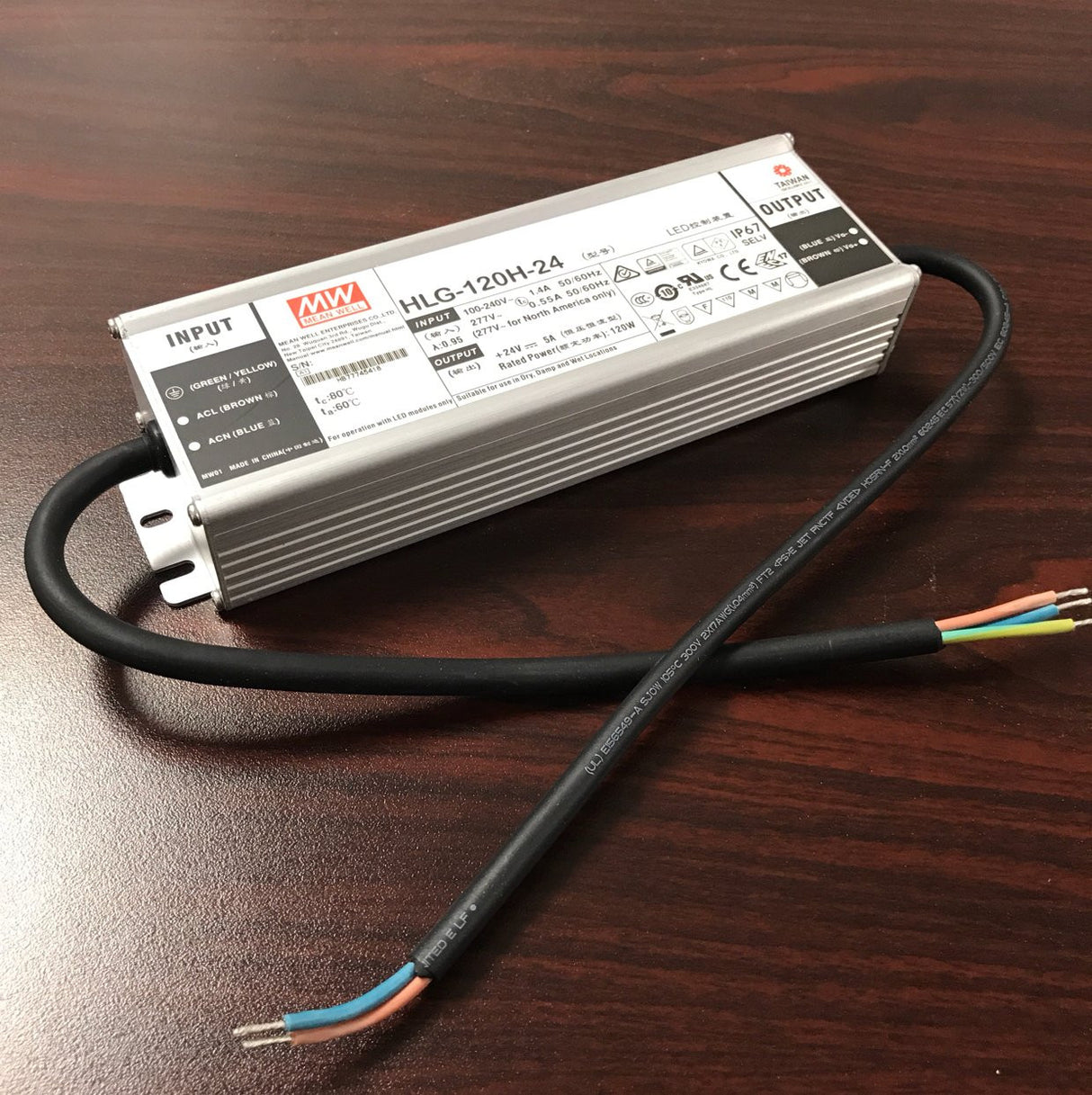

• HLG-120H spec sheet

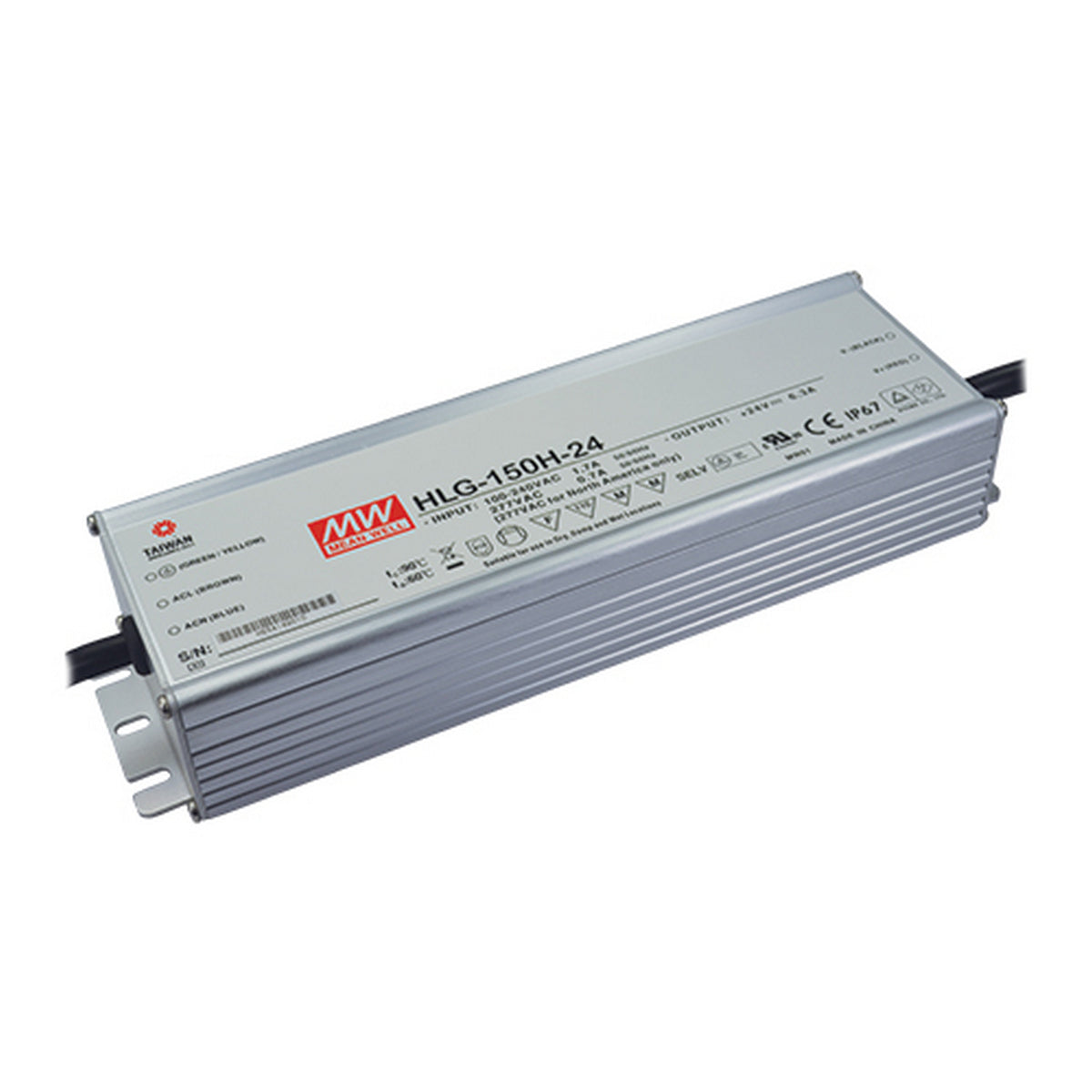

• HLG-150H spec sheet

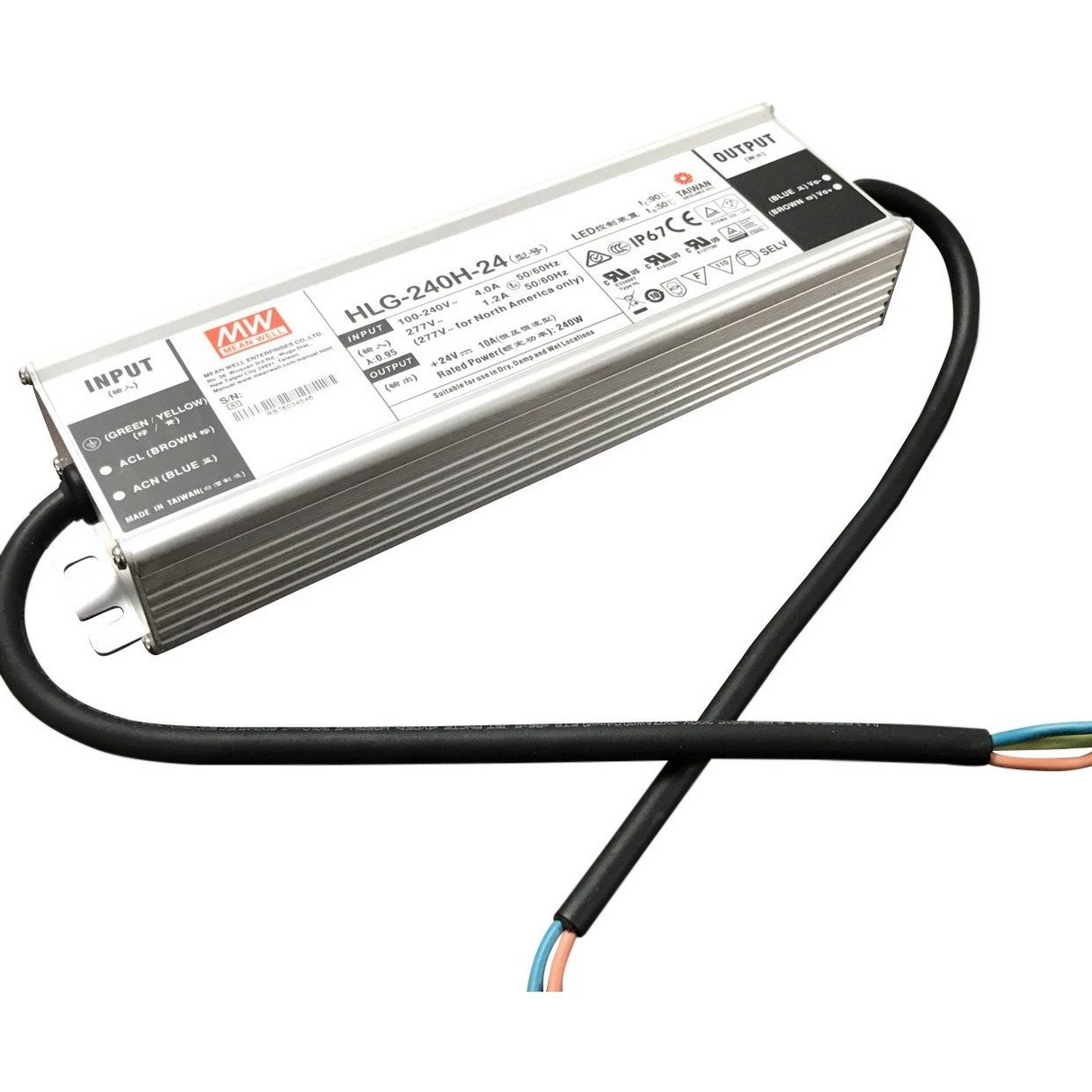

• HLG-240H spec sheet
• HLG-320H spec sheet
• HLG-480H spec sheet
• HLG-600H spec sheet
