Multi-Channel Smart LED Controller with RF Remote Support ~ EnoLED EnoSync Series

LED controller only ~ RF remote and all other accessories are sold separately

Description

The EnoSync Series is a smart LED controller designed to provide seamless wireless control of LED lighting systems. It connects between the power supply and LED strips, supporting single-color, tunable white, RGB, RGBW, and RGB+TW configurations for flexible lighting design.

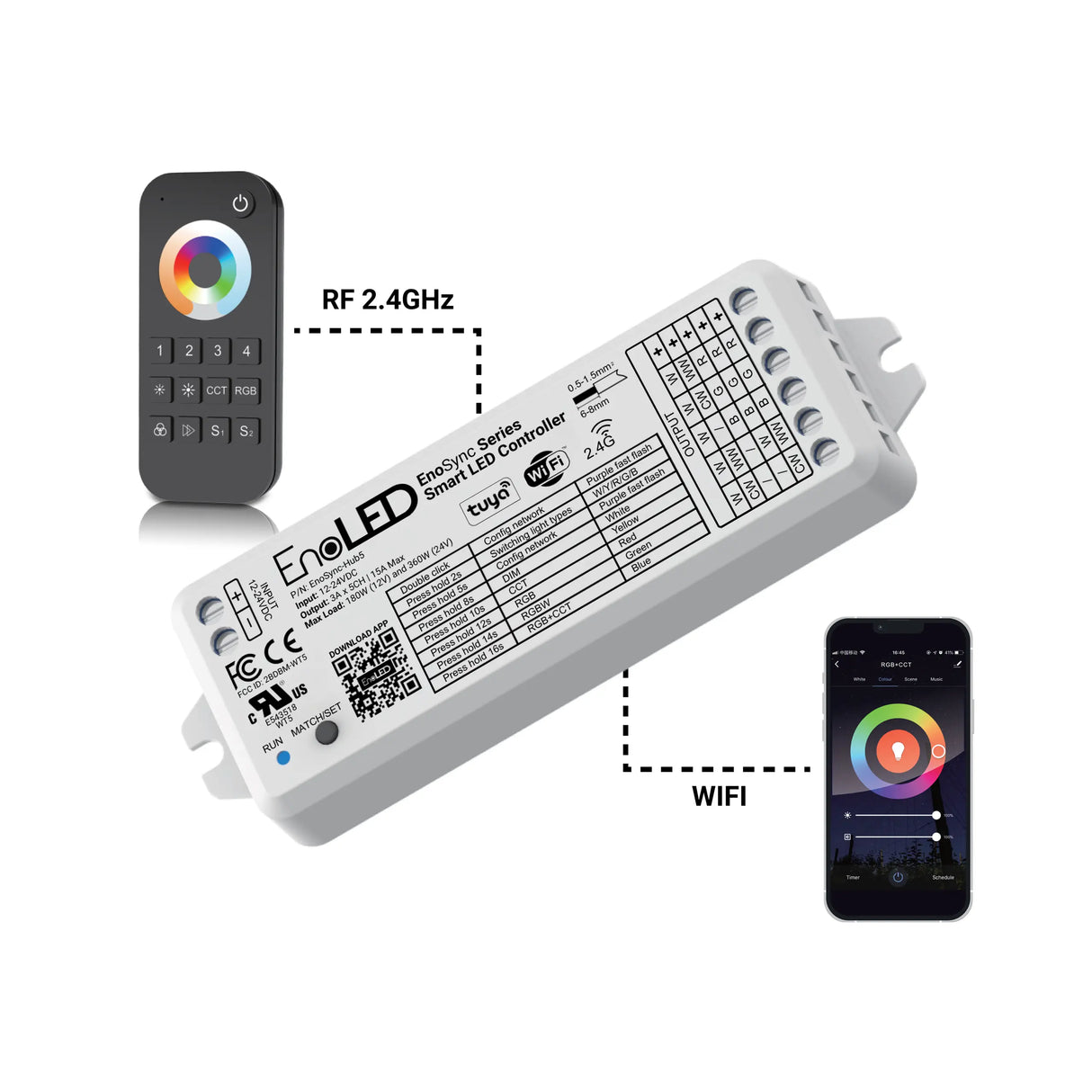

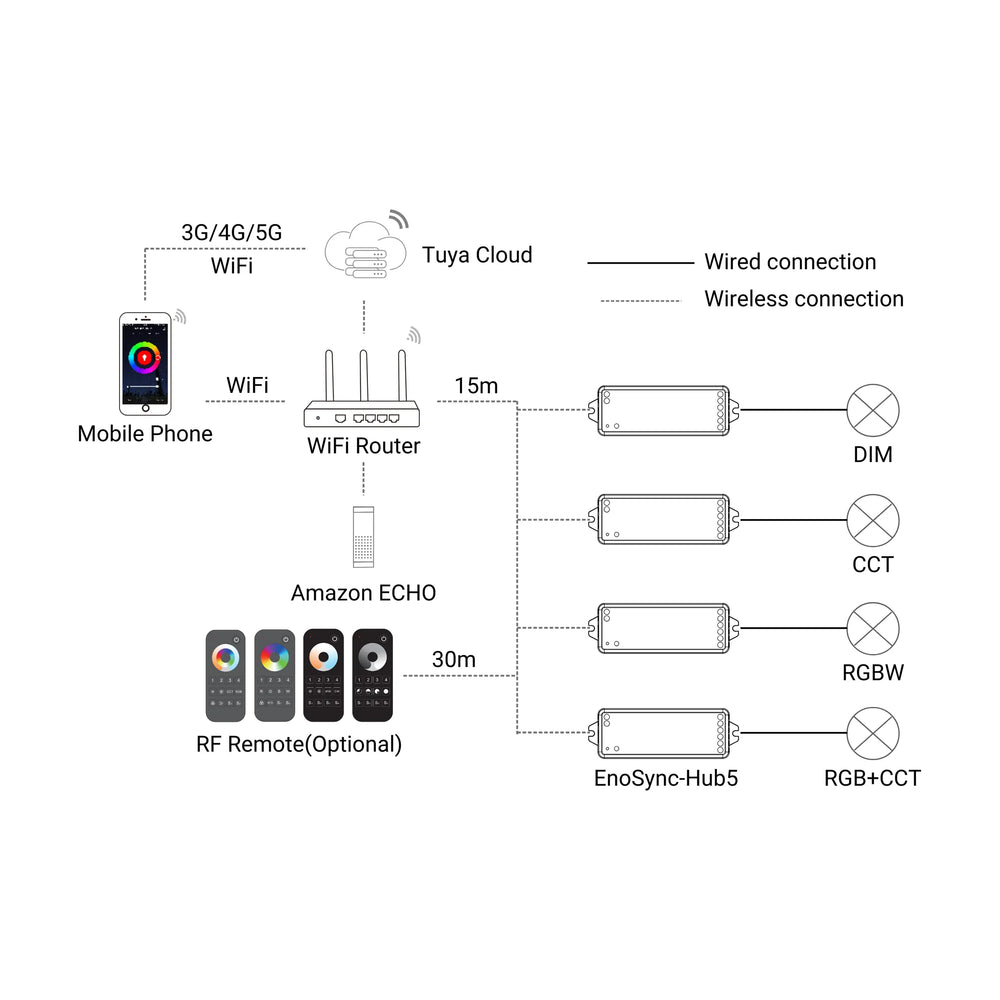

It offers full control of color, color temperature, brightness, scenes, and timers through the Tuya Smart Life app, with the option to use a range of RF remotes for convenient local control. A single remote can manage multiple controllers, and each controller can be paired with multiple remotes, making it suitable for both small and larger installations. The EnoSync Series also supports voice control through Amazon Alexa, Google Assistant, and others, enabling hands-free operation.

Operating on 12V or 24V with support for loads up to 360W, it includes an optional soft on/off function with a selectable 3-second fade-in and fade-out for smooth, comfortable lighting transitions.

General specifications

• Number of channels: 5-ch (White/Single color, Tunable white, RGB, RGBW, or RGB+TW)
• Input voltage: 12-24V DC
• Max input current: 15A
• Max output current: 15A total, 3A/channel
• Max output power:
  • 24V: 360W (72W/channel)

  • 12V: 180W (36W/channel)

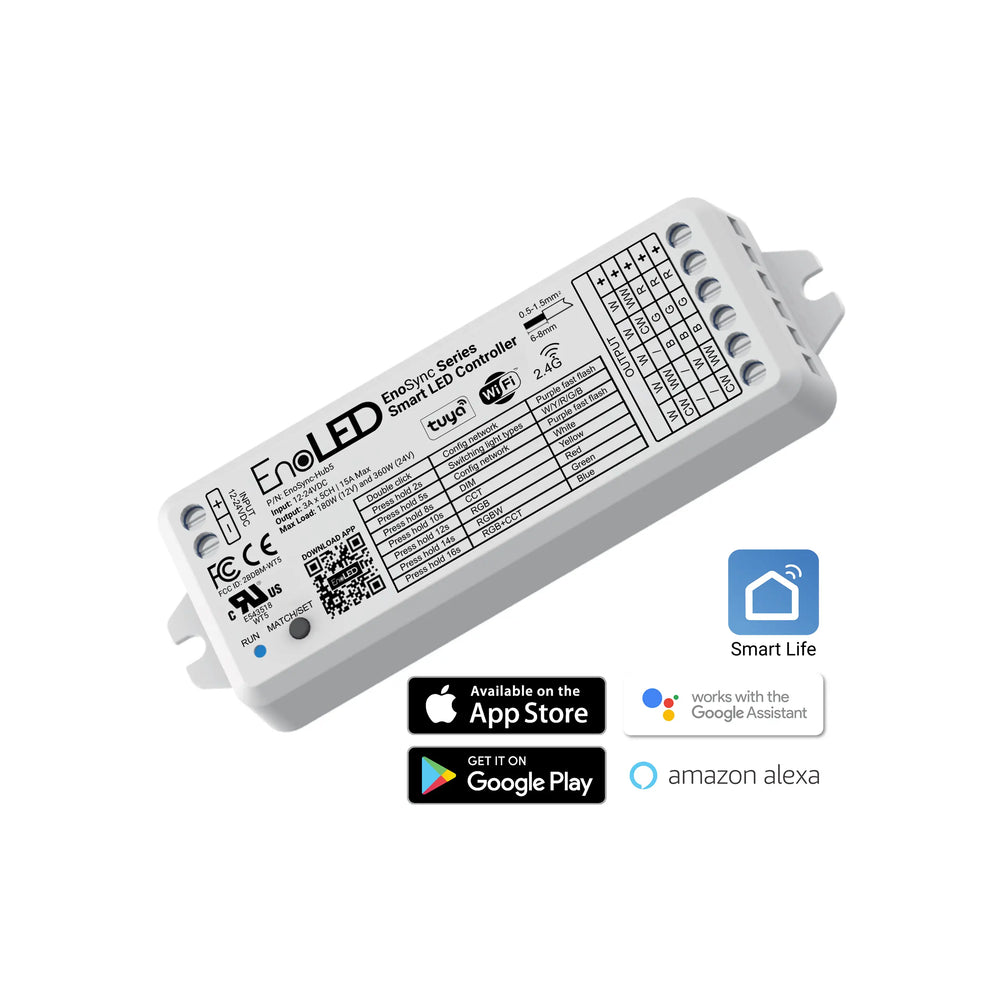

• Control options: RF remote control (optional), Tuya Smart Life app, Amazon Alexa, Google Assistant

• RF remote control range: 30m (barrier-free space)
• Dimming range: 0–100%

• Overall dimensions: 114 x 38 x 20 mm (4.49" x 1.50" x 0.79")
• Warranty: 6 years

Downloads

• EnoSync Hub cut sheet
• Installation instructions

Instructions

The EnoSync RGBW remote offers two modes to configure whether the RGB and White lights operate separately or together.

To change the mode, press and hold the ON/OFF and W buttons together for 2 seconds.

• Combined operation (default)
  • Green indicator on remote blinks 4 times
  • RGB and White can be used at the same time
• Separate operation
  • Green indicator on remote blinks 2 times
  • RGB and White cannot be ON at the same time
  • Turning on any RGB output automatically turns off the White output
  • Turning on the White output automatically turns off all RGB outputs
