RGB/RGBW Touch Wheel RF Remote ~ EnoLED EnoSync Series

RGB/RGBW touch wheel RF remote only ~ LED controller and all other accessories are sold separately.

Description

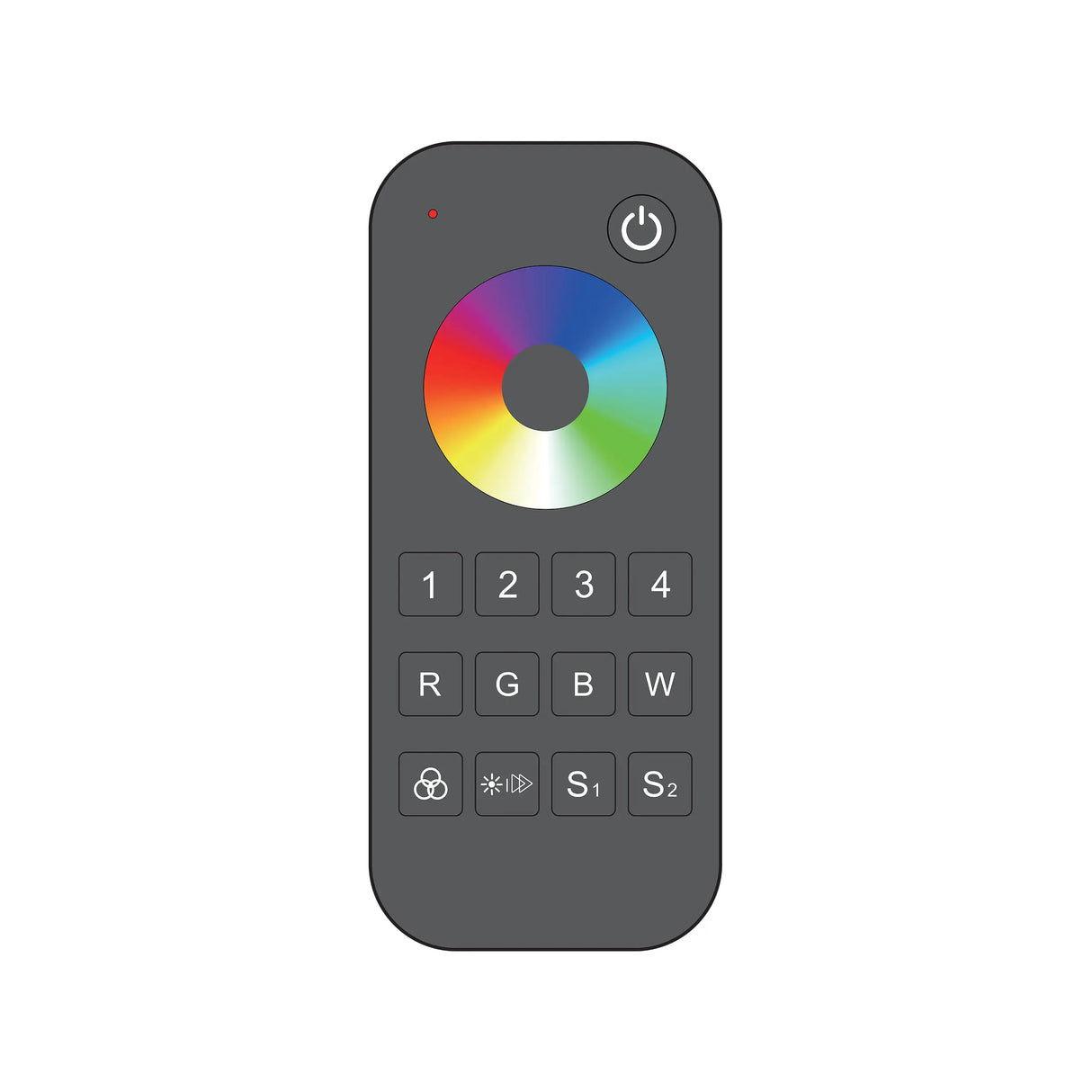

The ES-RT-Z4-RGBW is a 4-zone RGB and RGBW RF remote controller with a color wheel, designed for precise color and brightness control of LED lighting systems when using an EnoSync series LED controller (not included).

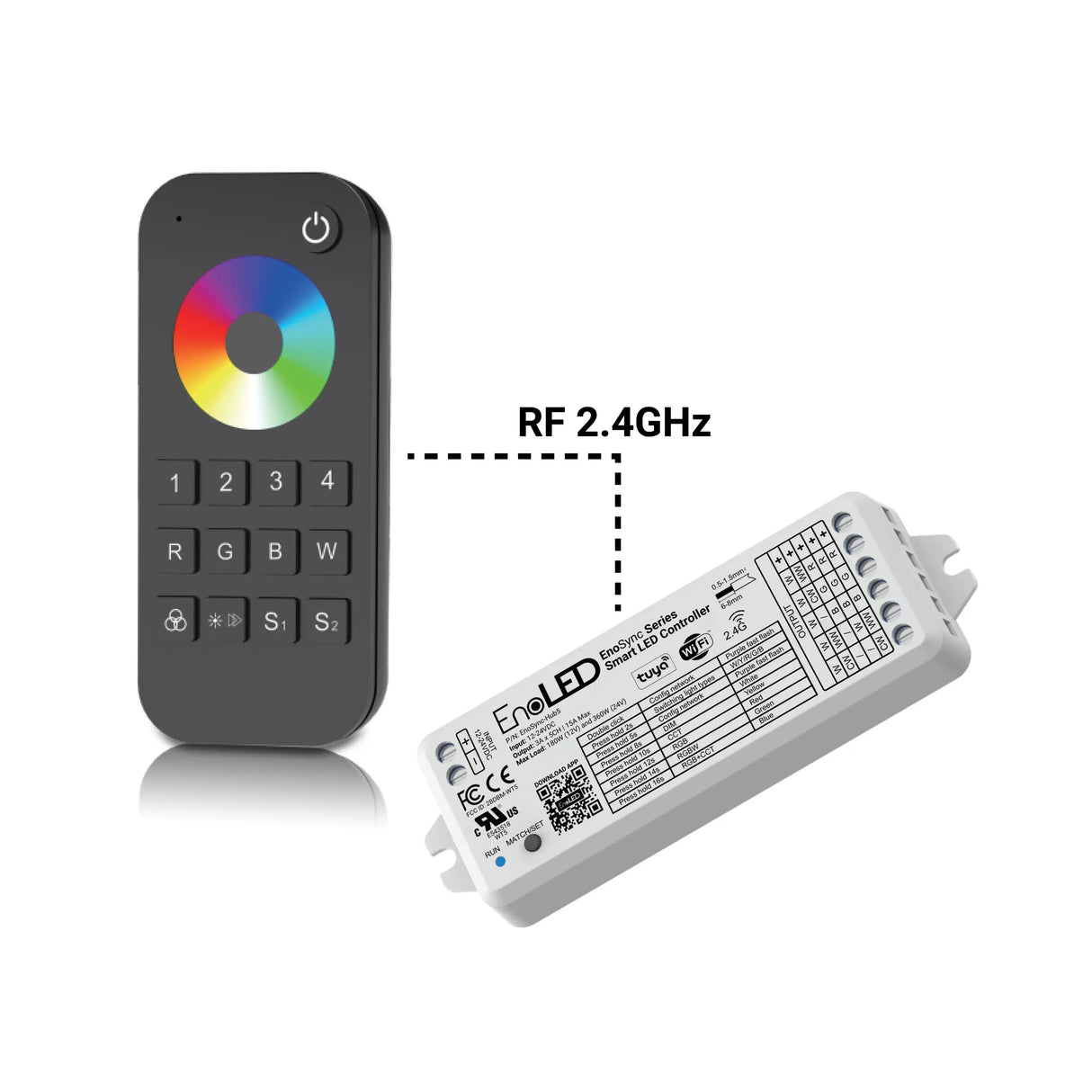

It supports four independent zones, allowing users to control lighting areas separately or operate all zones as one. This remote can be connected to multiple EnoSync LED controllers simultaneously, enabling easy control of large installations.

The touch wheel enables instant color selection, while independent Red, Green, Blue, and White channel dimming provides accurate adjustment of color balance and brightness. Built-in dynamic lighting modes allow users to create color-changing effects with adjustable speed, offering flexible control for decorative and dynamic LED lighting setups. Scene save and recall functions allow users to store and quickly access preset color choices.

The ES-RT-Z4-RGBW is powered by two AAA batteries and uses RF wireless technology with a reliable control range of up to 30 meters. An LED indicator delivers clear visual confirmation of commands.

General specifications

• Compatible with: EnoSync series LED controllers
• Control type: RGB/RGBW
• Control signal: RF (2.4 GHz)
• Working voltage: 3V DC (AAA x 2)
• Standby time: 1 year
• Max control distance: 30m (barrier-free space)
• Operation Temperature: -30°C to +55°C (-22°F to +131°F)
• Overall dimensions: 53 x 17.5 x 122 mm (2.1" x 0.7" x 4.8")
• Warranty: 5 years

Downloads

• ES-RT-Z4-RGBW cut sheet
• Installation instructions

Instructions

The EnoSync RGBW remote offers two modes to configure whether the RGB and White lights operate separately or together.

To change the mode, press and hold the ON/OFF and W buttons together for 2 seconds.

• Combined operation (default)
  • Green indicator on remote blinks 4 times
  • RGB and White can be used at the same time
• Separate operation
  • Green indicator on remote blinks 2 times
  • RGB and White cannot be ON at the same time
  • Turning on any RGB output automatically turns off the White output
  • Turning on the White output automatically turns off all RGB outputs
