Tunable White Touch Wheel RF Remote ~ EnoLED EnoSync Series

Tunable white touch wheel RF remote only ~ LED controller and all other accessories are sold separately.

Description

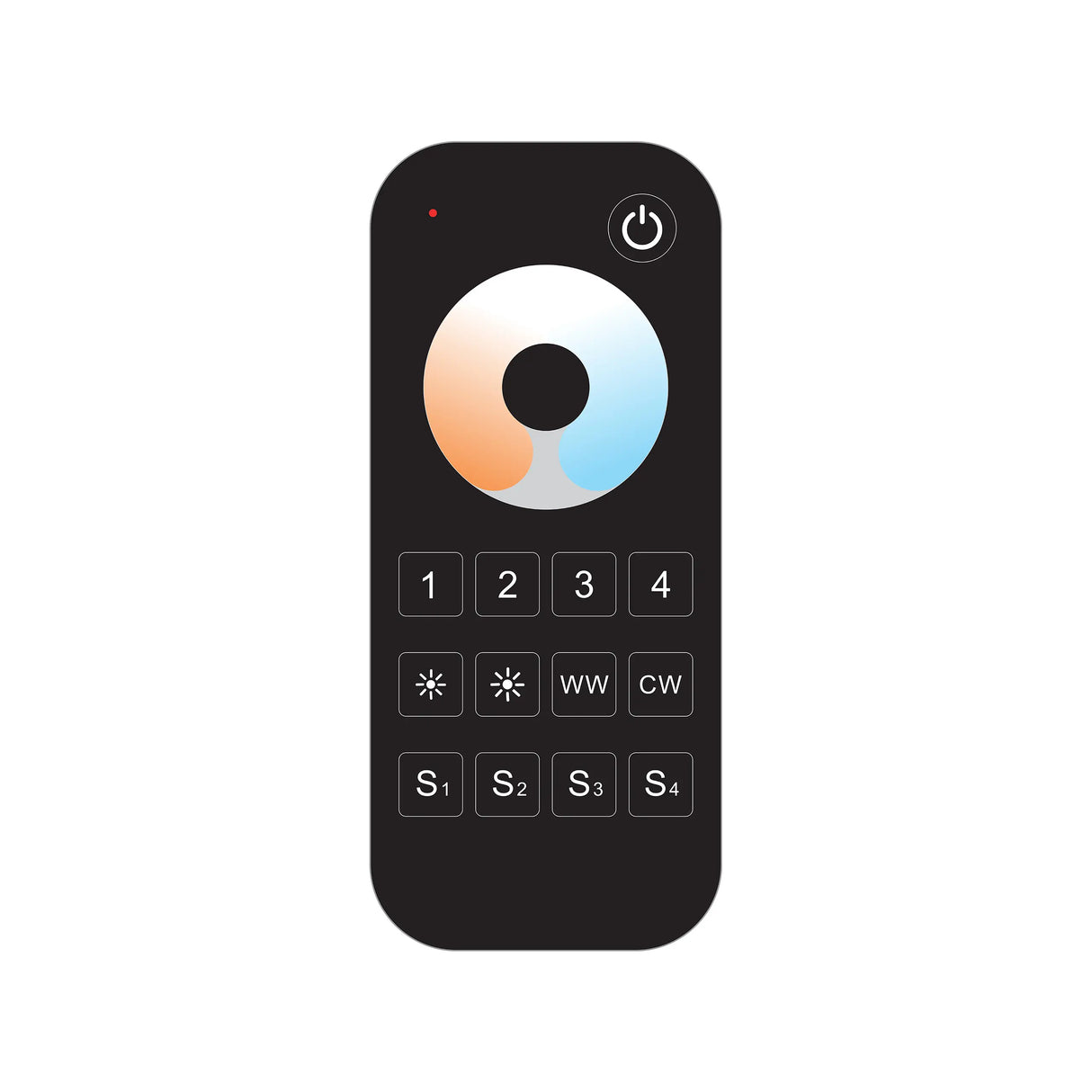

The ES-RT-Z4-TW is a 4-zone tunable white RF remote with a color wheel, designed for precise brightness and color temperature control of tunable white LED lighting systems when using an EnoSync series LED controller (not included).

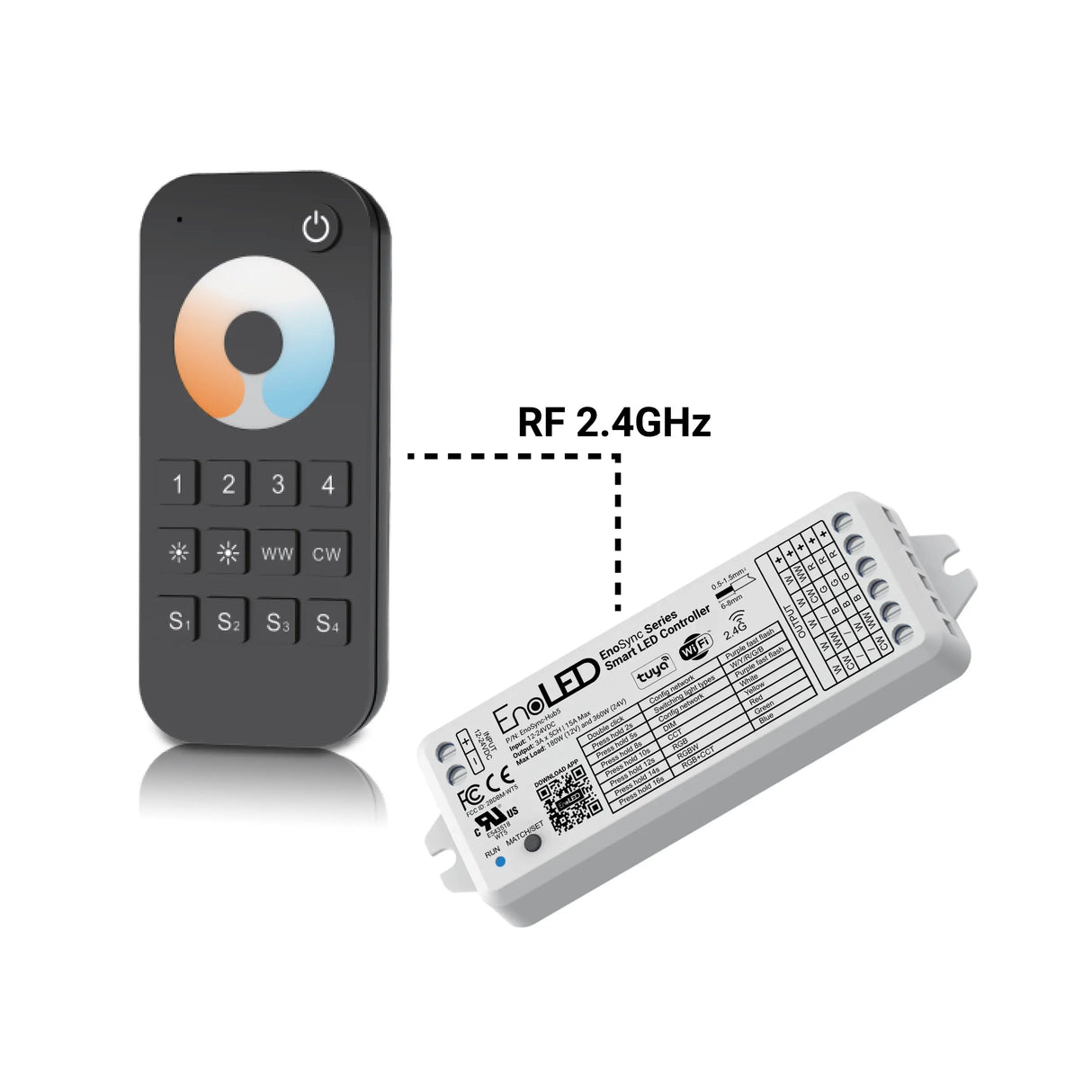

It supports four independent zones, allowing users to control lighting areas separately or operate all zones as one. This remote can be connected to multiple EnoSync LED controllers simultaneously, enabling easy control of large installations.

The touch wheel provides easy color temperature adjustment, and warm white and cool white buttons allow control of the warm white and cool white channels individually for precise adjustment. Easy dimming control ensures you can get both the color temperature and brightness you desire.  Scene save and recall functions allow users to store and quickly access preset temperature and brightness choices.

The ES-RT-Z4-TW is powered by two AAA batteries and uses RF wireless technology with a reliable control range of up to 30 meters. An LED indicator delivers clear visual confirmation of commands.

General specifications

• Compatible with: EnoSync series LED controllers
• Control type: Tunable white
• Control signal: RF (2.4 GHz)
• Working voltage: 3V DC (AAA x 2)
• Standby time: 1 year
• Max control distance: 30m (barrier-free space)
• Operating temperature: -30°C to +55°C (-22°F to +131°F)
• Overall dimensions: 53 x 17.5 x 122 mm (2.1" x 0.7" x 4.8")
• Warranty: 6 years

Downloads

• ES-RT-Z4-TW cut sheet
• ES-RT-Z4-TW installation instructions

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
