RGB+TW Touch Wheel RF Remote ~ EnoLED EnoSync Series

RGB+TW touch wheel RF remote only ~ LED controller and all other accessories are sold separately.

Description

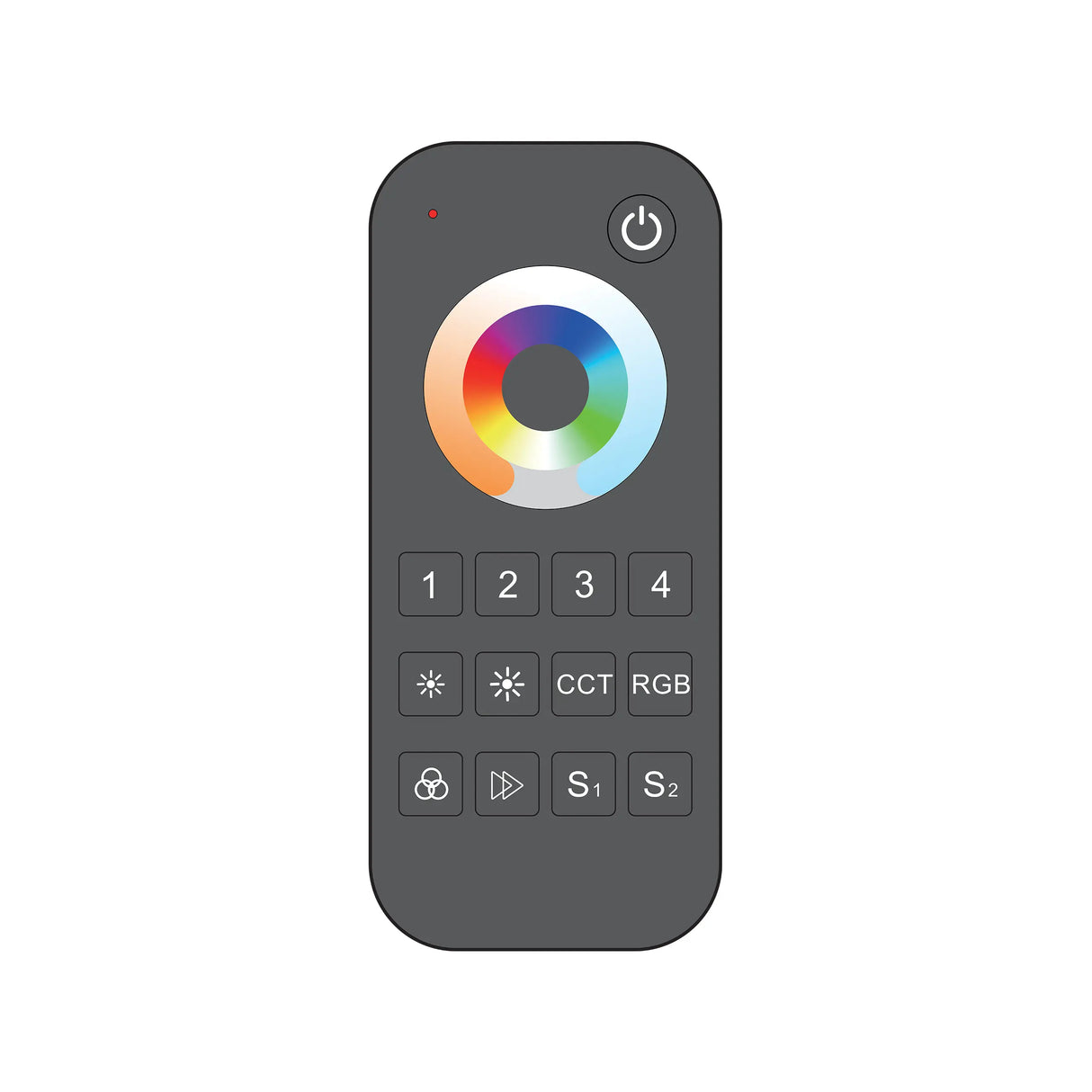

The ES-RT-Z4-RGBCCT is a 4-zone RGB+TW RF remote controller with a color wheel, designed for flexible control of LED lighting systems when using an EnoSync series LED controller (not included). It combines RGB color control with tunable white control, allowing users to switch between RGB and TW modes.

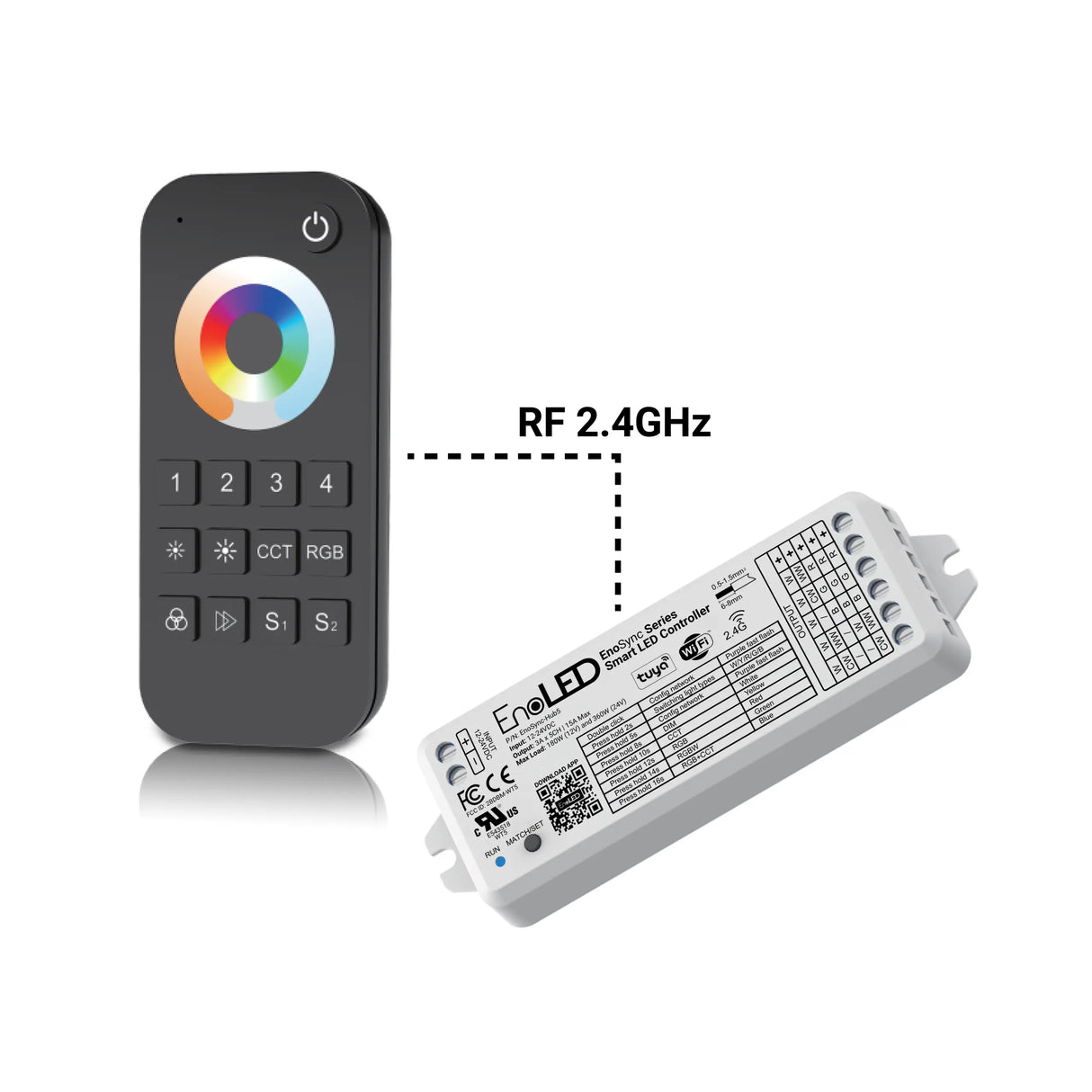

This remote supports four independent zones, allowing users to control lighting areas separately or operate all zones as one. This remote can be connected to multiple EnoSync LED controllers simultaneously, enabling easy control of large installations.

The touch wheel enables smooth RGB color selection or precise color temperature adjustment. Users can fine-tune brightness, adjust RGB saturation, and balance color temperature for accurate lighting output. Dynamic RGB lighting modes with adjustable speed provide additional flexibility for decorative and accent lighting setups. Scene save and recall functions allow users to store and quickly access preset lighting scenes.

The ES-RT-Z4-RGBCCT is powered by two AAA batteries and uses RF wireless technology with a reliable control range of up to 30 meters. An LED indicator delivers clear visual confirmation of commands.

General specifications

• Compatible with: EnoSync series LED controllers
• Control type: RGB+TW
• Control signal: RF (2.4 GHz)
• Working voltage: 3V DC (AAA x 2)
• Standby time: 1 year
• Max control distance: 30m (barrier-free space)
• Operation Temperature: -30°C to +55°C (-22°F to +131°F)
• Overall dimensions: 53 x 17.5 x 122 mm (2.1" x 0.7" x 4.8")
• Warranty: 6 years

Downloads

• ES-RT-Z4-RGBCCT cut sheet
• Installation instructions

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
