Single Color Dimming Touch Wheel RF Remote ~ EnoLED EnoSync Series

Single-color dimming touch wheel RF remote only ~ LED controller and all other accessories are sold separately.

Description

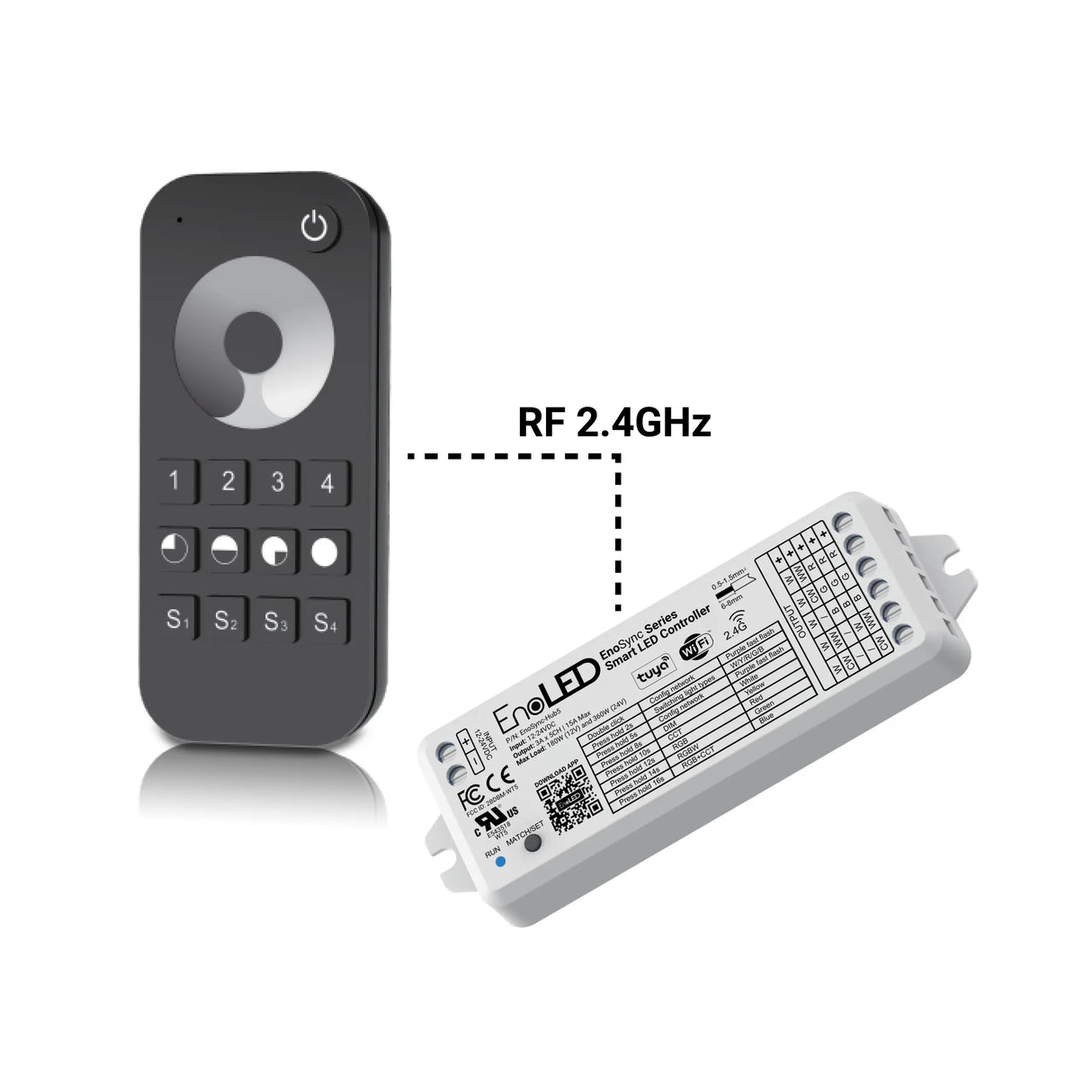

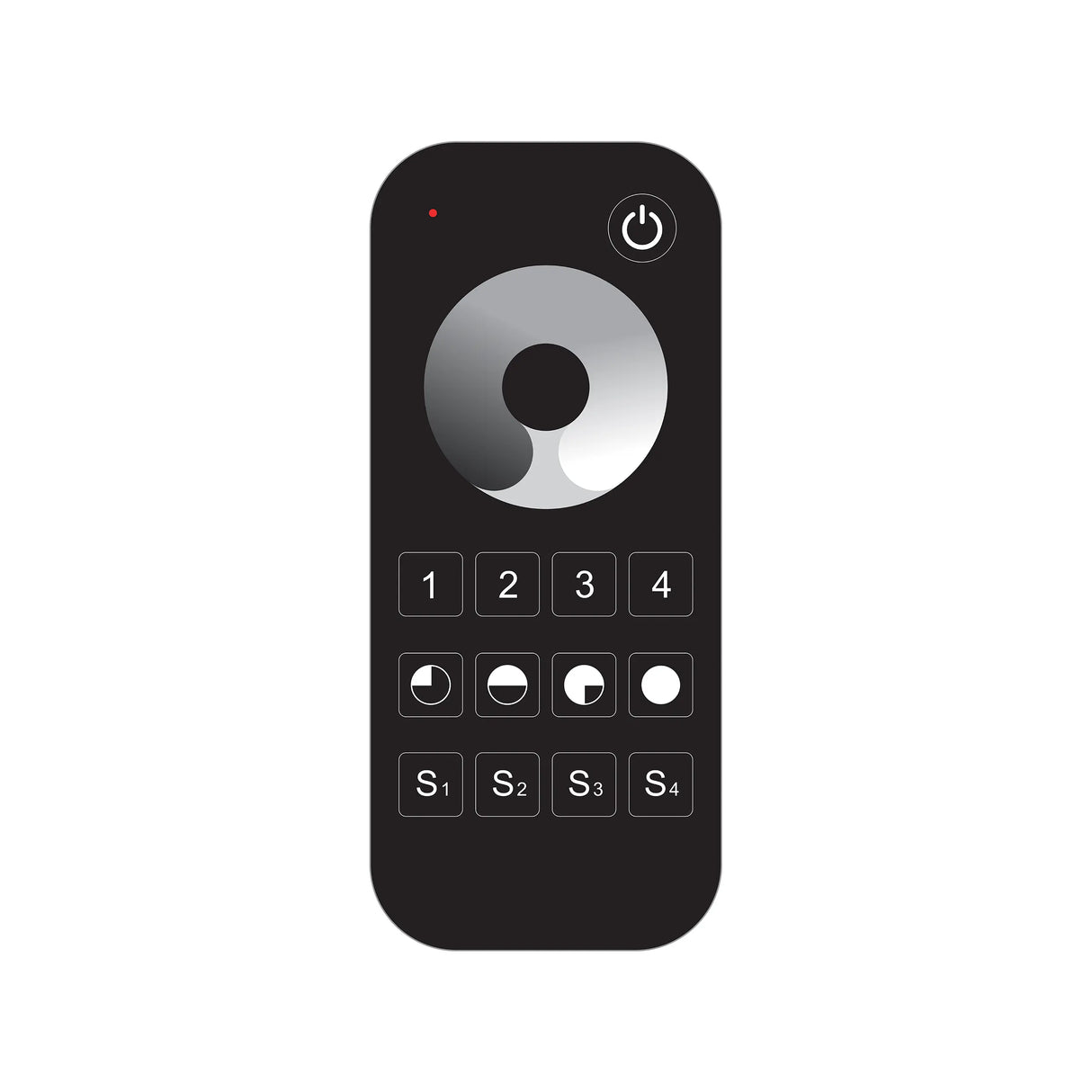

The ES-RT-Z4-DIM is a single-color dimming RF remote controller with a color wheel, designed for precise brightness control of LED lighting systems when using an EnoSync series LED controller (not included).

It supports four independent zones, allowing users to control lighting areas separately or operate all zones as one. This remote can be connected to multiple EnoSync LED controllers simultaneously, enabling easy control of large installations.

The touch wheel enables smooth and accurate dimming of single-color LED lights. Users can switch between single-zone control and four-channel dimming mode depending on their installation needs. Scene save and recall functions allow users to store and quickly access preset brightness levels.

The ES-RT-Z4-DIM is powered by two AAA batteries and uses RF wireless technology with a reliable control range of up to 30 meters. An LED indicator delivers clear visual confirmation of commands.

General specifications

• Compatible with: EnoSync series LED controllers
• Control type: Single-color dimming
• Control signal: RF (2.4 GHz)
• Working voltage: 3V DC (AAA x 2)
• Standby time: 1 year
• Max control distance: 30m (Barrier-free space)
• Operating temperature: -30°C to +55°C (-22°F to +131°F)
• Overall dimensions: 53 x 17.5 x 122 mm (2.1" x 0.7" x 4.8")
• Warranty: 6 years

Downloads

• ES-RT-Z4-DIM cut sheet
• Installation instructions

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
