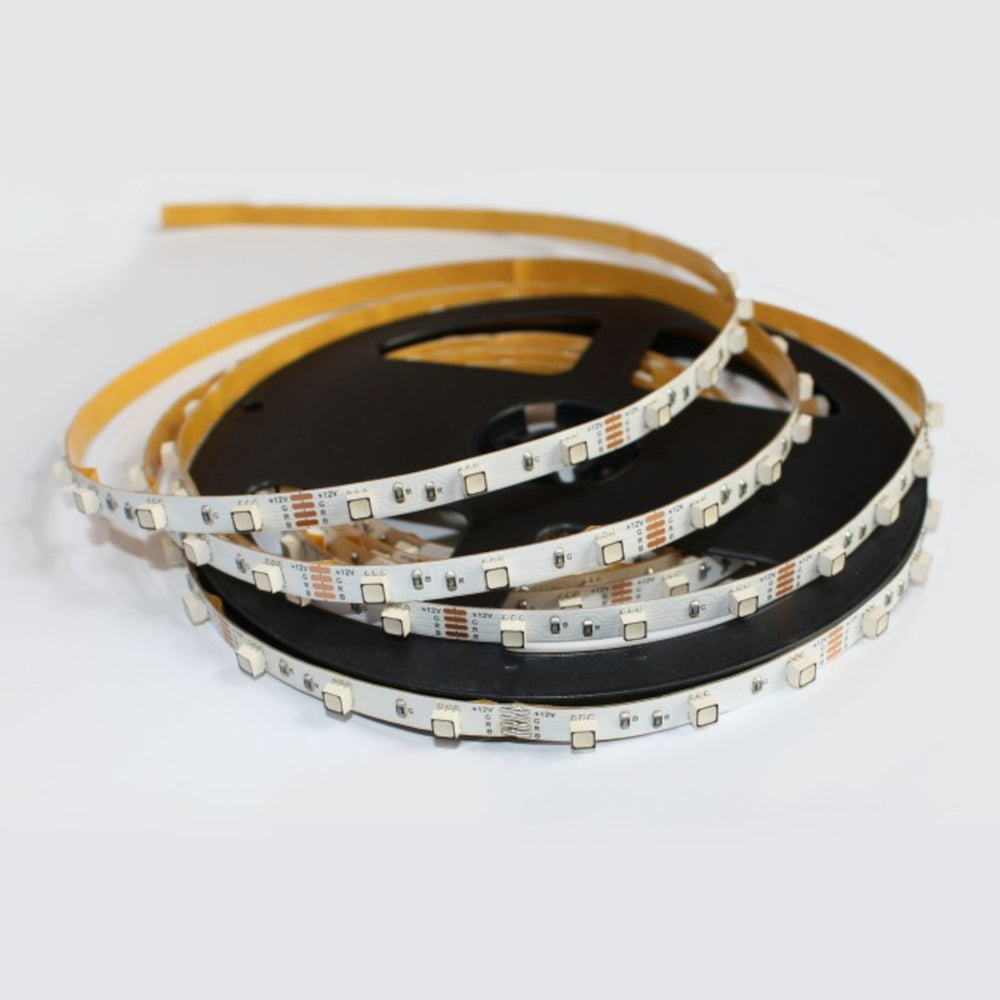

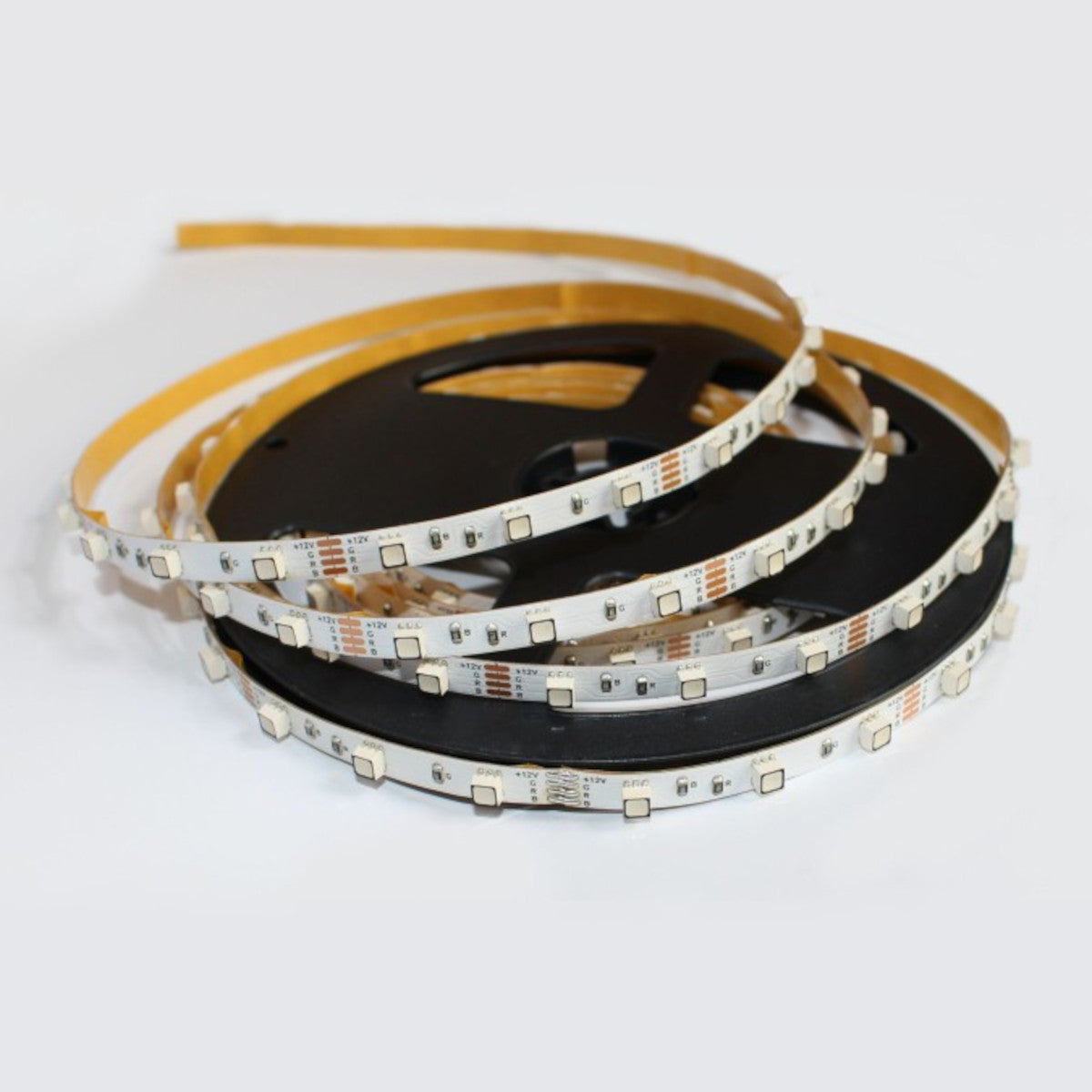

Narrow IP20 RGB LED Strip (12V) ~ Cosmos Series

LED strip only ~ profile, channel, covers, end caps and al other accessories are sold separately

Description

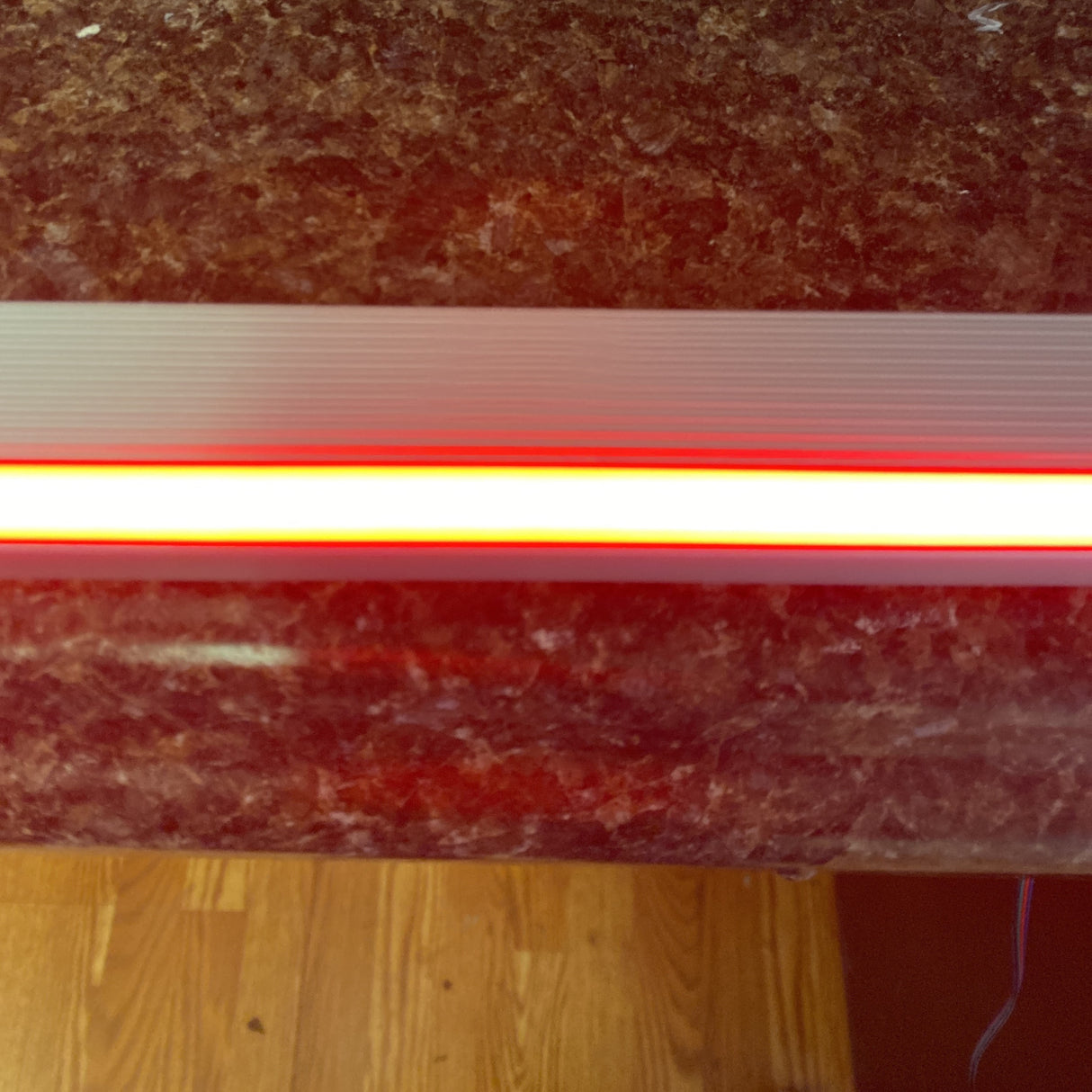

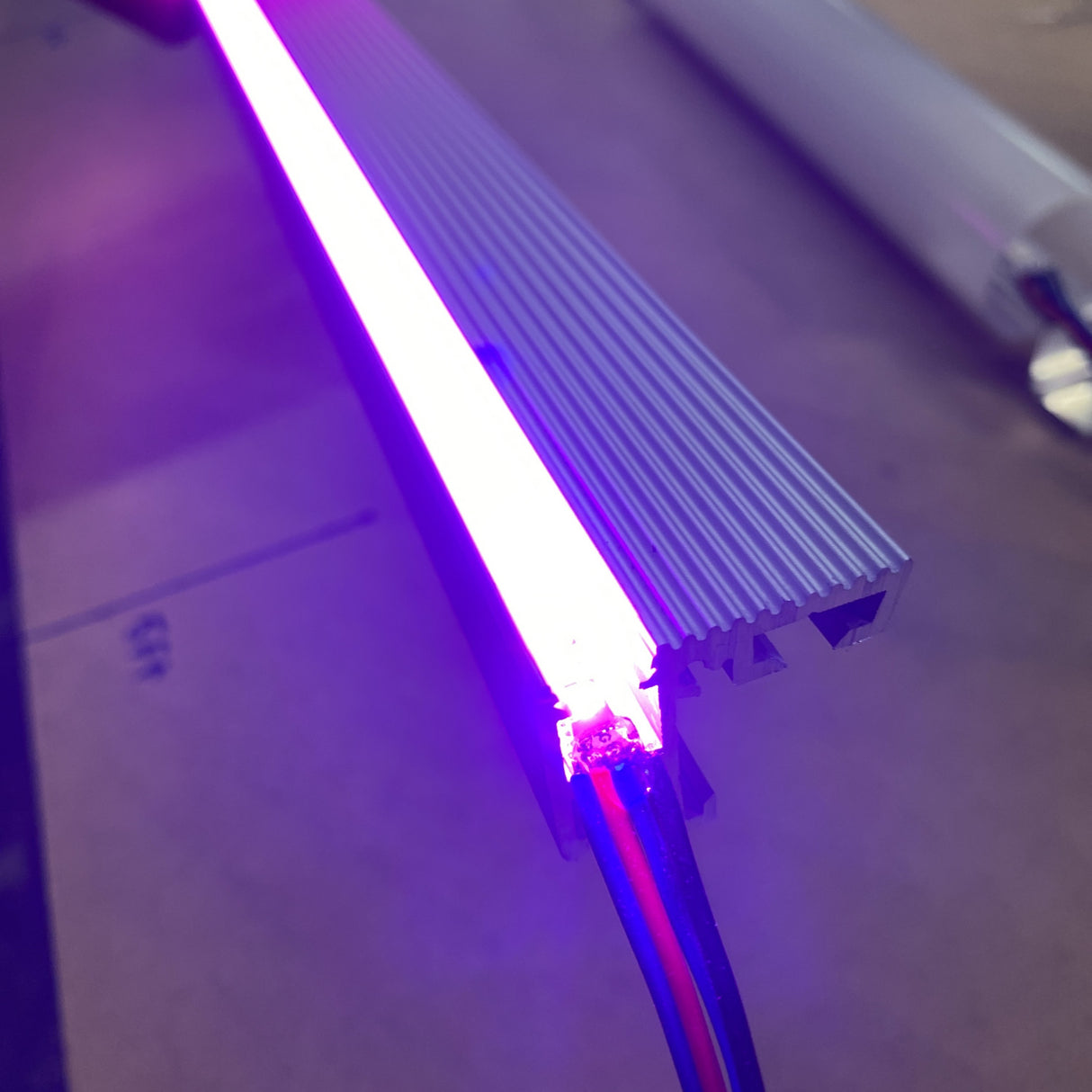

The RGB Cosmos series has a very narrow PCB and is ideal for edge-lit applications. This LED strip can be used in our Alu-Baseboard and Alu-Stair Nano LED channels

General specifications

• 3-chip SMD 3535 RGB LED
• Thermally conductive adhesive for easy installation
• Protection category: IP20
• Dimmable: Yes
• Supply Voltage: 12V DC
• Beam angle: 120°

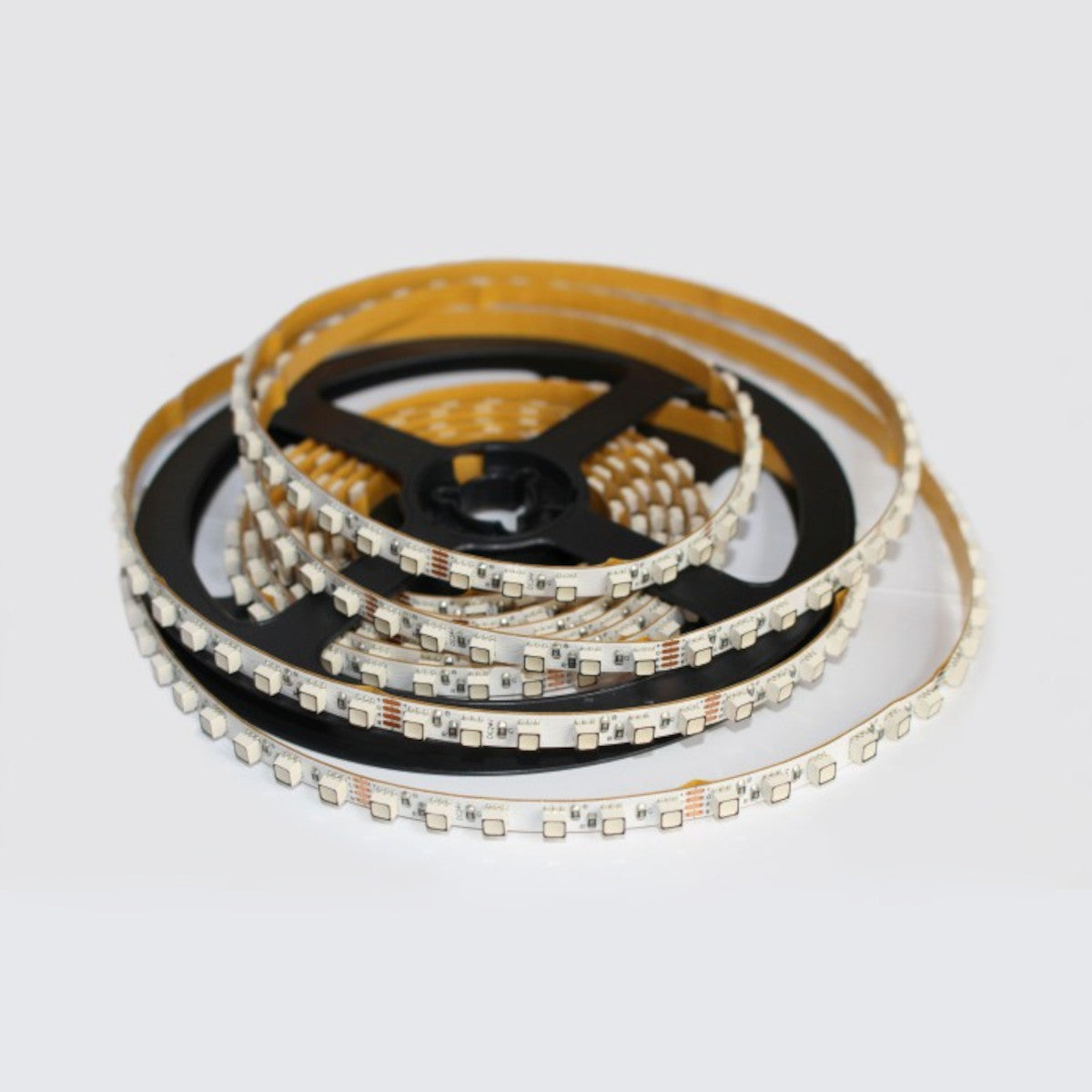

• LED Chips per meter: 60LED/m 14.4w/m and 120LED/m 28.8w/m
• LED strip width: 6mm
• Cutting pitch: 25mm

Downloads

• 60LED cut sheet
• 120LED cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
