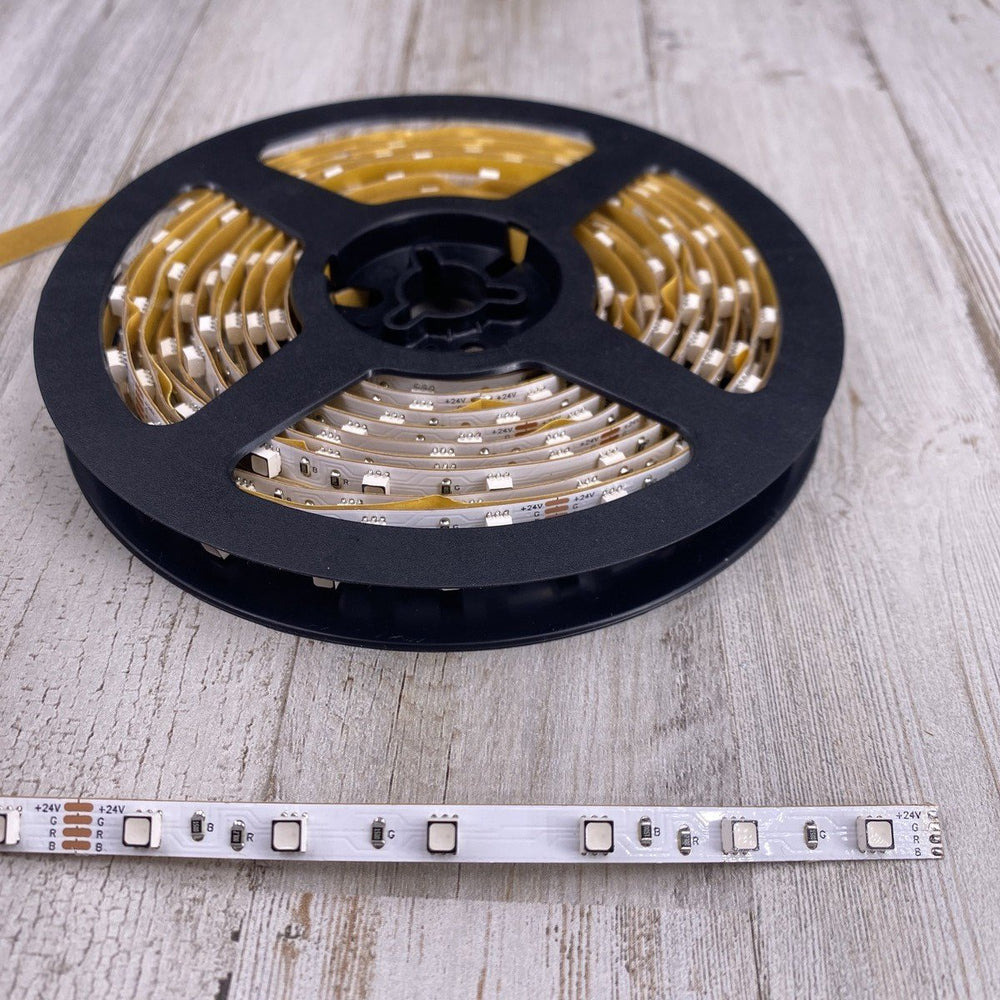

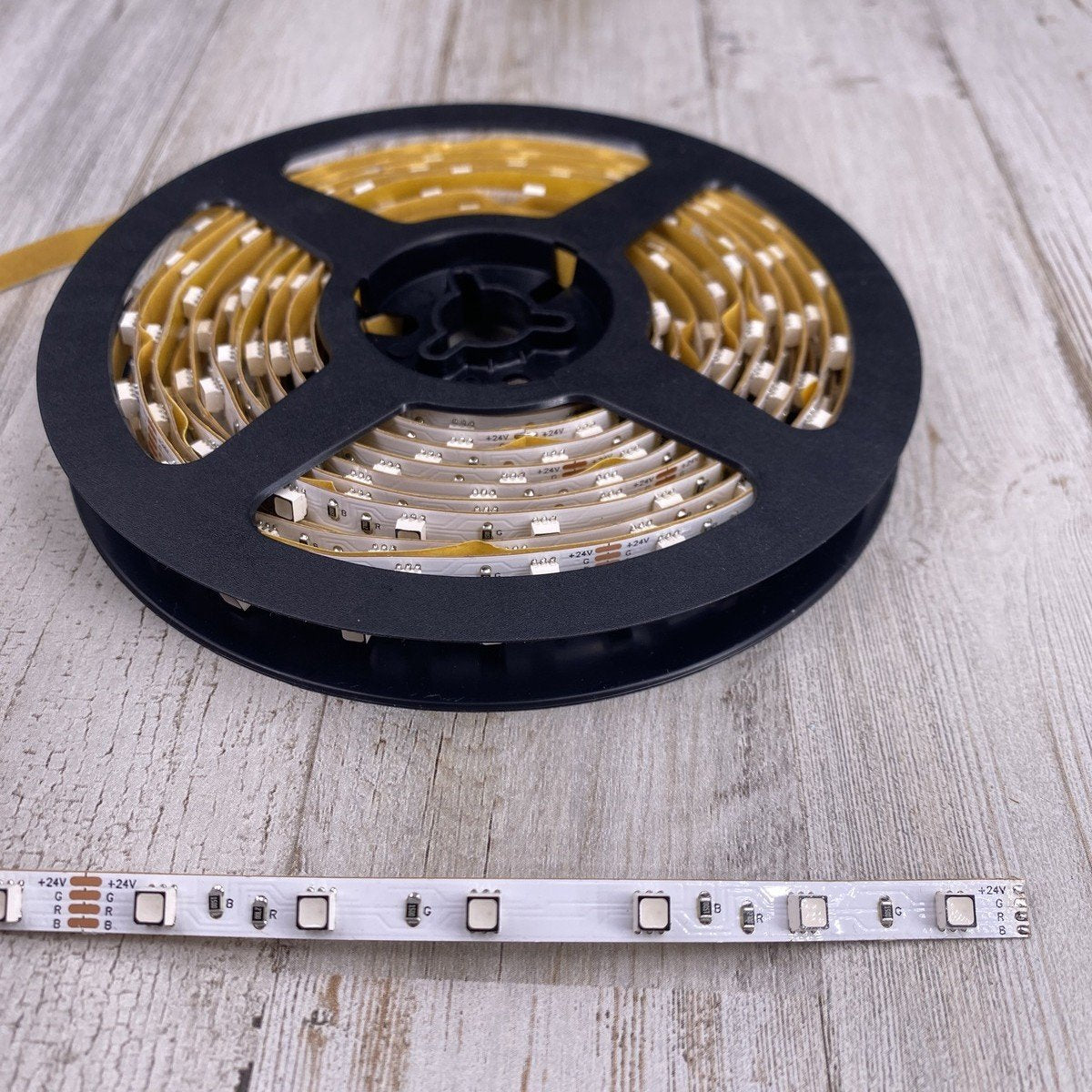

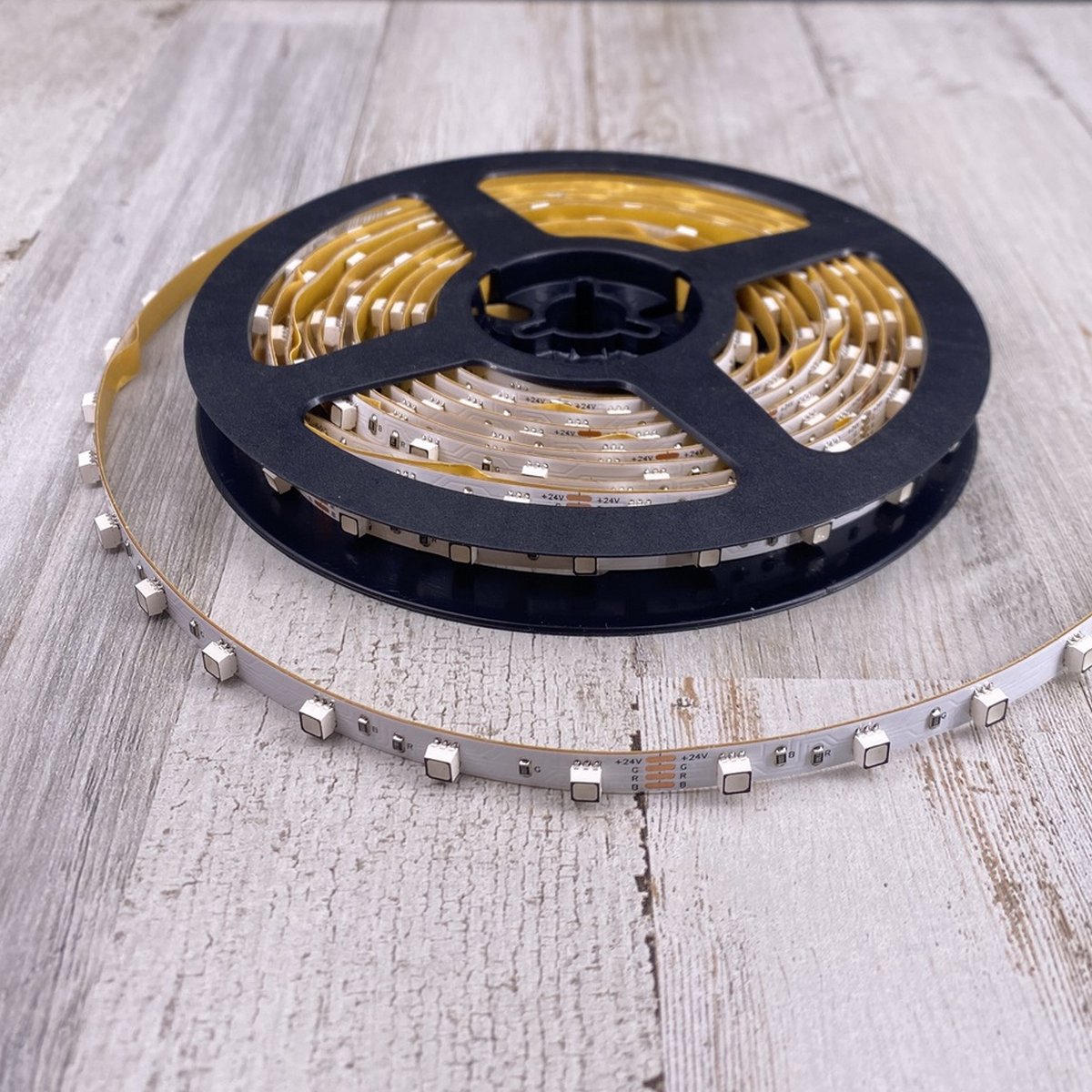

Narrow IP20 RGB LED Strip (24V) ~ Cosmos Series

SKU: LEDRGBCOSMOS-120-24V-5
LEDs/meter (wattage)
Roll size
$169.06 USD
Shipping calculated at checkout.

Buy in bulk and save

By becoming a wholesale customer, you can save money on your orders. Apply here.

Compatible Components and Accessories

View all

Compare to similar products

20+ YEARS LED EXPERIENCE

20+ YEARS LED EXPERIENCE

SHIPPED FROM TENNESSEE

SHIPPED FROM TENNESSEE

COMMERCIAL GRADE QUALITY

COMMERCIAL GRADE QUALITY

EXPERT TECH SUPPORT

EXPERT TECH SUPPORT

TAA, RoHs, and REACH compliant Buy per foot

LED strip only ~ profile, channel, covers, end caps and al other accessories are sold separately

Description

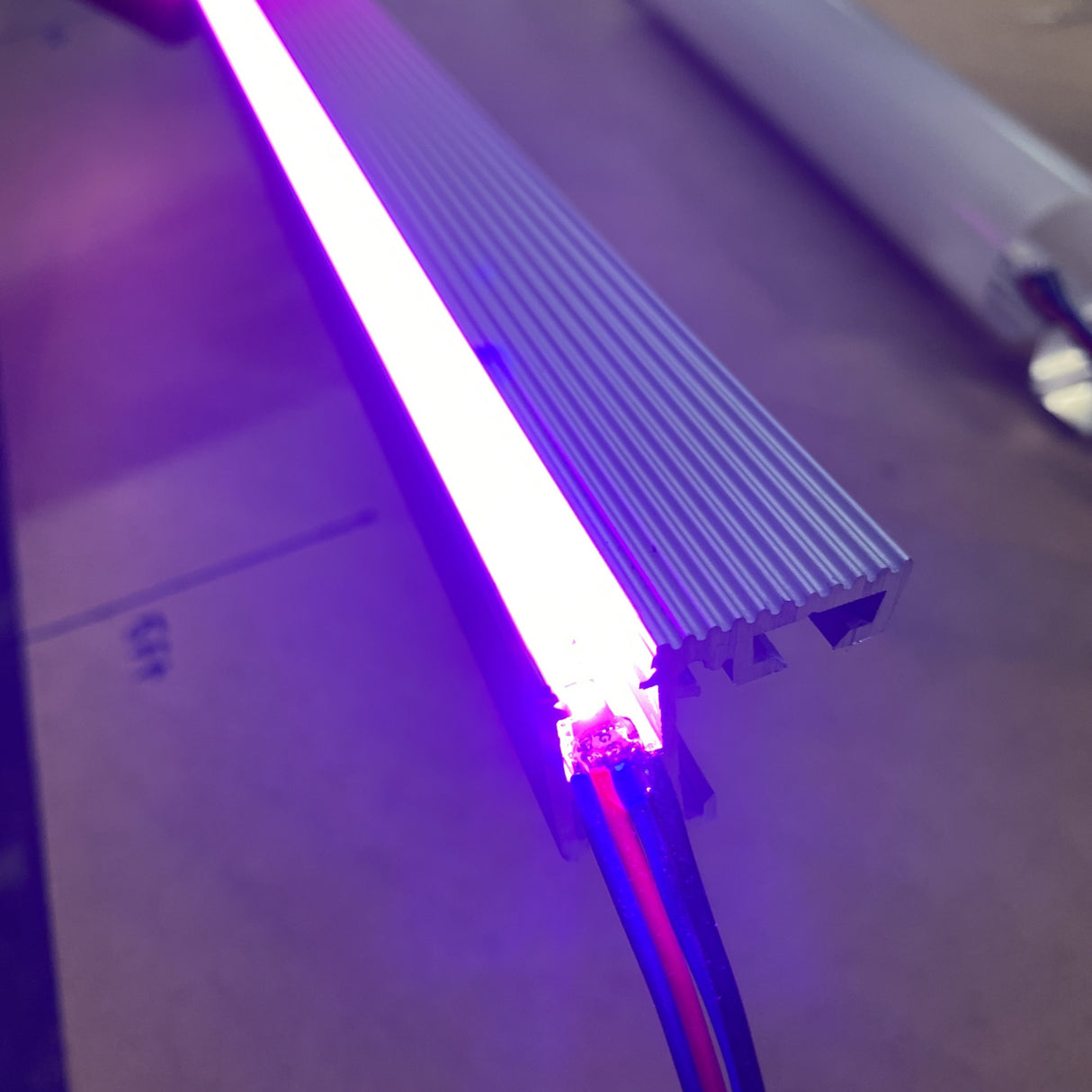

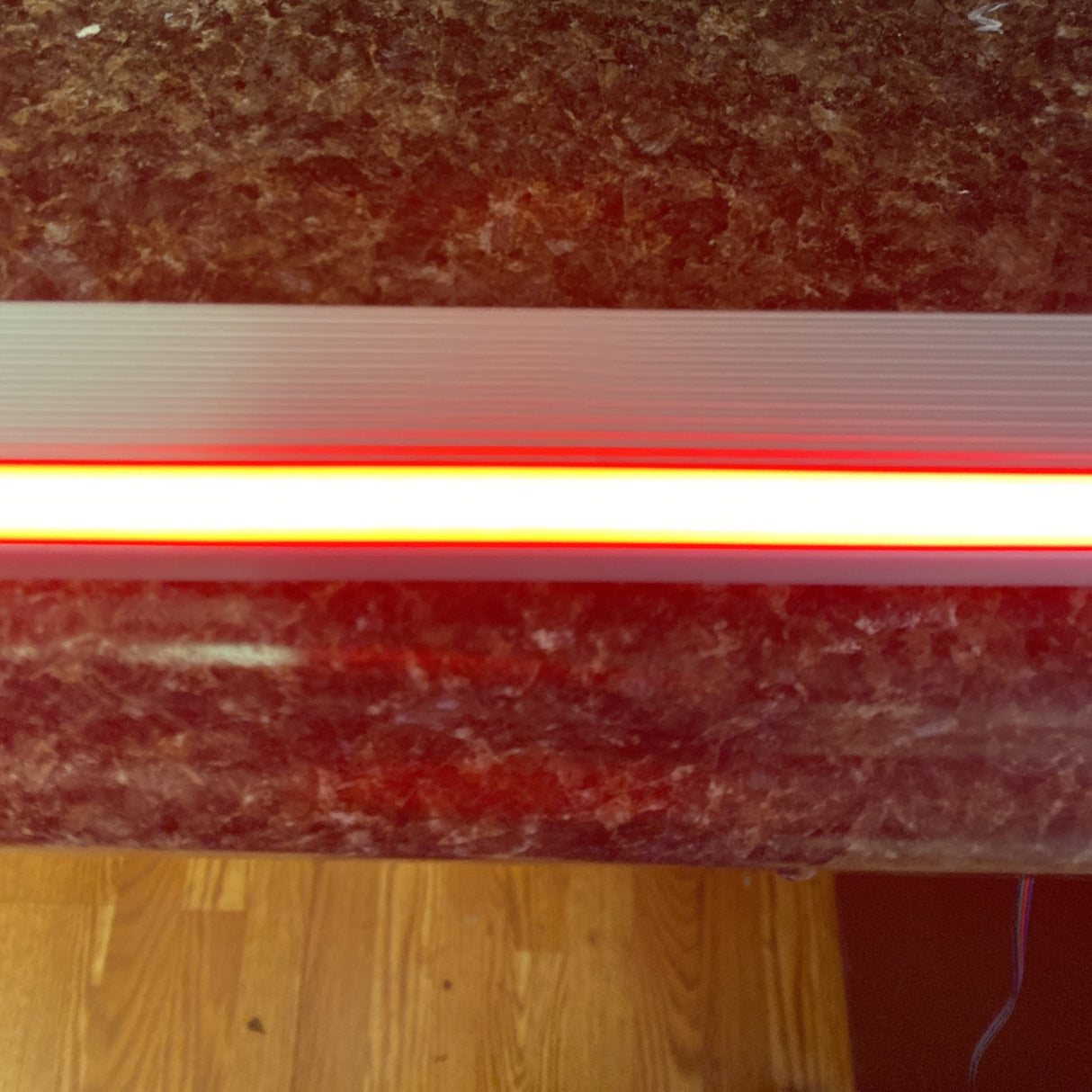

The RGB Cosmos series has a very narrow PCB and is ideal for edge-lit applications. This LED strip can be used in our Alu-Baseboard and Alu-Stair Nano LED channels

General specifications

  • 3-chip SMD 3535 RGB LED
  • Thermally conductive adhesive for easy installation
  • Protection category: IP20
  • Dimmable: Yes
  • Supply Voltage: 24V DC
  • Beam angle: 120°
  • LED Chips per meter: 60LED/m 14.4w/m and 120LED/m 28.8w/m
  • LED strip width: 6mm
  • 60LEDs/m Cutting pitch: 100mm
  • 120LEDs/m Cutting pitch: 50mm

Downloads

Important notes

  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request
