Pixel IP44/IP66 Neon Flexible LED Light Line (24V) ~ Flex Slim Series

LED strip only ~ we sell profile, channel, covers, endcaps, and all other accessories separately.

Description

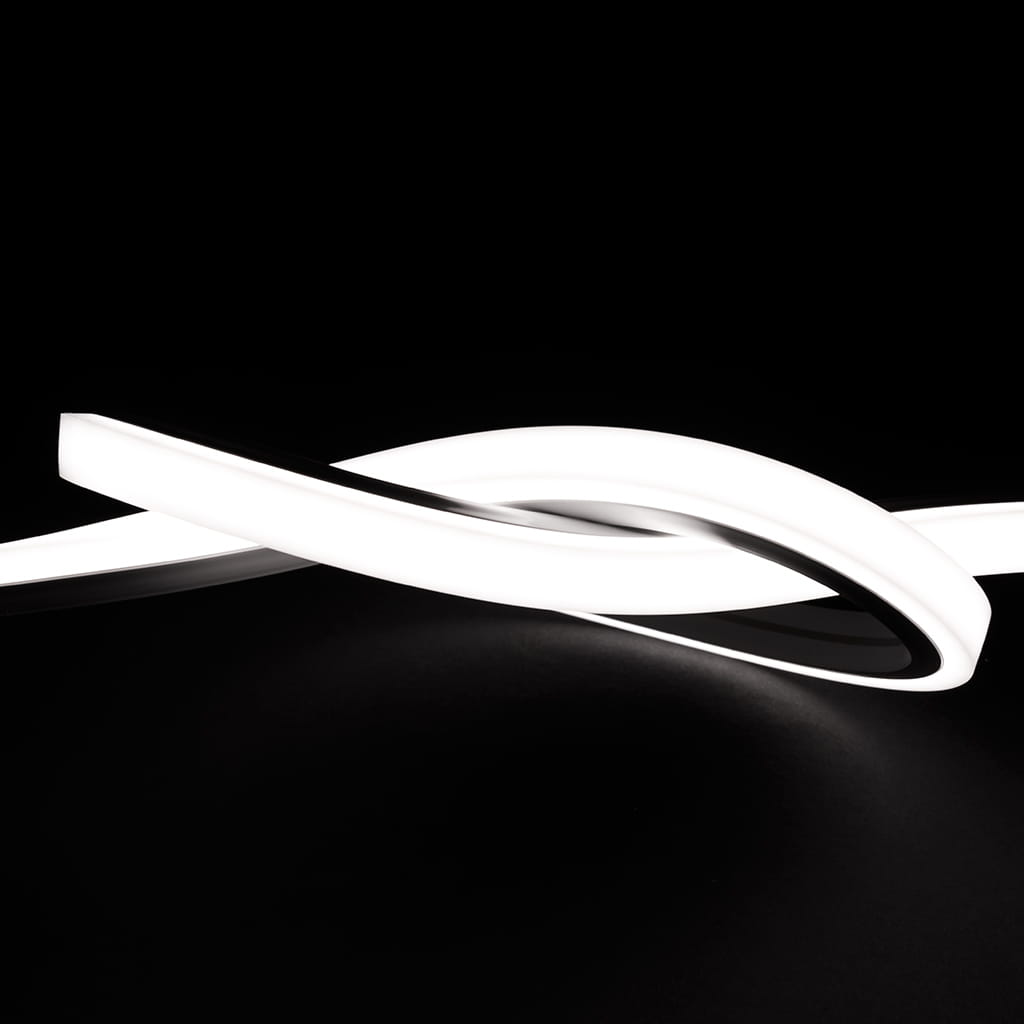

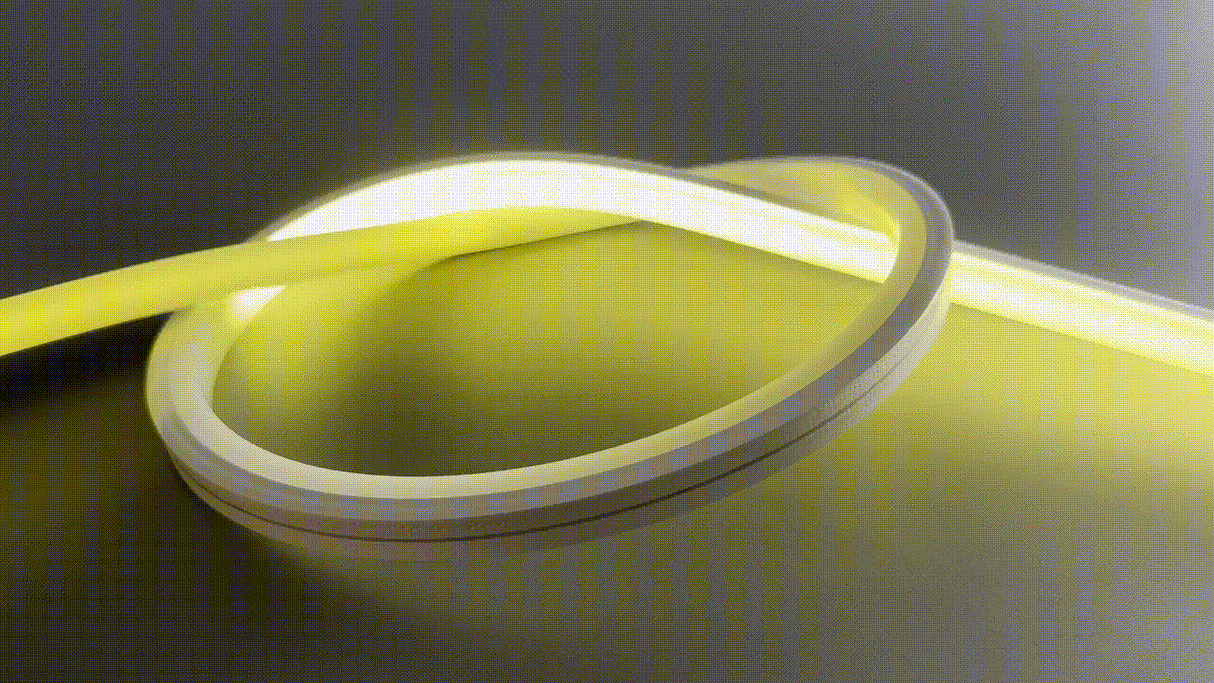

The Pixel Neon Flex Slim Series is a flexible, digitally addressable LED lighting solution designed for high-end architectural and decorative lighting. It has a width of 12mm, ideal for designs that require visually prominent lighting. The DotLess system ensures a continuous, uniform line of light without visible LED points, delivering a clean and modern finish.

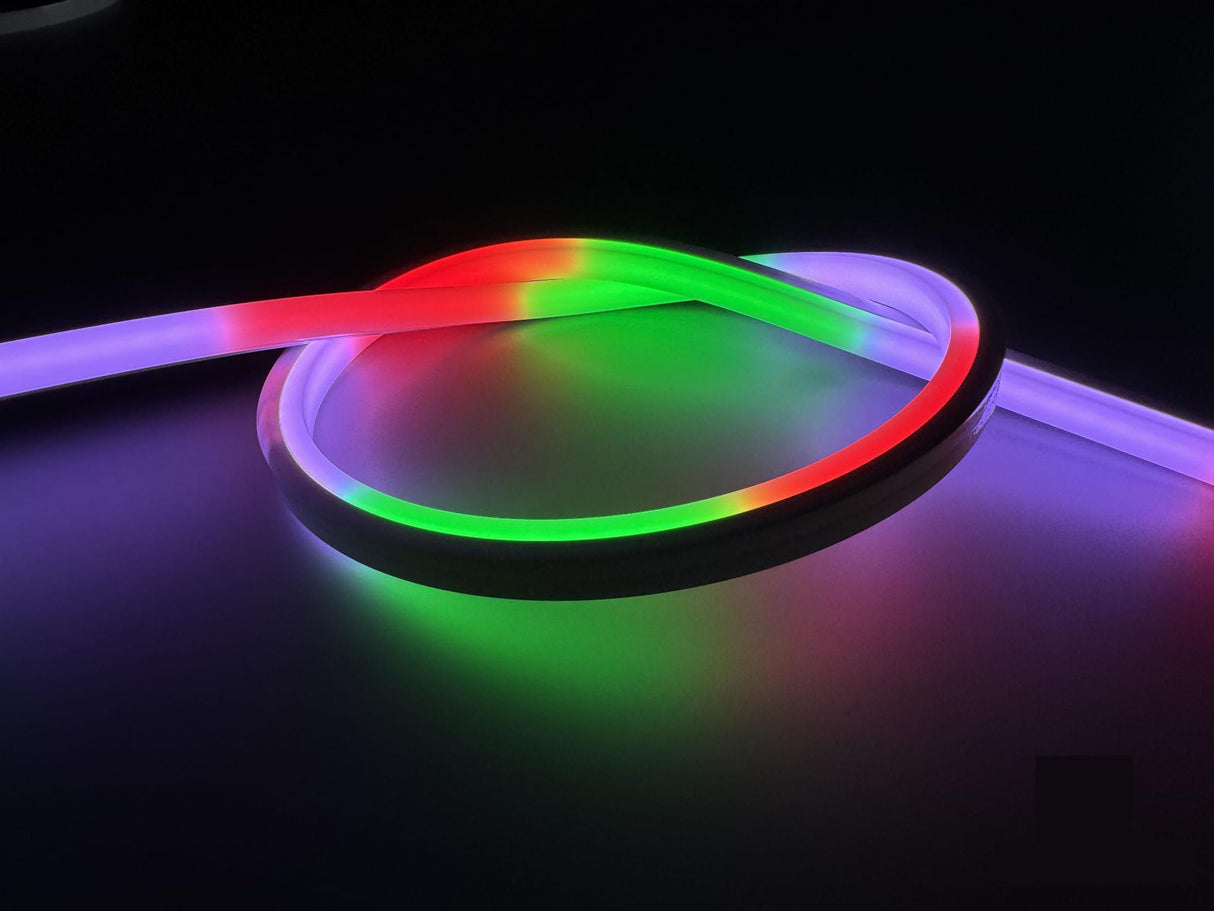

Each pixel of the strip is individually addressable, allowing animation and dynamic effects. The RGBW configuration provides a full color spectrum along with an additional white channel for nuanced lighting control and more balanced, natural illumination.

Built for flexibility, the strip can bend up to 180°, adapting to a wide range of design needs.

It operates on 24V DC power, enabling longer runs without brightness drop and ensuring stable, energy-efficient performance.

Available in IP44 and IP66 ratings, the Neon Flex Super Slim Pixel Series is resistant to dust, moisture, and contaminants, making it suitable for both indoor and outdoor applications.

General specifications

• Pixel LED controller required.
• Control protocol: WS2814

• Color: Digitally addressable RGB + 3000K (Warm White)
• Supply voltage: 24V DC

• Luminous flux: 690 lm/m
  • RGB: 395 lm/m
  • White: 295 lm/m
• Luminous efficacy: 41 lm/W
• Power consumption: 17 W/m
• CRI: 80+
• Density: 120 LEDs/m

• Cutting pitch: Every 100mm (3.94")
• Max bending angle: 180°

• Dimensions: 12mm wide x 12mm deep (0.47" x 0.47")
• Protected against polarity reversal.

• Environmental protection: IP44; can be improved to IP66 by properly isolating the end caps with neutral silicone (acid-free).
• Packed in 2m rolls (6.56ft).

Downloads

• Pixel Neon Flex Slim cut sheet

Important notes

• Please note that we cannot refund or replace LED strip that has been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
