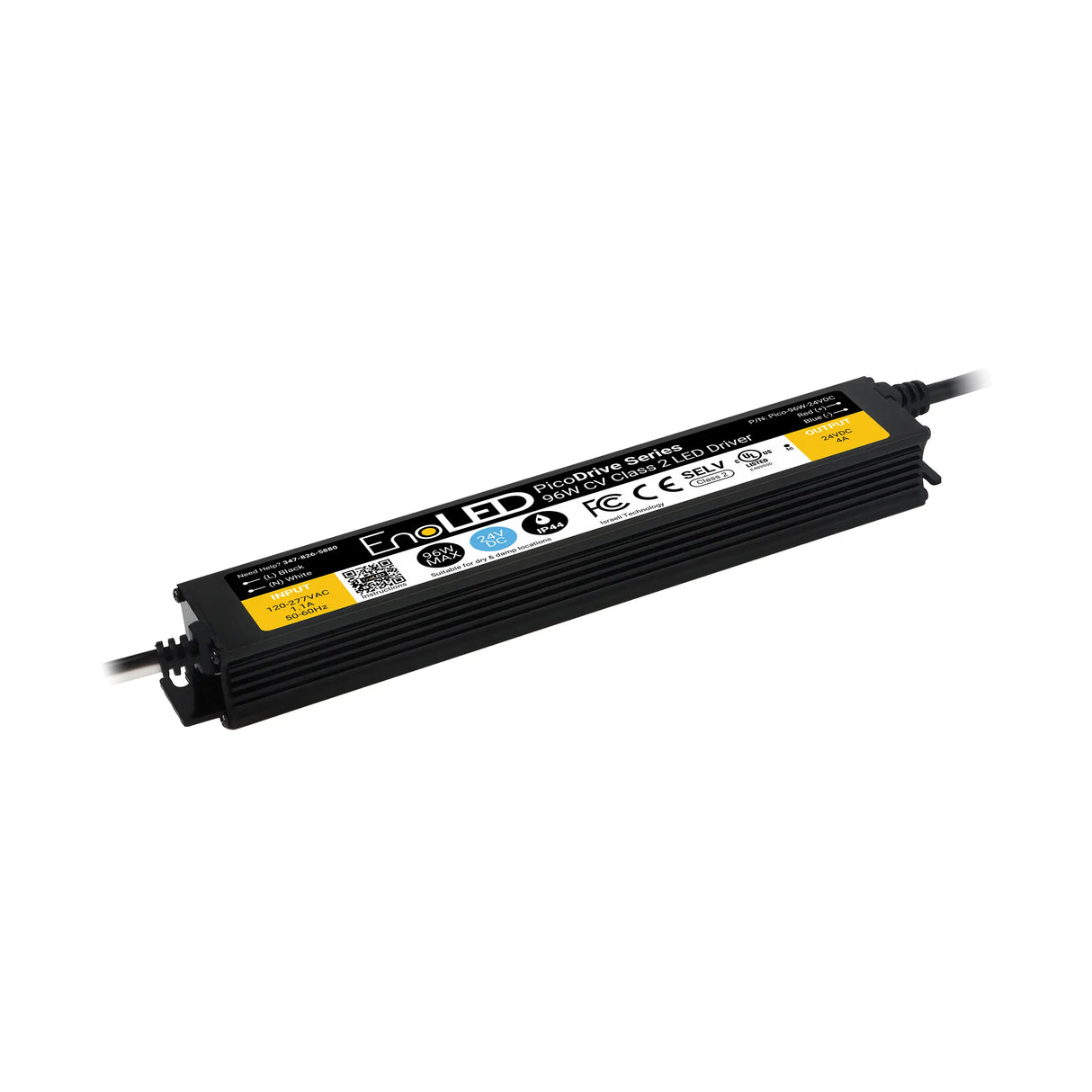

Slim Class 2 LED Driver (24V) ~ EnoLED PicoDrive Series

LED power supply only ~ LED strip and all other components are sold separately

Description

The PicoDrive Series is a high-efficiency LED driver designed for space-constrained installations. Its compact size means it can be installed directly in LED channels, eliminating the need for remote drivers.

The PicoDrive offers reliable performance for modern LED lighting applications, boasting an aluminum housing that ensures durability and excellent heat dissipation, and full compliance with California Title 24 / JA8 for energy-efficient lighting projects.

General specifications

• Output voltage: 24V DC
• Max output power: 96W (Class 2)
• Dimmable: No
• Input voltage: 120–277V AC
• Efficiency: >92% @ full load
• Case material: Aluminum
• Environmental protection: IP44
• Operating temperature: -20°C – 50°C (-4°F – 122°F)

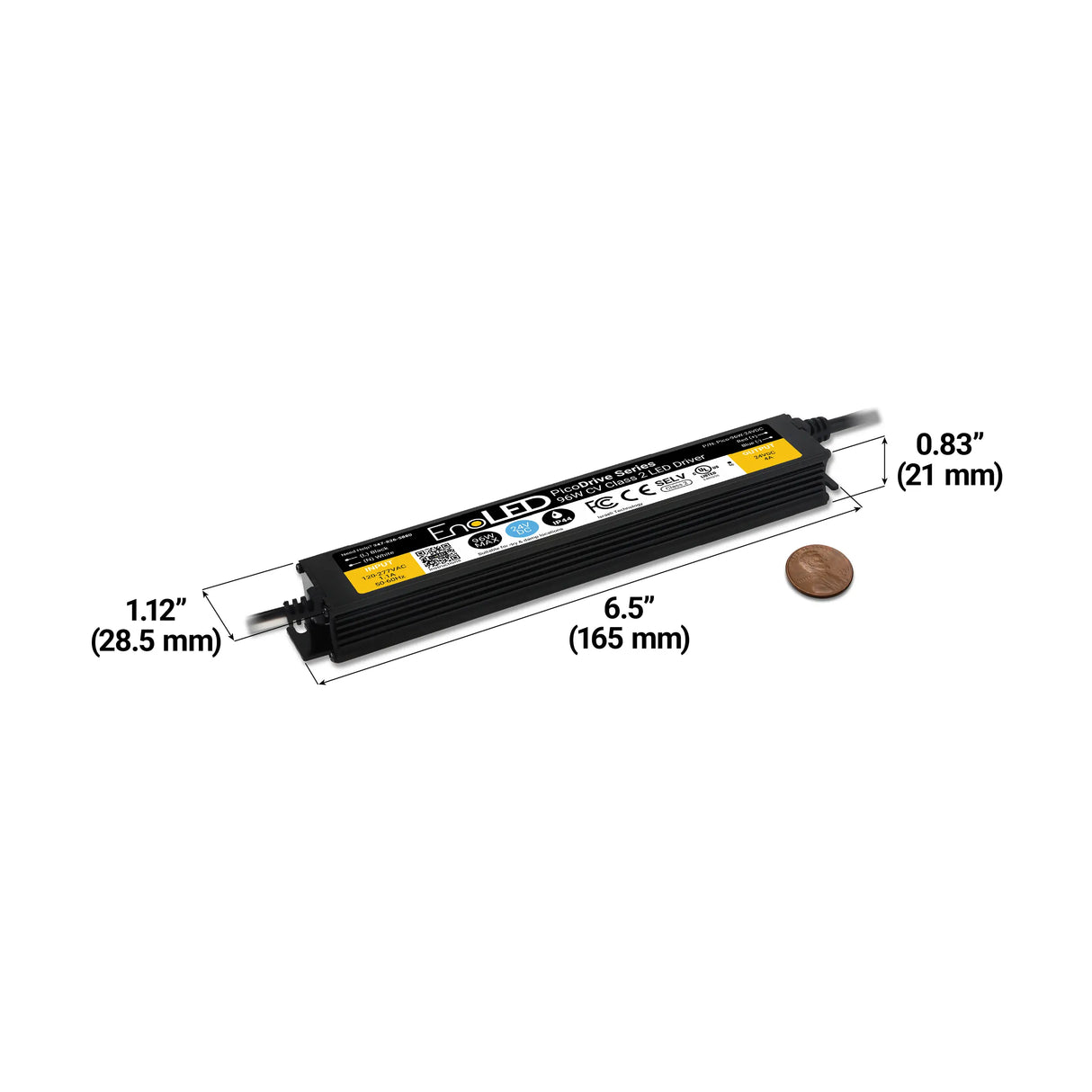

• Dimensions: 165 x 28.5 x 21 mm (6.5" x 1.12" x 0.83") (LxWxH)
• Certifications: UL (Class 2 and Class P), FCC, California Title 24 / JA8 compliant
• Warranty: 6 years

Downloads

• PicoDrive Series cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
