Pixel IP44/IP66 Neon Flexible LED Light Line (24V) ~ Flex Super Slim Series

LED light line only ~ all other components are sold separately.

Description

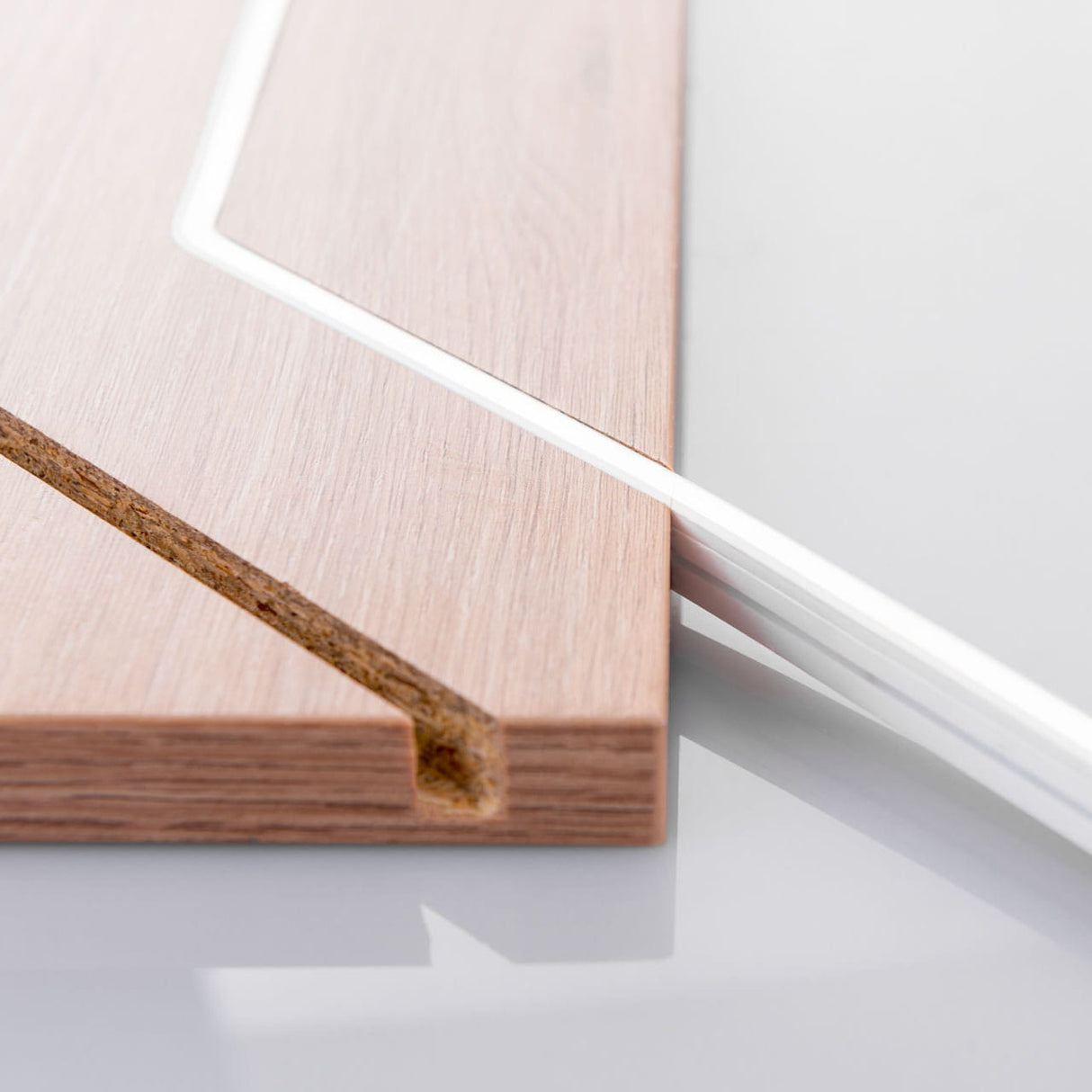

The Pixel Neon Flex Super Slim Series is a flexible, digitally addressable RGBW LED lighting solution designed for high-end architectural and decorative lighting. It features an ultra-slim 6.5 mm width, making it ideal for tight grooves, coves, or compact installations. The DotLess system ensures a continuous, uniform line of light without visible LED points, delivering a clean and modern finish.

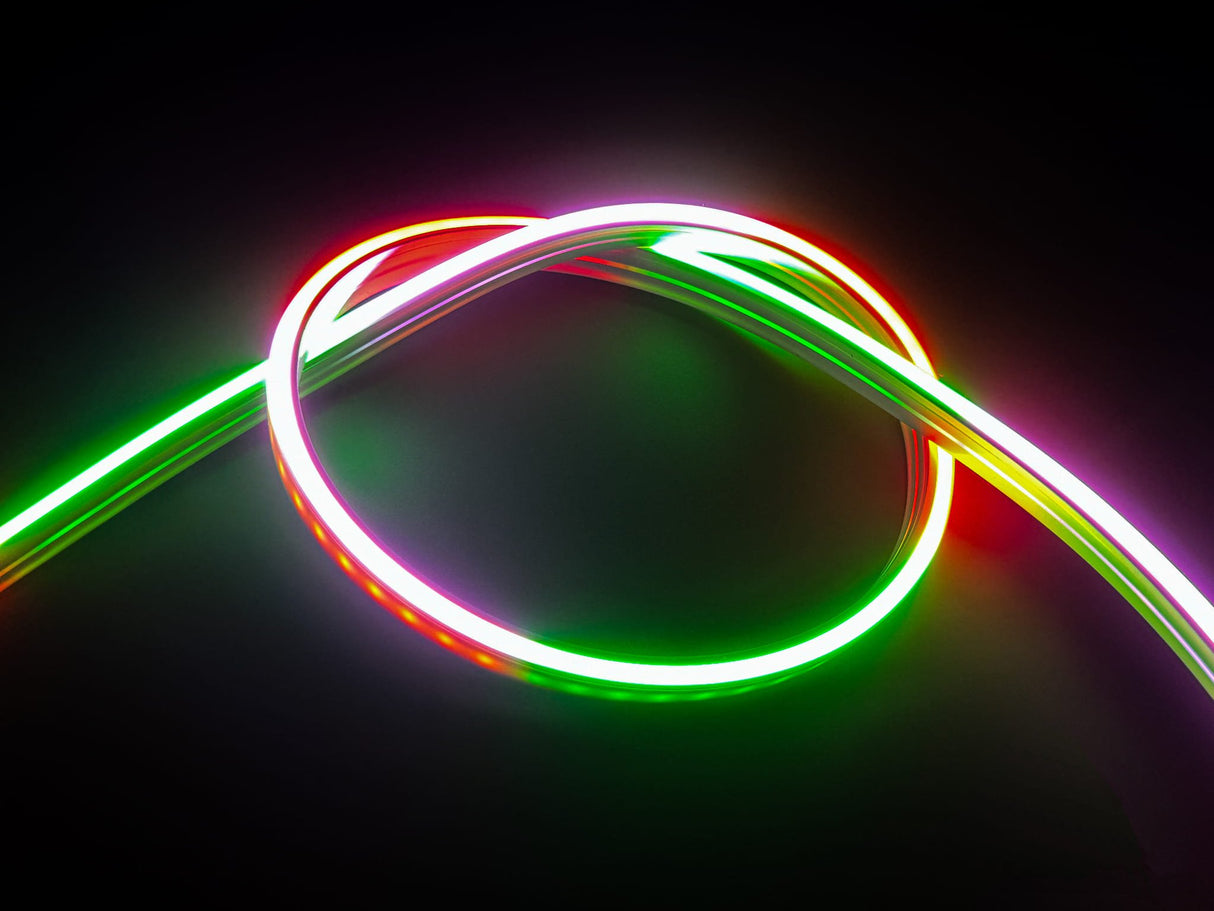

Each pixel of the LED strip is individually controllable, allowing animation and dynamic effects. The RGBW configuration provides a full color spectrum along with an additional white channel for nuanced lighting control and more balanced, natural illumination.

Built for flexibility, the strip can bend up to 180°, adapting to a wide range of design needs.

It operates on 24V DC power, enabling longer runs without brightness drop and ensuring stable, energy-efficient performance.

Available in IP44 and IP66 ratings, the Neon Flex Super Slim Pixel Series is resistant to dust, moisture, and contaminants, making it suitable for both indoor and outdoor applications.

General specifications

• Pixel LED controller required.
• Control protocol: WS2814

• Color: Digitally addressable RGBW (3000K white)
• Supply voltage: 24V DC
• Luminous flux: 400 lm/m
  • RGB: 225 lm/m
  • White: 175 lm/m
• Luminous efficacy: 24 lm/W
• Power consumption: 17 W/m
• Density: 120 LEDs/m
• Cutting pitch: Every 100mm (3.94")
• Max bending angle: 180°

• Dimensions: 6.5mm wide x 12.5mm deep (0.26" x 0.49")
• Protected against polarity reversal.

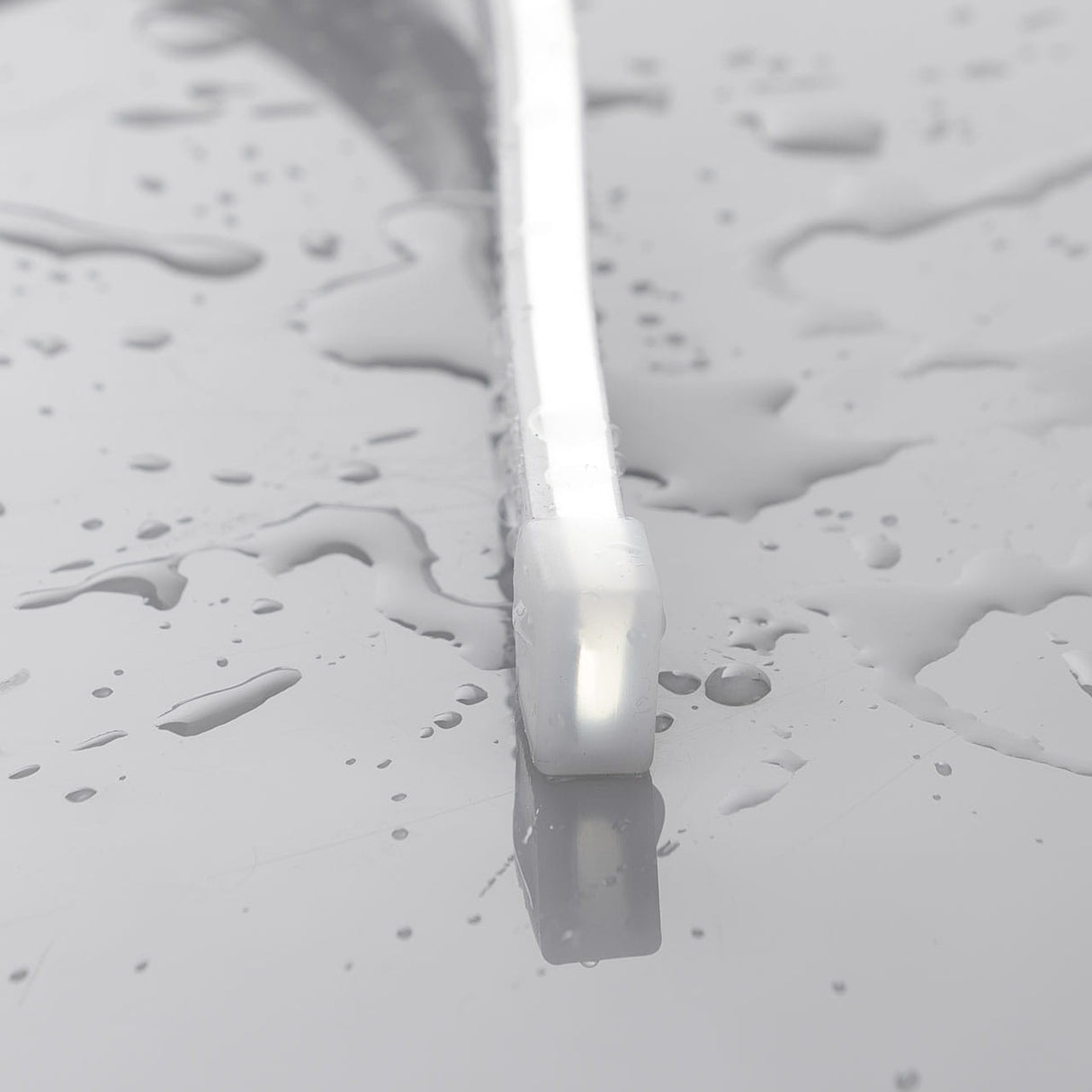

• Environmental protection: IP44; can be improved to IP66 by properly isolating the end caps with neutral silicone (acid-free).

• Packed in 2m rolls (6.56ft) with 3ft cable.

Downloads

• Pixel Neon Flex Super Slim cut sheet

Important notes

• Please note that we cannot refund or replace LED strip that has been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
