RGB Pixel IP20 LED Strip (5V) ~ Enttec 8PX Series
Product details
LED strip only ~ channel, covers, end caps and all other accessories are sold separately
Description

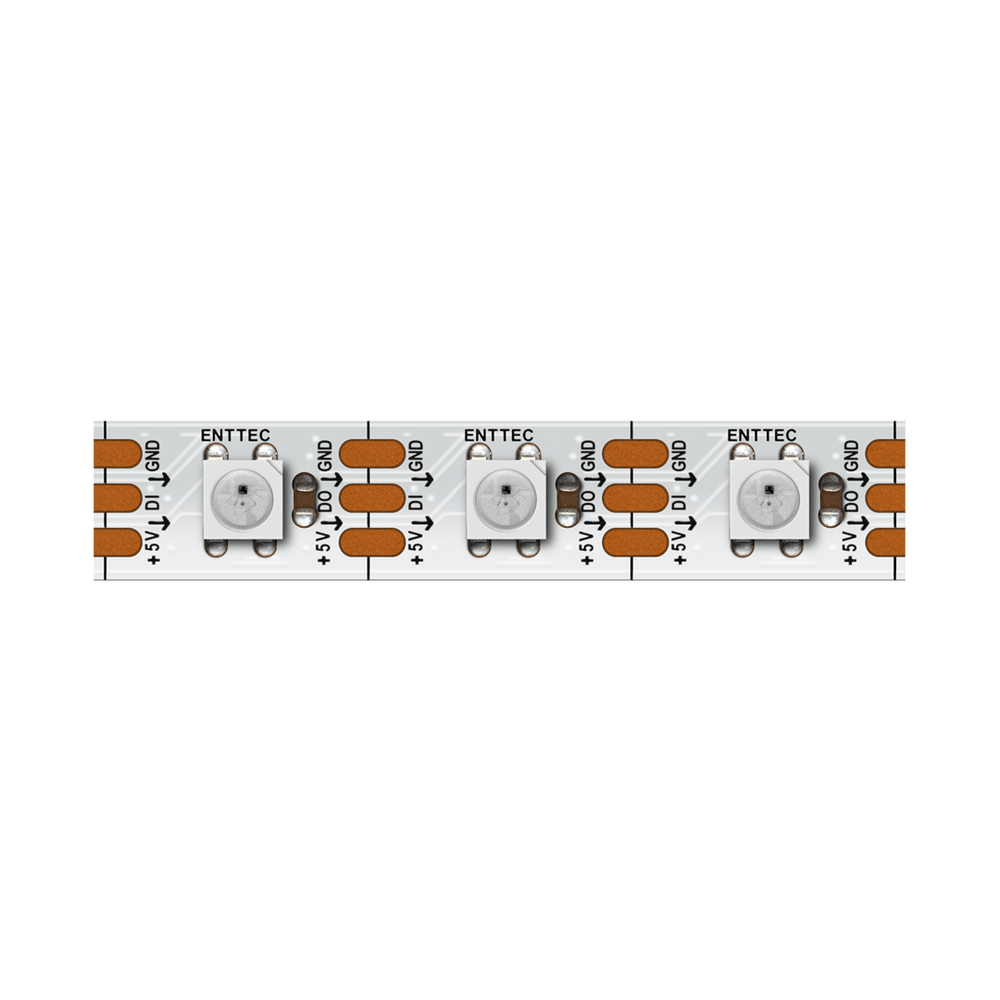

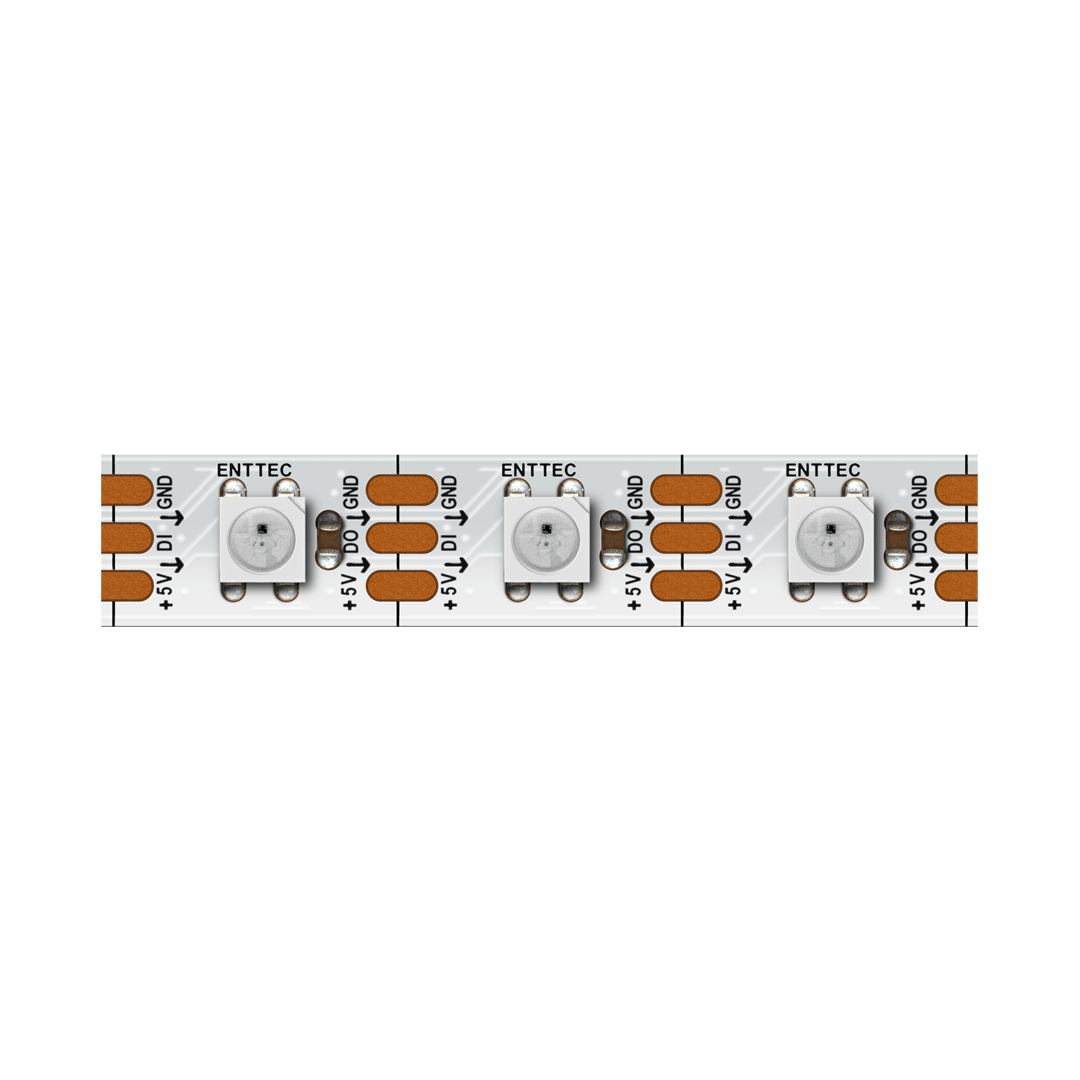

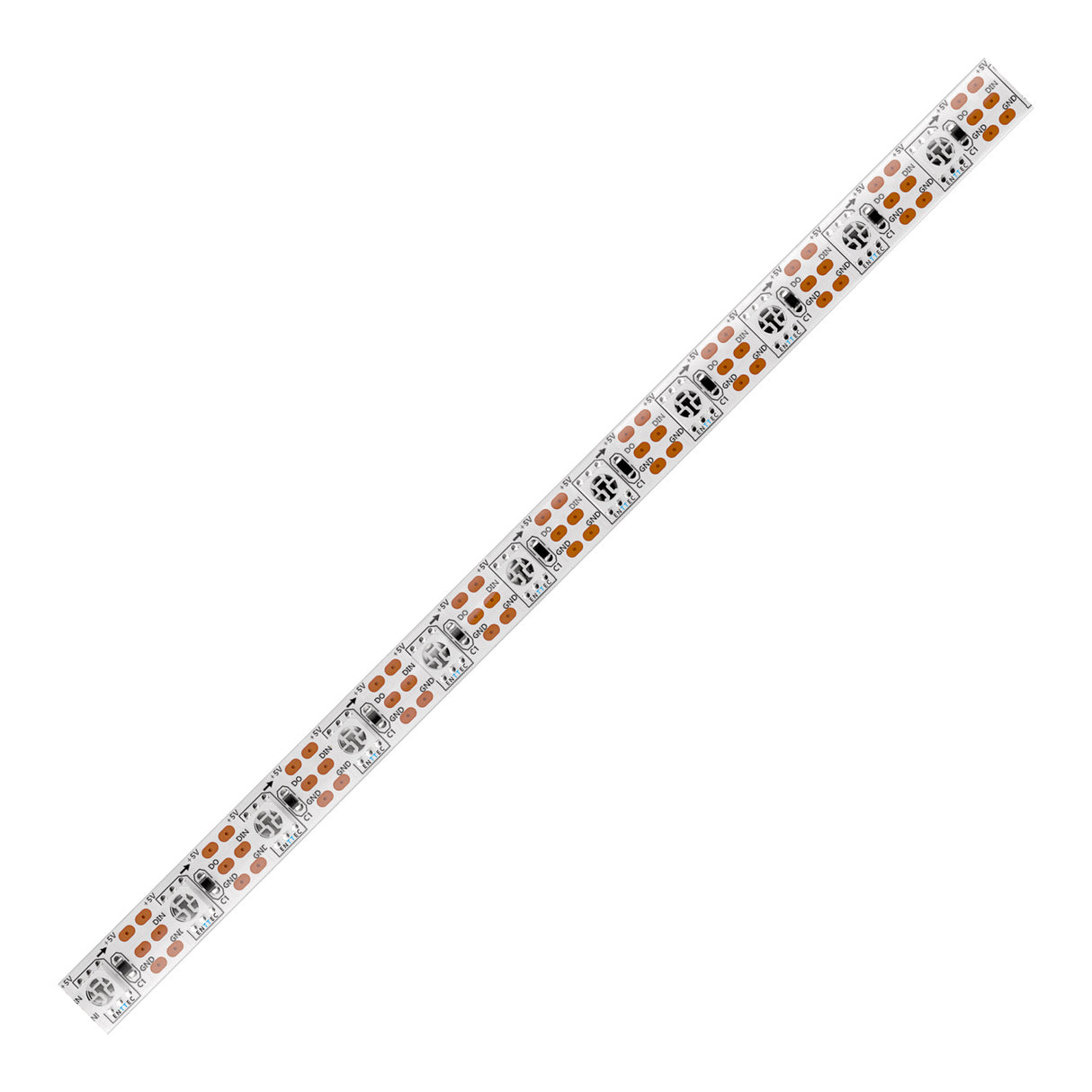

ENTTEC's 8PXA60-RGB-5V series are 5V addressable RGB LED pixel strips designed for professional architectural and entertainment applications, capable of displaying soft pastels or saturated colors on a large scale. The pixel capabilities mean you can individually control each LED chip, enabling you to display graphics and animations.
This pixel strip boasts a density of 60 color-calibrated RGB LEDs per meter – each engineered to provide consistent brightness and extended color gamut. Each LED chip is individually-controllable and capable of 24-bit, True Color display: that's 16,777,216 possible colors for each pixel.
The supported control protocol is SK6812, which is compatible with the common WS2811 protocol. The strip is of course fully compatible with the ENTTEC range of pixel controllers. The fast 800 Kbps transmission rate means graphics and animations are displayed smoothly and consistently, while the built-in digital signal reshaping ensures accurate data transmission.
Designed by ENTTEC for reliable operation in the Australian environment, this professional quality pixel strip uses superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip; in addition, it provides more durability and better heat dissipation. With a maximum power consumption of only 10.5 watts per meter and a luminous flux of 259.4 lumens per meter (an efficacy of 24.7 lumens per watt), this 5V pixel strip is bright yet efficient.
This strip conforms to the following international compliance and safety standards: FCC, UKCA, CE, WEEE, RCM. It is not UL Listed.
Being IP20 rated, we recommend this strip for indoor use only unless installed in a waterproof location.
General specifications
- Input voltage: 5V DC
- Connectors: 2 x 3-pin JST SM connectors (3A max)
- Power consumption: 10.5 W/m (max)
- Luminous flux: 259.4 lm/m (max)
- Luminous efficacy: 24.7 lm/W
- LED density: 60 LEDs/m
- Control protocol: SK6812 IC chips (compatible with WS2811 protocol)
- DMX channels per pixel: 3
- Pixel mapping order: GRB
- Transmission rate: 800 Kbps
- Beam angle: 120°
- PCB color: White
- Width: 10mm (0.40”)
- Minimum bend radius: 30mm (1.2”)
- Cutting pitch: 16.6mm (0.66”)
- Operating temperature: 0°C to 50°C (32°F to 122°F)
- Operating Humidity: 5–95% (non-condensing)
- IP rating: IP20
