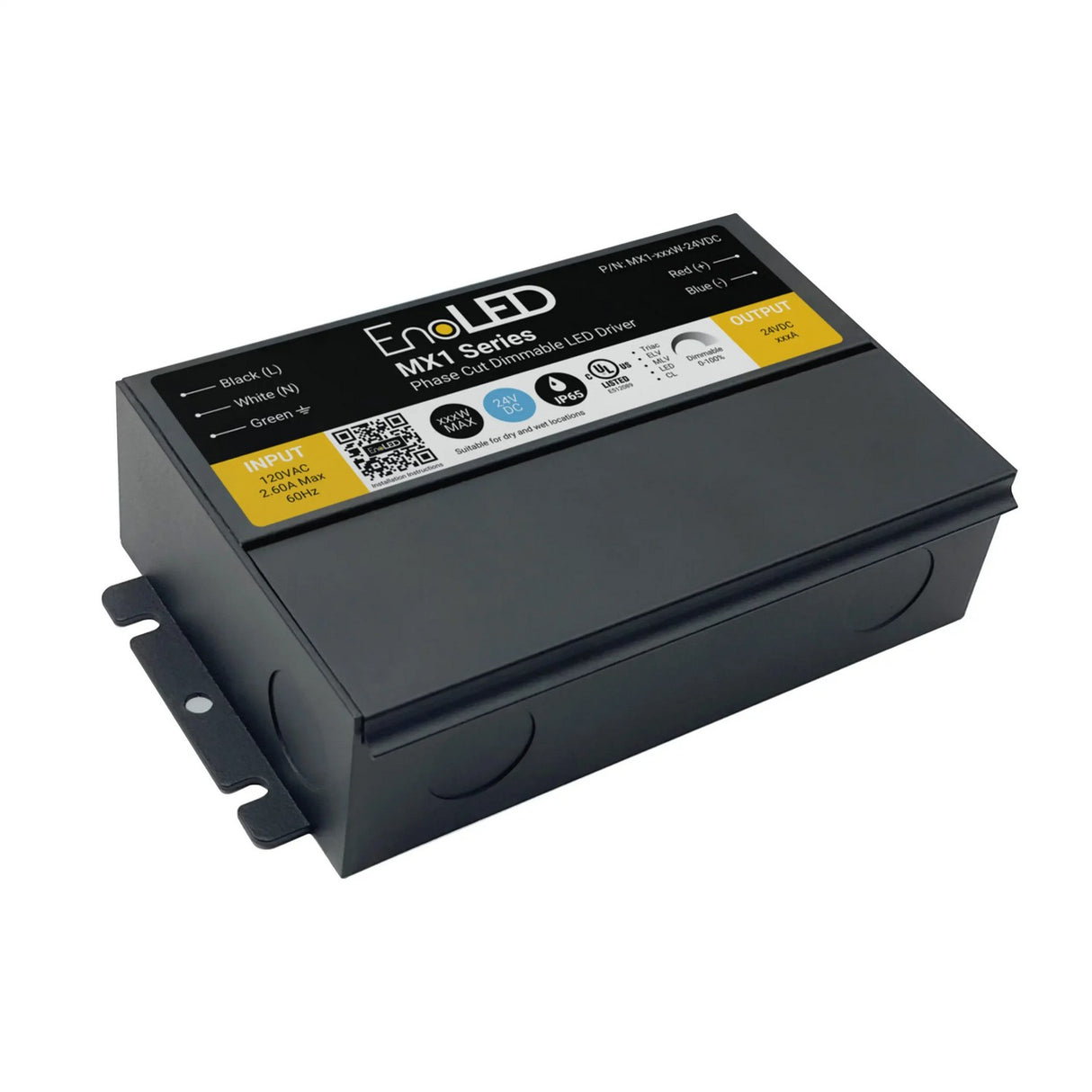

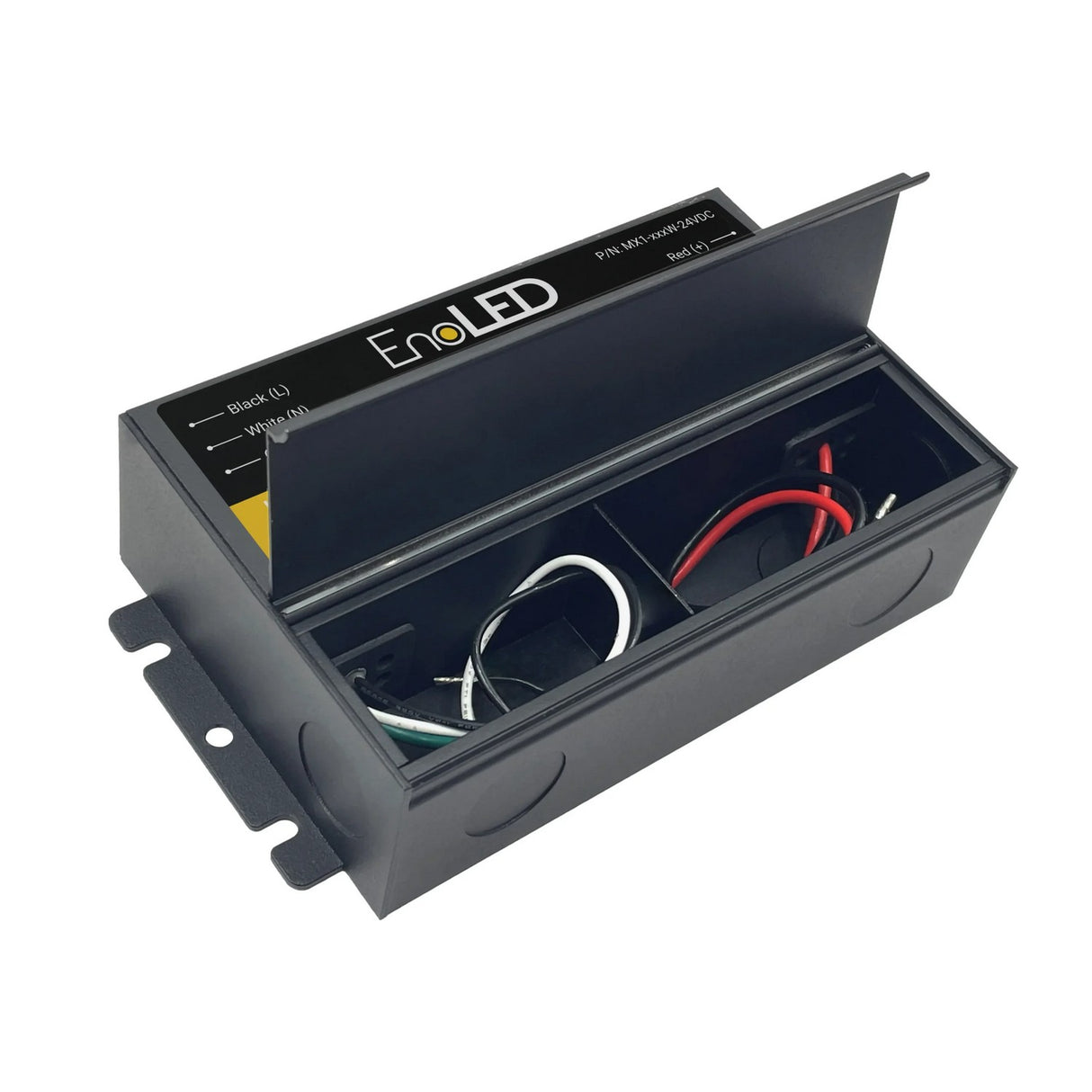

Compact Dimmable J-Box LED Driver (24V) ~ EnoLED MX1 Series

LED power supply ~ LED strip and all other components are sold separately

Description

The MX1 Series is one of the smallest dimmable LED drivers available, featuring a built-in junction box and a single output. With an IP65 rating, it is designed for use in both dry and wet locations, making it versatile for a variety of installation environments. This high power LED driver is compatible with any CLF, LED, MLV, or ELV dimmer switch (leading or trailing edge), ensuring smooth, flicker-free dimming performance.

Ideal for professional installations, the MX1 Series provides reliable, energy-efficient lighting solutions. It offers overload and short circuit protection for added safety. With 89% efficiency at full load, it helps reduce energy consumption without compromising performance. Its compact size allows for easy installation in tight spaces, making it a convenient choice for various lighting applications.

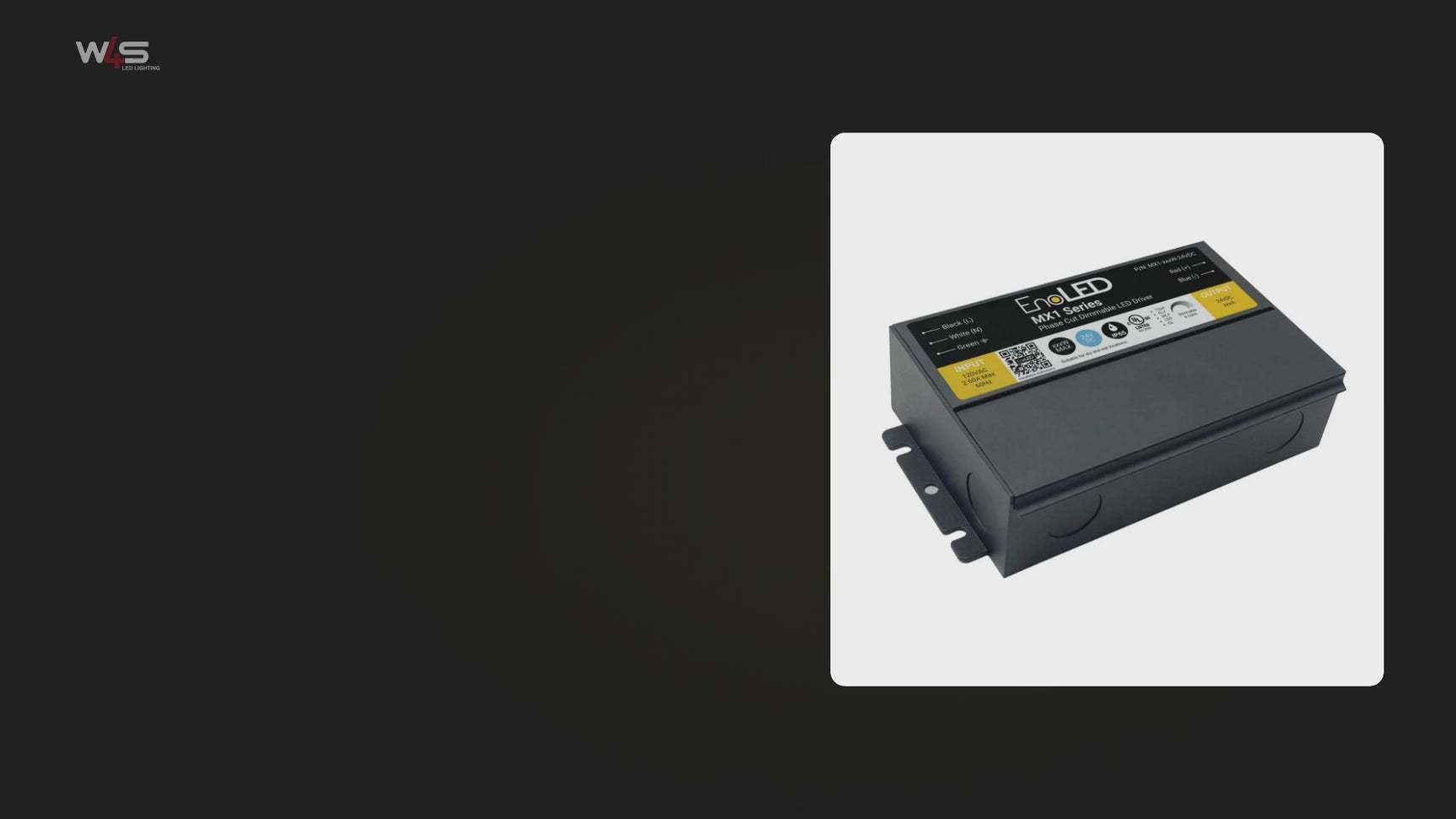

Product video

General Specifications

• Dimming type: Triac / ELV (Phase cut)
• Dimming curve: Linear
• Minimum dimming level: 1%
• Input voltage: 120V AC +/- 5%
• Output voltage: 24V DC
• Max power: 150W, 200W
• Operating temperature: -40°C- 40°C (-40°F -104°F)
• Dimensions: 167.148 x 97.79 x 41.656 mm (6.57” x 3.85” x 1.64”)
• Environmental protection: IP65 - Suitable for dry and wet locations
• Certification: UL
• Warranty: 6 years

Downloads

• MX1 cut sheet
• Installation guide
• Dimmer compatibility list

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
