Multi-Channel Dimmable Class 2 LED Driver (24V) ~ EnoLED MX2 Series

LED power supply ~ LED strip and all other components are sold separately

Description

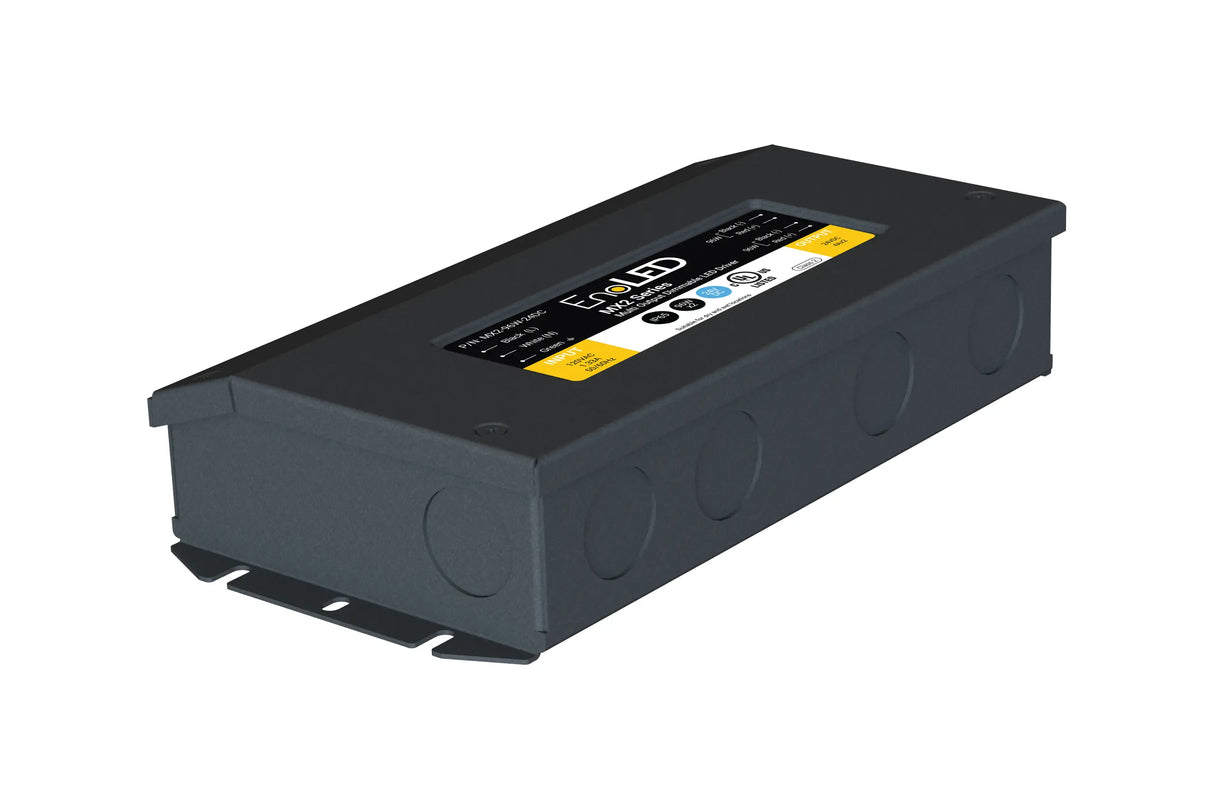

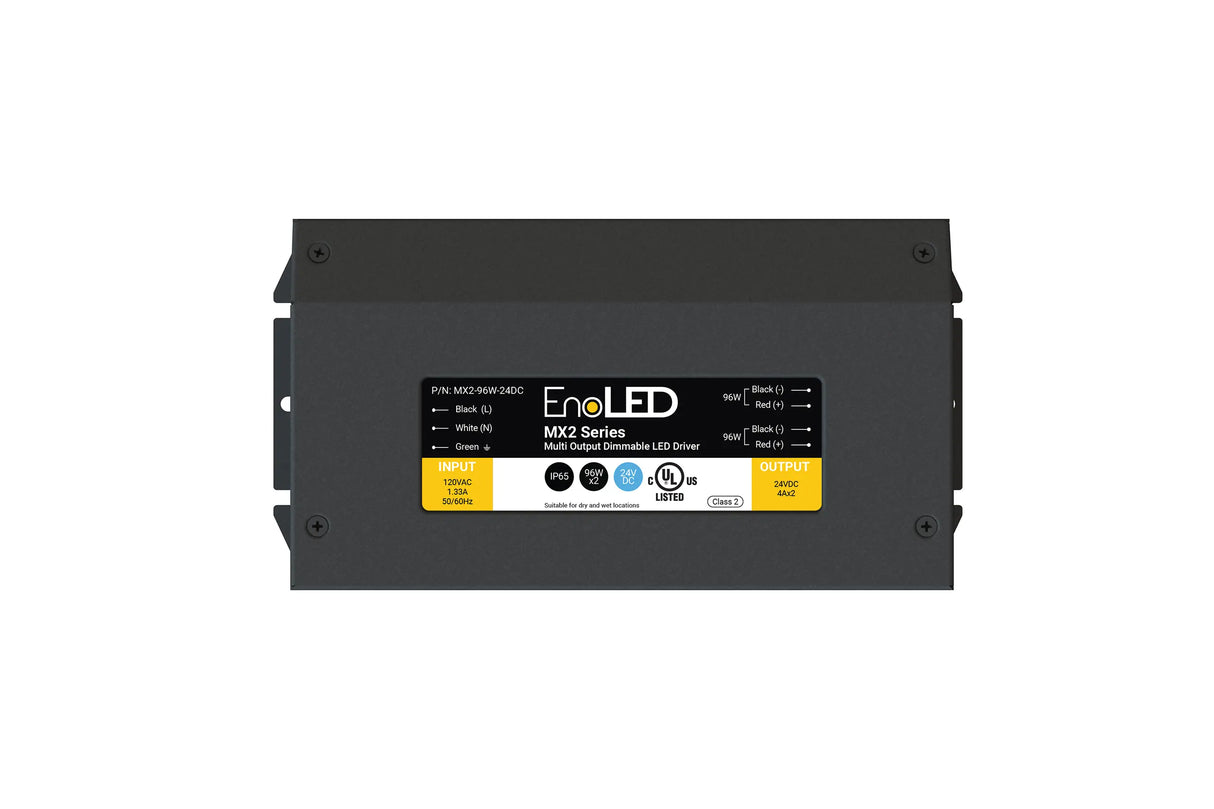

The MX2 Series is a compact, durable, multi-channel LED driver designed for 24V DC LED tape applications. It is UL listed as a Class 2 driver and features dimming compatibility with various switch types, including Incandescent, CLF, LED, MLV, and ELV dimmers. This driver offers precise dimming down to 1% and operates with high efficiency, achieving 87% efficiency at full load.

The IP65 rating makes the MX2 Series suitable for use in both dry and wet locations, ensuring reliable performance in various environments. It includes a built-in junction box with multiple ⅞” knock-outs for easy installation. The LED driver is equipped with auto-reset protection for overload and short circuits, enhancing safety and durability.

General Specifications

• Dimming Type: Phase cut
• Dimming Curve: Linear
• Dimming Level: 1%
• Input voltage: 120V AC
• Input frequency: 50-60Hz
• Input current: 1.86A max
• Output voltage: 24V DC
• Output current: 4A x 2
• Efficiency: 87%
• Max power: 192W (96W x 2 Channels) and 288W (96W x 3 Channels)
• Operating temperature: -28.89°C - 75.56°C (-20°F -104°F)
• IP Rating: IP65

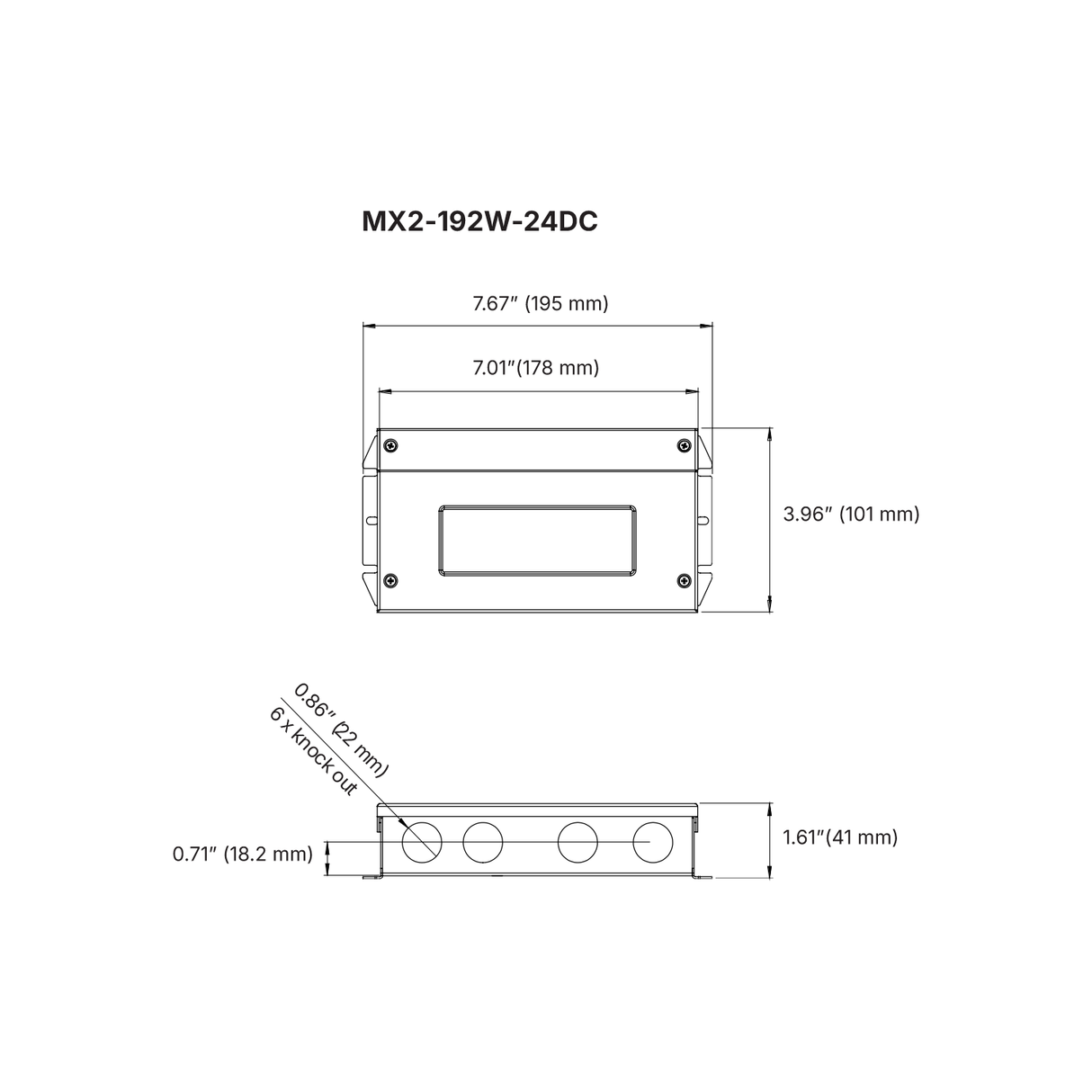

• Dimensions: 100.6 x 40.9 x 195.3 mm (3.96” x 1.61” x 7.67”)
• Certification: UL
• Warranty: 6 years

Downloads

• MX2 cut sheet
• Installation guide
• Dimmer compatibility list
