Dimmable CV LED Driver 0-10V PWM (24V) ~ EnoLED NanoDrive Series

LED power supply ~ LED strip and all other components are sold separately

Description

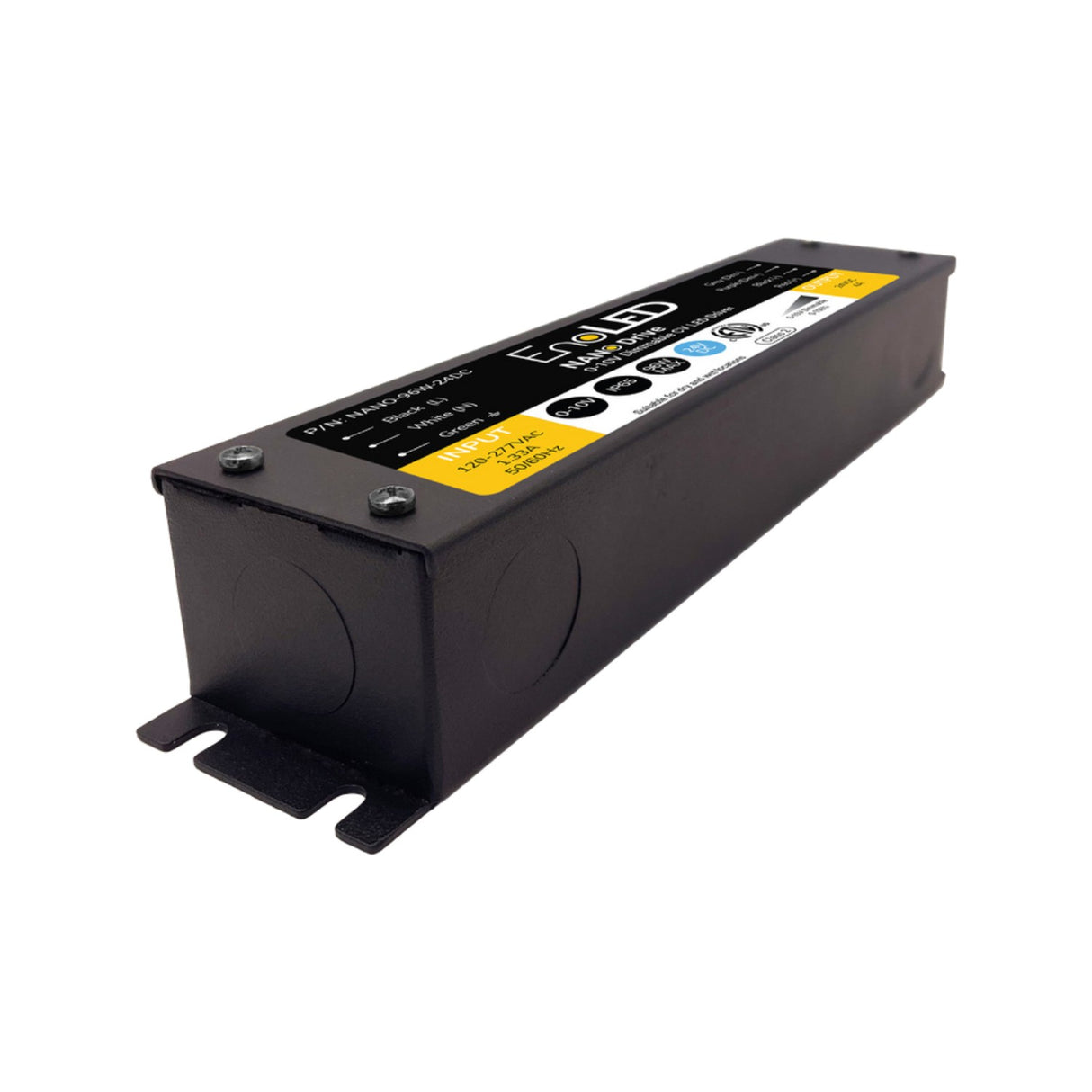

The NanoDrive series offers a 0-10V dimmable LED driver in a super compact metal case with a built-in junction box. Designed to power 24V DC LED strips, it provides smooth dimming down to 1% with any standard 0-10V dimmer switch or system. With 90% efficiency, the driver ensures high performance while maintaining a flicker-free dimming experience.

The IP65 rating of NanoDrive series makes it suitable for both indoor and outdoor use, offering versatility in various applications. Additionally, it features current limit overload protection for added safety and a Class 2 output.

General specifications

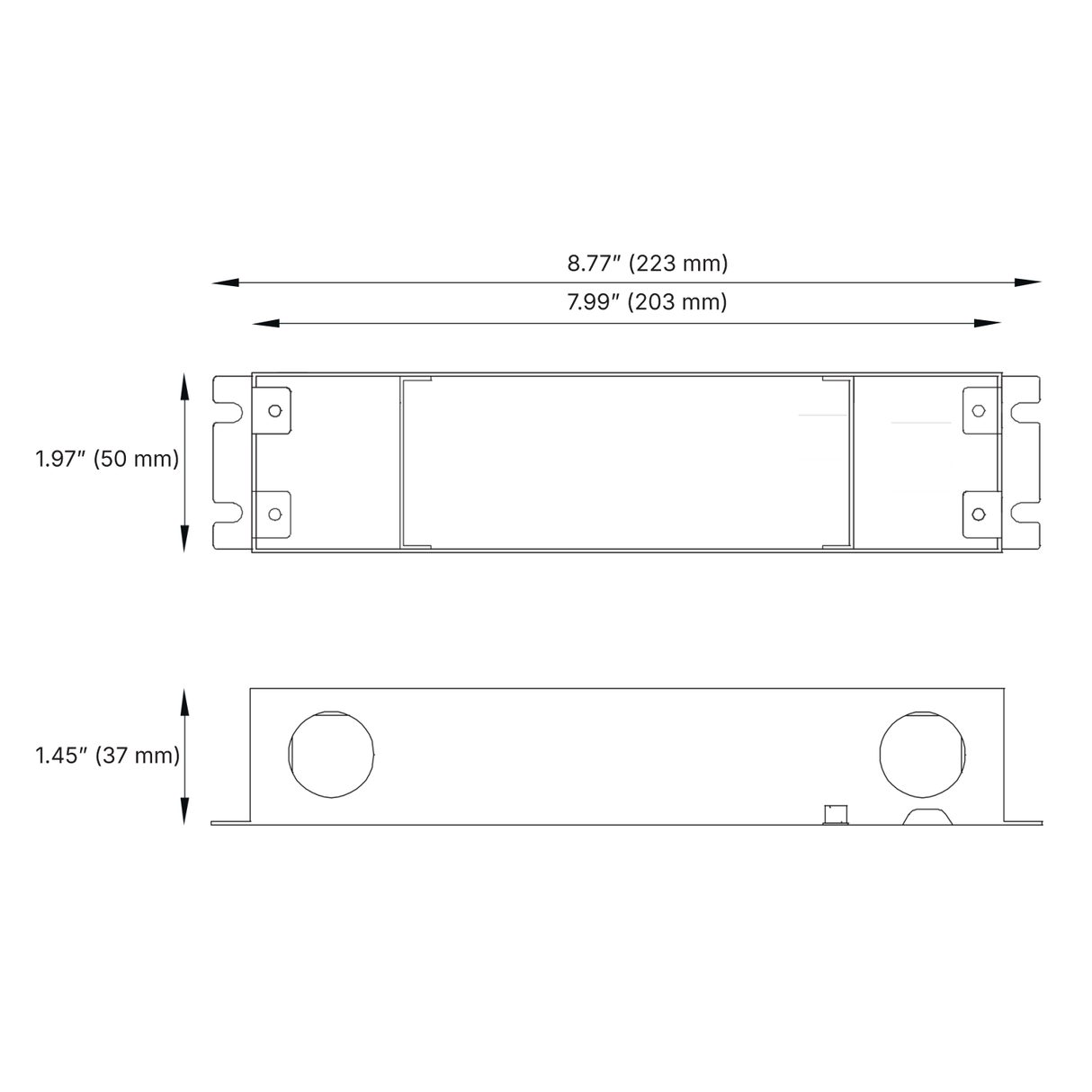

• Dimensions: 50.04 x 36.83 x 222.43 mm (1.97” x 1.45” x 8.77”)
• Dimming protocol: 0-10V
• Dimming curve: Linear
• Dimming type: PWM (1000Hz)
• Dimming level: 1%
• Input voltage: 120 - 277V AC
• Input frequency: 50-60Hz
• Input current: 1.33A max
• Output voltage: 24V DC
• Output current: 4A
• Efficiency: 90.5%
• Max power: 96W
• Operating temperature: -25°C – 40°C (-13°F – 104°F)
• IP rating: IP65
• Warranty: 6 years

Downloads

• 40W cut sheet
• 60W cut sheet
• 96W cut sheet
• Installation guide
• Dimmer compatibility list

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
