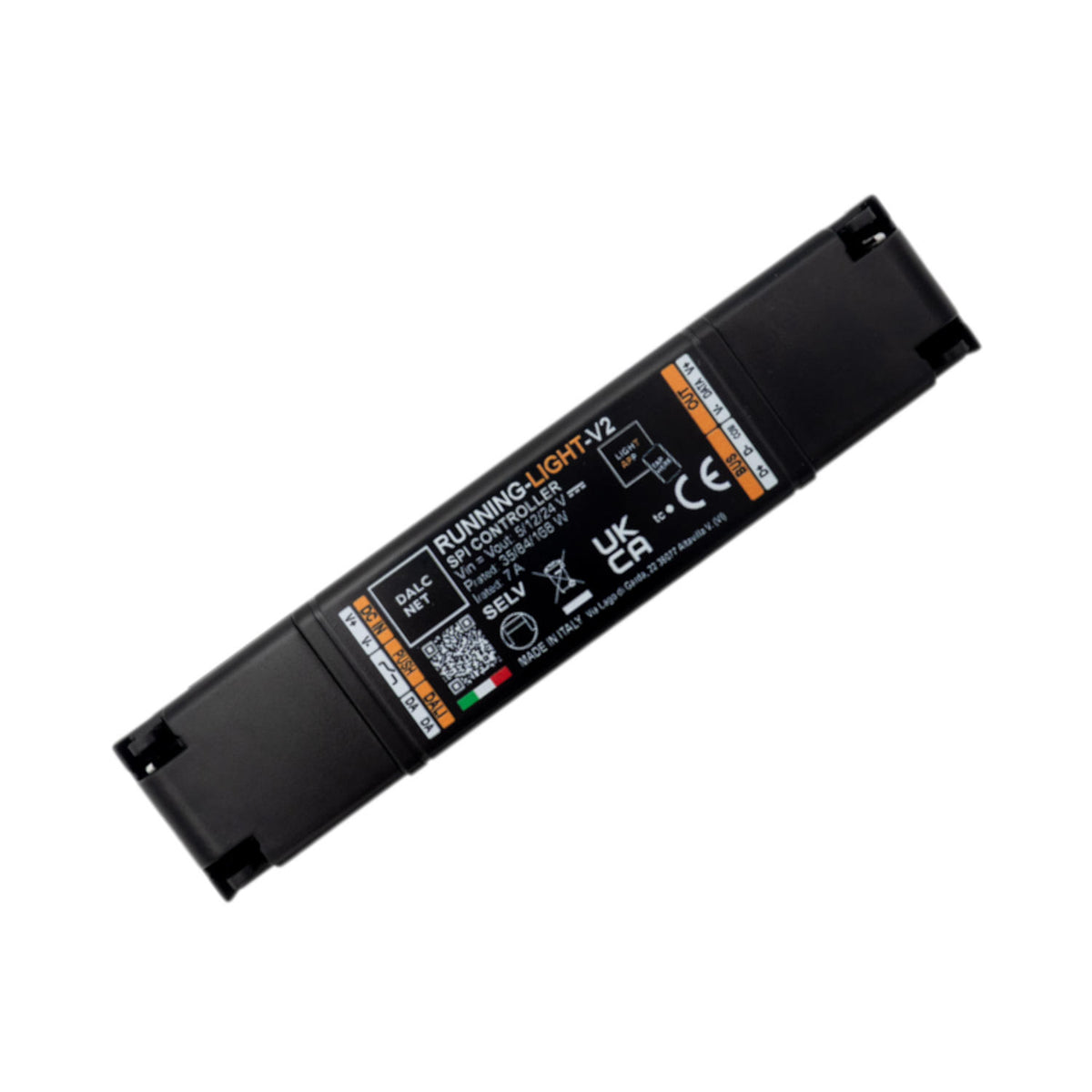

SPI Pixel Controller with DALI and DMX for Digital LED Strip ~ Model RUNNING-LIGHT-V2

Controller only ~ profile, LEDs, channels, power supplies and all other accessories are sold separately

Description

The RUNNING-LIGHT-V2 from Dalcnet is an SPI controller made for pixel-to-pixel LED control on digital (programmable/addressable) LED strips, designed to create different dynamic moving light effects. This controller works with SELV constant voltage power supplies ranging from 5V to 24V DC, making it suitable for driving a wide range of digital LED strips or modules. The controller can be configured to drive digital RGB or WWW LED strips with almost any common control chip type.

This controller is the go-to device for creating an easily configured dynamic pixel lighting project with DALI control, DMX control, or standalone with pushbutton control.

The upgraded hardware platform of the RUNNING-LIGHT-V2 offers live lighting configuration via NFC using the Dalcnet LightApp, and smart DMX pixel mapping making it easier than ever to implement your dynamic lighting projects.

The Dalcnet RUNNING-LIGHT-V2 controller offers compelling features for easily creating moving RGB pixel effects:

• Flexible: Supports 9 customizable dynamic pixel effects
• Compatible: Supports over 20 common pixel control ICs
• Expandable: Master/slave bus for grouping controllers or connection to PIXEL-REPEATER
• Predictable: Programmable power-on state
• Reliable: Isolated DALI bus and Over-voltage, Under-voltage & Reverse polarity protected.
• Easy to integrate: Effect selection via DALI, DMX or local pushbutton
• Easy to program: NFC programming with Dalcnet LightApp

Compatible with RGB, RGBW and tunable white (TW) LED strips and modules, this digital LED controller offers flexible control options through a local pushbutton, DALI control, or DMX512 control. The controller can be connected additional controllers via a control signal bus to create larger coordinated pixel LED installations with a single point of control.

The controller delivers reliable performance with a maximum output current of 7A, while featuring comprehensive safety measures including over-voltage, under-voltage, reverse polarity, and input fuse protection. For digital pixel loads requiring a supply current over 7A, the supply for the strip can be wired directly from the system power supply.

The RUNNING-LIGHT-V2 controller's standout feature is its easy programmability through the free Dalcnet LightApp mobile application. Using NFC technology, users can customize up to 10 different light effects, adjusting parameters such as color schemes, animation speed, direction, pixel length, and transition effects. The app is readily available on both iOS and Android platforms.

General Specifications

• Model: RUNNING-LIGHT-V2
• Voltage range: 5-24V DC
• Output channel: 1 SPI bus
• Control protocols: DALI, DMX, hardwired pushbutton
• Working temperature range: -10/+60°C (14 ~ 140°F)
• Maximum total current: 7A
• Connector type: Push-in terminals
• Protection rating: IP20
• Dimensions: 136 x 29 x 22mm (5.35" x 1.15" x 0.87")
• Compatible control IC:
  • 3-channel: WS2811, WS2812, WS2812B, WS2813B, WS2815, UCS1903, UCS1904, TM1804, TM1903, TM1913, GS8206, TX1818, SK6812, SM16703, APA105
  • 4-channel: WS2814, UCS2904, TM1814, SK6805, SK6812, SM16704, UCS7604
• Made in Italy
• Warranty: 5 years
