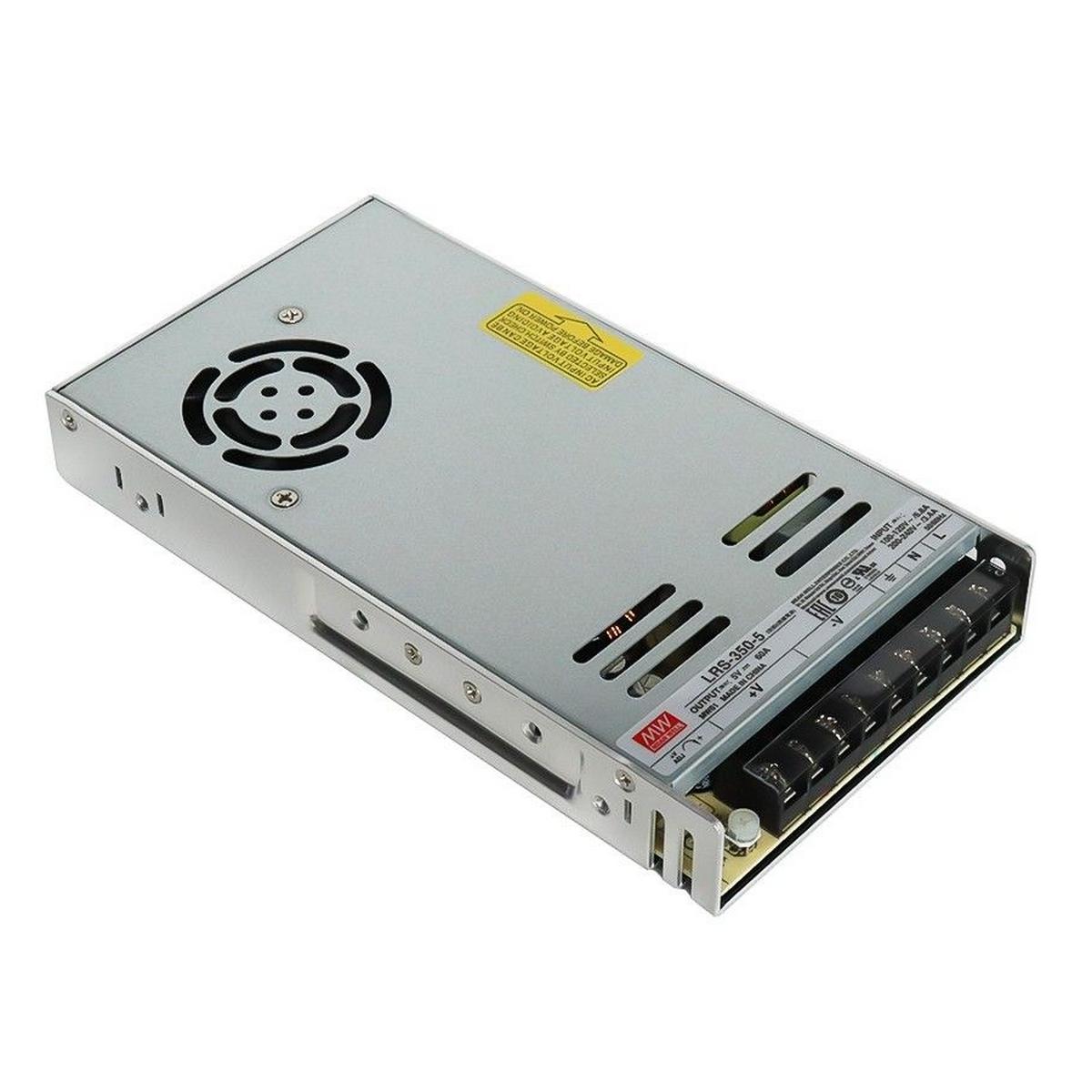

Indoor Enclosed LED Driver (5V) ~ Meanwell LRS Series

power supply only ~ all other accessories sold separately

Description

Enclosed AC/DC power supplies are ideal for indoor LED lighting application where the power supply will not be exposed to moisture. These low-profile 5V LED drivers are the ideal solution for addressable LED strip which is typically powered at 5V instead of the usual 12V or 24V like other LED strips.

The LRS Series from Meanwell is a line of single output, switch mode power supplies. It is a compact, reliable, and cost-effective power supply with a high efficiency rating, which makes it suitable for a wide range of applications. This series of enclosed power supplies has a wide input voltage range, making it suitable for use in different regions around the world.

This economical power supply series has a variety of attractive features for LED lighting applications:

The included power-on LED indicator is helpful for fault finding and solving installation problems.

Electrical protection features include over-voltage, over-current, short-circuit protection making it a reliable choice.

As a bonus, the low no-load power consumption makes these 5V LED power supplies energy-efficient and environmentally friendly.

This low-profile LED power supply is a reliable and cost-effective solution for most 5V DC LED lighting projects such as those using pixel LED strip or other addressable LEDs. The Meanwell LRS Series is a reliable and cost-effective compact 5V power supply that is suitable for indoor applications.

If you need help selecting the right power supply for your project, read our blog posts on LED power supplies and common mistakes to avoid.

General specifications

• Input voltage: 85-264V AC / 47-63Hz (wide-range)
• Output voltage: 5V DC nominal (adjustable 4.5-5.5V DC)
• Overload protection: 110-150% overload
• Mounting: Enclosed frame, panel mounted
• Approvals: UL 62368-1, EN 2368-1, EN 60355-1, EN 61558-1
• Warranty: 3 years

• LRS-350-5
  • Power: 300W
  • Output current: 60A
  • Dimensions (LxWxH): 215 x 115 x 30mm (8.46" x 4.53" x 1.18")
  • Weight: 0.76kg (1.67lb)
  • Cut sheet for LRS 350W
