SKU: VLM40W-12

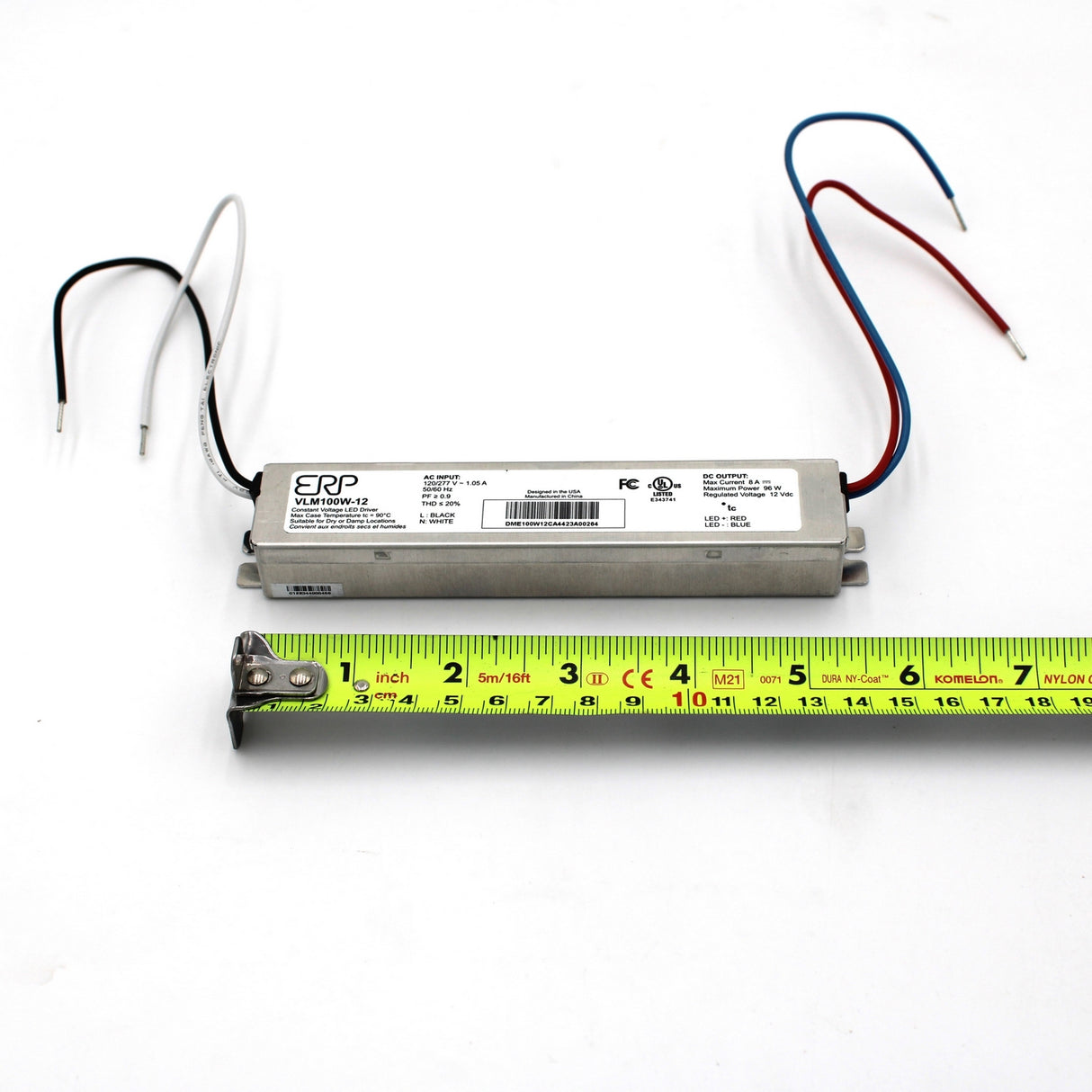

Slimline Small Constant Voltage LED Driver (12V) ~ ERP Power VLM Series

$54.17 USD
Shipping calculated at checkout.
Wattage

Product details

Description

Slimline ERP Small LED Driver ~ VLM Series Constant Voltage

Features

This ERP Small LED Driver range has a very high power density, an IP20-rated case with silicone-based potting, and complies with ENERGY STAR® luminaire specification, DLC (DesignLight Consortium®) technical requirements Class 2 power supply, and CA Title 24 technical requirements, among other specifications and requirements.

Applications

Strip lights, Pendant lights, Linear lights, a driver for LED channels.

These extremely slimline and compact ERP linear LED drivers are ideal for tight spaces like inside LED profiles.

General Specifications

  • Topology: AC-DC Converter
  • Type: Constant voltage
  • Power (Watts): 40W, 60W, 96W
  • Voltage - Input: 120V AC ~ 277V AC
  • Voltage - Output: 12V DC
  • Current - Output (Max): 3.3A (40W), 5A (60W), 8A (96W)
  • Number of outputs: 1
  • Termination style: Wire leads (18 AWG, 203mm (8") long, stranded)
  • Mounting type: Chassis mount
  • Operating temperature: -20°C ~ 50°C
  • Maximum case temperature: 90°C (at case hot spot)
  • Efficiency: up to 90% typical (40W, 60W), up to 92% typical (96W)
  • Lifetime: 50,000 hours minimum at 70°C maximum case hot spot temperature
  • Ingress protection: IP20
  • DLC Class 2 rated (The 96W model (VLM100W-12) is not Class 2 because the over-current protection of this model exceeds the 5A UL Class 2 limit.)
