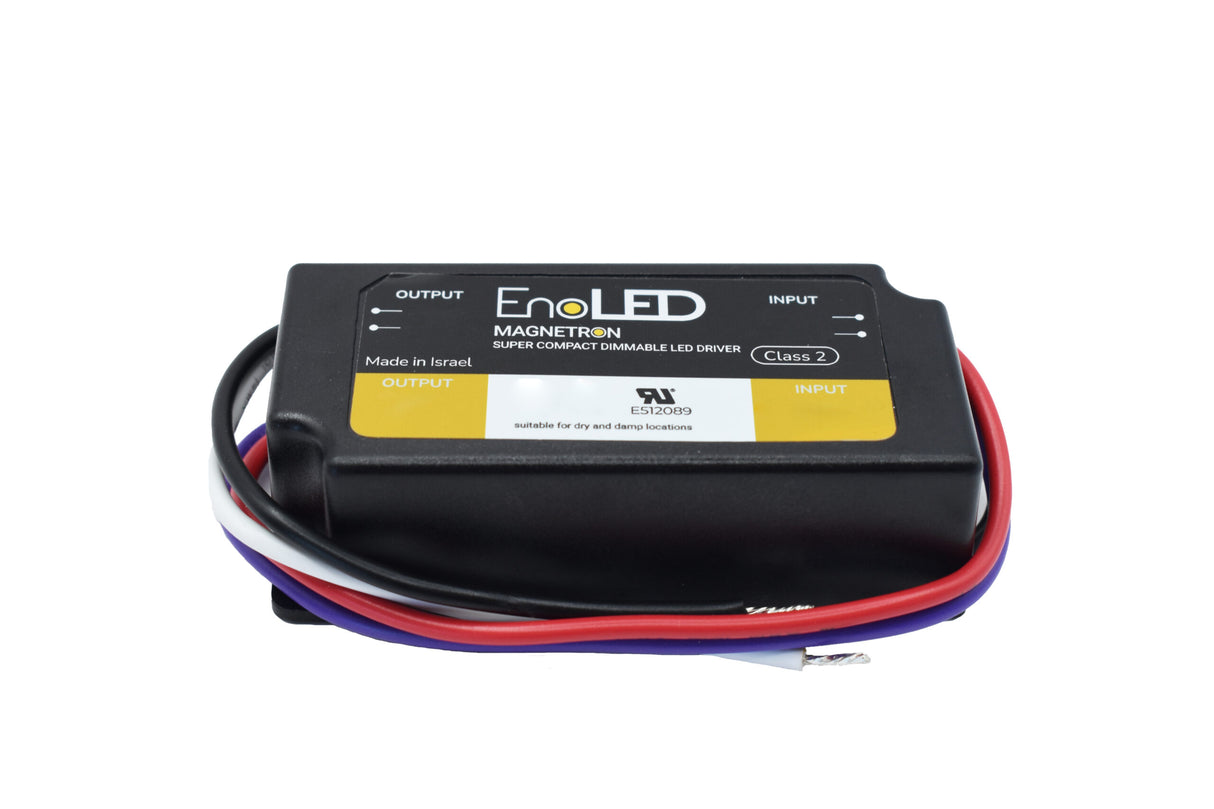

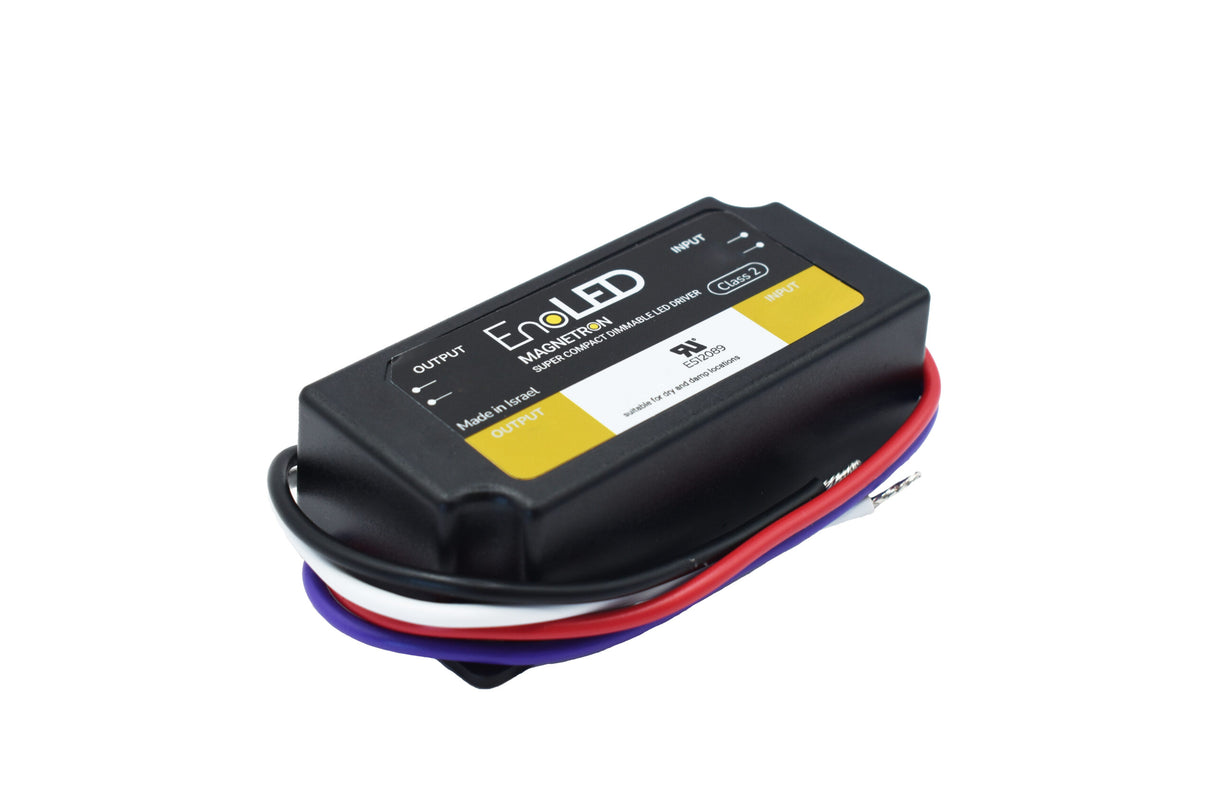

Super Compact Dimmable Class 2 LED Driver (24V) ~ EnoLED MRD Series

LED power supply only ~ LED strip and all other components are sold separately

Description

The MRD Series is a super compact, UL Listed Class 2 phase cut dimmable LED driver designed for 24V DC LED strip applications. Its compact case fits easily into any standard junction box, making installation simple and efficient. Compatible with a wide range of dimmer switches, including incandescent, CFL, LED, MLV, and ELV (leading or trailing edge), it provides smooth dimming capabilities down to 1%.

With high-efficiency performance, the MRD Series achieves 88% efficiency at full load and can supply up to 96 watts of power (varies by model). It is designed for both damp and dry locations, ensuring reliable performance in various environments. The driver also features overload and short circuit auto-reset protection, providing added safety for your lighting system. Perfect for powering 24V DC LED strips, the MRD Series offers a versatile, reliable solution for your LED lighting needs.

General Specifications

• Dimming Type: Triac / ELV (Phase cut)
• Dimming Curve: Linear
• Dimming Level: 1%
• Input voltage: 120V AC
• Output voltage: 24V DC
• Max power: 40W, 60W, 75W, or 96W
• Operating Temperature: -40°C – 40°C (-40°F – 104°F)
• Environmental: Dry & Damp Location
• Certification: UL listed, Class 2

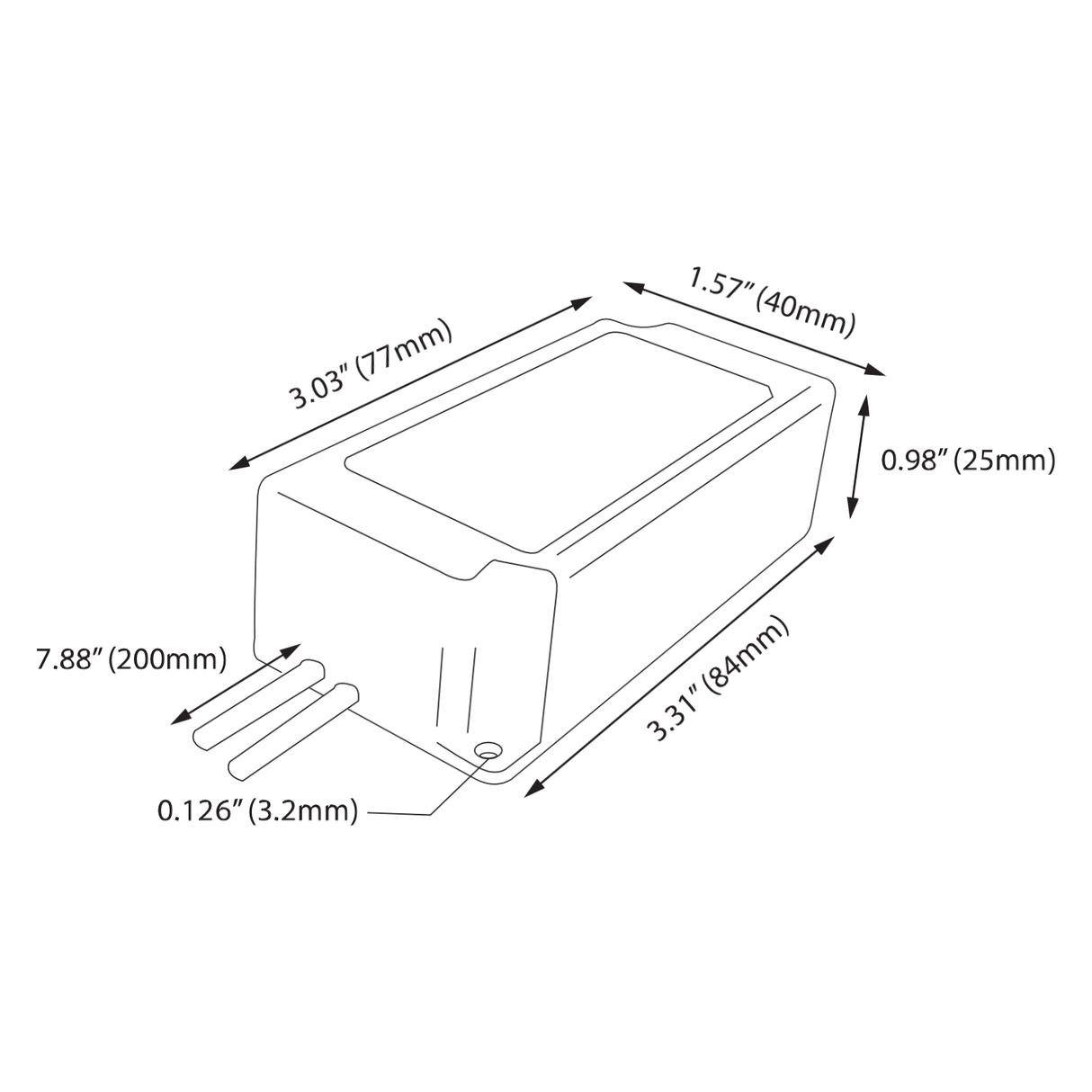

• Dimensions: 84 x 40 x 25 mm (3.31” x 1.57” x 0.98”)
• Warranty: 6 years

Downloads

• MRD cut sheet
• Installation guide

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
