1.5" White Surface-mount LED Tube Lighting Fixture (24V) ~ Sierra38 Series

Fixture, mounting hardware, and wire connectors only ~ all other components are sold separately.

Description

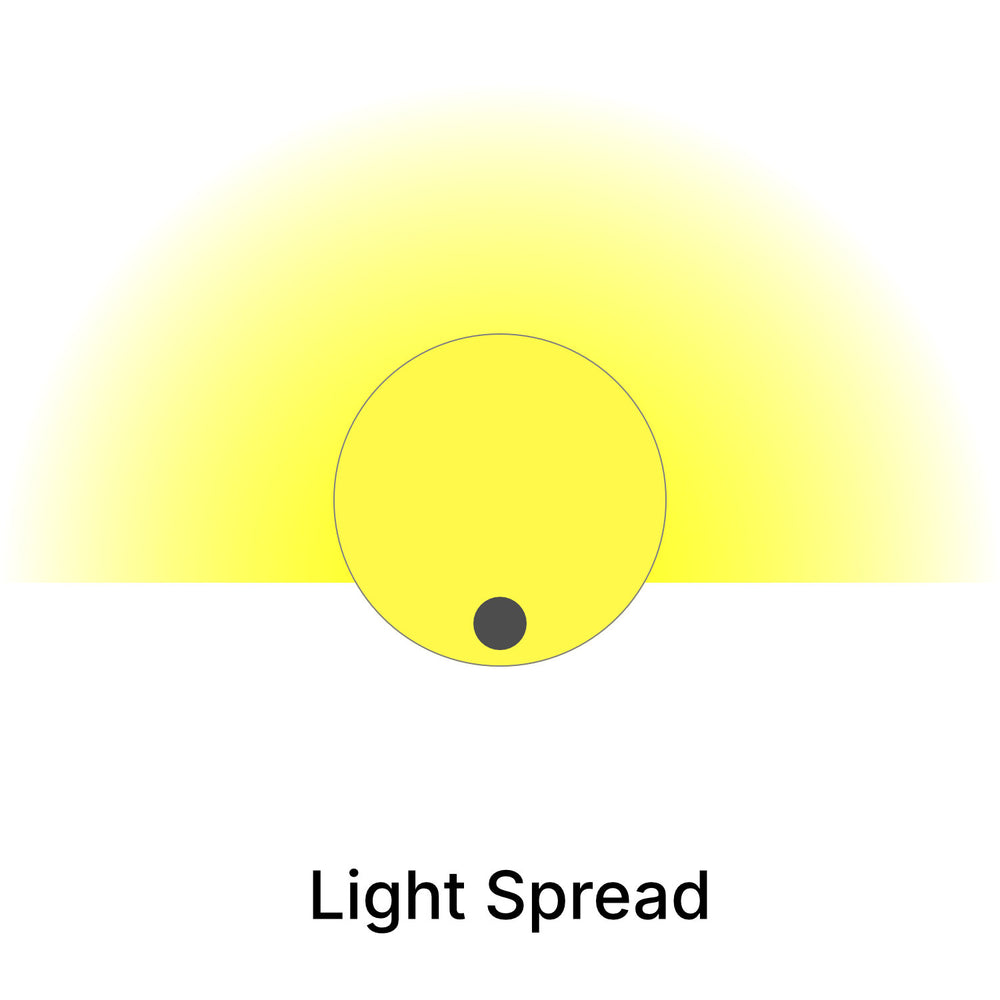

This assembled plug-and-play tube lighting fixture is ideal for applications requiring a small diameter tube. It can be surface mounted to pretty much any surface you can drive small screws into, and we offer accessories for alternative mounting methods, such as stands and drop ceiling clips. It's a suitable brightness for most use cases and provides perfectly uniform, dotless light.

A choice of white or black finishes and a selection of color temperatures let you match it to your design and use case.

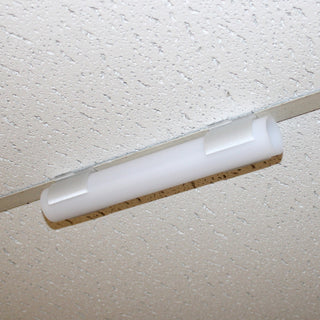

Mounting hardware is included. The clips are easily screwed into most surfaces, and are transparent so they don't interfere with then lighting significantly. We have alternative mounting hardware available, such as posts and stands. We also offer mounting hardware for other applications, such as clips for drop ceiling lighting. We have listed some of these in the accessories section.

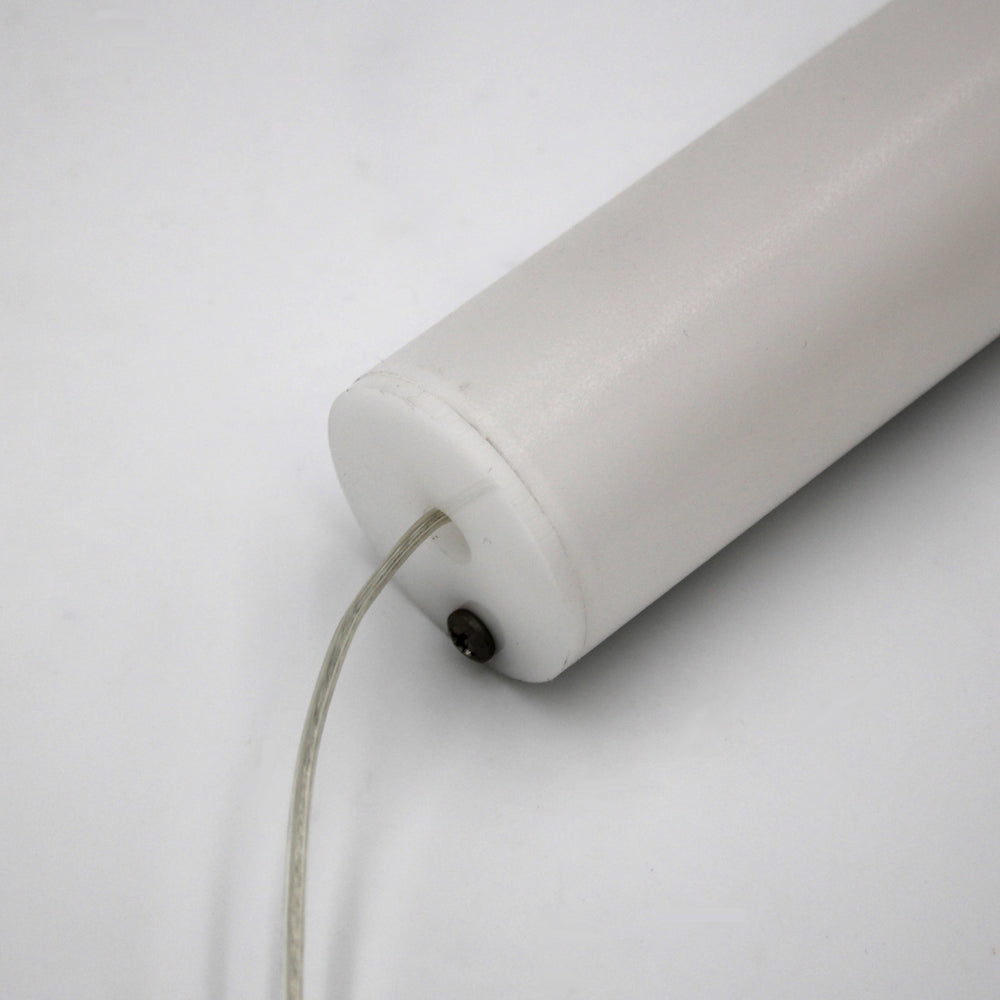

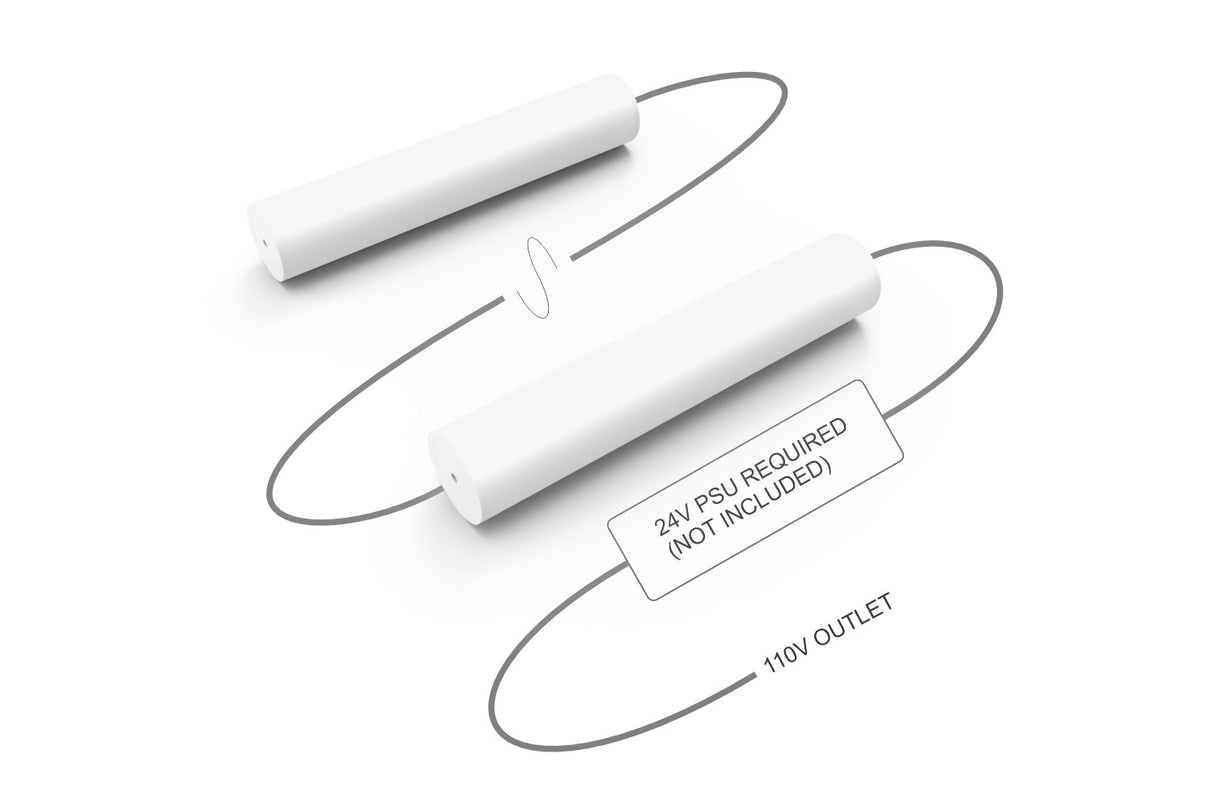

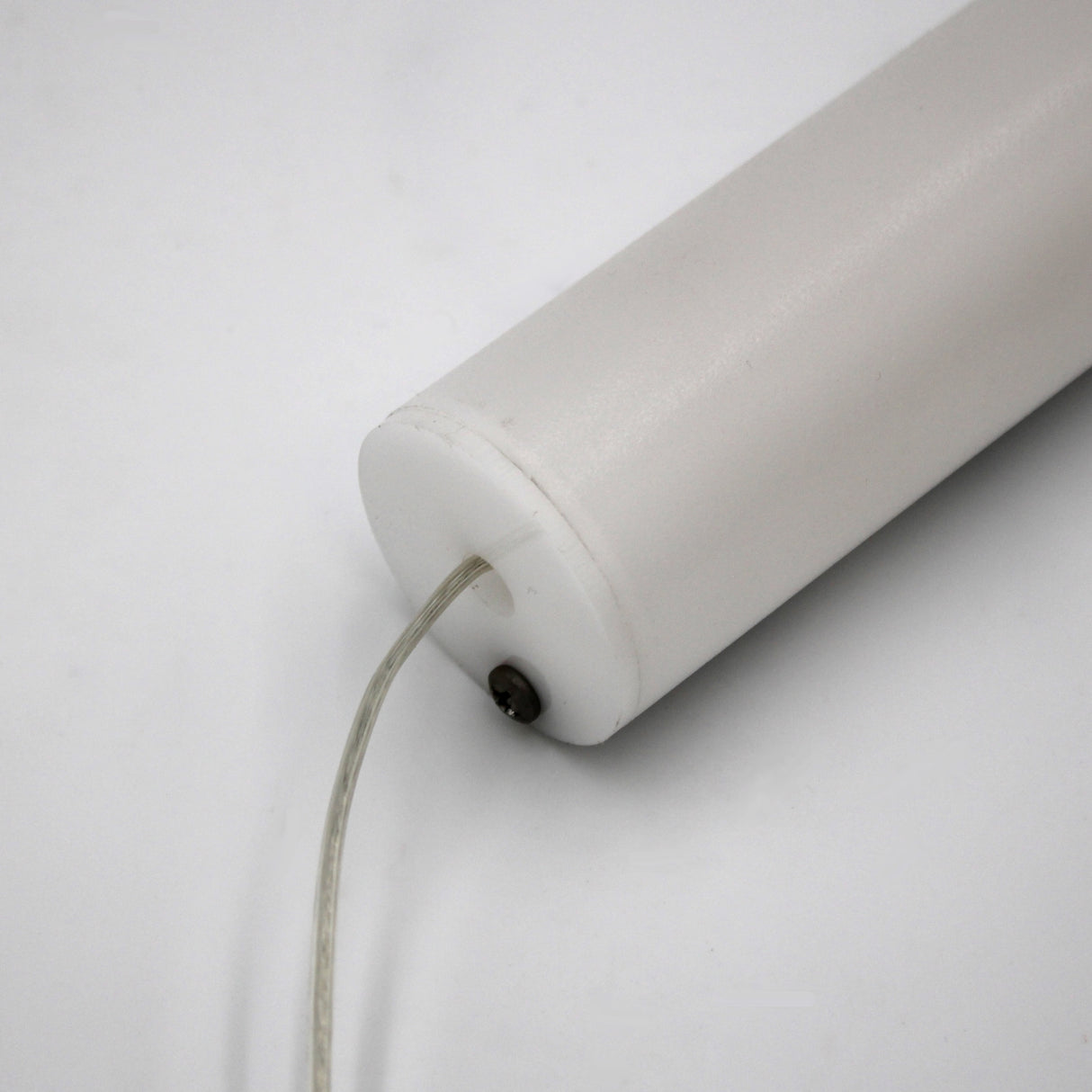

The fixture comes with a 3ft (1m) lead wire. There is an option of the lead wire on one side only – for if you want a single fixture or it will be the last in a series of fixtures – or on both sides – for connecting a chain of fixtures in series. Wire connectors are included for easily connecting fixtures together and to your power supply.

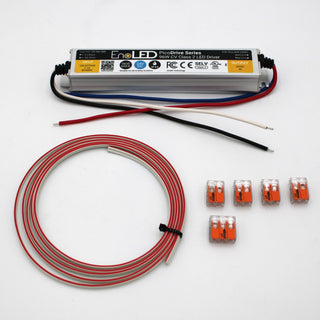

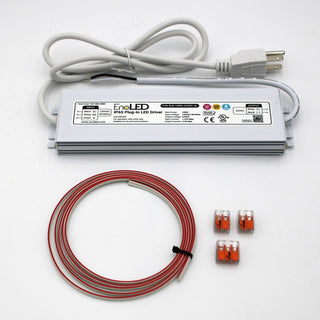

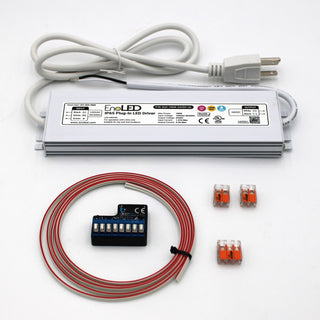

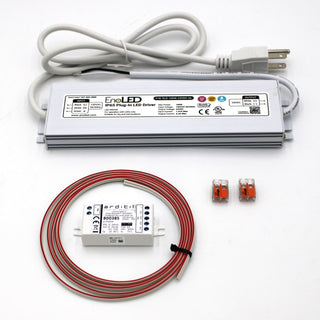

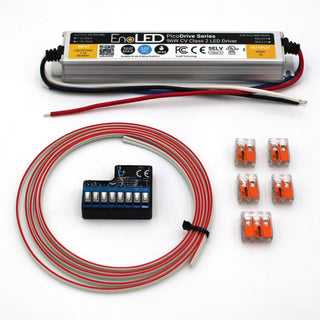

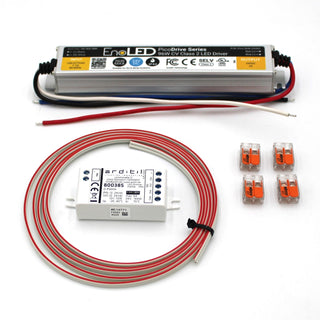

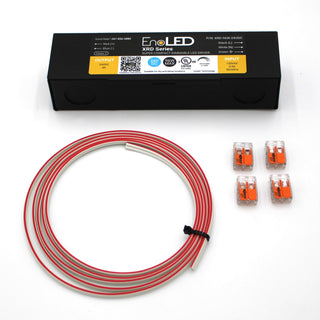

This fixture runs on 24V DC, so a 24V DC power supply is required (not included). You can use any standard 24V LED driver or LED controller. We have listed some kits of common configurations in the accessories section.

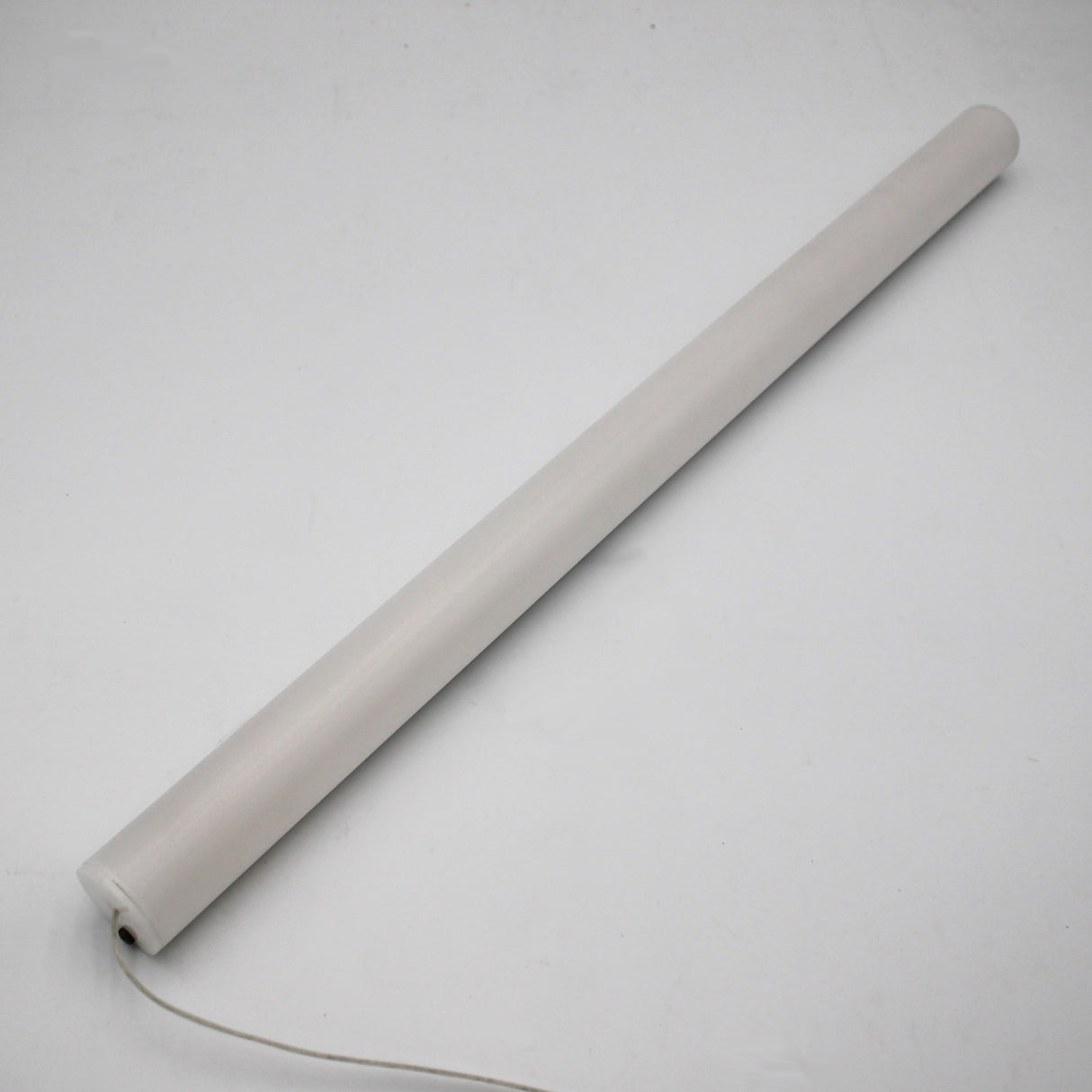

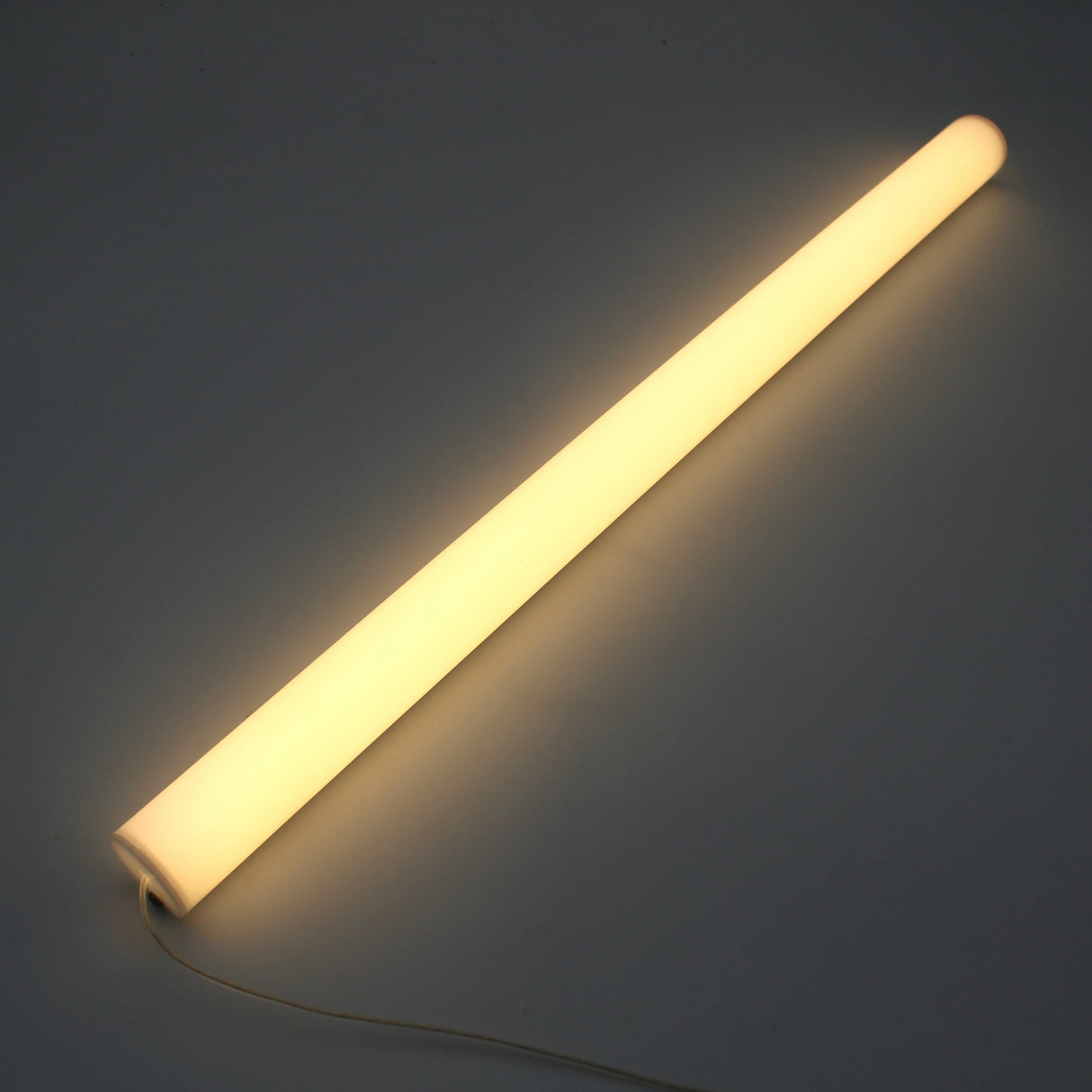

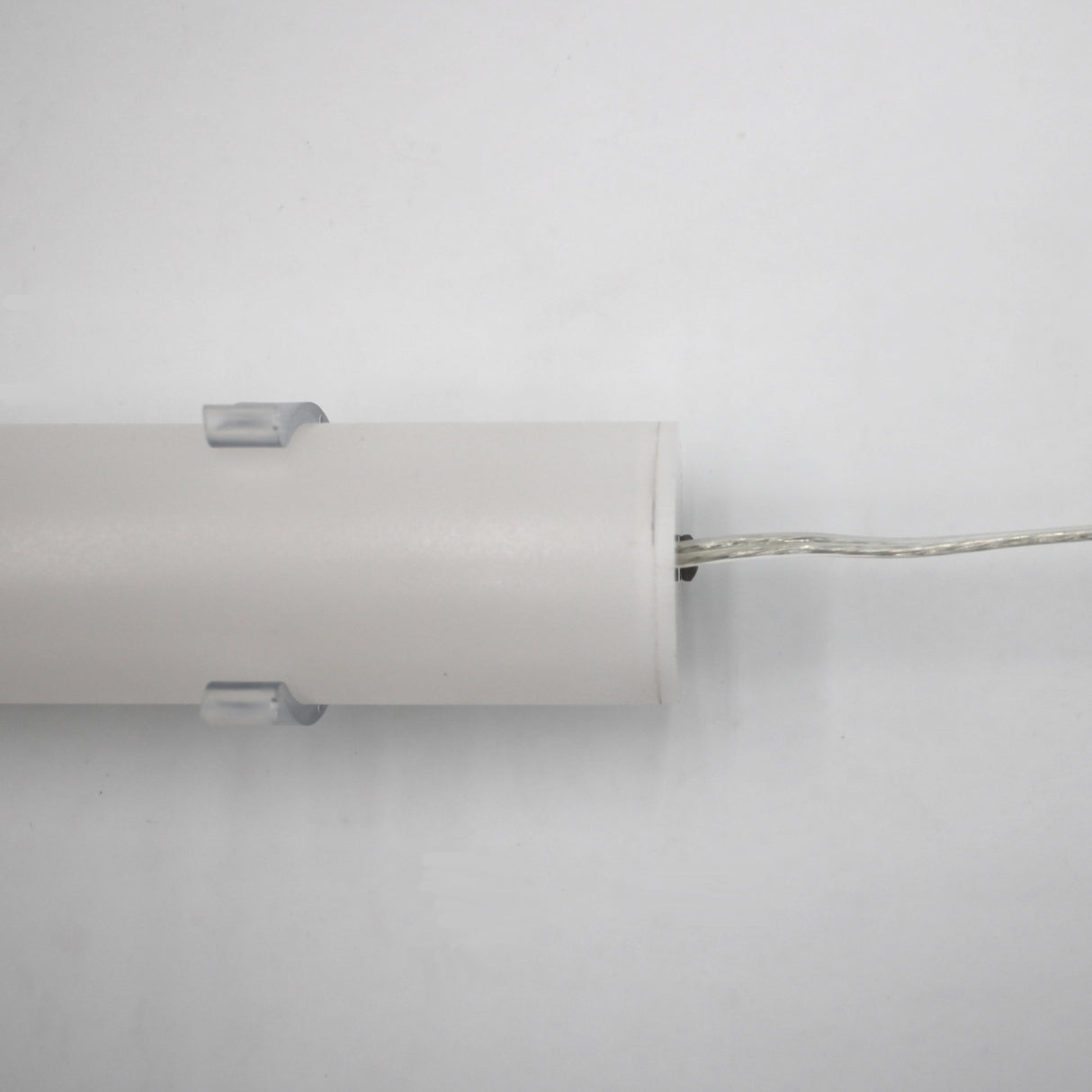

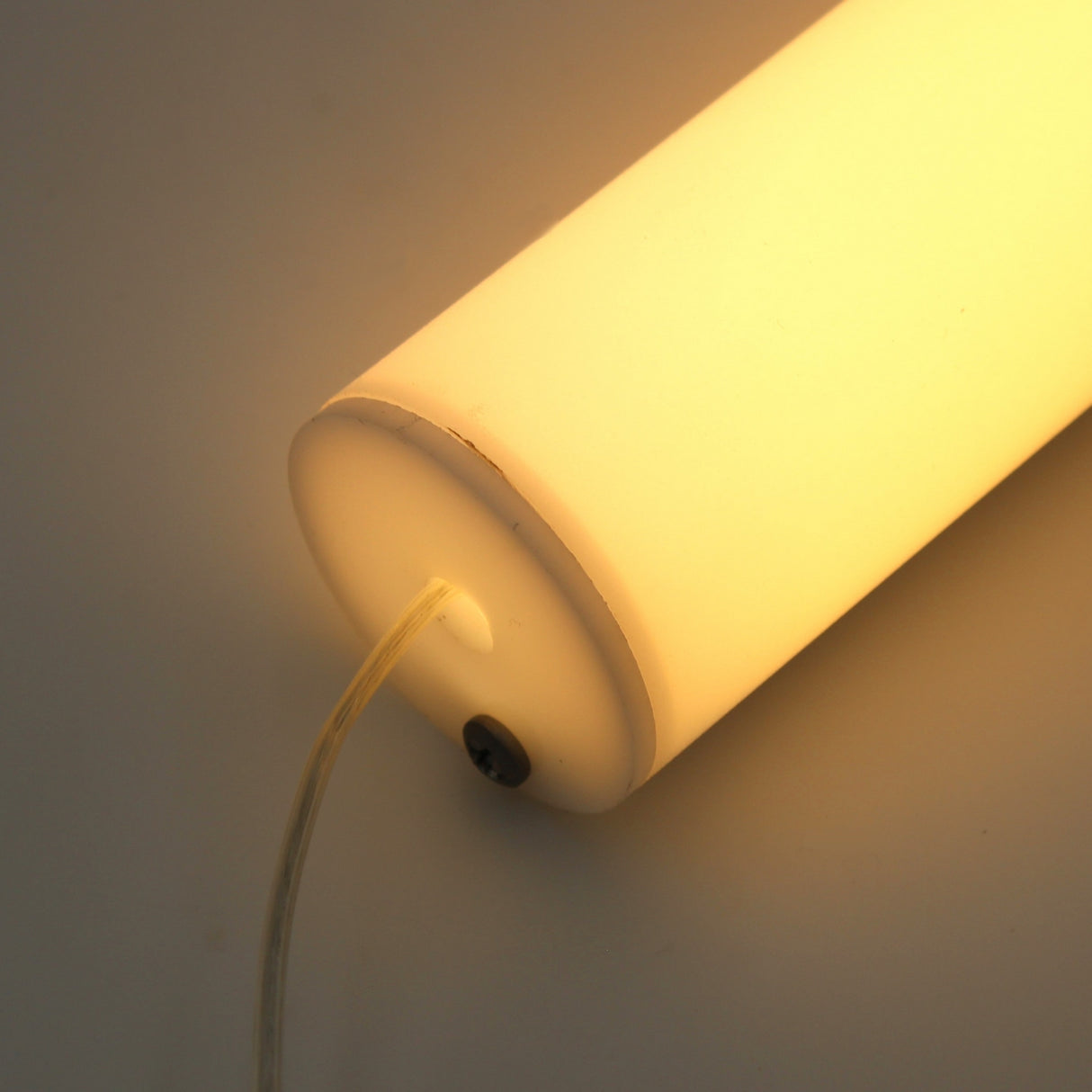

The photos show the 2800K color temperature version. The fixture shown in the photos of an entire unit is the 615mm (24") length.

Specifications

• Light color: White, choice of color temperatures
• Dimmable: Yes, via dimmable driver or LED controller
• Expected lifetime: >50,000 hours

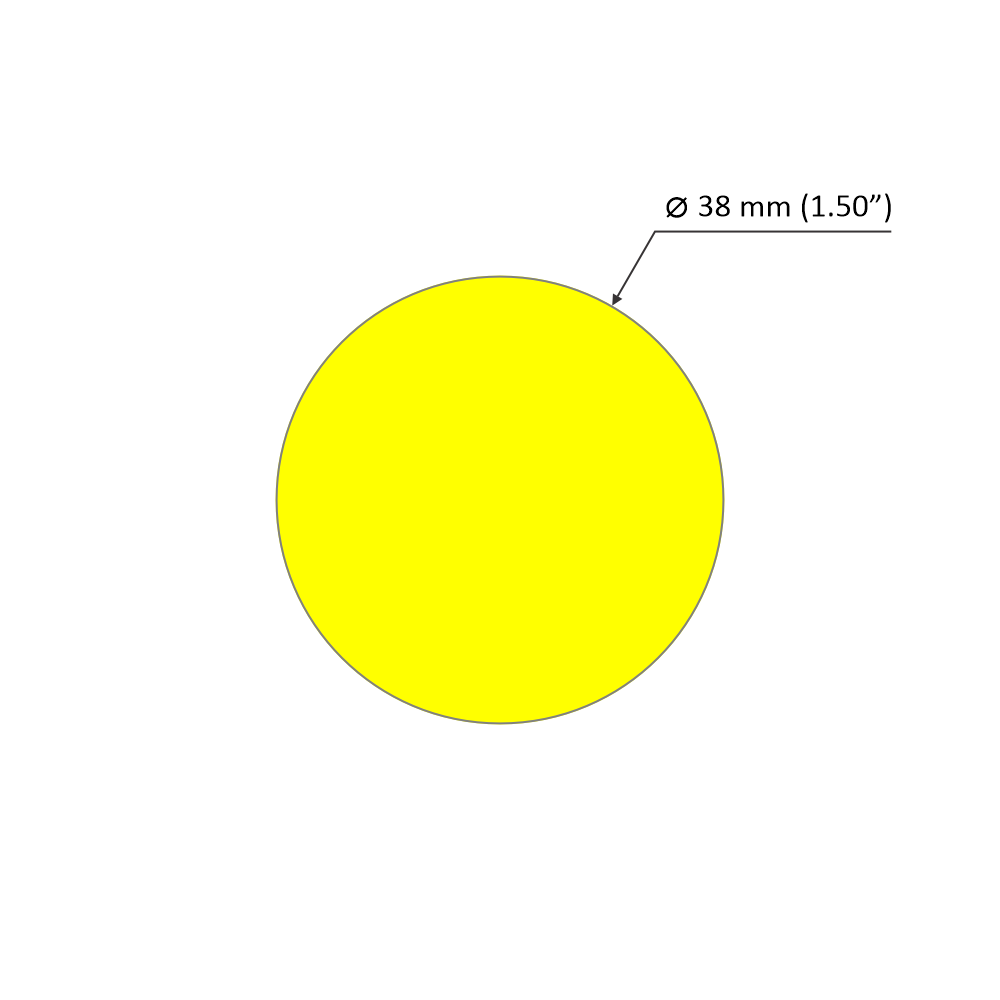

• Width: 38mm (1.5" or 1 1/2")
• Height: 38mm (1.5" or 1 1/2")
• Mounting: Transparent clips included (screws not included); alternative methods available

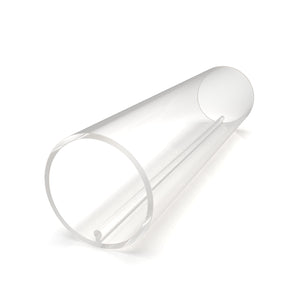

• Tube material: Acrylic
• Tube color options: White, Black
• Voltage: 24V DC
• Wattage: 10 W/m
  • 615mm (24"): 6W
  • 1m (39"): 10W
  • 2m (78"): 20W
• Brightness: 577 lm/m – 683 lm/m (depends on color temperature; 4000K is the brightest)
  • 615mm (24"): 346 – 410 lm
  • 1m (39"): 577 – 683 lm
  • 2m (78"): 1,153 – 1,366 lm

• CRI: 90+
• Max combined length of a single chain of fixtures: 10m (33ft)
• Lead wire: 3ft (1m). Option of lead wire on one side (for single fixture or end of series) or on both sides (for connecting fixtures in series).

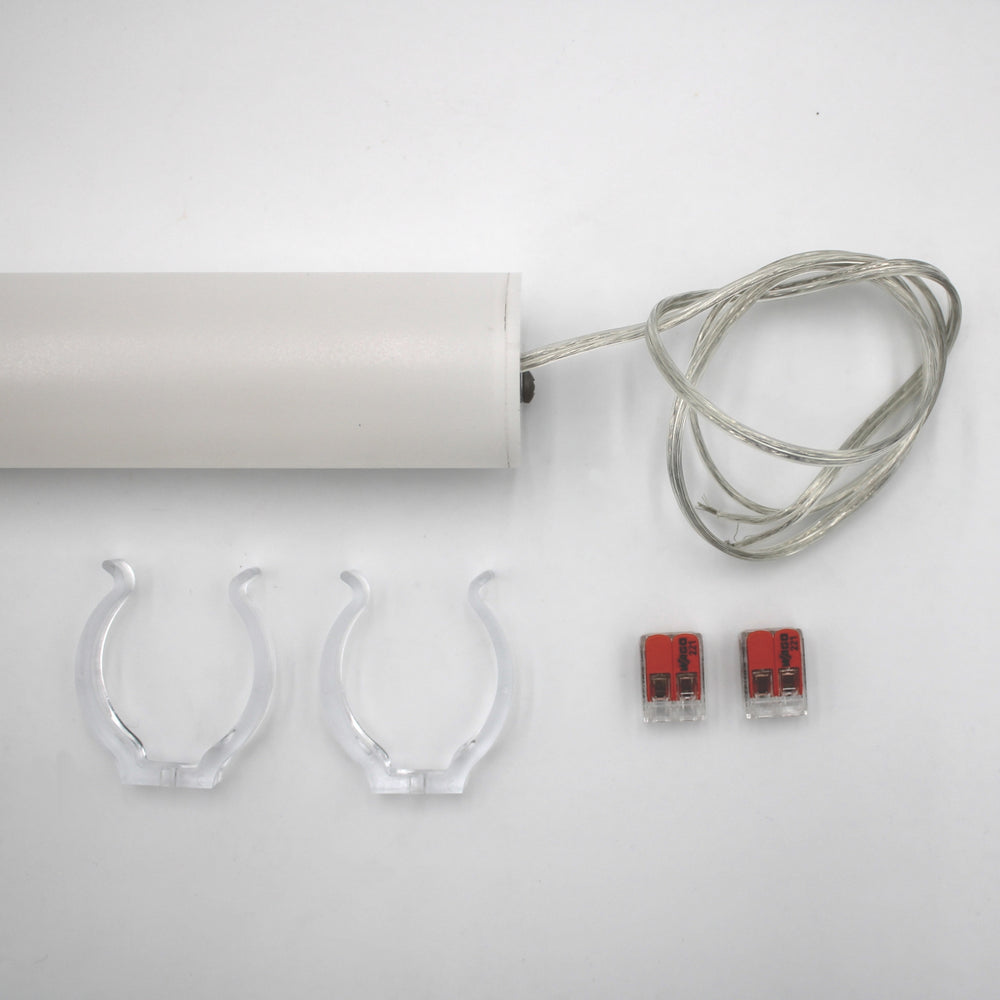

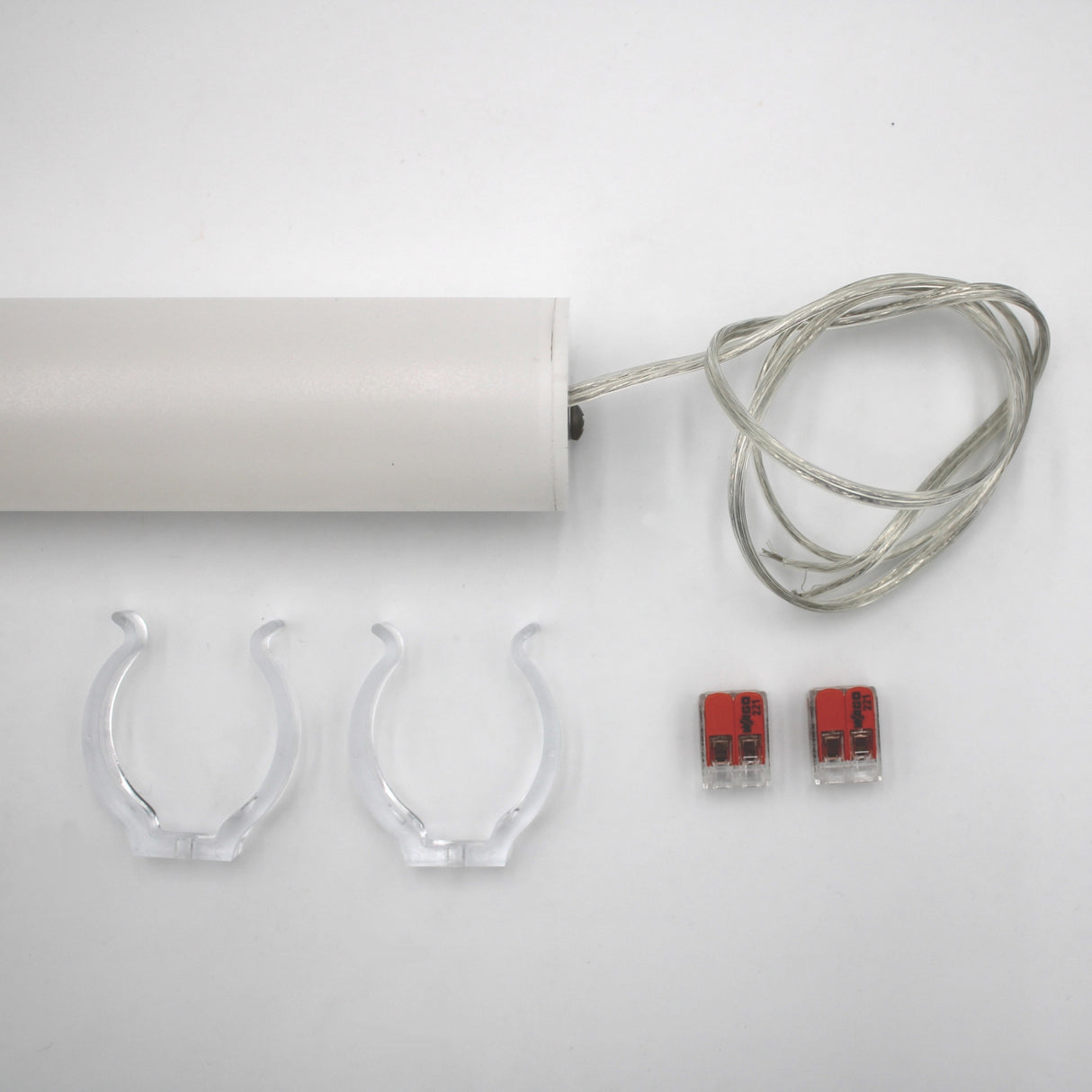

Contents

• 1 x LED lighting fixture
• 2 x Mounting clips (screws not included)
• 2 x 2-way wire connectors

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
