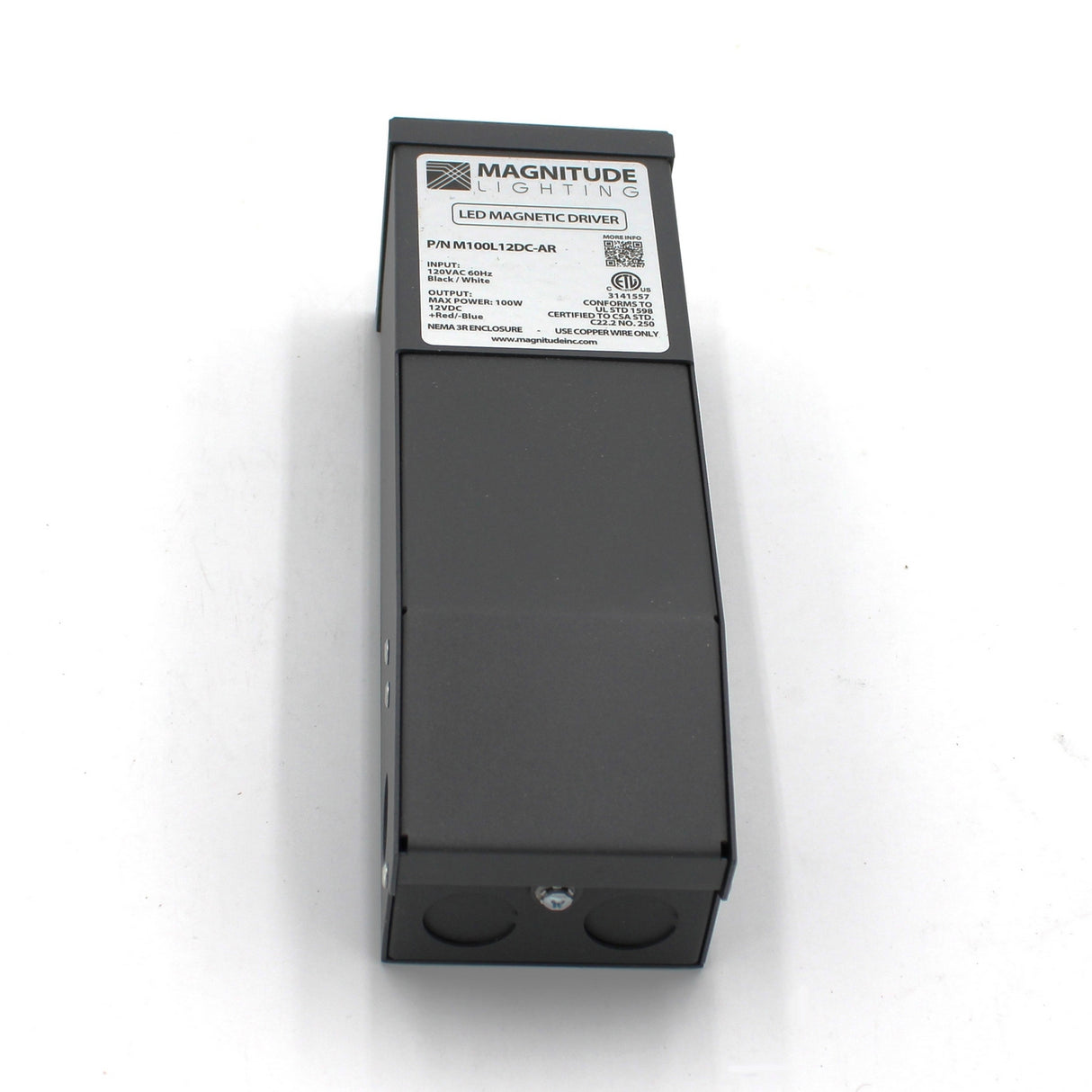

Dimmable Magnetic Core LED Driver (12V) ~ Magnitude M Series

Power supply only ~ all accessories are sold separately

Description

The magnitude M-SERIES is the most compact magnetic core dimmable LED driver on the market, making it the perfect choice for dimming under cabinet kitchen lighting, tape lighting, tube lighting, linear lighting and multiple other residential and commercial lighting applications.

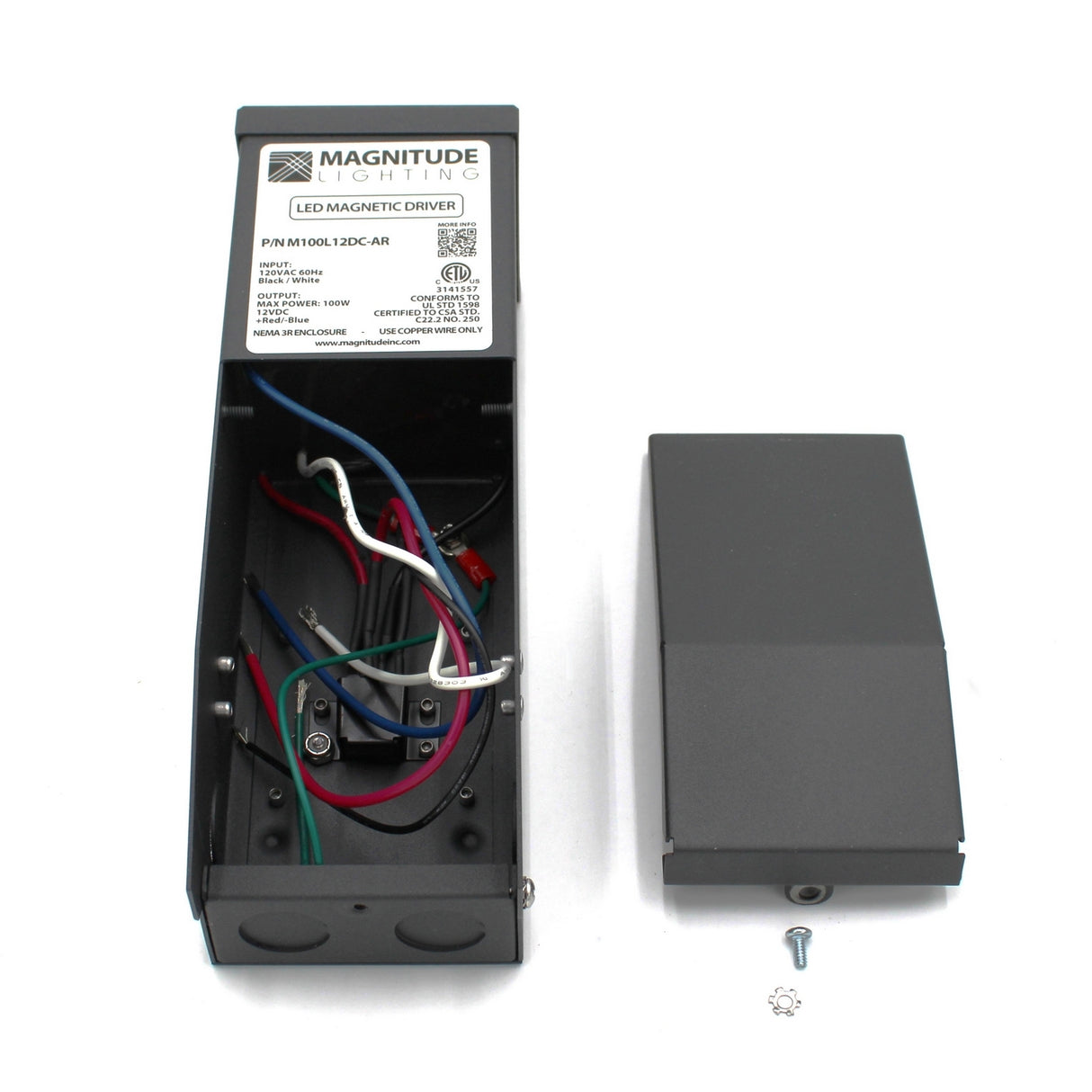

This magnetic dimmable LED driver is encased in a high-quality metal enclosure that includes multiple ⅞" knock-outs for easy installation. Each unit is equipped with circuit breakers to protect both the driver and the LED load. All of our magnetic LED drivers are phase-dimmable with a standard leading-edge MLV TRIAC dimmer.

General specifications

• Installation: Integrated Junction Box with Multiple ⅞" Knock-Outs
• Driver Types: Class 2 and Higher Power Single Channel Options
• Dimming: Phase dimmable with leading edge (forward) MLV TRIAC dimmers only
• Coil Former: Double Section Bobbin
• Input Voltage: 120V AC, 50/60Hz
• Output Voltage: 12V DC
• Environmental: NEMA 3R
• Listing: ETL Listed
• Certifications: Conforms to UL8750, C22.2 NO. 223
• Warranty: 5-Year Warranty

Downloads

• Magnitude M Series cut sheet
