Super Compact Dimmable Class 2 LED Driver (12V) ~ EnoLED XRD Series

LED power supply only ~ LED strip and all other components are sold separately.

Description

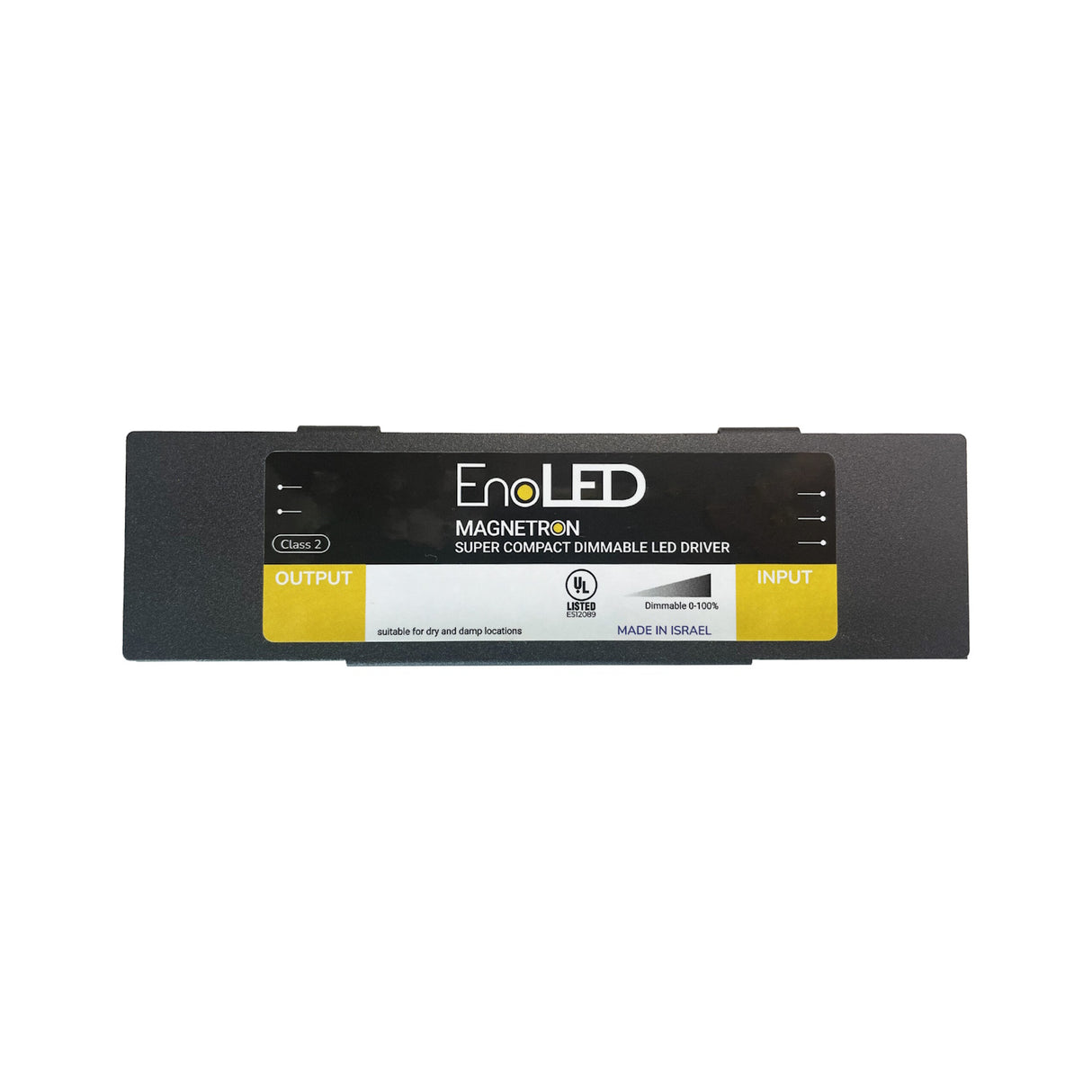

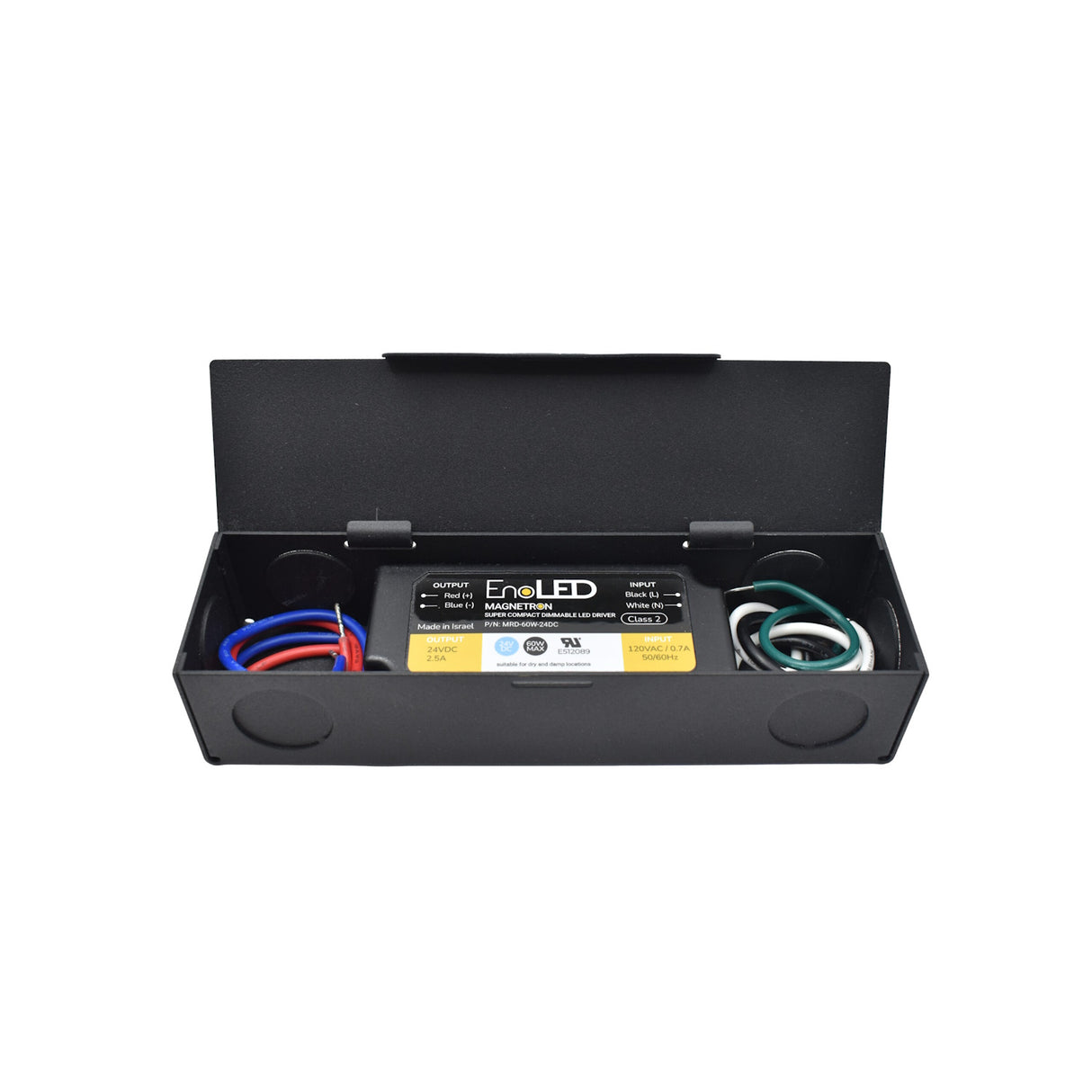

The EnoLED XRD Series is a high-performance, super compact Class 2 LED driver designed to power 12V DC LED light strips with exceptional efficiency. Encased in a metal housing with a built-in junction box, this driver is UL Listed for reliable and safe operation in both damp and dry locations.

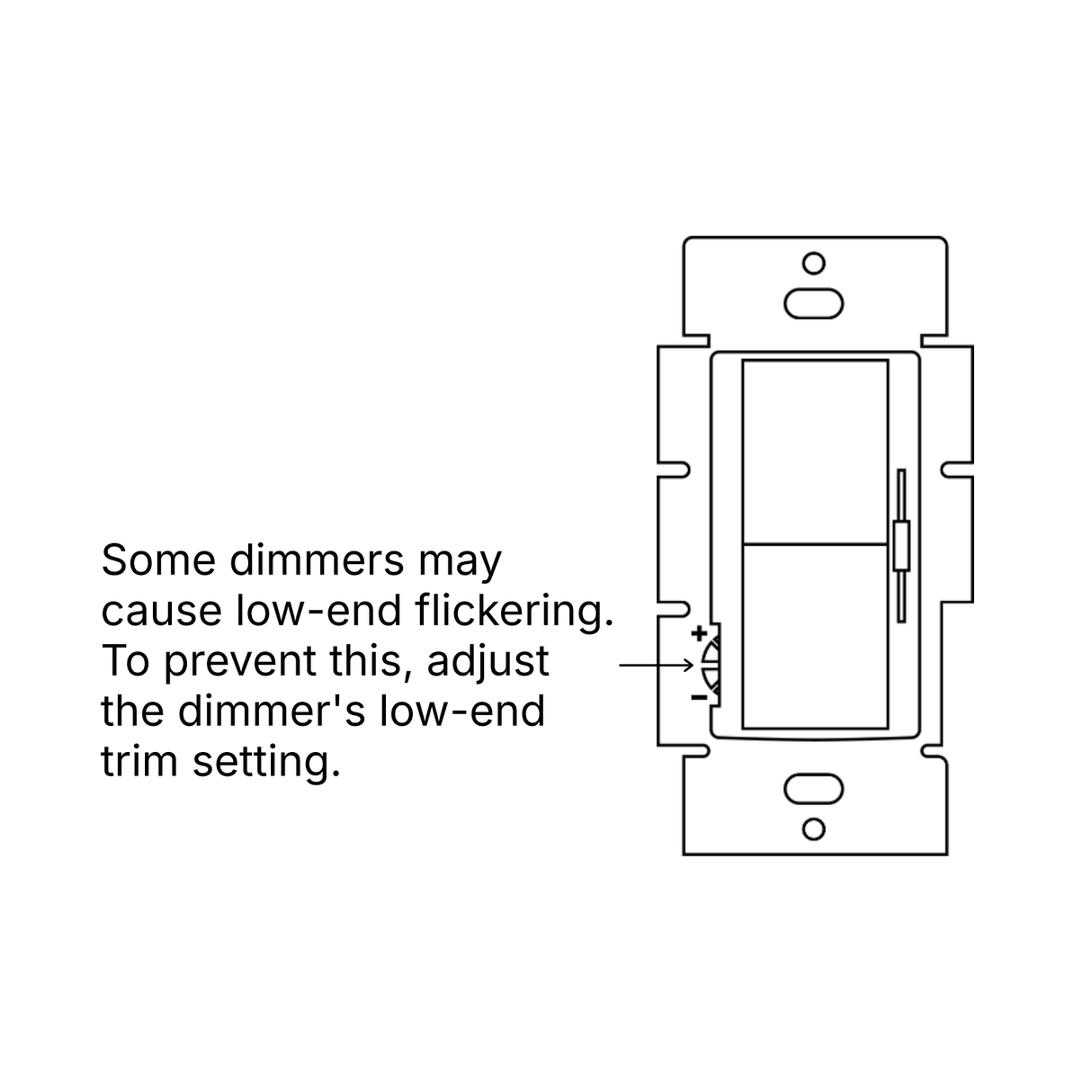

Compatible with a wide range of dimmer switches, including incandescent, CFL, LED, MLV, and ELV (leading or trailing edge), it provides smooth dimming capabilities down to 1%. The unit features overload and short circuit auto-reset protection for enhanced durability and safety, achieving 88% efficiency at full load.

As one of the smallest dimmable LED drivers available, the EnoLED XRD Series is ideal for compact installations where space is limited. Its robust design and versatile dimming options make it ideal for LED strips, LED tape, cove, linear, and puck lights.

General Specifications

• Dimming type: Triac / ELV (Phase cut)
• Dimming curve: Linear
• Minimum dimming level: 1%
• Input voltage: 120V AC
• Output voltage: 12V DC
• Max power: 40W, 60W
• Operating temperature: -40°C – 40°C (-40°F – 104°F)
• Environmental: Dry & Damp Location
• Certification: UL listed, Class 2
• Warranty: 6 years

Downloads

• XRD series cut sheet
• Installation guide

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
