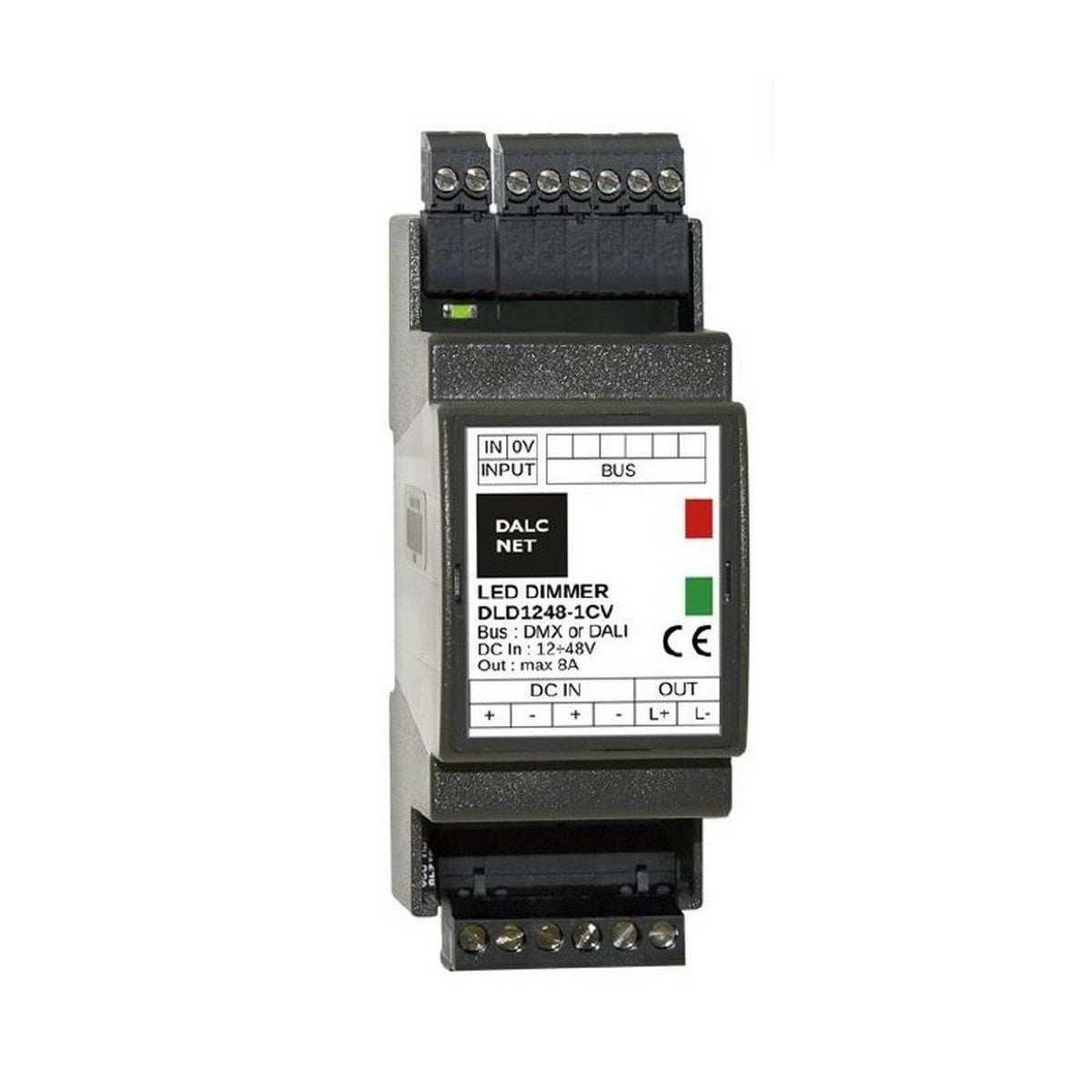

DIN-rail 1-Channel Constant Voltage LED Dimmer with DMX ~ Model DLD1248-1CV-DMX

Description

The DLD1248-1CV-DMX is a single-channel LED dimmer designed for constant-voltage LED lighting applications, combining LED bus control, dimmer, fader, and driver functions in one compact DIN-rail device.

It operates with a 12–48V DC constant-voltage input and is intended for driving LED strips and other low-voltage LED loads with smooth and precise dimming.

The DLD1248-1CV-DMX is controlled via DMX512, allowing seamless integration into professional lighting control systems, while also supporting local control options for flexible installation scenarios. The local control options are a N.O. push button, a potentiometer, or a 0-10V or 1-10V control signal.

Built for reliable performance in architectural, commercial, and entertainment lighting environments, this LED dimmer provides stable output, accurate dimming response, and easy system integration in space-efficient control panels.

General specifications

• Input voltage: 12-48V DC
• Output channels: 1
• Output voltage: Same as input voltage
• Max output power: 8A (1 x 8A)
• Bus: DMX
• Local control: 0-10V, 1-10V, Potentiometer (22 kΩ), Push button

• Typical efficiency: >95%
• Working temperature: -40°C to +60°C (-40°F to 140 °F)
• Dimensions: 92 x 36 x 62 mm (3.6" × 1.4" × 2.4") (DIN 2-module)
• Mounting method: DIN rail (2 mod)
• Environmental protection: IP10
• Warranty: 5 years

Downloads

• DLD1248-1CV-DMX cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
