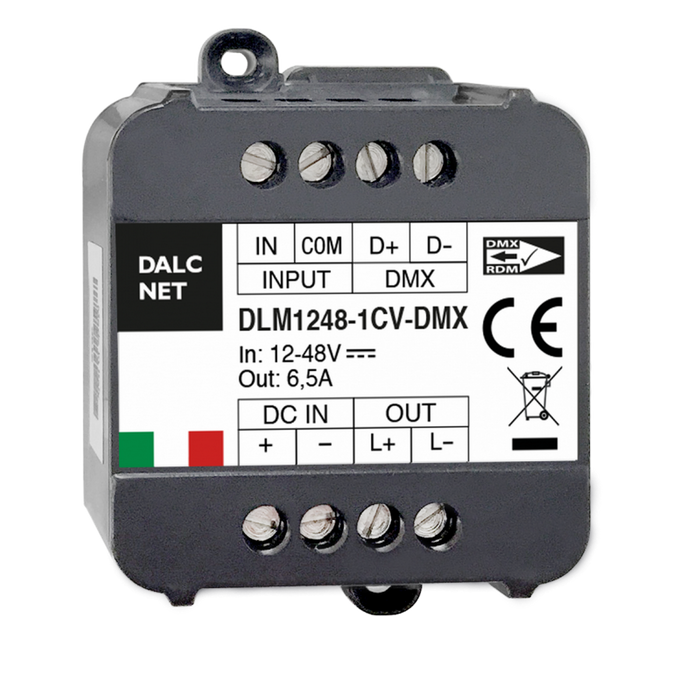

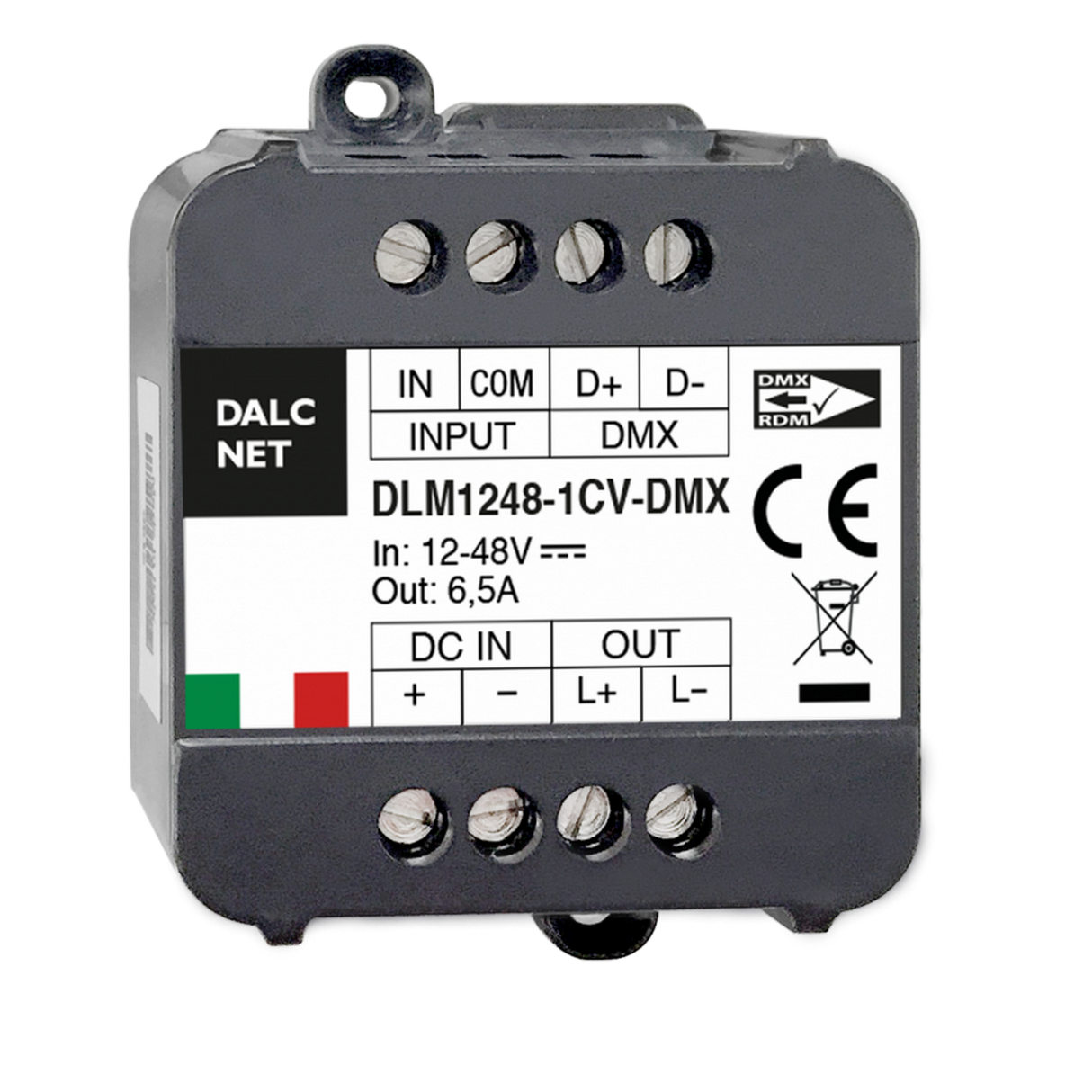

Single-Channel LED Light Dimmer with DMX ~ Model DLM1248-1CV-DMX

LED dimmer only ~ power supply, LEDs and all other accessories are sold separately

Description

DLM1248-1CV-DMX LED Dimmer is a versatile solution designed specifically for powering single-color LED strips. This dimmer features a DMX control input as well as options for control using a push button, 0-10V and 1-10V signals, or a potentiometer. It is part of the EASY series, offering easy regulation of LED strips through various analog commands.

With the option of DMX regulation or a normally open push button, you can effortlessly control the intensity of your LED strips. A short press turns the equipment on or off, while a long press allows for easy adjustment of the brightness.

Using its unique "Analogic" feature, this LED strip light dimmer automatically detects and identifies various control methods including analog control, N.O. push button, 0-10V or 1-10V, and potentiometer inputs. Enjoy seamless integration with your existing setup and effortless adjustment of lighting levels.

With its compact size, the DLM1248-1CV-DMX dimmer can be easily installed in standard wiring box or any hidden place, providing a discreet solution for your lighting setup.

Please note that this model is specifically designed for powering LED strips and not suitable for luminaires that operate with constant current.

General specifications

• Model: DLM1248-1CV-DMX
• Supply voltage: 12-48V DC
• Max output power: 1x 6.5A
• Output channels: 1
• Control input: 0-10V, 1-10V, Potentiometer, Push button
• Bus: DMX
• Operating temperature range: -10 to 40°C (14 to 104°F)
• Dimensions: 44 x 57 x 25mm (1.73" x 2.24" x 0.98")
• Warranty: 5 years

Downloads

• DLM1248-1CV-DMX cut sheet
