DIN-rail 6-Channel Constant Voltage LED Dimmer with DMX ~ Model DLP1224-6CV-DMX
Product details
Controller only ~ profiles, LEDs, channels, power supplies and all accessories are sold separately
Description

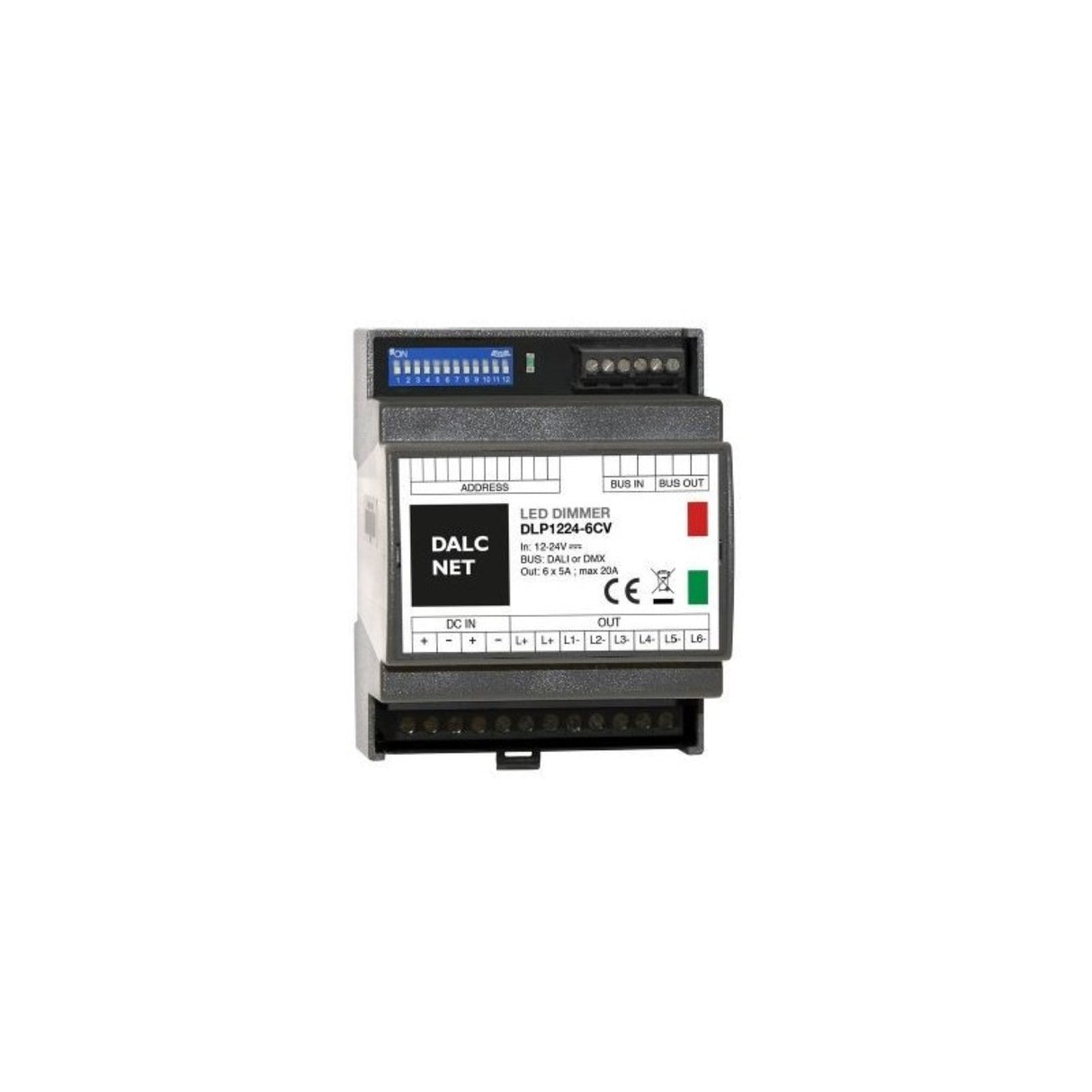

The DLP1224-6CV-DMX from Dalcnet is a constant voltage LED dimmer offering 6 channels, designed to provide versatile control for various lighting applications. It supports input voltage of 12 - 24 V DC and is compatible with resistive loads. This smart LED dimmer is capable of controlling dimming, dim-to-warm, tunable white, RGB, RGBW, RGBA, and RGBTW.
With an efficiency rate of over 95%, the DLP1224-6CV-DMX ensures minimal energy loss, offering a smooth dimming experience from full brightness to complete off (Dim to Dark). The minimum brightness level is 0.1%.
The dimmer utilizes D-PWM modulation and offers adjustable D-PWM frequencies of 600/1200 Hz, with customizable output curves. It supports both Linear and Exponential variants for DMX control, as well as Linear and Logarithmic variants for DALI control. The dimmer is equipped with a soft start and soft stop function, ensuring smooth transitions between brightness levels.
The DLP1224-6CV-DMX operates across an extended temperature range and comes with a 5-year warranty, ensuring long-term reliability and peace of mind for professional lighting applications.
General specifications
- Model: DLP1224-6CV-DMX
- Voltage: 12-24V DC
- Max Output Power: 6x 5A
- Output channels: 6
- Bus: DMX512-A+RDM, DALI
- Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW, RGBA, RGBTW
- D-PWM frequency: 600 / 1200 Hz
- D-PWM resolution: 16-bit
- Adjusting output curve:
- DMX: Linear / Exponential
- DALI: Linear / Logarithmic
- Working temperature range: -40°C - +60°C (-40°F - 140°F)
- Protection Grade: IP10
- Dimensions: 72 x 92 x 62 mm (2.83” x 3.62” x 2.44”)
